Woofer

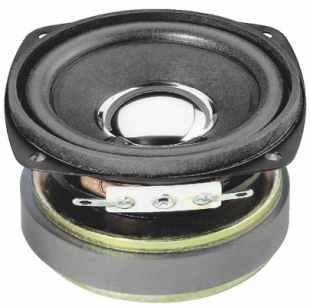

Monacor SP-45/4

Monacor SP-45/4

order no. mo-100680

EUR 25,90 excl. VAT: € 21.76 / $ 23.51

7,8 x 7,8 cm bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 180-16000 Hz
  • resonance frequency fs = 120 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,1 mH
  • effective piston radiating area Sd = 31 cm2
  • effective mechanical mass incl. air load mms = 1,6 g
  • equivalent volume of compliance Vas = 1,5 l
  • total Q factor Qts = 0,55 (Qms=2,82, Qes=0,68)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,75 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 78x78 mm
  • mounting depth (not countersunk) t = 43 mm
  • mass m = 0,45 kg

show kits to this chassis hide kits

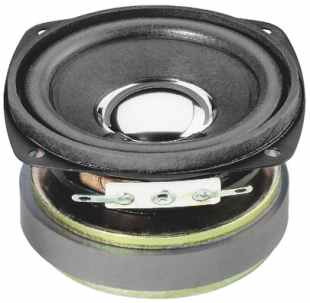

Monacor SP-45/8

Monacor SP-45/8

order no. mo-100690

EUR 25,90 excl. VAT: € 21.76 / $ 23.51

7,8 x 7,8 cm bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 180-16000 Hz
  • resonance frequency fs = 120 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 3,4 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 31 cm2
  • effective mechanical mass incl. air load mms = 1,6 g
  • equivalent volume of compliance Vas = 1,5 l
  • total Q factor Qts = 0,55 (Qms=2,82, Qes=0,68)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,75 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 78x78 mm
  • mounting depth (not countersunk) t = 43 mm
  • mass m = 0,45 kg

show kits to this chassis hide kits

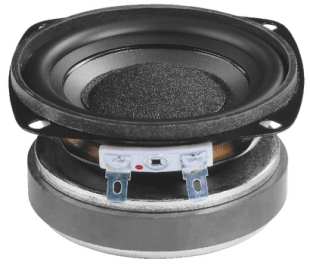

Monacor SPH-75/8

Monacor SPH-75/8

order no. mo-102770

EUR 29,96 excl. VAT: € 25.18 / $ 27.19

7,8 x 7,8 cm bass-midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 15/30 W
  • frequency range = 127-16000 Hz
  • resonance frequency fs = 85 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 3,4 N/A
  • voice coil inductance L = 0,15 mH
  • effective piston radiating area Sd = 32 cm2
  • effective mechanical mass incl. air load mms = 2,7 g
  • equivalent volume of compliance Vas = 1,9 l
  • total Q factor Qts = 0,56 (Qms=3,9, Qes=0,65)
  • voice coil diameter = 20,5 mm
  • maximum peak linear excursion vibration xlin = +/- 0,75 mm
  • mounting diameter d = 72 mm
  • overall diameter d = 78x78 mm
  • mounting depth (not countersunk) t = 42 mm
  • mass m = 0,4 kg

show kits to this chassis hide kits

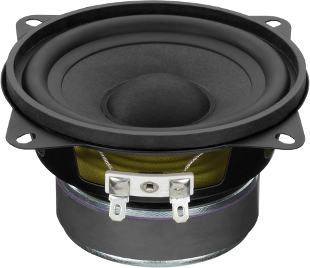

Monacor SPM-100/8

order no. mo-105350

EUR 19,87 excl. VAT: € 16.70 / $ 18.03

9 cm full range driver with high quality cone.

  • power handling (continuous/programme) = 25/50 W
  • frequency range = 80-18000 Hz
  • resonance frequency fs = 75 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 57 cm2
  • effective mechanical mass incl. air load mms = 4,4 g
  • equivalent volume of compliance Vas = 4 l
  • total Q factor Qts = 0,67 (Qms=1,96, Qes=1,01)
  • voice coil diameter = 20,4 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 58 mm
  • mass m = 0,52 kg

show kits to this chassis hide kits

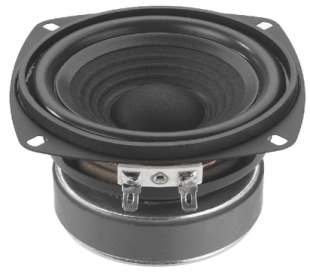

Monacor SP-60/4

Monacor SP-60/4

order no. mo-100730

EUR 30,90 excl. VAT: € 25.97 / $ 28.04

10,5 x 10,5 cm bass-midrange driver with high quality cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 60-8000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 2,9 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4 g
  • equivalent volume of compliance Vas = 6 l
  • total Q factor Qts = 0,49 (Qms=2,1, Qes=0,64)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 96 mm
  • overall diameter d = 105x105 mm
  • mounting depth (not countersunk) t = 60 mm
  • mass m = 0,9 kg

show kits to this chassis hide kits

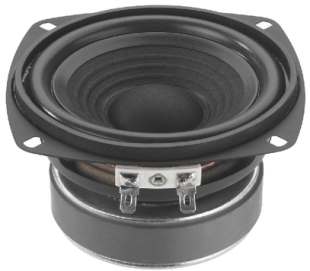

Monacor SP-60/8

Monacor SP-60/8

order no. mo-100740

EUR 23,00 excl. VAT: € 19.33 / $ 20.87

10,5 x 10,5 cm bass driver with high quality cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 100-8000 Hz
  • resonance frequency fs = 65 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 4,1 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4 g
  • equivalent volume of compliance Vas = 6 l
  • total Q factor Qts = 0,49 (Qms=2,1, Qes=0,64)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 96 mm
  • overall diameter d = 105x105 mm
  • mounting depth (not countersunk) t = 60 mm
  • mass m = 0,9 kg

show kits to this chassis hide kits

Monacor SPM-116
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,7 L volume
from 107/67 Hz (-3dB/-8dB)

recommended cabinet 2:
14,7 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 48/42 Hz (-3dB/-8dB).

Monacor SPM-116

order no. mo-105360

EUR 21,85 excl. VAT: € 18.36 / $ 19.83

10 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 80-18000 Hz
  • resonance frequency fs = 75 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 4,2 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 57 cm2
  • effective mechanical mass incl. air load mms = 3,8 g
  • equivalent volume of compliance Vas = 4,5 l
  • total Q factor Qts = 0,57 (Qms=1,9, Qes=0,81)
  • voice coil diameter = 20,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 60 mm
  • mass m = 0,52 kg

show kits to this chassis hide kits

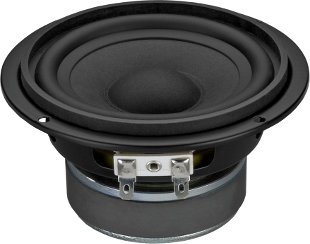

Monacor SPM-116/8
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,4 L volume
from 108/68 Hz (-3dB/-8dB)

recommended cabinet 2:
13,8 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 49/42 Hz (-3dB/-8dB).

Monacor SPM-116/8

order no. mo-105360

EUR 21,85 excl. VAT: € 18.36 / $ 19.83

10 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 75-18000 Hz
  • resonance frequency fs = 75 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 4,2 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 57 cm2
  • effective mechanical mass incl. air load mms = 3,8 g
  • equivalent volume of compliance Vas = 4,5 l
  • total Q factor Qts = 0,57 (Qms=1,9, Qes=0,81)
  • voice coil diameter = 20,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 60 mm
  • mass m = 0,557 kg
PDF data sheet

show kits to this chassis hide kits

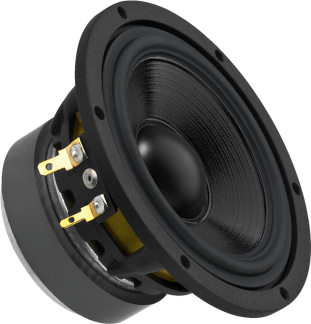

Monacor MSH-115HQ4
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 133/84 Hz (-3dB/-8dB)

recommended cabinet 2:
5,5 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 59/52 Hz (-3dB/-8dB).

Monacor MSH-115HQ4

order no. mo-105810

EUR 85,90 excl. VAT: € 72.18 / $ 77.96

10 cm midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 95-8000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 4,2 N/A
  • voice coil inductance L = 0,25 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 5,3 g
  • equivalent volume of compliance Vas = 1,6 l
  • total Q factor Qts = 0,59 (Qms=3,49, Qes=0,71)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 97 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 64 mm
  • mass m = 0,67 kg
PDF data sheet

show kits to this chassis hide kits

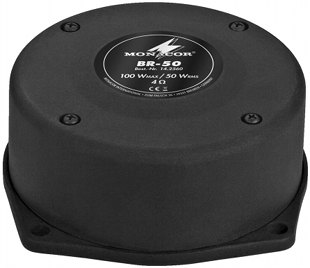

Monacor BR-50

order no. mo-142560

EUR 82,89 excl. VAT: € 69.66 / $ 75.23

bass shaker.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 30-300 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 4 Ohm
  • overall diameter d = 131x131 mm
  • mounting depth (not countersunk) t = 56 mm
  • mass m = 1,3 kg

show kits to this chassis hide kits

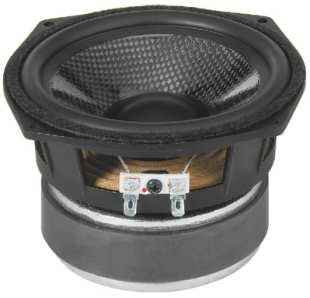

Monacor SPH-135C

Monacor SPH-135C

order no. mo-102310

EUR 132,44 excl. VAT: € 111.29 / $ 120.20

13,3 x 13,3 cm bass-midrange driver with carbon cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 50/80 W
  • frequency range = 50-8000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 33,3 cm2
  • effective mechanical mass incl. air load mms = 12 g
  • equivalent volume of compliance Vas = 17 l
  • total Q factor Qts = 0,39 (Qms=4,48, Qes=0,43)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 133x133 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,5 kg

journal Klang+Ton
02/2003; "Sehr gut gefertigtes Chassis.”

show kits to this chassis hide kits

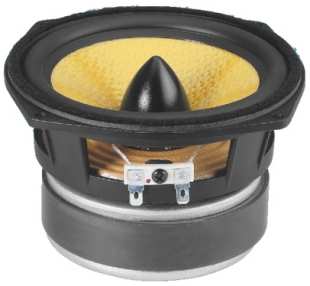

Monacor SPH-135KEP

Monacor SPH-135KEP

order no. mo-102410

EUR 142,06 excl. VAT: € 119.38 / $ 128.93

13,3 x 13,3 cm bass-midrange driver with kevlar cone. The cone is equipped with a phase plug.

  • power handling (continuous/programme) = 50/80 W
  • frequency range = 50-10000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 15,5 l
  • total Q factor Qts = 0,3 (Qms=5,54, Qes=0,32)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,25 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 133x133 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,52 kg

show kits to this chassis hide kits

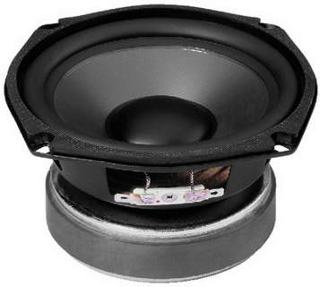

Monacor SPH-135/AD

order no. mo-101850

EUR 75,05 excl. VAT: € 63.07 / $ 68.11

13,5 x 13,5 cm bass-midrange driver with high quality cone.

  • power handling (continuous/programme) = 40/60 W
  • frequency range = 60-6000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 5,0 N/A
  • voice coil inductance L = 0,47 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 7,8 g
  • equivalent volume of compliance Vas = 26 l
  • total Q factor Qts = 0,37 (Qms=3,4, Qes=0,42)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1,75 mm
  • mounting diameter d = 121 mm
  • overall diameter d = 135x135 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 1,1 kg

show kits to this chassis hide kits

Monacor SPH-135TC, 2x8 Ohm

Monacor SPH-135TC, 2x8 Ohm

order no. mo-101430

EUR 71,18 excl. VAT: € 59.82 / $ 64.60

13,8 x 13,8 cm midrange driver with polypropylene cone. The driver is made with a double voice coil and the given impedance values are for connection in series.

  • power handling (continuous/programme) = 2x30/60 W
  • frequency range = 50-6000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 2x7,5/15 Ohm
  • force factor BL = 4,2 N/A
  • voice coil inductance L = 2x0,6 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 8,9 g
  • equivalent volume of compliance Vas = 16 l
  • total Q factor Qts = 0,42 (Qms=3,44, Qes=0,48)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 138x138 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 1,2 kg

journal Klang+Ton
06/2000"... zu dem Preis ein echtes Highlight.”

show kits to this chassis hide kits

Monacor SPH-130

Monacor SPH-130

order no. mo-100870

EUR 72,90 excl. VAT: € 61.26 / $ 66.16

14,5 x 14,5 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 55/80 W
  • frequency range = 40-6000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,4 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 80 cm2
  • effective mechanical mass incl. air load mms = 8,2 g
  • equivalent volume of compliance Vas = 22 l
  • total Q factor Qts = 0,32 (Qms=1,91, Qes=0,39)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 129 mm
  • overall diameter d = 145x145 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 0,75 kg

show kits to this chassis hide kits

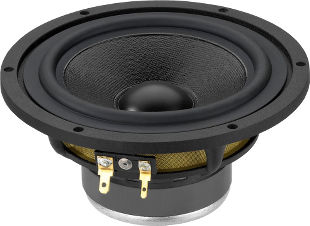

Monacor SPH-145HQ
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,3 L volume
from 95/60 Hz (-3dB/-8dB)

recommended cabinet 2:
13,2 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 46/38 Hz (-3dB/-8dB).

Monacor SPH-145HQ

order no. mo-101420

EUR 95,33 excl. VAT: € 80.11 / $ 86.52

13 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 50-6000 Hz
  • resonance frequency fs = 52 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 5,33 N/A
  • voice coil inductance L = 0,53 mH
  • effective piston radiating area Sd = 80 cm2
  • effective mechanical mass incl. air load mms = 7,6 g
  • equivalent volume of compliance Vas = 9,4 l
  • total Q factor Qts = 0,44 (Qms=3,07, Qes=0,51)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 119 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 0,73 kg

show kits to this chassis hide kits

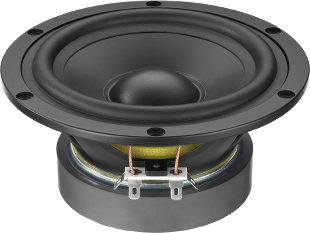

Monacor SPH-5M
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,9 L volume
from 88/56 Hz (-3dB/-8dB)

recommended cabinet 2:
15 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 44/35 Hz (-3dB/-8dB).

Monacor SPH-5M

order no. mo-105530

EUR 64,11 excl. VAT: € 53.87 / $ 58.18

14 cm bass-midrange driver with polypropylene cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 6,42 N/A
  • voice coil inductance L = 0,54 mH
  • effective piston radiating area Sd = 95 cm2
  • effective mechanical mass incl. air load mms = 11,73 g
  • equivalent volume of compliance Vas = 13,47 l
  • total Q factor Qts = 0,4 (Qms=2,89, Qes=0,47)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 121 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,25 kg

show kits to this chassis hide kits

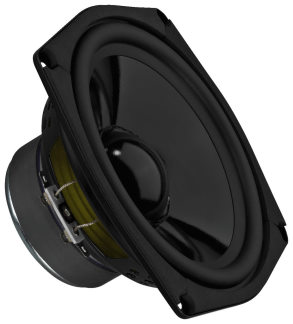

Monacor SPM-165/8
open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 73/46 Hz (-3dB/-8dB)

recommended cabinet 2:
90 L volume bass reflex cabinet
with HP70 reflex tube, 3 cm long.
from 33/29 Hz (-3dB/-8dB).

Monacor SPM-165/8

order no. mo-105340

EUR 33,99 excl. VAT: € 28.56 / $ 30.85

15 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60/150 W
  • frequency range = 49-5000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 10,3 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,54 (Qms=2,7, Qes=0,67)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 159 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 0,97 kg
PDF data sheet

show kits to this chassis hide kits

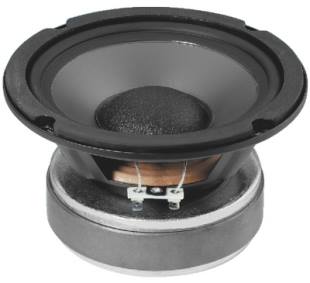

Monacor SPH-165

recommended cabinet 1:
closed cabinet with 2,1 L volume
from 129/82 Hz (-3dB/-8dB)

recommended cabinet 2:
4 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 85/63 Hz (-3dB/-8dB).

Monacor SPH-165

order no. mo-100880

EUR 119,90 excl. VAT: € 100.76 / $ 108.82

15 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 9,7 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 16 g
  • equivalent volume of compliance Vas = 36 l
  • total Q factor Qts = 0,21 (Qms=2,02, Qes=0,23)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 89 mm
  • mass m = 2,32 kg

show kits to this chassis hide kits

Monacor SPH-165KEP

recommended cabinet 1:
closed cabinet with 5,6 L volume
from 77/49 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 42/33 Hz (-3dB/-8dB).

Monacor SPH-165KEP

order no. mo-102420

EUR 178,49 excl. VAT: € 149.99 / $ 161.99

15 cm bass-midrange driver with kevlar cone. The cone is equipped with a phase plug.

  • power handling (continuous/programme) = 60/100 W
  • frequency range = 45-7000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 38 l
  • total Q factor Qts = 0,31 (Qms=4,85, Qes=0,33)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 4,75 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 1,71 kg

journal Klang+Ton
01/2001; "Kann uneingeschränkt empfohlen werden.”

Online journal HiFi Selbstbau
2008; "Ein hochwertiger High-Tech-Tief-/Mitteltöner mit ansprechender Optik und hoher Anfassqualität.”

show kits to this chassis hide kits

Monacor SPH-165CP

recommended cabinet 1:
closed cabinet with 5,6 L volume
from 77/49 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 42/33 Hz (-3dB/-8dB).

Monacor SPH-165CP

order no. mo-102330

EUR 212,46 excl. VAT: € 178.54 / $ 192.82

15 cm bass-midrange driver with carbon cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 80/120 W
  • frequency range = 45-6000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 17 g
  • equivalent volume of compliance Vas = 38 l
  • total Q factor Qts = 0,31 (Qms=4,85, Qes=0,33)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,75 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2,5 kg

show kits to this chassis hide kits

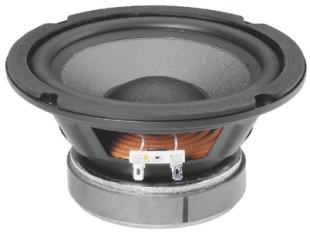

Monacor SPH-170TC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 9,1 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 32/26 Hz (-3dB/-8dB).

Monacor SPH-170TC, 2x8 Ohm

order no. mo-101440

EUR 77,38 excl. VAT: € 65.03 / $ 70.23

15 cm bass-midrange driver with polypropylene cone. The driver is made with a double voice coil and the given impedance values are for connection in series.

  • power handling (continuous/programme) = 2x40/60 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 2x7,5 Ohm
  • force factor BL = 5,2 N/A
  • voice coil inductance L = 2x0,6 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 16 g
  • equivalent volume of compliance Vas = 31 l
  • total Q factor Qts = 0,41 (Qms=2,98, Qes=0,48)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2,25 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 166 mm
  • mounting depth (not countersunk) t = 82 mm
  • mass m = 1,4 kg

journal Klang+Ton
06/2000; "Zu dem Preis ein echter Knüller!”

show kits to this chassis hide kits

Monacor SP-6/100PRO

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 121/76 Hz (-3dB/-8dB)

recommended cabinet 2:
10,2 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 68/52 Hz (-3dB/-8dB).

Monacor SP-6/100PRO

order no. mo-104540

- not available

15 cm bass-midrange driver with carbon cone.

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 50-4500 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,22 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 12,2 g
  • equivalent volume of compliance Vas = 28 l
  • total Q factor Qts = 0,27 (Qms=5,52, Qes=0,29)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 71 mm
  • mass m = 1,4 kg

show kits to this chassis hide kits

Monacor SP-6/108PRO

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 110/69 Hz (-3dB/-8dB)

recommended cabinet 2:
12,7 L volume bass reflex cabinet
with HP70 reflex tube, 22 cm long.
from 59/46 Hz (-3dB/-8dB).

Monacor SP-6/108PRO

order no. mo-100340

- not available

15 cm bass-midrange driver with carbon cone.

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 50-4500 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,74 Ohm
  • force factor BL = 7,46 N/A
  • voice coil inductance L = 0,43 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 13,14 g
  • equivalent volume of compliance Vas = 25,5 l
  • total Q factor Qts = 0,27 (Qms=4,28, Qes=0,35)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 142 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 71 mm
  • mass m = 1,4 kg

show kits to this chassis hide kits

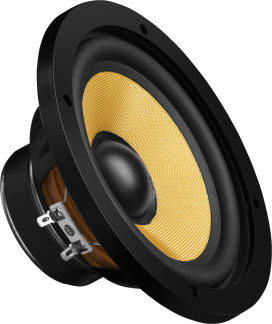

Monacor SPH-174KE
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,5 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
55 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 31/27 Hz (-3dB/-8dB).

Monacor SPH-174KE

order no. mo-105950

EUR 38,89 excl. VAT: € 32.68 / $ 35.30

16 cm bass-midrange driver with kevlar cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 42-8000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,39 Ohm
  • force factor BL = 5,91 N/A
  • voice coil inductance L = 0,43 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 14,23 g
  • equivalent volume of compliance Vas = 26 l
  • total Q factor Qts = 0,51 (Qms=2,59, Qes=0,64)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 168 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 0,78 kg
PDF data sheet

show kits to this chassis hide kits

Monacor SP-167E
open a bigger photo

recommended cabinet 1:
closed cabinet with 6 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with HP70 reflex tube, 8 cm long.
from 56/46 Hz (-3dB/-8dB).

Monacor SP-167E

order no. mo-103970

EUR 47,77 excl. VAT: € 40.14 / $ 43.35

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 70-6000 Hz
  • resonance frequency fs = 62 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,9 Ohm
  • force factor BL = 5,43 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 135 cm2
  • effective mechanical mass incl. air load mms = 9,3 g
  • equivalent volume of compliance Vas = 17,88 l
  • total Q factor Qts = 0,41 (Qms=2,78, Qes=0,48)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 149 mm
  • overall diameter d = 169 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 1,15 kg

show kits to this chassis hide kits

Monacor SP-150

recommended cabinet 1:
closed cabinet with 19 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
79 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 26/22 Hz (-3dB/-8dB).

Monacor SP-150

order no. mo-100320

EUR 59,36 excl. VAT: € 49.88 / $ 53.87

16 cm bass-midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 40-4000 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,45 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 10,4 g
  • equivalent volume of compliance Vas = 35 l
  • total Q factor Qts = 0,5 (Qms=2,83, Qes=0,61)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,2 kg

show kits to this chassis hide kits

Monacor SPH-175HQ
open a bigger photo

recommended cabinet 1:
closed cabinet with 10,3 L volume
from 75/47 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 37/30 Hz (-3dB/-8dB).

Monacor SPH-175HQ

order no. mo-101470

EUR 111,00 excl. VAT: € 93.28 / $ 100.74

16 cm bass-midrange driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 70/120 W
  • frequency range = 50-4000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 6,4 N/A
  • voice coil inductance L = 0,71 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 13,9 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,42 (Qms=2,57, Qes=0,5)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 152 mm
  • overall diameter d = 175 mm
  • mounting depth (not countersunk) t = 79 mm
  • mass m = 1,32 kg

show kits to this chassis hide kits

Monacor SPH-176

recommended cabinet 1:
closed cabinet with 6,1 L volume
from 85/53 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 43/34 Hz (-3dB/-8dB).

Monacor SPH-176

order no. mo-104250

EUR 72,59 excl. VAT: € 61.00 / $ 65.88

16 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 70/120 W
  • frequency range = 58-4500 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 7,7 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 27 l
  • total Q factor Qts = 0,37 (Qms=2,27, Qes=0,44)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 144 mm
  • overall diameter d = 175 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,25 kg

journal Klang+Ton
06/2003; "Der SPH-176 gibt nahezu das Idealbild eines klassischen Tiefmitteltöners.”

Online journal HiFi Selbstbau
2008; "Der SPH-176 hat das Zeug zum modernen Klassiker. Für eine kleine Standbox äußerst praxisgerecht.”

show kits to this chassis hide kits

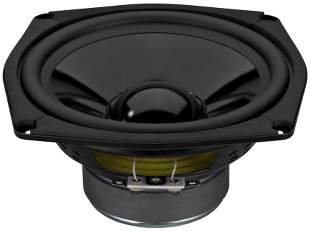

Monacor SPM-165

order no. mo-105340

EUR 33,99 excl. VAT: € 28.56 / $ 30.85

15,9 x 15,9 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60/150 W
  • frequency range = 60-5000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 5,8 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 140 cm2
  • effective mechanical mass incl. air load mms = 10,3 g
  • equivalent volume of compliance Vas = 33 l
  • total Q factor Qts = 0,54 (Qms=2,7, Qes=0,67)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 159x159 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 0,91 kg

show kits to this chassis hide kits

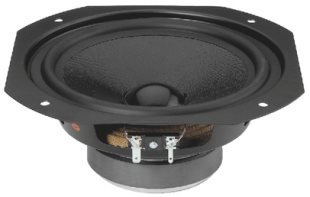

Monacor SPH-175

Monacor SPH-175

order no. mo-101370

EUR 74,93 excl. VAT: € 62.97 / $ 68.00

17,7 x 17,7 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60/100 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 6 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,35 (Qms=1,98, Qes=0,43)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 162 mm
  • overall diameter d = 177x177 mm
  • mounting depth (not countersunk) t = 70 mm
  • mass m = 1,2 kg

show kits to this chassis hide kits

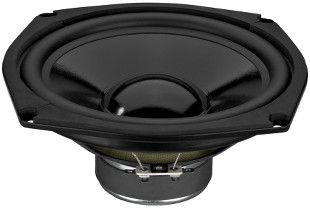

Monacor SPM-205/4

order no. mo-105380

EUR 48,21 excl. VAT: € 40.51 / $ 43.75

20 x 20 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 70/150 W
  • frequency range = 45-5000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 4,75 N/A
  • voice coil inductance L = 0,65 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 18 g
  • equivalent volume of compliance Vas = 72 l
  • total Q factor Qts = 0,54 (Qms=2,71, Qes=0,68)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 200x200 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1 kg

show kits to this chassis hide kits

Monacor SPM-205/8

order no. mo-105390

EUR 47,74 excl. VAT: € 40.12 / $ 43.33

20 x 20 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 70/150 W
  • frequency range = 45-5000 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 6,5 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 22 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,7 (Qms=2,95, Qes=0,92)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 200x200 mm
  • mounting depth (not countersunk) t = 88 mm
  • mass m = 1 kg

show kits to this chassis hide kits

Monacor SPH-6M
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,4 L volume
from 104/65 Hz (-3dB/-8dB)

recommended cabinet 2:
7,1 L volume bass reflex cabinet
with HP50 reflex tube, 24 cm long.
from 57/44 Hz (-3dB/-8dB).

Monacor SPH-6M

order no. mo-105540

EUR 79,55 excl. VAT: € 66.85 / $ 72.20

16 cm bass driver with polypropylene cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,33 Ohm
  • force factor BL = 9,68 N/A
  • voice coil inductance L = 0,82 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 20 g
  • equivalent volume of compliance Vas = 17,6 l
  • total Q factor Qts = 0,3 (Qms=2,26, Qes=0,35)
  • voice coil diameter = 37 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 144 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 92 mm
  • mass m = 1,9 kg

show kits to this chassis hide kits

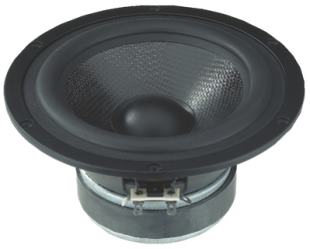

Monacor SPH-170C

recommended cabinet 1:
closed cabinet with 2,4 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
6,1 L volume bass reflex cabinet
with HP50 reflex tube, 22 cm long.
from 68/51 Hz (-3dB/-8dB).

Monacor SPH-170C

order no. mo-104120

EUR 115,85 excl. VAT: € 97.35 / $ 105.14

16 cm bass-midrange driver with carbon cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 57-3500 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 9,44 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 127 cm2
  • effective mechanical mass incl. air load mms = 16,43 g
  • equivalent volume of compliance Vas = 24 l
  • total Q factor Qts = 0,26 (Qms=7,22, Qes=0,27)
  • voice coil diameter = 37 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 2 kg

show kits to this chassis hide kits

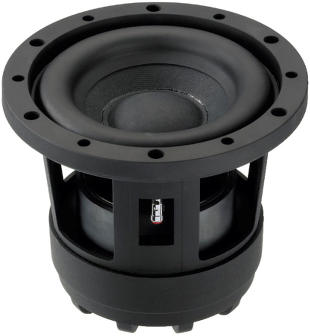

Monacor Raptor-6
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
5,5 L volume bass reflex cabinet
with HP50 reflex tube, 25 cm long.
from 59/47 Hz (-3dB/-8dB).

Monacor Raptor-6

order no. mo-104350

- not available

16 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100/300 W
  • frequency range = 50-800 Hz
  • resonance frequency fs = 53 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 113 cm2
  • effective mechanical mass incl. air load mms = 23 g
  • equivalent volume of compliance Vas = 6,9 l
  • total Q factor Qts = 0,36 (Qms=2,2, Qes=0,43)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 133 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 152 mm
  • mass m = 2,4 kg

show kits to this chassis hide kits

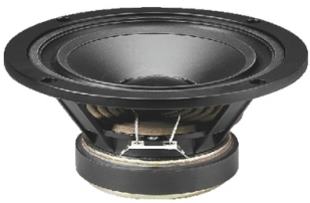

Monacor SPH-170

recommended cabinet 1:
closed cabinet with 14 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
56 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 33/27 Hz (-3dB/-8dB).

Monacor SPH-170

order no. mo-100110

EUR 125,24 excl. VAT: € 105.24 / $ 113.66

17 cm bass-midrange driver with high quality cone. To avoid compression effects the driver possesses a pole piece hole. The basket is made of die-cast. The rubber surround is invers.

  • power handling (continuous/programme) = 50/80 W
  • frequency range = 58-5000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 5,9 N/A
  • voice coil inductance L = 0,45 mH
  • effective piston radiating area Sd = 137 cm2
  • effective mechanical mass incl. air load mms = 12,5 g
  • equivalent volume of compliance Vas = 37 l
  • total Q factor Qts = 0,45 (Qms=2,38, Qes=0,55)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 150 mm
  • overall diameter d = 185 mm
  • mounting depth (not countersunk) t = 80 mm
  • mass m = 1,32 kg

journal Klang+Ton
01/2001; "Dass dieser Lautsprecher so wenig kostet, ist fast nicht zu glauben!”

show kits to this chassis hide kits

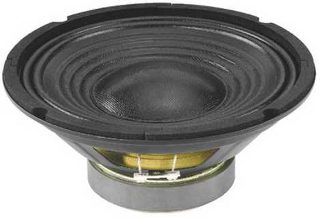

Monacor SP-202PA

order no. mo-103290

EUR 39,70 excl. VAT: € 33.36 / $ 36.03

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 80-4500 Hz
  • resonance frequency fs = 68 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • mounting diameter d = 185 mm
  • overall diameter d = 200 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 1,3 kg

show kits to this chassis hide kits

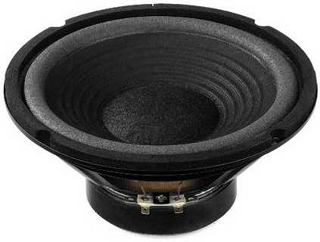

Monacor SP-202E

order no. mo-103980

EUR 50,97 excl. VAT: € 42.83 / $ 46.26

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 76-6000 Hz
  • resonance frequency fs = 51 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3,85 Ohm
  • force factor BL = 4,86 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 15 g
  • equivalent volume of compliance Vas = 39 l
  • total Q factor Qts = 0,69 (Qms=4,5, Qes=0,81)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 202 mm
  • mounting depth (not countersunk) t = 82 mm
  • mass m = 1,25 kg

show kits to this chassis hide kits

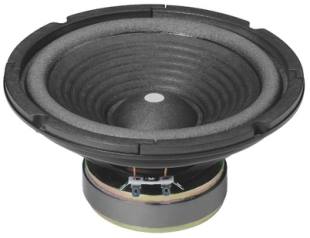

Monacor SP-90

Monacor SP-90

order no. mo-100770

EUR 67,90 excl. VAT: € 57.06 / $ 61.62

19 cm bass driver with paper cone.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 67-8000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • mounting diameter d = 185 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 1,2 kg

show kits to this chassis hide kits

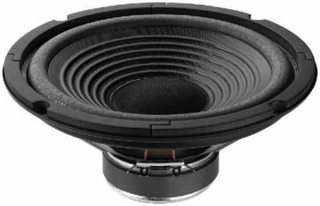

Monacor SPP-200

order no. mo-101080

- not available

19 cm bass-midrange driver with polypropylene cone.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 67-3500 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 4,8 N/A
  • voice coil inductance L = 0,6 mH
  • effective piston radiating area Sd = 214 cm2
  • effective mechanical mass incl. air load mms = 16,7 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 1,01 (Qms=3,96, Qes=1,35)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 1,2 kg

show kits to this chassis hide kits

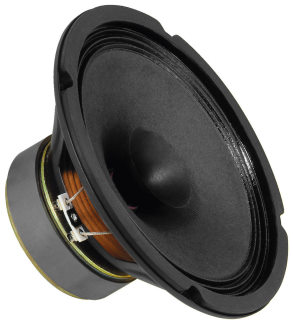

Monacor SP-200X
open a bigger photo

recommended cabinet 1:
closed cabinet with 27 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
109 L volume bass reflex cabinet
with 4x HP100 reflex tube, 37 cm long.
from 37/31 Hz (-3dB/-8dB).

Monacor SP-200X

order no. mo-100400

EUR 99,90 excl. VAT: € 83.95 / $ 90.67

19 cm full range driver with paper cone.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 50-15000 Hz
  • resonance frequency fs = 50 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 6,1 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 11,5 g
  • equivalent volume of compliance Vas = 48 l
  • total Q factor Qts = 0,52 (Qms=1,96, Qes=0,7)
  • voice coil diameter = 25,5 mm
  • maximum peak linear excursion vibration xlin = +/- 1,6 mm
  • mounting diameter d = 188 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 80 mm
  • mass m = 1,35 kg
PDF data sheet

show kits to this chassis hide kits

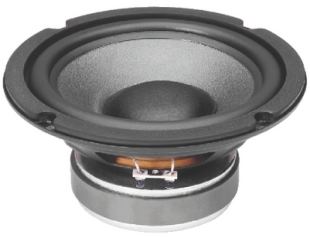

Monacor SPH-200TC, 2x8Ohm

recommended cabinet 1:
closed cabinet with 5 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
11,2 L volume bass reflex cabinet
with HP70 reflex tube, 35 cm long.
from 59/44 Hz (-3dB/-8dB).

Monacor SPH-200TC, 2x8Ohm

order no. mo-101690

EUR 105,06 excl. VAT: € 88.29 / $ 95.35

20 cm bass driver with polypropylene cone. The voice coil is made of kapton.

  • power handling (continuous/programme) = 2x60/100 W
  • frequency range = 33-4000 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 2x6,8 Ohm
  • force factor BL = 8,9 N/A
  • voice coil inductance L = 2x1,0 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 32 g
  • equivalent volume of compliance Vas = 65 l
  • total Q factor Qts = 0,24 (Qms=6,19, Qes=0,25)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 3,75 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 102 mm
  • mass m = 2,6 kg

show kits to this chassis hide kits

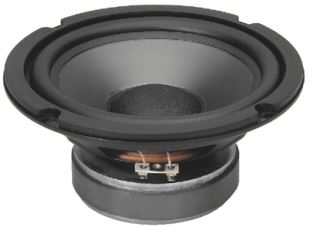

Monacor SPH-210

recommended cabinet 1:
closed cabinet with 6,9 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP70 reflex tube, 26 cm long.
from 56/42 Hz (-3dB/-8dB).

Monacor SPH-210

order no. mo-100890

EUR 139,90 excl. VAT: € 117.56 / $ 126.97

20 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 50/100 W
  • frequency range = 33-4000 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 10,3 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 210 cm2
  • effective mechanical mass incl. air load mms = 24,5 g
  • equivalent volume of compliance Vas = 81 l
  • total Q factor Qts = 0,24 (Qms=2,14, Qes=0,27)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 210 mm
  • mounting depth (not countersunk) t = 99 mm
  • mass m = 2,42 kg

journal Klang+Ton
06/2001; "Es ist immer wieder erstaunlich, wie gut sich die Lautsprecherchassis von MONACOR INTERNATIONAL im Wettbewerb schlagen. Ein echter Preistipp.”

show kits to this chassis hide kits

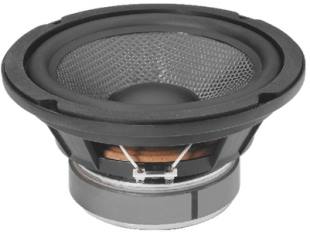

Monacor SPH-200CTC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 4,8 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
9,7 L volume bass reflex cabinet
with HP70 reflex tube, 59 cm long.
from 53/39 Hz (-3dB/-8dB).

Monacor SPH-200CTC, 2x8 Ohm

order no. mo-101810

EUR 146,26 excl. VAT: € 122.91 / $ 132.74

20 cm bass driver with carbon cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 2x60/100 W
  • frequency range = 33-4000 Hz
  • resonance frequency fs = 22 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 2x6,8 Ohm
  • force factor BL = 9 N/A
  • voice coil inductance L = 2x1,0 mH
  • effective piston radiating area Sd = 214 cm2
  • effective mechanical mass incl. air load mms = 45 g
  • equivalent volume of compliance Vas = 75 l
  • total Q factor Qts = 0,22 (Qms=4,91, Qes=0,23)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 3,75 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 211 mm
  • mounting depth (not countersunk) t = 115 mm
  • mass m = 2,8 kg

show kits to this chassis hide kits

Monacor SPH-200KE

recommended cabinet 1:
closed cabinet with 13 L volume
from 59/37 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with HP70 reflex tube, 20 cm long.
from 30/24 Hz (-3dB/-8dB).

Monacor SPH-200KE

order no. mo-102370

EUR 139,00 excl. VAT: € 116.81 / $ 126.15

20 cm bass driver with kevlar cone. The voice coil is made of kapton. The basket is made of die-cast.

  • power handling (continuous/programme) = 80/120 W
  • frequency range = 30-4500 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 9,9 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 207 cm2
  • effective mechanical mass incl. air load mms = 37 g
  • equivalent volume of compliance Vas = 54 l
  • total Q factor Qts = 0,38 (Qms=4,65, Qes=0,41)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,75 mm
  • mounting diameter d = 182 mm
  • overall diameter d = 212 mm
  • mounting depth (not countersunk) t = 100 mm
  • mass m = 2,8 kg

journal Klang+Ton
Klang+Ton 02/2004 "Ein richtiger Klassiker. Trotz seines hohen Dienstalters gehört der SPH-200KE auch heute noch zur ersten Wahl.”

show kits to this chassis hide kits

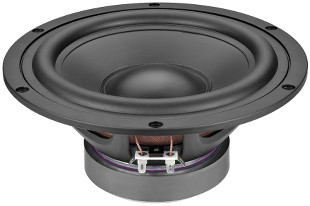

Monacor SPH-8M
open a bigger photo

recommended cabinet 1:
closed cabinet with 12,9 L volume
from 69/43 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with HP100 reflex tube, 31 cm long.
from 34/27 Hz (-3dB/-8dB).

Monacor SPH-8M

order no. mo-101630

EUR 104,55 excl. VAT: € 87.86 / $ 94.89

20 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 40-2500 Hz
  • resonance frequency fs = 35 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 9,01 N/A
  • voice coil inductance L = 0,78 mH
  • effective piston radiating area Sd = 240 cm2
  • effective mechanical mass incl. air load mms = 27 g
  • equivalent volume of compliance Vas = 44 l
  • total Q factor Qts = 0,41 (Qms=2,26, Qes=0,5)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 97 mm
  • mass m = 2,1 kg

show kits to this chassis hide kits

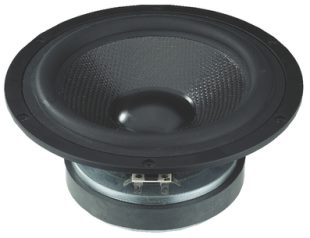

Monacor SPH-225C

recommended cabinet 1:
closed cabinet with 3,1 L volume
from 107/68 Hz (-3dB/-8dB)

recommended cabinet 2:
8,7 L volume bass reflex cabinet
with HP70 reflex tube, 36 cm long.
from 60/46 Hz (-3dB/-8dB).

Monacor SPH-225C

order no. mo-104130

EUR 198,69 excl. VAT: € 166.97 / $ 180.32

20 cm bass driver with carbon cone. The voice coil is made of kapton.

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 13,17 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 201 cm2
  • effective mechanical mass incl. air load mms = 36,6 g
  • equivalent volume of compliance Vas = 24 l
  • total Q factor Qts = 0,29 (Qms=4,94, Qes=0,31)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 102 mm
  • mass m = 3,5 kg

journal Klang+Ton
02/2004"Ein rundum wertiger Eindruck. Sehr nobel auch die schon highendig zu nennende Membran.”

show kits to this chassis hide kits

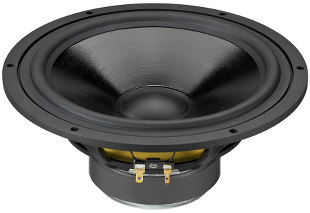

Monacor SPH-220HQ
open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
82 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 30/24 Hz (-3dB/-8dB).

Monacor SPH-220HQ

order no. mo-101580

EUR 138,43 excl. VAT: € 116.33 / $ 125.63

21 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100/180 W
  • frequency range = 30-4000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 7,63 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 232 cm2
  • effective mechanical mass incl. air load mms = 24,7 g
  • equivalent volume of compliance Vas = 80 l
  • total Q factor Qts = 0,4 (Qms=3,06, Qes=0,46)
  • voice coil diameter = 37 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 194 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 94 mm
  • mass m = 1,83 kg

show kits to this chassis hide kits




10 inch woofer

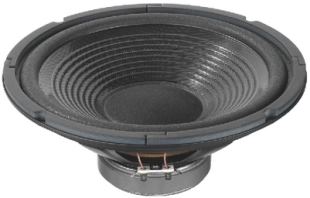

Monacor SPP-250

Monacor SPP-250

order no. mo-101100

- not available

24 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 37/75 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 5,4 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 30 g
  • equivalent volume of compliance Vas = 155 l
  • total Q factor Qts = 0,91 (Qms=3,29, Qes=1,25)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 235 mm
  • overall diameter d = 255 mm
  • mounting depth (not countersunk) t = 110 mm
  • mass m = 1,7 kg

show kits to this chassis hide kits

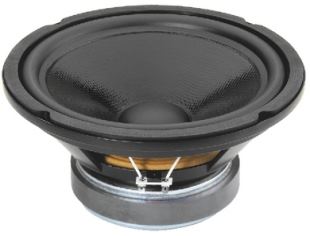

Monacor SPH-250CTC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 19 L volume
from 66/42 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with HP70 reflex tube, 17 cm long.
from 40/30 Hz (-3dB/-8dB).

Monacor SPH-250CTC, 2x8 Ohm

order no. mo-101820

EUR 200,45 excl. VAT: € 168.45 / $ 181.92

24 cm bass driver with high quality cone. The driver is made with a double voice coil and the given impedance values are for connection in series. The basket is made of die-cast.

  • power handling (continuous/programme) = 2x100/150 W
  • frequency range = 30-3500 Hz
  • resonance frequency fs = 20 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 2x6,8 Ohm
  • force factor BL = 9,6 N/A
  • voice coil inductance L = 2x1,0 mH
  • effective piston radiating area Sd = 343 cm2
  • effective mechanical mass incl. air load mms = 70 g
  • equivalent volume of compliance Vas = 220 l
  • total Q factor Qts = 0,25 (Qms=5,12, Qes=0,26)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 229 mm
  • overall diameter d = 256 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 3,8 kg

show kits to this chassis hide kits

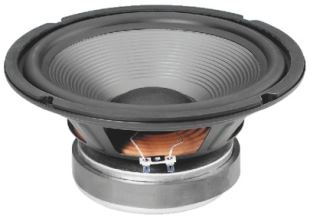

Monacor SPH-250TC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 7,1 L volume
from 86/54 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP70 reflex tube, 29 cm long.
from 52/39 Hz (-3dB/-8dB).

Monacor SPH-250TC, 2x8 Ohm

order no. mo-101450

EUR 135,96 excl. VAT: € 114.25 / $ 123.39

24 cm bass driver with polypropylene cone. The driver is made with a double voice coil and the given impedance values are for connection in series.

  • power handling (continuous/programme) = 2x100/150 W
  • frequency range = 39-3500 Hz
  • resonance frequency fs = 26 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 2x6,8 Ohm
  • force factor BL = 11,1 N/A
  • voice coil inductance L = 2x1,1 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 55 g
  • equivalent volume of compliance Vas = 84 l
  • total Q factor Qts = 0,25 (Qms=3,31, Qes=0,27)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 258 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 4 kg

journal Klang+Ton
01/2001; "Ein echtes Schnäppchen...”, ebenso 01/2007 im Klang+Ton Cheap Trick 228 "Ein universell nutzbarer exzellenter Subwoofer, der für sehr wenig Geld absolut ausreichenden Tiefgang ins Haus holt."

show kits to this chassis hide kits

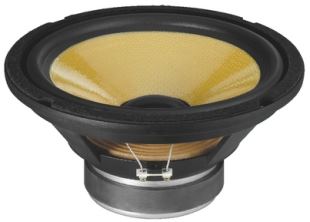

Monacor SPH-250KE

recommended cabinet 1:
closed cabinet with 64 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
246 L volume bass reflex cabinet
with HP100 reflex tube, 11 cm long.
from 22/17 Hz (-3dB/-8dB).

Monacor SPH-250KE

order no. mo-102380

EUR 198,87 excl. VAT: € 167.12 / $ 180.49

24 cm bass driver with kevlare cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 35-3000 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 9,4 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 45 g
  • equivalent volume of compliance Vas = 204 l
  • total Q factor Qts = 0,41 (Qms=5,25, Qes=0,45)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,75 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 258 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 3 kg

show kits to this chassis hide kits

Monacor SP-250P

recommended cabinet 1:
closed cabinet with 20 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
63 L volume bass reflex cabinet
with HP100 reflex tube, 15 cm long.
from 43/33 Hz (-3dB/-8dB).

Monacor SP-250P

order no. mo-100500

EUR 119,90 excl. VAT: € 100.76 / $ 108.82

25 cm bass driver with paper cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 49-4000 Hz
  • resonance frequency fs = 33 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 10,8 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 346 cm2
  • effective mechanical mass incl. air load mms = 33 g
  • equivalent volume of compliance Vas = 115 l
  • total Q factor Qts = 0,33 (Qms=2,33, Qes=0,38)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 233 mm
  • overall diameter d = 265 mm
  • mounting depth (not countersunk) t = 120 mm
  • mass m = 3,9 kg

show kits to this chassis hide kits

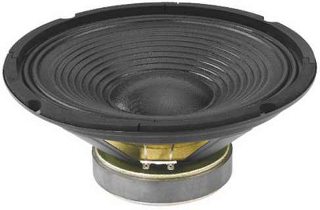

Monacor SP-252PA

order no. mo-103300

EUR 63,47 excl. VAT: € 53.34 / $ 57.60

24 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 75/150 W
  • frequency range = 70-4500 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • mounting diameter d = 232 mm
  • overall diameter d = 255 mm
  • mounting depth (not countersunk) t = 110 mm
  • mass m = 2,0 kg

show kits to this chassis hide kits

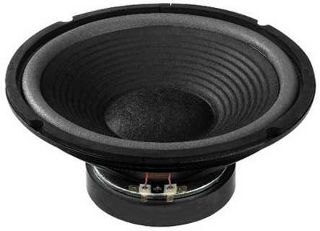

Monacor SP-252E
open a bigger photo

recommended cabinet 1:
closed cabinet with 34 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
138 L volume bass reflex cabinet
with HP100 reflex tube, 8 cm long.
from 30/25 Hz (-3dB/-8dB).

Monacor SP-252E

order no. mo-103990

EUR 61,61 excl. VAT: € 51.77 / $ 55.91

24 cm bass driver with paper cone.

  • power handling (continuous/programme) = 75/150 W
  • frequency range = 50-6000 Hz
  • resonance frequency fs = 42 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 94 dB (2,83V; 1m)
  • DC resistance Re = 3,75 Ohm
  • force factor BL = 8,5 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 353 cm2
  • effective mechanical mass incl. air load mms = 43 g
  • equivalent volume of compliance Vas = 57 l
  • total Q factor Qts = 0,5 (Qms=3,13, Qes=0,6)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 232 mm
  • overall diameter d = 255 mm
  • mounting depth (not countersunk) t = 110 mm
  • mass m = 2,20 kg

show kits to this chassis hide kits

Monacor SPH-255

recommended cabinet 1:
closed cabinet with 17 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
41 L volume bass reflex cabinet
with HP100 reflex tube, 32 cm long.
from 46/34 Hz (-3dB/-8dB).

Monacor SPH-255

order no. mo-100900

EUR 185,00 excl. VAT: € 155.46 / $ 167.90

24 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 35-3000 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 11,7 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 42 g
  • equivalent volume of compliance Vas = 205 l
  • total Q factor Qts = 0,24 (Qms=2,86, Qes=0,26)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 235 mm
  • overall diameter d = 257 mm
  • mounting depth (not countersunk) t = 128 mm
  • mass m = 3,22 kg

show kits to this chassis hide kits




12 inch woofer

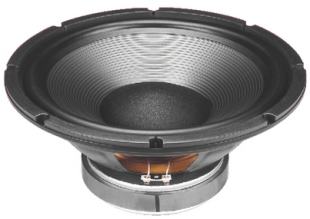

Monacor SPH-300TC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 22 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 49/36 Hz (-3dB/-8dB).

Monacor SPH-300TC, 2x8 Ohm

order no. mo-101460

EUR 143,42 excl. VAT: € 120.52 / $ 130.16

29 cm bass driver with polypropylene cone. The driver is made with a double voice coil and the given impedance values are for connection in series.

  • power handling (continuous/programme) = 2x120/250 W
  • frequency range = 34-2000 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 2x6,3 Ohm
  • force factor BL = 10,3 N/A
  • voice coil inductance L = 2x1,0 mH
  • effective piston radiating area Sd = 495 cm2
  • effective mechanical mass incl. air load mms = 68 g
  • equivalent volume of compliance Vas = 290 l
  • total Q factor Qts = 0,24 (Qms=3,03, Qes=0,26)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 280 mm
  • overall diameter d = 306 mm
  • mounting depth (not countersunk) t = 140 mm
  • mass m = 4 kg

show kits to this chassis hide kits

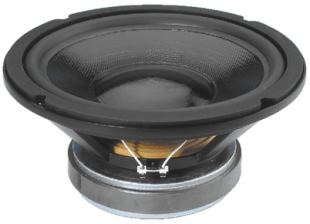

Monacor SPH-300CTC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 11,8 L volume
from 74/47 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP100 reflex tube, 73 cm long.
from 50/37 Hz (-3dB/-8dB).

Monacor SPH-300CTC, 2x8 Ohm

order no. mo-101830

EUR 276,12 excl. VAT: € 232.03 / $ 250.60

29 cm bass driver with high quality cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 2x150/250 W
  • frequency range = 27-2600 Hz
  • resonance frequency fs = 18 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 2x6,0 Ohm
  • force factor BL = 12,1 N/A
  • voice coil inductance L = 2x1,1 mH
  • effective piston radiating area Sd = 495 cm2
  • effective mechanical mass incl. air load mms = 100 g
  • equivalent volume of compliance Vas = 225 l
  • total Q factor Qts = 0,19 (Qms=6,5, Qes=0,2)
  • voice coil diameter = 62 mm
  • maximum peak linear excursion vibration xlin = +/- 5,4 mm
  • mounting diameter d = 272 mm
  • overall diameter d = 308 mm
  • mounting depth (not countersunk) t = 130 mm
  • mass m = 6 kg

show kits to this chassis hide kits

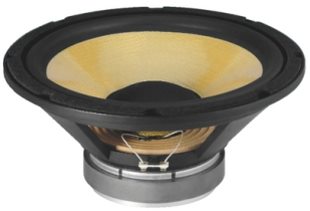

Monacor SPH-300KE

recommended cabinet 1:
closed cabinet with 43 L volume
from 53/34 Hz (-3dB/-8dB)

recommended cabinet 2:
138 L volume bass reflex cabinet
with 2x HP100 reflex tube, 33 cm long.
from 28/22 Hz (-3dB/-8dB).

Monacor SPH-300KE

order no. mo-102390

EUR 237,18 excl. VAT: € 199.31 / $ 215.26

29 cm bass driver with kevlar cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 120/200 W
  • frequency range = 33-2200 Hz
  • resonance frequency fs = 22 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 12,5 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 496 cm2
  • effective mechanical mass incl. air load mms = 65 g
  • equivalent volume of compliance Vas = 250 l
  • total Q factor Qts = 0,33 (Qms=4,15, Qes=0,36)
  • voice coil diameter = 65,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm
  • mounting diameter d = 272 mm
  • overall diameter d = 309 mm
  • mounting depth (not countersunk) t = 130 mm
  • mass m = 5,4 kg

Online journal HiFi Selbstbau
2008; "Wer einen tiefbasspotenten, klirrarmen, gut verarbeiteten, langzeitstabilen Bass sucht, der wird mit ihm seine Freude haben. Garantiert!”

show kits to this chassis hide kits

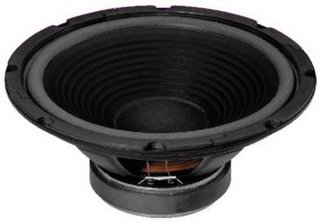

Monacor SP-300P
open a bigger photo

recommended cabinet 1:
closed cabinet with 37 L volume
from 80/50 Hz (-3dB/-8dB)

recommended cabinet 2:
108 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 44/34 Hz (-3dB/-8dB).

Monacor SP-300P

order no. mo-100570

EUR 139,90 excl. VAT: € 117.56 / $ 126.97

29 cm bass driver with paper cone. To avoid compression effects the driver possesses a pole piece hole.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 45-4000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 11,7 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 495 cm2
  • effective mechanical mass incl. air load mms = 42 g
  • equivalent volume of compliance Vas = 266 l
  • total Q factor Qts = 0,31 (Qms=1,74, Qes=0,37)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 275 mm
  • overall diameter d = 305 mm
  • mounting depth (not countersunk) t = 137 mm
  • mass m = 4,1 kg

show kits to this chassis hide kits

Monacor SP-302e

Monacor SP-302e

order no. mo-104000

EUR 72,45 excl. VAT: € 60.88 / $ 65.75

29 cm bass driver with paper cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 40-5500 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 6,63 N/A
  • voice coil inductance L = 1,1 mH
  • effective piston radiating area Sd = 518 cm2
  • effective mechanical mass incl. air load mms = 40 g
  • equivalent volume of compliance Vas = 141 l
  • total Q factor Qts = 0,72 (Qms=4,24, Qes=0,87)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 281 mm
  • overall diameter d = 304 mm
  • mounting depth (not countersunk) t = 118 mm
  • mass m = 2,37 kg

show kits to this chassis hide kits

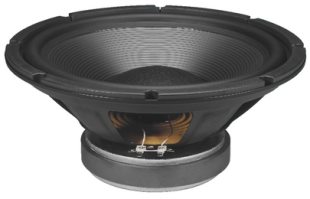

Monacor SPH-315

recommended cabinet 1:
closed cabinet with 26 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
57 L volume bass reflex cabinet
with HP100 reflex tube, 21 cm long.
from 47/35 Hz (-3dB/-8dB).

Monacor SPH-315

order no. mo-100910

EUR 189,00 excl. VAT: € 158.82 / $ 171.53

29 cm bass driver with polypropylene cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 33-2000 Hz
  • resonance frequency fs = 22 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 13,4 N/A
  • voice coil inductance L = 1,5 mH
  • effective piston radiating area Sd = 510 cm2
  • effective mechanical mass incl. air load mms = 55 g
  • equivalent volume of compliance Vas = 330 l
  • total Q factor Qts = 0,23 (Qms=2,4, Qes=0,26)
  • voice coil diameter = 50 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 278 mm
  • overall diameter d = 305 mm
  • mounting depth (not countersunk) t = 136 mm
  • mass m = 4,2 kg

journal Klang+Ton
01/2002; "Der empfehlenswerte und preisgünstige Spezialist für kompakte Standboxen.”

show kits to this chassis hide kits




15 inch woofer

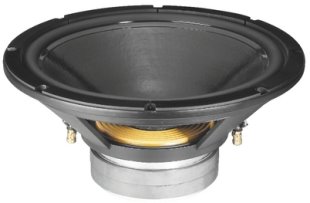

Monacor SPH-380TC, 2x4 Ohm

recommended cabinet 1:
closed cabinet with 32 L volume
from 61/39 Hz (-3dB/-8dB)

recommended cabinet 2:
89 L volume bass reflex cabinet
with 2x HP100 reflex tube, 41 cm long.
from 35/26 Hz (-3dB/-8dB).

Monacor SPH-380TC, 2x4 Ohm

order no. mo-103260

EUR 469,06 excl. VAT: € 394.17 / $ 425.70

38 cm bass driver with high quality cone. The driver is made with a double voice coil and the given impedance values are for connection in series.

  • power handling (continuous/programme) = 2x250/400 W
  • frequency range = 32-800 Hz
  • resonance frequency fs = 21,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 25 N/A
  • voice coil inductance L = 4,4 mH
  • effective piston radiating area Sd = 845 cm2
  • effective mechanical mass incl. air load mms = 199,5 g
  • equivalent volume of compliance Vas = 275 l
  • total Q factor Qts = 0,28 (Qms=2,81, Qes=0,31)
  • voice coil diameter = 75,5 mm
  • maximum peak linear excursion vibration xlin = +/- 11,1 mm
  • mounting diameter d = 356 mm
  • overall diameter d = 402 mm
  • mounting depth (not countersunk) t = 180 mm
  • mass m = 11 kg

journal Klang+Ton
01/2001; "Ein tolles Chassis für universelle Tiefbassanwendungen vom Heimkino bis zu kompakten PA-Subwoofern.”

show kits to this chassis hide kits

Monacor SPH-390TC, 2x8 Ohm

recommended cabinet 1:
closed cabinet with 31 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
82 L volume bass reflex cabinet
with 2x HP100 reflex tube, 36 cm long.
from 39/30 Hz (-3dB/-8dB).

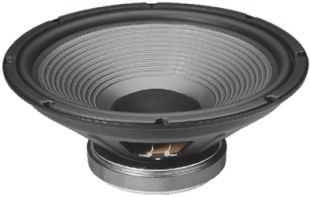

Monacor SPH-390TC, 2x8 Ohm

order no. mo-101520

EUR 256,77 excl. VAT: € 215.77 / $ 233.03

37 cm bass driver with polypropylene cone. The driver is made with a double voice coil and the given impedance values are for connection in series.

  • power handling (continuous/programme) = 2x150/300 W
  • frequency range = 33-1500 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 16,72 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 850 cm2
  • effective mechanical mass incl. air load mms = 160 g
  • equivalent volume of compliance Vas = 284 l
  • total Q factor Qts = 0,28 (Qms=6,36, Qes=0,29)
  • voice coil diameter = 65,5 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 348 mm
  • overall diameter d = 385 mm
  • mounting depth (not countersunk) t = 170 mm
  • mass m = 7,5 kg

show kits to this chassis hide kits




18 inch woofer

Monacor SPH-450TC, 2x4 Ohm

recommended cabinet 1:
closed cabinet with 44 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
108 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 38/28 Hz (-3dB/-8dB).

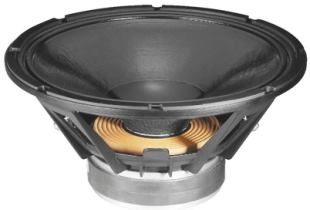

Monacor SPH-450TC, 2x4 Ohm

order no. mo-103270

EUR 742,11 excl. VAT: € 623.62 / $ 673.51

44 cm bass driver with paper cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 2x350/500 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 20 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 7,4 Ohm
  • force factor BL = 32,4 N/A
  • voice coil inductance L = 4,6 mH
  • effective piston radiating area Sd = 1250 cm2
  • effective mechanical mass incl. air load mms = 305 g
  • equivalent volume of compliance Vas = 480 l
  • total Q factor Qts = 0,25 (Qms=2,97, Qes=0,27)
  • voice coil diameter = 99,3 mm
  • maximum peak linear excursion vibration xlin = +/- 12,9 mm
  • mounting diameter d = 425 mm
  • overall diameter d = 460 mm
  • mounting depth (not countersunk) t = 220 mm
  • mass m = 17 kg

show kits to this chassis hide kits




Exciter

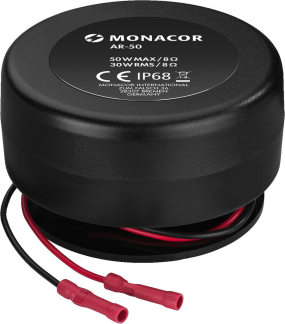

Monacor AR-50

order no. mo-162800

EUR 36,13 excl. VAT: € 30.36 / $ 32.79

.

  • power handling (continuous/programme) = 30/50 W
  • resonance frequency fs = 500 Hz
  • impedance R = 8 Ohm
  • overall diameter d = 90 mm
  • mass m = 0,975 kg
PDF data sheet

show kits to this chassis hide kits

Monacor AR-30

order no. mo-162790

EUR 23,79 excl. VAT: € 19.99 / $ 21.59

.

  • power handling (continuous/programme) = 15/30 W
  • resonance frequency fs = 600 Hz
  • impedance R = 8 Ohm
  • overall diameter d = 80 mm
  • mass m = 0,425 kg
PDF data sheet

show kits to this chassis hide kits

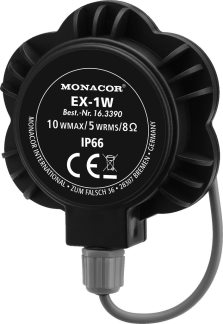

Monacor EX-1W

order no. mo-163390

EUR 55,76 excl. VAT: € 46.86 / $ 50.61

.

  • power handling (continuous/programme) = 5/10 W
  • resonance frequency fs = 1200 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 25 mm
  • overall diameter d = 85x65 mm
  • mounting depth (not countersunk) t = 21 mm
  • mass m = 0,107 kg
PDF data sheet

show kits to this chassis hide kits

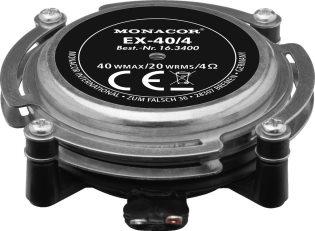

Monacor EX-40/4

order no. mo-163400

EUR 49,77 excl. VAT: € 41.82 / $ 45.17

.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 300-20000 Hz
  • resonance frequency fs = 300 Hz
  • impedance R = 4 Ohm
  • voice coil diameter = 32 mm
  • overall diameter d = 61 mm
  • mounting depth (not countersunk) t = 20 mm
  • mass m = 0,129 kg
PDF data sheet

show kits to this chassis hide kits

Monacor EX-40/8

order no. mo-163410

EUR 49,77 excl. VAT: € 41.82 / $ 45.17

.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 300-20000 Hz
  • resonance frequency fs = 300 Hz
  • impedance R = 8 Ohm
  • voice coil diameter = 32 mm
  • overall diameter d = 61 mm
  • mounting depth (not countersunk) t = 20 mm
  • mass m = 0,129 kg
PDF data sheet

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
