Coaxial speaker

Visaton DX4x6

Visaton DX4x6

order no. V-4615

EUR 27,78 excl. VAT: € 23.34 / $ 25.21

coax driver with high quality cone.

  • power handling (continuous/programme) = 30/50 W
  • frequency range = 65-22000 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • sound pressure level SPL = 86 dB (1W; 1m)
  • voice coil diameter = 20 mm
  • mounting diameter d = 143x87 mm
  • overall diameter d = 153x97,5 mm
  • mounting depth (not countersunk) t = 44 mm
  • mass m = 0,423 kg
PDF data sheet

show kits to this chassis hide kits

Visaton HX10 4 Ohm
open a bigger photo

recommended cabinet 1:
closed cabinet with 3 L volume
from 109/69 Hz (-3dB/-8dB)

recommended cabinet 2:
12,3 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 50/42 Hz (-3dB/-8dB).

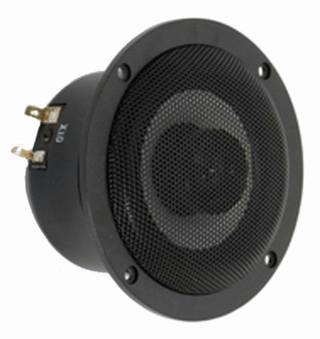

Visaton HX10 4 Ohm

order no. V-4560

EUR 109,90 excl. VAT: € 92.35 / $ 99.74

11 cm coax driver with aluminium cone.

  • power handling (continuous/programme) = 40/60 W
  • frequency range = -20000 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • voice coil inductance L = 4,3 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,3 g
  • equivalent volume of compliance Vas = 5,1 l
  • total Q factor Qts = 0,5 (Qms=2,87, Qes=0,61)
  • voice coil diameter = 25 mm
  • mounting diameter d = 101 mm
  • overall diameter d = 126 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 0,52 kg

show kits to this chassis hide kits

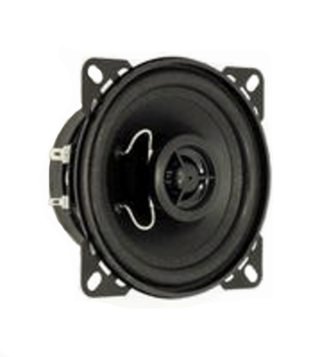

Visaton PX10 4 Ohm

order no. V-4600

EUR 16,45 excl. VAT: € 13.82 / $ 14.93

coax driver with polypropylene cone.

  • power handling (continuous/programme) = 20/30 W
  • frequency range = 70-18000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 128 mm
  • mounting depth (not countersunk) t = 53 mm
  • mass m = 0,385 kg

show kits to this chassis hide kits

Visaton DX10

Visaton DX10

order no. V-4610

EUR 68,54 excl. VAT: € 57.60 / $ 62.20

9 cm coax driver with polypropylene cone.

  • power handling (continuous/programme) = 50/70 W
  • frequency range = 80-20000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 91 mm
  • overall diameter d = 98 mm
  • mounting depth (not countersunk) t = 39 mm

show kits to this chassis hide kits

Visaton FX10

Visaton FX10

order no. V-4692

EUR 23,11 excl. VAT: € 19.42 / $ 20.97

10 cm coax driver with paper cone.

  • power handling (continuous/programme) = 40/70 W
  • frequency range = 95-22000 Hz
  • resonance frequency fs = 150 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • voice coil diameter = 25 mm
  • mounting diameter d = 95 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 45 mm

show kits to this chassis hide kits

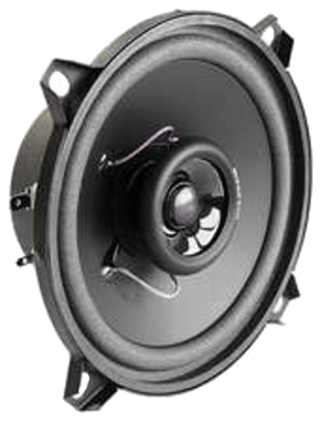

Visaton DX13 4 Ohm

order no. V-4613

EUR 73,93 excl. VAT: € 62.13 / $ 67.10

14 cm coax driver with polypropylene cone.

  • power handling (continuous/programme) = 60/80 W
  • frequency range = 70-20000 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • voice coil inductance L = 0,39 mH
  • effective piston radiating area Sd = 88 cm2
  • total Q factor Qts = 0,95 (Qms=8,51, Qes=1,07)
  • voice coil diameter = `25/14 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 116 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 56 mm
  • mass m = 0,69 kg

show kits to this chassis hide kits

Visaton FX13 4 Ohm

order no. V-4570

EUR 26,90 excl. VAT: € 22.61 / $ 24.41

14 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 30/50 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 100 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 115 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 0,51 kg

show kits to this chassis hide kits

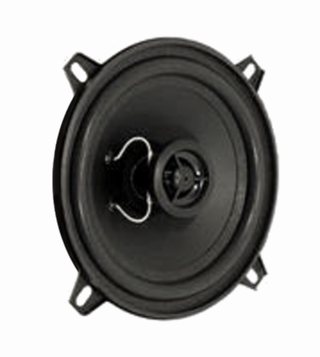

Visaton PX13 4 Ohm

order no. V-4603

EUR 24,80 excl. VAT: € 20.84 / $ 22.51

14 cm coax driver with polypropylene cone.

  • power handling (continuous/programme) = 20/30 W
  • frequency range = 60-15000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 116 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 53 mm
  • mass m = 0,48 kg

show kits to this chassis hide kits

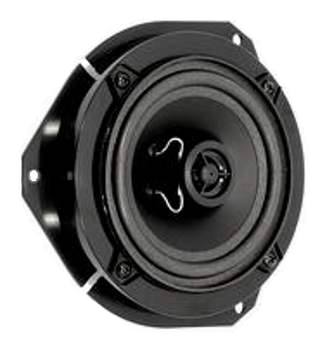

Visaton PX13B 4 Ohm

order no. V-4605

EUR 28,36 excl. VAT: € 23.83 / $ 25.74

16 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 20/40 W
  • frequency range = 60-15000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • overall diameter d = 183 mm
  • mounting depth (not countersunk) t = 51 mm
  • mass m = 0,53 kg

show kits to this chassis hide kits


Visaton FX16WP 4 Ohm

order no. V-2146

EUR 109,10 excl. VAT: € 91.68 / $ 99.02

15 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 40/60 W

show kits to this chassis hide kits

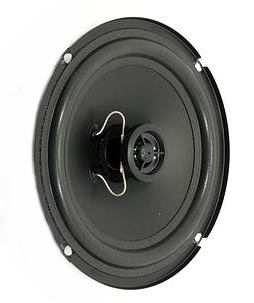

Visaton FX16 4Ohm

Visaton FX16 4Ohm

order no. V-4572

EUR 31,17 excl. VAT: € 26.19 / $ 28.29

15 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 40/60 W
  • frequency range = 60-20000 Hz
  • resonance frequency fs = 105 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • voice coil diameter = 20 mm
  • mass m = 0,6 kg

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.
