RCM/Alcone Laplace Loudspeaker Kit

→

Dirac XT

Midi

Laplace

Alcone Laplace

Do you prefer slightly more bass than the one coming with Langrange - or do you want a speaker to be somewhat bigger? In this case we recommend the Alcone Laplace. Sized 90 x 24 x 33 cm (HxWxD), this model is made of the same top notch components as the Lagrange. Besides damping fleece (on the left as a mat) we supply the drivers, high quality MKP Audyn or similar capacitors, large coils where they are needed, metal-oxide resistors as well as terminals, flared bass reflex tubes and screws. Laplace, Bild aus Klang+Ton 2/99

Technical Data:

frequency response: 29-30k Hz (-8dB)
power handling (continuous/programme): 80/120 Watt
crossover frequency: 3300 Hz
SPL: 85 dB (1W/1m)
Impedance: 8 Ohm

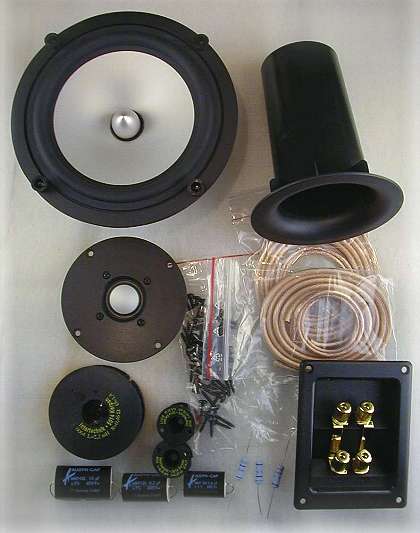

The kit contains:

1 x Alcone AC 1 HAT tweeter, 8 Ohm (now with protection grille)
1 x Alcone AC 6.5 HE mid / bass driver , 8 Ohm (pictured below)
1 x terminal, bi-wiring
1 x bag damping material
1 x crossover - as kit
12 x screws 4 x 20 mm
cable for internal wiring 2x1.5 mm²)
1 x bass reflex tube HP 70
description and building instruction

This is what Klang+Ton, Europe's biggest loudspeaker DIY magazine has got to say in issue 2/99:
"Lagrange, Laplace or Fourier - these three 2 way speakers by Alcone Acoustics cannot deny that they are from the same stable. All have pretty similar sound characteristics, the same distinct timbre and the same incredibly low bass. For those who have trouble in choosing the model that fits the bill, have a go at the Laplace. Dynamics are almost as impressive as with Fourier, however, at a considerably smaller cabinet size. Langrange is even smaller, but has problems in keeping up with two bigger ones regarding dynamics, a speaker for smaller rooms."

Price per unit without cabinet: - not available

Ceramics tweeter have mostly an exaggeration above 10 kHz. If you don't like it, than we offer parts for the crossover to correct this.
price per unit EUR 5,85
