BigBlock, Floorstanding   as in Hobby HiFi 6/2012

Technical data
- impedance: 4 Ohm
- sensivity (2,83V/1m): 81 dB
- size (HxWxD): 1000 x 250 x 310 mm
- frequency range (-8dB): 21 - 30000 Hz
- crossover frequency(s): 1950 Hz
- speaker type: passive radiator

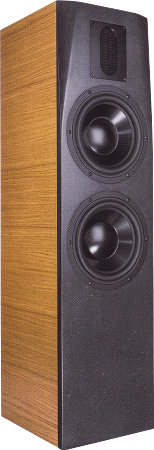

Bernd Timmermanns of journal Hobby HiFi presents Big Block. The kit consists of an Audaphon AMT 1i air motion transformer, certified by Hobby HiFi as a unit at reference level and a woofer Wavecor SW223BD01.

A Wavecor PR223BD01 passive radiator can be seen below the woofer; with his help the floorstander reaches 23 Hz (-3 dB).


The crossover consists of second-order filters.

The frequency response of the speaker-system is perfectly flat. The decay spectrum is without any fault. The most noteworthy fact is that the non-linear distortions remain very small.






Our kit consists of

  • Audaphon air motion transformer AMT-1i
  • Wavecor Subwoofer SW223BD01, die cast, 4 Ohm
  • Wavecor PR223BD01 Passive Radiator, die cast
  • 2,5x Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK28 I, gold plated (per pair, red and black)
  • 3m Speaker cable 2x2.5 mm2, transparent
  • Allen wood screws, black, 5x30 mm, 16 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • ClarityCap SA capacitor 4.7 μF / 630 Vdc
  • 2x ClarityCap SA capacitor 6.8 μF / 630 Vdc
  • Mundorf baked varnish air core coil BL71, 0.27 mH/0.45 Ohm
  • Mundorf baked varnish air core coil BL100, 0.68 mH/0.39 Ohm
  • Mundorf baked varnish air core coil BL140, 1.5 mH/0.38 Ohm
  • Metal-oxide resistor, 5W 1.8 Ohm (brown-grey-gold)
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 6.8 Ohm (blue-grey-gold)

Kit without cabinet, price per speaker EUR 893,00 excl. VAT: € 750.42 / $ 795.45

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit: EUR 8,60 excl. VAT: € 7.23 / $ 7.66
We recommend one board per kit (two boards for a speaker pair)

Kit with high-end crossover


  • ClarityCap MR capacitor 6.8 μF / 630 Vdc
  • ClarityCap SA capacitor 4.7 μF / 630 Vdc
  • ClarityCap SA capacitor 6.8 μF / 630 Vdc
  • Mundorf baked varnish air core coil BL71, 0.27 mH/0.45 Ohm
  • Mundorf copper foil coil CFC14-0.68mH/0.20Ohm
  • Mundorf copper foil coil CFC12-1.5mH/0.21Ohm
  • Metal-oxide resistor, 5W 4.7 Ohm (yellow-violet-gold)
  • MResist Supreme 1.8 Ohm / 20 Watt
  • MResist Supreme 6.8 Ohm / 20 Watt

Kit without cabinet, price per speaker EUR 1073,00 excl. VAT: € 901.68 / $ 955.78

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit: EUR 8,60 excl. VAT: € 7.23 / $ 7.66
We recommend one board per kit (two boards for a speaker pair)

Impedance correction
 If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

  • Audaphon MKT CAP 33 μF / 160 Vdc
  • Audaphon air core coil L7, 0.68 mH/0.70 Ohm
  • Metal-oxide resistor, 10W 15 Ohm (brown-green-black)
  • Metal-oxide resistor, 10W 18 Ohm (brown-grey-black)


Price per impedance correction for one speaker, to be mounted on a small wooden board.   EUR 16,80 excl. VAT: € 14.12 / $ 14.96
