Capriccio   Shelf speaker as in Hobby Hifi 2/2020

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 85 dB
  • size (HxWxD): 400 x 200 x 330 mm
  • frequency range (-8dB): 46 - 40000 Hz
  • crossover frequency(s): 2300 Hz
  • speaker type: bass reflex

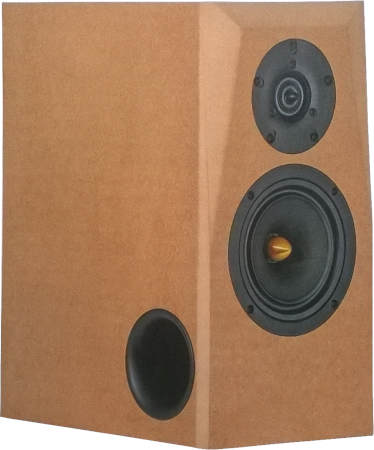

Capriccio is a two way compact speaker.

Capriccio is a bass-reflex cabinet loudspeaker with drivers of Scan Speak and Tang Band.

The kit is delivered with the following drivers:
- a Scan Speak R2604-832000 tweeter
- a Tang Band W5-2106 midrange / bass driver

The loudspeaker has been developed by Bernd Timmermanns.

The crossover consists of:
- a 3rd order high-pass filter (18 dB per octave slope) for the tweeter.
- a 2nd order low-pass filter (12 dB per octave slope) for the mids-woofer.

The frequency response of this speaker is perfectly linear.

The decay spectrum as shown in the waterfall diagram is exemplary, free of any disturbing resonance.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 1% above 200 Hz.

Our kit consists of

  • ScanSpeak ring radiator R2604/832000
  • Tang Band W5-2106
  • Bass reflex tube HP70, 68x160 mm, black
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • 0,5x Damping Sonofil 100 x 35 cm for 20 litres
  • Binding Post PK31, gold plated (one pair, red and black)
  • 2m Speaker cable 2x1.5 mm2, transparent
  • 1,5x Pan screws 4x20 black, torx, 8 pieces
  • Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 1.0 μF / 400 Vdc
  • Audaphon MKP CAP Superior 5.6 μF / 400 Vdc
  • Audaphon MKP CAP Superior 10 μF / 400 Vdc
  • JB, electrolytic capacitor, bipolar advanced, 6.8 μF / 50 Vdc
  • JB, electrolytic capacitor, bipolar advanced, 10 μF / 50 Vdc
  • Mundorf air core coil L140, 1.8 mH/0.43 Ohm
  • 0.7 mm air core coil, 0.27 mH/0.44 Ohm
  • Mundorf ferrite core coil F50 8.2mH/3.14Ohm
  • Metal-oxide resistor, 10W 3.9 Ohm (orange-white-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)

Kit without cabinet, price per speaker   EUR 222,00 excl. VAT: € 186.55 / $ 199.61

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered. The capacitors for the Scan Speak R2604-832000 are of type polypropylen (MKP) Mundorf MCAP EVO oil.

Kit with high-end-crossover without cabinet, price per speaker   EUR 286,00 excl. VAT: € 240.34 / $ 257.16

Impedance correction

If you want to use a valve amplifier with this speaker an impedance correction should be employed. In this case the component quality is less important; therefore, we offer only one kit (upon request higher quality components are available).

Price per impedance correction for one speaker, to be mounted on a small wooden board.     EUR 9,00 excl. VAT: € 7.56 / $ 8.09

universal PCB

If you prefer to mount the crossover components on a 140 x 102 mm universal PCB instead on wood:
Universal PCB RA140, order no.. str-RA140, price per unit:   EUR 4,20 excl. VAT: € 3.53 / $ 3.78
We recommend one board per kit (two boards for a speaker pair)
