Here you can find the measurements for the kit Chara.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

Frequency response

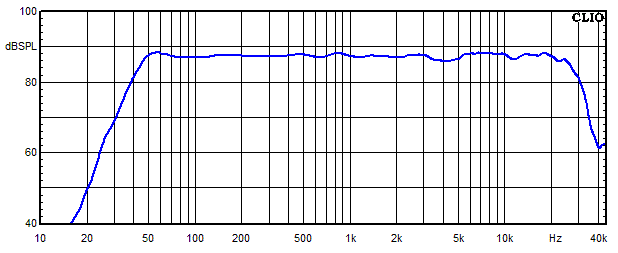

Measurements Chara, Frequency response

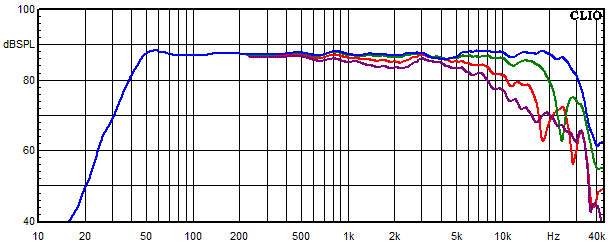

Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements Chara, Frequency response measured at 0, 15, 30 and 45 angle

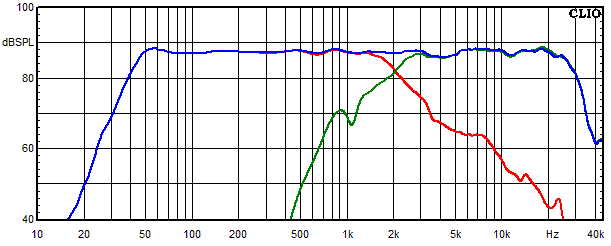

Frequency response of the individual paths (for each driver)

Measurements Chara, Frequency response of the individual paths (for each driver)

Waterfall spectrum

Measurements Chara, Waterfall spectrum



Distortion over frequency at 85 dB sound pressure level

Measurements Chara, Distortion over frequency at 85 dB sound pressure level

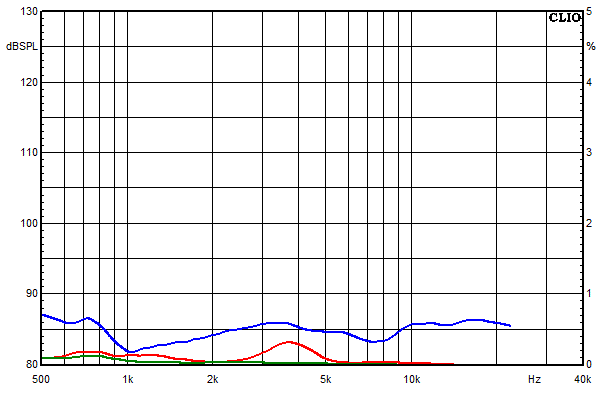

Distortion over frequency at 95 dB sound pressure level

Measurements Chara, Distortion over frequency at 95 dB sound pressure level

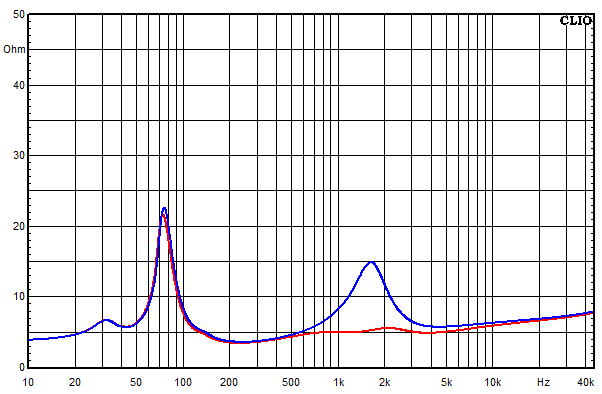

Impedance frequency response

Measurements Chara, Impedance frequency response

Frequency response of the tweeter

Measurements Chara, Frequency response of the tweeter

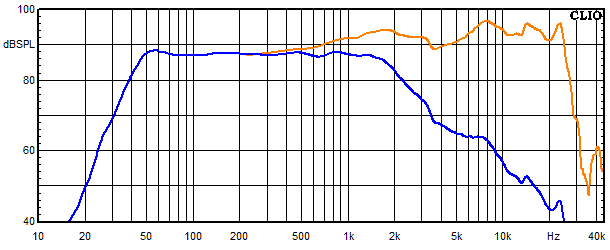

Frequency response of the woofer

Measurements Chara, Frequency response of the woofer
