Here you can find the measurements for the kit Copernicus Top aktiv.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

Frequency response

Measurements Copernicus Top aktiv, Frequency response

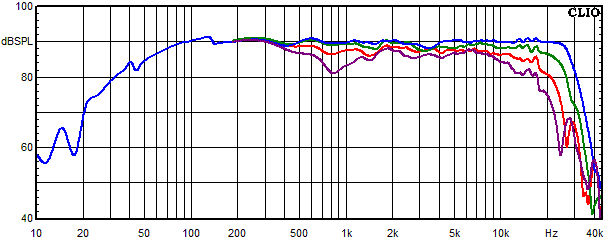

Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements Copernicus Top aktiv, Frequency response measured at 0°, 15°, 30° and 45° angle
  • Blue = 0°
  • Green = 15°
  • Red = 30°
  • Violet = 45°

Frequency response of the individual paths (for each driver)

Measurements Copernicus Top aktiv, Frequency response of the individual paths (for each driver)

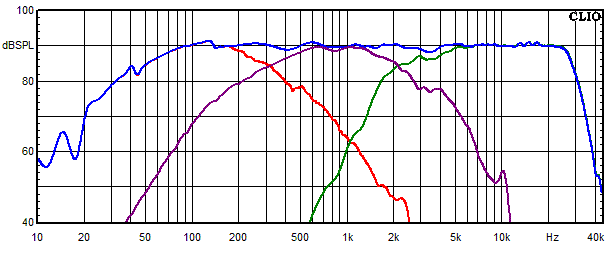

  • Blue = Sum of tweeter and woofer measured on axis
  • Green = high frequency branch
  • Violet = Midtone branch
  • Red = low frequency branch

Waterfall spectrum

Measurements Copernicus Top aktiv, Waterfall spectrum
