CT 299   Shelf speaker as in K+T 5/2018

Technical data
  • impedance: 8 Ohm
  • sensivity (2,83V/1m): 98 dB
  • size (HxWxD): 406 x 406 x 300 mm
  • frequency range (-8dB): 150 - 6500 Hz
  • crossover frequency(s): Hz
  • speaker type: bass reflex

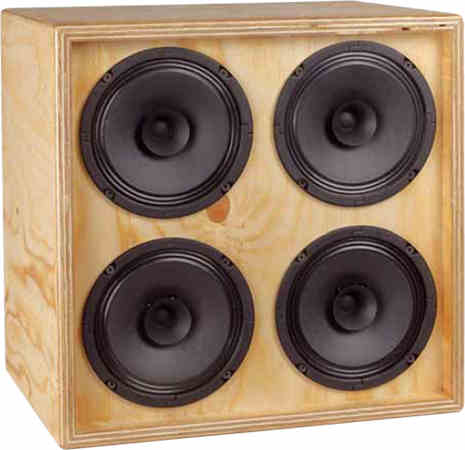

CT 299 is a guitar loudspeaker with four full range drivers.

CT 299 is a bass-reflex cabinet loudspeaker with drivers of Visaton .

The kit is delivered with four Visaton BG 17 8 Ohm full range drivers.

The loudspeaker has been developed by Holger Barske and Thomas Schmidt.

The frequency response of this speaker is nearly linear.

The decay spectrum (waterfall spectrum) shows a decelerated swing-out behaviour in the mid-range.

At low volume, i.e. 95 dB at 1 m, the nonlinear distortions are below 1% above 300 Hz and doesn't exceed 1% at 105 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

  • 4x Visaton BG 17, 8 Ohm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Built-in female jack T-211, mono
  • 4m Speaker cable 2x1.5 mm2, transparent
  • 2x Pan screws 3.5x17 black, 8 pieces
  • Plan for DIY kit

Kit without cabinet, price per speaker   EUR 112,00 excl. VAT: € 94.12 / $ 99.76
