Measurements Elias X1 W152

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

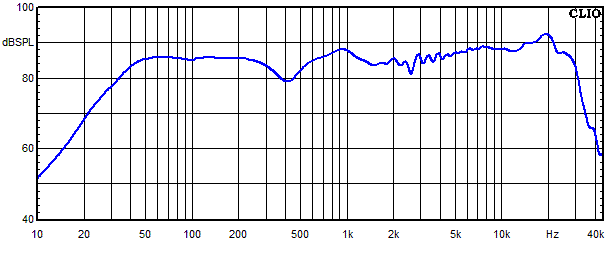

Frequency response

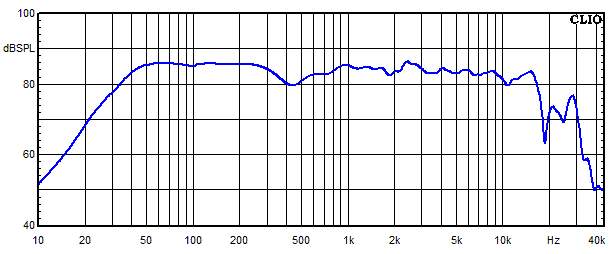

Frequency response 30 degree angle

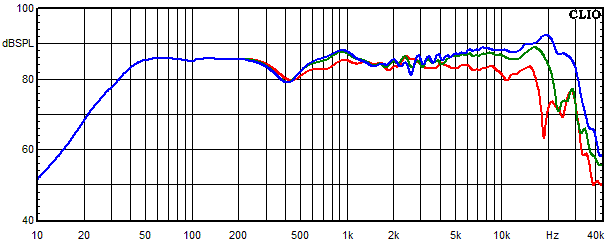

Frequency response measured at 0°, 15° and 30° angle

• Blue = 0°
• Green = 15°
• Red = 30°

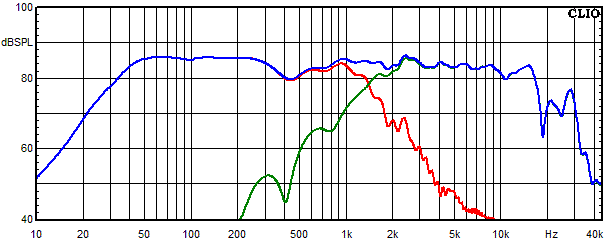

Frequency response of the individual paths (for each driver) 30 degree angle

• Blue = Sum of tweeter and woofer measured on axis
• Green = high frequency branch
• Red = low frequency branch

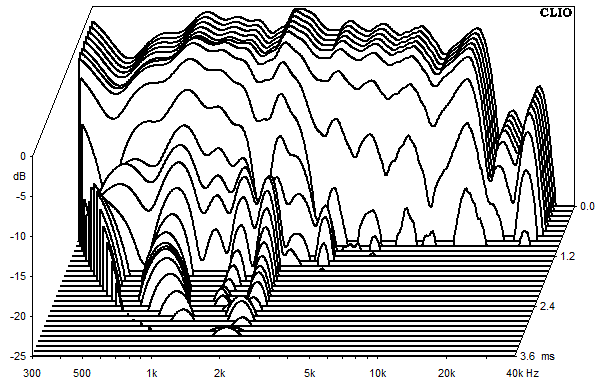

Waterfall spectrum 30 degree angle

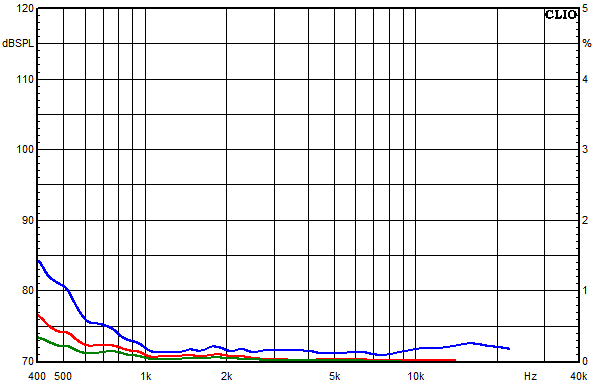

Distortion over frequency at 85 dB sound pressure level

• Blue = k2
• Red = k3
• Green = k5

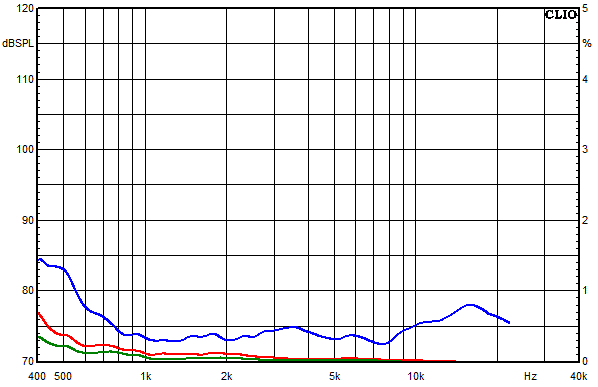

Distortion over frequency at 95 dB sound pressure level

• Blue = k2
• Red = k3
• Green = k5

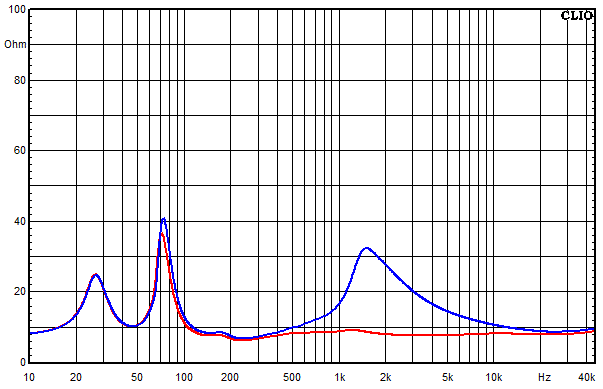

Impedance frequency response

• Blue = without impedance correction
• Red = with impedance correction

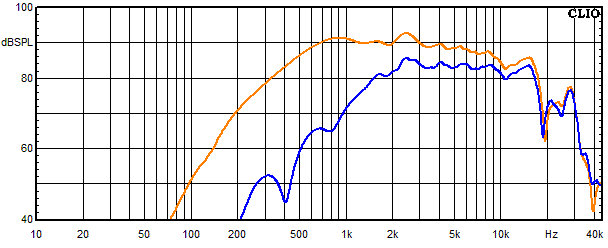

Frequency response of the tweeter 30 degree angle

• Blue = with crossover
• Orange = without crossover

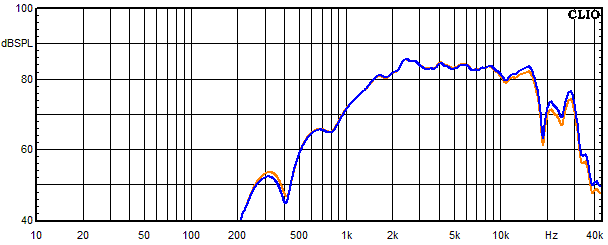

Frequency response of the tweeter with bypass capacitor 30 degree angle

• Blue = with capacitor
• Orange = without capacitor

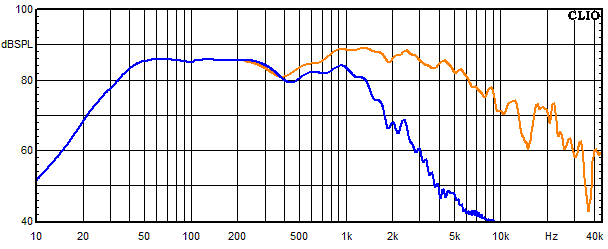

Frequency response of the woofer 30 degree angle

• Blue = with crossover
• Orange = without crossover
