Woofer

FOCAL 5W3211B
open a bigger photo

FOCAL 5W3211B
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,8 L volume
from 104/66 Hz (-3dB/-8dB)

recommended cabinet 2:
9,6 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 54/42 Hz (-3dB/-8dB).

FOCAL 5W3211B

order no. fa-W2832

EUR 172,54 excl. VAT: € 144.99 / $ 162.39

13 cm bass driver with high quality cone. The basket is made of die-cast.

  • resonance frequency fs = 46,62 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,19 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 6,79 N/A
  • voice coil inductance L = 0,57 mH
  • effective piston radiating area Sd = 86,59 cm2
  • effective mechanical mass incl. air load mms = 9,3 g
  • equivalent volume of compliance Vas = 13,2 l
  • total Q factor Qts = 0,36 (Qms=4,23, Qes=0,39)
  • mounting diameter d = 116 mm
  • overall diameter d = 151 mm
  • mounting depth (not countersunk) t = 84,5 mm
  • mass m = 1,6 kg

show kits to this chassis hide kits

FOCAL 11V5552
open a bigger photo

FOCAL 11V5552
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,2 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
58 L volume bass reflex cabinet
with HP100 reflex tube, 30 cm long.
from 29/25 Hz (-3dB/-8dB).

FOCAL 11V5552

order no. fa-X11V5552

EUR 237,85 excl. VAT: € 199.87 / $ 223.86

25 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling.

  • resonance frequency fs = 40,46 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,4 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 11,56 N/A
  • effective piston radiating area Sd = 330,06 cm2
  • effective mechanical mass incl. air load mms = 98,12 g
  • equivalent volume of compliance Vas = 24,13 l
  • total Q factor Qts = 0,5 (Qms=4,44, Qes=0,56)
  • mounting diameter d = 228 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 137 mm
  • mass m = 4,3 kg

show kits to this chassis hide kits

FOCAL 11W7670
open a bigger photo

FOCAL 11W7670
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,8 L volume
from 77/48 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP100 reflex tube, 30 cm long.
from 36/30 Hz (-3dB/-8dB).

FOCAL 11W7670

order no. fa-X11W7670

EUR 437,68 excl. VAT: € 367.80 / $ 411.93

25 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling.

  • resonance frequency fs = 44,59 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,11 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 12,8 N/A
  • effective piston radiating area Sd = 330,06 cm2
  • effective mechanical mass incl. air load mms = 85,09 g
  • equivalent volume of compliance Vas = 22,91 l
  • total Q factor Qts = 0,45 (Qms=7,31, Qes=0,48)
  • mounting diameter d = 228 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 148 mm
  • mass m = 8,1 kg

show kits to this chassis hide kits

FOCAL 13W7653
open a bigger photo

FOCAL 13W7653
open a bigger photo

recommended cabinet 1:
closed cabinet with 9,1 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with HP100 reflex tube, 24 cm long.
from 44/36 Hz (-3dB/-8dB).

FOCAL 13W7653

order no. fa-X13W7653

EUR 583,90 excl. VAT: € 490.67 / $ 549.55

31 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling.

  • resonance frequency fs = 45,99 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90,39 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 18,38 N/A
  • effective piston radiating area Sd = 530,93 cm2
  • effective mechanical mass incl. air load mms = 153,51 g
  • equivalent volume of compliance Vas = 30,89 l
  • total Q factor Qts = 0,39 (Qms=5,61, Qes=0,42)
  • mounting diameter d = 289 mm
  • overall diameter d = 335 mm
  • mounting depth (not countersunk) t = 172 mm
  • mass m = 9,1 kg

show kits to this chassis hide kits




no longer sold




Tweeter

FOCAL TC90 TD5B

order no. fa-W7273

- not available

20 mm tweeter with high quality cone. A double magnet system increases sensitivity and provides better control of the voice coil. It reduces the magnetic stray fields, what is good for A/V applications. The speaker has soldering lugs / faston terminals.

  • power handling (continuous/programme) = 12/75 W
  • resonance frequency fs = 1471,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil inductance L = 0,68 mH
  • effective piston radiating area Sd = 0,1 cm2
  • total Q factor Qts = 1,17 (Qms=4,68, Qes=1,56)
  • voice coil diameter = 20 mm
  • mounting diameter d = 74,8 mm
  • overall diameter d = 91,95 mm
  • mounting depth (not countersunk) t = 43,61 mm
  • mass m = 0,7 kg

show kits to this chassis hide kits

FOCAL TC120 TD5

order no. fa-W7020

- not available

20 mm tweeter with high quality cone. A double magnet system increases sensitivity and provides better control of the voice coil. It reduces the magnetic stray fields, what is good for A/V applications. The speaker has soldering lugs / faston terminals. The speaker has a 5 mm solid metal front plate.

  • power handling (continuous/programme) = 15/150 W
  • resonance frequency fs = 812,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil inductance L = 1,49 mH
  • effective piston radiating area Sd = 0,1 cm2
  • total Q factor Qts = 0,81 (Qms=2,79, Qes=1,15)
  • voice coil diameter = 20 mm
  • mounting diameter d = 99 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 43,61 mm
  • mass m = 1,2 kg

show kits to this chassis hide kits




Mids

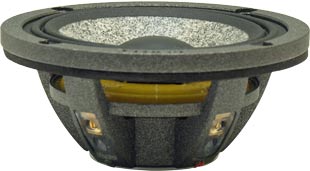

FOCAL 3W 0251

order no. fa-X3W0251

- not available

8 cm midrange driver with high quality cone. The spider is rear ventilated for better cooling. The loudspeaker has terminals for connection.

  • resonance frequency fs = 207,66 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,52 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 3,93 N/A
  • effective piston radiating area Sd = 33,18 cm2
  • effective mechanical mass incl. air load mms = 3,15 g
  • equivalent volume of compliance Vas = 0,29 l
  • total Q factor Qts = 0,81 (Qms=9,65, Qes=0,88)
  • mounting diameter d = 73,5 mm
  • overall diameter d = 88 mm
  • mounting depth (not countersunk) t = 42 mm
  • mass m = 0,186 kg

show kits to this chassis hide kits

FOCAL 6W4361
open a bigger photo

FOCAL 6W4361
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,3 L volume
from 107/68 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP70 reflex tube, 13 cm long.
from 53/43 Hz (-3dB/-8dB).

FOCAL 6W4361

order no. fa-X6W4361

- not available

15 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole.

  • resonance frequency fs = 53,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,27 dB (2,83V; 1m)
  • DC resistance Re = 6,72 Ohm
  • force factor BL = 7,82 N/A
  • effective piston radiating area Sd = 132,73 cm2
  • effective mechanical mass incl. air load mms = 11,41 g
  • equivalent volume of compliance Vas = 19,34 l
  • total Q factor Qts = 0,4 (Qms=6,91, Qes=0,42)
  • mounting diameter d = 143 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,66 kg

show kits to this chassis hide kits

FOCAL 6W4359
open a bigger photo

FOCAL 6W4359
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,5 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP70 reflex tube, 16 cm long.
from 53/42 Hz (-3dB/-8dB).

FOCAL 6W4359

order no. fa-X6W4359

- not available

15 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole.

  • resonance frequency fs = 52,71 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,52 dB (2,83V; 1m)
  • DC resistance Re = 4,16 Ohm
  • force factor BL = 7,01 N/A
  • effective piston radiating area Sd = 136,85 cm2
  • effective mechanical mass incl. air load mms = 14,61 g
  • equivalent volume of compliance Vas = 16,41 l
  • total Q factor Qts = 0,39 (Qms=6,79, Qes=0,41)
  • mounting diameter d = 143,5 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,64 kg

show kits to this chassis hide kits




Woofer

FOCAL 6V3254
open a bigger photo

FOCAL 6V3254
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,3 L volume
from 86/55 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 42/34 Hz (-3dB/-8dB).

FOCAL 6V3254

order no. fa-X6V3254

- not available

16 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling.

  • resonance frequency fs = 45,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 4 Ohm
  • force factor BL = 5,53 N/A
  • effective piston radiating area Sd = 138,93 cm2
  • effective mechanical mass incl. air load mms = 12,68 g
  • equivalent volume of compliance Vas = 26,62 l
  • total Q factor Qts = 0,41 (Qms=3,32, Qes=0,47)
  • mounting diameter d = 144 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 84 mm
  • mass m = 1,35 kg

show kits to this chassis hide kits

FOCAL 6V3255
open a bigger photo

FOCAL 6V3255
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,1 L volume
from 79/50 Hz (-3dB/-8dB)

recommended cabinet 2:
45 L volume bass reflex cabinet
with HP70 reflex tube, 9 cm long.
from 37/31 Hz (-3dB/-8dB).

FOCAL 6V3255

order no. fa-X6V3255

- not available (_)

16 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The diaphragm is varnished with a hydrophabic coat. The spider is rear ventilated for better cooling. The speaker has soldering lugs / faston terminals.

  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,7 dB (2,83V; 1m)
  • DC resistance Re = 6,55 Ohm
  • force factor BL = 6,58 N/A
  • effective piston radiating area Sd = 138,93 cm2
  • effective mechanical mass incl. air load mms = 12,26 g
  • equivalent volume of compliance Vas = 27,66 l
  • total Q factor Qts = 0,46 (Qms=3,91, Qes=0,52)
  • mounting diameter d = 145 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 85 mm
  • mass m = 1,355 kg

show kits to this chassis hide kits

FOCAL 5V3251
open a bigger photo

FOCAL 5V3251
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 145/91 Hz (-3dB/-8dB)

recommended cabinet 2:
3,1 L volume bass reflex cabinet
with HP50 reflex tube, 29 cm long.
from 89/67 Hz (-3dB/-8dB).

FOCAL 5V3251

order no. fa-X5V3251

- not available

14 cm bass driver with high quality cone. The voice coil is ventilated. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling. The speaker has soldering lugs / faston terminals.

  • resonance frequency fs = 42,16 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,03 dB (2,83V; 1m)
  • DC resistance Re = 3,39 Ohm
  • force factor BL = 5,87 N/A
  • effective piston radiating area Sd = 95,03 cm2
  • effective mechanical mass incl. air load mms = 9,96 g
  • equivalent volume of compliance Vas = 18,15 l
  • total Q factor Qts = 0,23 (Qms=1,75, Qes=0,26)
  • mounting diameter d = 122 mm
  • overall diameter d = 151 mm
  • mounting depth (not countersunk) t = 78 mm
  • mass m = 0,956 kg

show kits to this chassis hide kits

FOCAL 8W5456B
open a bigger photo

FOCAL 8W5456B
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,4 L volume
from 81/51 Hz (-3dB/-8dB)

recommended cabinet 2:
51 L volume bass reflex cabinet
with HP100 reflex tube, 19 cm long.
from 40/32 Hz (-3dB/-8dB).

FOCAL 8W5456B

order no. fa-X8W5456B

- not available (_)

20 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling. The speaker has soldering lugs / faston terminals.

  • resonance frequency fs = 41,45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,63 dB (2,83V; 1m)
  • DC resistance Re = 4,05 Ohm
  • force factor BL = 7,39 N/A
  • effective piston radiating area Sd = 221,67 cm2
  • effective mechanical mass incl. air load mms = 22,27 g
  • equivalent volume of compliance Vas = 45,69 l
  • total Q factor Qts = 0,41 (Qms=7,26, Qes=0,43)
  • mounting diameter d = 182 mm
  • overall diameter d = 216 mm
  • mounting depth (not countersunk) t = 123 mm
  • mass m = 3,5 kg

show kits to this chassis hide kits

FOCAL 7V4255
open a bigger photo

FOCAL 7V4255
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,7 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
19 L volume bass reflex cabinet
with HP70 reflex tube, 19 cm long.
from 51/40 Hz (-3dB/-8dB).

FOCAL 7V4255

order no. fa-X7V4255

- not available

18 cm bass driver with high quality cone. The basket is made of die-cast. To avoid compression effects the driver possesses a pole piece hole. The spider is rear ventilated for better cooling. The speaker has soldering lugs / faston terminals.

  • resonance frequency fs = 40,97 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89,79 dB (2,83V; 1m)
  • DC resistance Re = 3,45 Ohm
  • force factor BL = 7 N/A
  • effective piston radiating area Sd = 165,13 cm2
  • effective mechanical mass incl. air load mms = 18,76 g
  • equivalent volume of compliance Vas = 30,81 l
  • total Q factor Qts = 0,33 (Qms=9,69, Qes=0,34)
  • mounting diameter d = 162 mm
  • overall diameter d = 200 mm
  • mounting depth (not countersunk) t = 89 mm
  • mass m = 1,76 kg

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2020 Iris Strassacker; All rights reserved. - errors and omissions excepted
