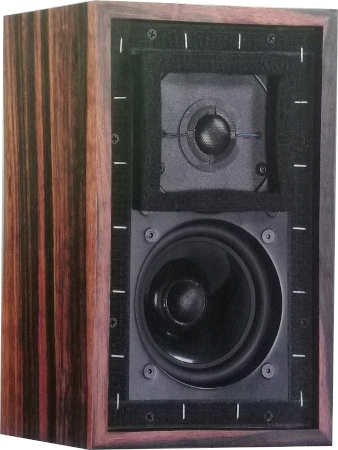

Harwood Acoustics LS3/5A-Replika   Shelf speaker as in Hobby Hifi 6/2020

Technical data
  • impedance: 11 Ohm
  • sensivity (2,83V/1m): 81 dB
  • size (HxWxD): 304 x 190 x 165 mm
  • frequency range (-8dB): 60 - 31000 Hz
  • crossover frequency(s): 3000 Hz
  • speaker type: closed box

Harwood Acoustics LS3/5A-Replika is a two way compact speaker.

Harwood Acoustics LS3/5A-Replika is a closed-cabinet loudspeaker with drivers of Harwood Acoustics .

The kit is delivered with the following drivers:
- a Harwood Acoustics LS 3/5A front with chassis crossover and tweeter
- a Harwood Acoustics LS 3/5A front with chassis crossover and tweeter

The loudspeaker has been developed by H.D. Harwood, M.E. Whatton and R.W. Mills.

The frequency response of this speaker is mostly linear.

The decay spectrum is perfect.

At medium volume, i.e. 90 dB at 1 m, the nonlinear distortions are below 1,2% above 200 Hz.

Our kit consists of

  • Harwood Acoustics Monitor LS 3/5A front with speakers
  • Damping fleece MT Bondum 800 (30 x 50 x 2 cm)
  • 2x Bitumex board 32.5 x 24.5 cm, 4mm
  • 0,5x PE sealing tape, 5x2 mm, 7.5 m
  • Plan for DIY kit

Kit without cabinet, price per speaker   - not available
