CC66: Harwood Monitor 13 by Bernd Timmermanns     as in Hobby HiFi 1/2007

Harwood Monitor aus Hobby HiFi 1/2007
Technical data:
- impedance: 4 Ohm
- rated SPL (2.83V/1m): 85.5 dB
- size (HxWxD): 41 x 18 x 24 cm
- frequency range (-3dB): 50-40 000 Hz
- crossover frequency: 2.5 kHz
- speaker type: bass reflex

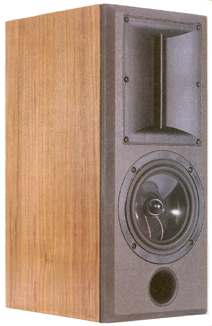

Harwood Monitor 13 is a speaker with Harwood magnetostat and bass driver. The bass reflex design ensures an astonishingly wide frequency range and the kit is excellent value for money.

Excerpt of the Hobby HiFi review:

... "placed solidly, the small Harwood Monitors succeeded in projecting a clear and tight sound, with lots of air and without the commonly displayed super high frequency exaggeration. The vocals' tonal balance and realism were absolutely enthralling. Even the bass by these slim 2 way monitors was tight and clear. The double bass was quite authentic. Just the lowest bass, more guesswork than audible, was somewhat of a compromise. The Harwood Monitor 13 showed an exceptional three-dimensionality with excellent width and depth and precise placement of vocals an instruments. Besides, they handled higher volumes surprisingly well. " ...

Our kit consists of:

- Harwood RT-2 H magnetostat
- Harwood 13 WXP-MG bass driver
- 1/2 bag (=1 mat) polyester fleece
- 2 HP 35 bass reflex tubes
- self adhesive foam strips
- 14 screws PAN 3.5 x 17
- 2 metres cable 2x1.5 mm2
- terminal with gold plated brass binding posts
- building instruction
- the crossover components,
  to be mounted on wood:
- 1.2 mH air core coil with 1.4 mm wire
- 0.33 mH air core coil with 0.7 mm wire
- 0.022 mH air core coil with 0.7 mm wire
- 0.068 mH air core coil with 0.7 mm wire *)
- 15 μF ELCO non-etched
- 3.3 μF MKT capacitor
- 6.8 μF ELCO non-etched
- 47 μF ELCO non-etched *)
- 2x 1.5 Ohm MOX4 resistors (brown-green-gold)
- 5.6 Ohm ceramic resistor, 20W *)

*) These 3 components are for impedance correction; they need to be ordered separately.

Harwood Monitor 13 kit without cabinet
price per speaker - not available

Upon request a 150 x 115 mm universal PCB is available for mounting the crossover components.
Price per PCB EUR 4,70 excl. VAT: € 3.95 / $ 4.31

Our high-end kit

Our high-end version differs from the standard version in the following crossover components:
- a Mundorf 1.2 mH cfc12 copper foil air core coil
- 0.33 mH backed varnish coil with 0.7 mm wire
- 0.022 mH backed varnish coil with 0.7 mm wire
- 15 μF MKP capacitor
- 3.3 μF MKP capacitor Mundorf/400V
- 6.8 μF MKP capacitor Mundorf/400V

Harwood Monitor high-end kit without cabinet
Price per speaker - not available

Upon request a 150 x 115 mm universal PCB is available for mounting the crossover components.
Price per PCB EUR 4,70 excl. VAT: € 3.95 / $ 4.31

Impedance correction for valve amps

Above components with asterisk are needed if you want to use a valve amp.
Price per speaker - not available
