Measurements Isar

Measurements Isar
Here you can find the measurements for the kit Isar.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

Frequency response



Measurements Isar, Frequency response

Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements Isar, Frequency response measured at 0°, 15°, 30° and 45° angle

Frequency response of the individual paths (for each driver)

Measurements Isar, Frequency response of the individual paths (for each driver)

Waterfall spectrum



Measurements Isar, Waterfall spectrum

Distortion over frequency at 85 dB sound pressure level

Measurements Isar, Distortion over frequency at 85 dB sound pressure level

Distortion over frequency at 95 dB sound pressure level

Measurements Isar, Distortion over frequency at 95 dB sound pressure level

Impedance frequency response



Measurements Isar, Impedance frequency response

Frequency response of the tweeter

Measurements Isar, Frequency response of the tweeter

Frequency response of the tweeter with bypass capacitor

Measurements Isar, Frequency response of the tweeter with bypass capacitor

Frequency response of the woofer

Measurements Isar, Frequency response of the woofer

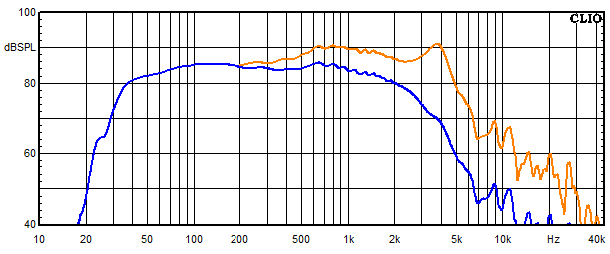

Frequency response of the woofer with trap circuit

Measurements Isar, Frequency response of the woofer with trap circuit
