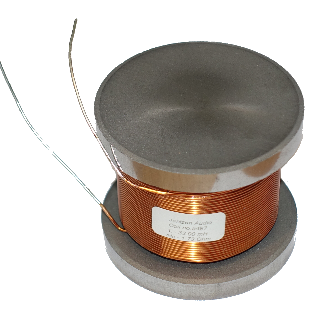

Jantzen H core coil

Jantzen H core coil

All listed coils are made of copper lacquer wire with a purity of > 99.99%. The wire ends are tinned and labelled.

Inductance is measured at 25 degrees Celsius. L denotes inductance, R the DC resistance, D the diameter.

Product ID L/mH R/Ohm Wire-
D/mm
Price
Ja-5273 1.8 0.36 0.8 EUR 5,24 excl. VAT: € 4.40 / $ 4.58
Ja-5429 1.8 0.12 1.6 EUR 18,67 excl. VAT: € 15.69 / $ 16.32
Ja-5033 8.2 0.8 0.8 EUR 8,81 excl. VAT: € 7.40 / $ 7.70
Ja-5329 8.2 0.33 1.4 EUR 26,10 excl. VAT: € 21.93 / $ 22.81
Ja-5387 10 0.39 1.4 EUR 30,91 excl. VAT: € 25.97 / $ 27.01
Ja-5336 22 1.53 0.8 EUR 14,46 excl. VAT: € 12.15 / $ 12.64
Ja-5487 33 1.73 0.8 EUR 22,96 excl. VAT: € 19.29 / $ 20.07
