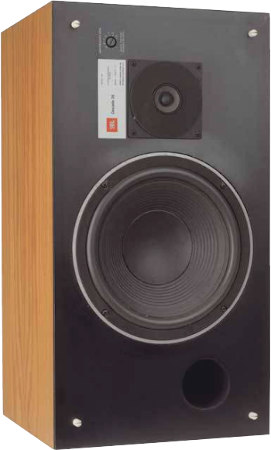

Frequenzweichenbausatz für JBL L-26   Shelf speaker as in K+T 1/2022

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): 88 dB
  • size (HxWxD): 610 x 314 x 337 mm
  • frequency range (-8dB): 45 - 18000 Hz
  • crossover frequency(s): 2500 Hz
  • speaker type: bass reflex

Crossover parts for JBL L-26.

Our kit contains only the crossover parts of the K+T modification for the JBL L-26 speakers.

The loudspeaker has been developed by Thomas Schmidt and JBL.

The frequency response of this speaker is nearly linear.

The decay spectrum is nearly perfect.

At low volume, i.e. 85 dB at 1 m, the nonlinear distortions are below 0,7% above 300 Hz and doesn't exceed 0,7% at 95 dB at 1 m between 300 and 15000 Hz.

Our kit consists of

the crossover components (right),
to be mounted on a small wooden board.

  • Audaphon MKP CAP Superior 8.2 μF / 400 Vdc
  • Audaphon MKP CAP Superior 12 μF / 400 Vdc
  • Audaphon MKT CAP 22 μF / 160 Vdc
  • Mundorf air core coil L140, 1.2 mH/0.33 Ohm
  • 1.0 mm air core coil, 0.22 mH/0.21 Ohm
  • 0.7 mm air core coil, 0.22 mH/0.34 Ohm
  • 0.7 mm air core coil, 0.82 mH/0.89 Ohm
  • Metal-oxide resistor, 10W 1.0 Ohm (brown-black-gold)
  • Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)

Crossover-Kit without drivers and without cabinet, price per speaker   EUR 79,50 excl. VAT: € 66.81 / $ 72.82

Kit with high-end crossover

The high-end kit is delivered with baked varnish air core coils on important parts of the crossover for minimizing microphonic effects. - The current flow through the coil creates a magnetic field which sets the reel of wire in motion. This motion induces a voltage in the coil which adds itself to the signal. The stiffer the reel of wire is, the less the signal will be altered.

  • ClarityCap CSA capacitor 8.2 μF / 250 Vdc
  • Audaphon MKP CAP Superior 12 μF / 400 Vdc
  • Audaphon MKP CAP Superior 22 μF / 400 Vdc
  • Mundorf baked varnish air core coil BL71, 0.22 mH/0.34 Ohm
  • Mundorf baked varnish air core coil BL71, 0.82 mH/0.89 Ohm
  • Mundorf baked varnish air core coil BL100, 0.22 mH/0.21 Ohm
  • Mundorf baked varnish air core coil BL140, 1.2 mH/0.34 Ohm
  • Metal-oxide resistor, 10W 1.0 Ohm (brown-black-gold)
  • Metal-oxide resistor, 10W 2.2 Ohm (red-red-gold)
  • Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
  • Metal-oxide resistor, 10W 8.2 Ohm (grey-red-gold)

Kit with high-end-crossover without cabinet, price per speaker   EUR 112,00 excl. VAT: € 94.12 / $ 102.59

universal PCB

If you prefer to mount the crossover components on a universal PCB instead on wood
PCB 220x155 mm, order no. I-8805002, price per unit:   EUR 11,80 excl. VAT: € 9.92 / $ 10.81
We recommend one board per kit (2 boards per speaker pair)
