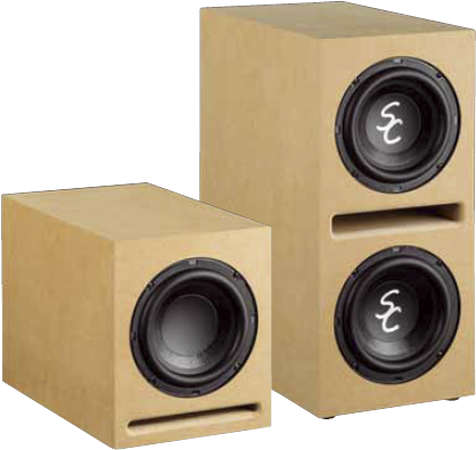

Portokassen Sub SW6.01 Subwoofer as in K+T 3/2015

Technical data

impedance: 4 Ohm
sensivity (2,83V/1m): 85 dB
size (HxWxD): 244 x 204 x 308 mm
frequency range (-8dB): 35 - 150 Hz
crossover frequency(s): Hz
speaker type: bass reflex

Porto-Sub is a compact low cost subwoofer. Blue Planet Acoustic has developed this woofer. The woofer is available with one or with two Tang Band loudspeakers.

The crossover is no tdelivered. So you should choose between active subwoofer amplifiers or a passive crossover for this kit.

Our kit consists of

Omnes Audio SW 6.01
Terminal T105 Au, with brass, gold plated
0,5m Speaker cable 2x1.5 mm2, transparent
0,5x Pan screws 4x20 black, cross recess, 8 pieces
Plan for DIY kit

Kit without cabinet, price per speaker EUR 48,80 excl. VAT: € 41.01 / $ 44.70

Our Twin-kit consists of

2x Omnes Audio SW 6.01
Terminal T105 Au, with brass, gold plated
1m Speaker cable 2x1.5 mm2, transparent
Pan screws 4x20 black, cross recess, 8 pieces
Plan for DIY kit

Kit without cabinet, price per speaker EUR 92,00 excl. VAT: € 77.31 / $ 84.27
