Schneckenhorn Floorstanding as in Hobby HiFi 5/2015

Technical data

impedance: 8 Ohm
sensivity (2,83V/1m): 94 dB
size (HxWxD): 1400 x 440 x 1350 mm
frequency range (-8dB): 45 - 20000 Hz
crossover frequency(s): Hz
speaker type: Horn

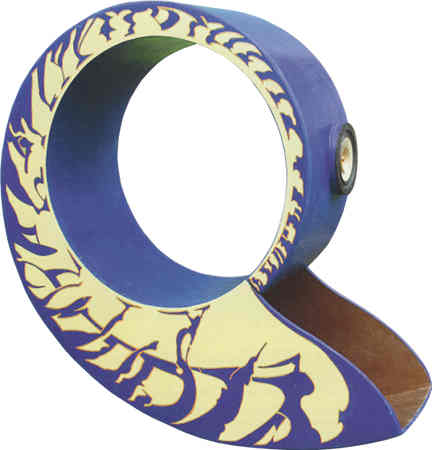

Schneckenhorn is a bis hornspeaker. It was engineered by bernd Timmermanns ans Vincent Small.

Our kit consists of

Tang Band W8-1772 full range
0,5x PE sealing tape, 5x2 mm, 7.5 m
Damping Sonofil 100 x 35 cm for 20 litres
1,5x Audaphon Damping 10, 970 x 470 mm, adhesive
Binding Post PK31, gold plated (one pair, red and black)
3m Speaker cable 2x2.5 mm2, transparent
Pan screws 4x20 black, cross recess, 8 pieces
Plan for DIY kit

the crossover components (right),
to be mounted on a small wooden board.

electrolytic capacitor, unetched, 47uF / 50 Vdc
0.7 mm air core coil, 0.047 mH
Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker EUR 432,00 excl. VAT: € 363.03 / $ 424.74

Kit with medium-end crossover

Jantzen Cross Cap MKP capacitor 47 μF / 400V
Jantzen Cross Cap MKP capacitor 220 μF / 400V
Mundorf baked varnish air core coil BL71, 0.047 mH
Mundorf baked varnish air core coil BL140, 2.2 mH/0.46 Ohm
Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker EUR 564,00 excl. VAT: € 473.95 / $ 554.52

Kit with high-end crossover

Mundorf MCAP EVO 47 μF / 350 V
Mundorf MCAP EVO 220 μF / 250 V
Mundorf copper foil coil CFC12-2.2mH/0.27Ohm
Mundorf baked varnish air core coil BL71, 0.047 mH
Metal-oxide resistor, 10W 4.7 Ohm (yellow-violet-gold)
Metal-oxide resistor, 10W 10 Ohm (brown-black-black)

Kit without cabinet, price per speaker EUR 775,00 excl. VAT: € 651.26 / $ 761.97

universal PCB

If you prefer to mount the crossover components on a 240 x 165 mm universal PCB instead on wood:
Universal PCB RA240, order no.. str-RA240, price per unit: EUR 8,60 excl. VAT: € 7.23 / $ 8.46
We recommend half a board per kit (one board for a speaker pair)
