Here you can find the measurements for the kit WVL One.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

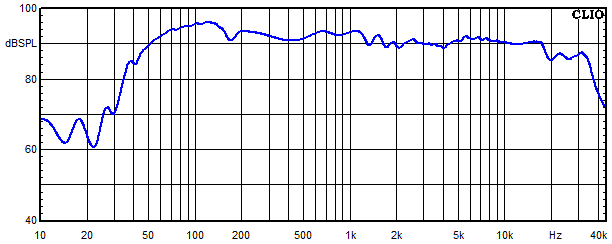

Frequency response

Measurements WVL One, Frequency response

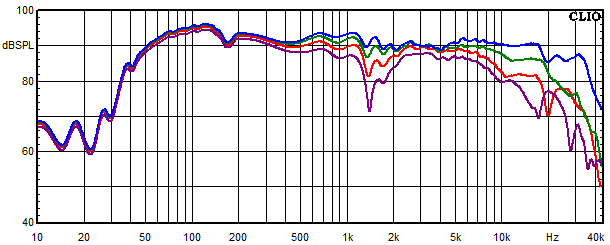

Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements WVL One, Frequency response measured at 0, 15, 30 and 45 angle

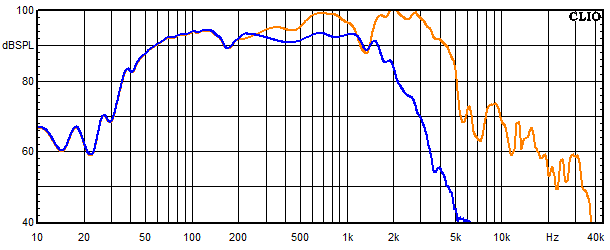

Frequency response of the individual paths (for each driver)

Measurements WVL One, Frequency response of the individual paths (for each driver)

Waterfall spectrum

Measurements WVL One, Waterfall spectrum



Distortion over frequency at 85 dB sound pressure level

Measurements WVL One, Distortion over frequency at 85 dB sound pressure level

Distortion over frequency at 95 dB sound pressure level

Measurements WVL One, Distortion over frequency at 95 dB sound pressure level

Impedance frequency response

Measurements WVL One, Impedance frequency response



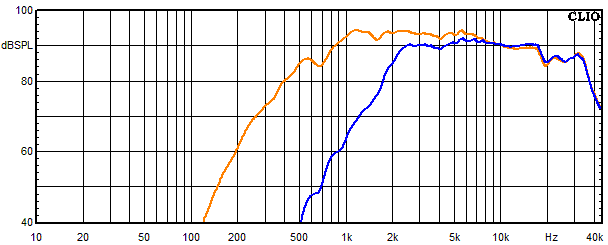

Frequency response of the tweeter

Measurements WVL One, Frequency response of the tweeter

Frequency response of the woofer

Measurements WVL One, Frequency response of the woofer

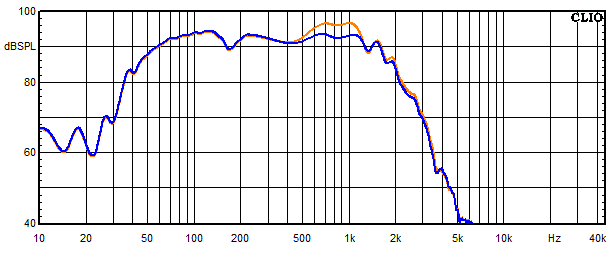

Frequency response of the woofer with trap circuit

Measurements WVL One, Frequency response of the woofer with trap circuit
