Frequency crossovers

BMS SC16 - Passive crossover for BMS4590H 2" coaxial driver 150 W + 80 W 16 ohm
Enlarge
  • Weight: 0,162 kg

price per piece   (Order No ah-BMSC16-16) EUR 47,50 excl. VAT: € 39.92 / $ 44.71


BMS SC16 - Passive crossover for BMS4590L 2" coaxial driver 150 W + 80 W 8 ohm
Enlarge
  • Weigth: 0,162 kg

price per piece   (Order No ah-BMSC16-8) EUR 47,50 excl. VAT: € 39.92 / $ 44.71


Eminence PX23K5 - Crossover 2-Way 3500 Hz
  • Type: 2-way
  • Cabinet Ready: Yes
  • Crossover Frequency: 1600 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Cut out: 3.875 Inch x 6 Inch
  • Weigth: 0,621 kg

price per piece   (Order No ah-EPX23K5) EUR 147,25 excl. VAT: € 123.74 / $ 138.59


Eminence PX23K5 - Crossover Low-Pass 250 Hz
  • Type: Low-Pass
  • Cabinet Ready: Yes
  • Crossover Frequency: 250 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 600 W
  • Mounting cut out: 3.875 Inch x 6 Inch
  • Weigth: 0,854 kg

price per piece   (Order No ah-EPX250) EUR 109,25 excl. VAT: € 91.81 / $ 102.82


Eminence PXB1K6 - Crossover High-Pass 1600 Hz
  • Type: High-Pass
  • Cabinet Ready: No
  • Crossover Frequency: 1,6 kHz
  • Slope: 12dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,25 kg

price per piece   (Order No ah-EPXB1K6) EUR 43,60 excl. VAT: € 36.64 / $ 41.04

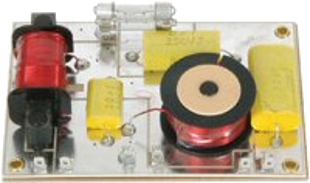

Eminence PXB21K6 - Crossover 2-Way 1600 Hz
  • Type: 2-way
  • Cabinet Ready: No
  • Crossover Frequency: 1600 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,25 kg

price per piece   (Order No ah-EPXB21K6) EUR 80,75 excl. VAT: € 67.86 / $ 76.00


Eminence PXB22K5CX - 2-Weg Weiche 2500 Hz
  • Type: 2-way
  • Cabinet Ready: No
  • Crossover Frequency: 2500 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 250 W
  • Weigth: 0,56 kg

price per piece   (Order No ah-EPXB22K5CX) EUR 56,90 excl. VAT: € 47.82 / $ 53.55


Eminence PXB23K5 - Crossover 2-Way 3500 Hz
  • Type: 2-way
  • Cabinet Ready: No
  • Crossover Frequency: 3500 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,56 kg

price per piece   (Order No ah-EPXB23K5) EUR 47,41 excl. VAT: € 39.84 / $ 44.62


Eminence PXB250 - Crossover Low-Pass 250 Hz
  • Type: Low-Pass
  • Cabinet Ready: No
  • Crossover Frequency: 250 Hz
  • Slope: 12dB/octave
  • Impedance: 8 ohms
  • Power Handling: 600 W
  • Weigth: 0,679 kg

price per piece   (Order No ah-EPXB250) EUR 68,40 excl. VAT: € 57.48 / $ 64.38


Eminence PXB25K0 - Crossover 2-Way 5000 Hz
  • Type: 2-way
  • Cabinet Ready: No
  • Crossover Frequency: 5000 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,49 kg

price per piece   (Order No ah-EPXB25K0) EUR 47,40 excl. VAT: € 39.83 / $ 44.61


Eminence PXB2800 - Crossover 2-Way 800 Hz
  • Type: 2-way
  • Cabinet Ready: No
  • Crossover Frequency: 800 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,474 kg

price per piece   (Order No ah-EPXB2800) EUR 85,40 excl. VAT: € 71.76 / $ 80.38


Eminence PXB31K6 - Crossover 3-Way 500 Hz/1600 Hz
  • Type: 3-way
  • Cabinet Ready: No
  • Crossover Frequency: 500 Hz / 1600 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,771 kg

price per piece   (Order No ah-EPXB31K6) EUR 103,55 excl. VAT: € 87.02 / $ 97.46


Eminence PXB33K5 - Crossover 3-Way 500 Hz/3500 Hz
  • Type: 3-way
  • Cabinet Ready: No
  • Crossover Frequency: 500 Hz / 3500 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,8 kg

price per piece   (Order No ah-EPXB33K5) EUR 99,75 excl. VAT: € 83.82 / $ 93.88


Eminence PXB35K0 - Crossover 3-Way 500 Hz/5000 Hz
  • Type: 3-way
  • Cabinet Ready: No
  • Crossover Frequency: 500 Hz / 5000 Hz
  • Slope: 12 dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,65 kg

price per piece   (Order No ah-EPXB35K0) EUR 94,05 excl. VAT: € 79.03 / $ 88.52


Eminence PXB3K5 - Crossover High-Pass 3500 Hz
  • Type: High-Pass
  • Cabinet Ready: No
  • Crossover Frequency: 3,5 kHz
  • Slope: 12dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,77 kg

price per piece   (Order No ah-EPXB3K5) EUR 38,61 excl. VAT: € 32.45 / $ 36.34


Eminence PXB500 - Crossover Low-Pass 500 Hz
  • Type: Low-Pass
  • Cabinet Ready: No
  • Crossover Frequency: 500 Hz
  • Slope: 12dB/octave
  • Impedance: 8 ohms
  • Power Handling: 600 W
  • Weigth: 0,574 kg

price per piece   (Order No ah-EPXB500) EUR 42,75 excl. VAT: € 35.92 / $ 40.24


Eminence PXB5K0 - Crossover High-Pass 5000 Hz
  • Type: High-Pass
  • Cabinet Ready: No
  • Crossover Frequency: 5 kHz
  • Slope: 12dB/octave
  • Impedance: 8 ohms
  • Power Handling: 400 W
  • Weigth: 0,141 kg

price per piece   (Order No ah-EPXB5K0) EUR 47,40 excl. VAT: € 39.83 / $ 44.61


Link Dynamics crossover 2 way 2500 Hz
  • Separation frequency: 2500 Hz
  • Slope: 12/12 dB
  • Impedance: 8 Ohm
  • Weigth: 0,57 kg
  • Level loss lower than 0,4 dB
  • Seperation frequencies range about +/- 10% the data disclosed
  • Nominal speaker impedance: 8 W
  • Filter curve 12 dB and/or 18 dB, depending on model
  • Maximum continuous output power 300 W RMS
  • Maximum peak output power: 500 W RMS

price per piece   (Order No ah-ldx23) EUR 44,80 excl. VAT: € 37.65 / $ 42.16
