Tweeter

Dayton ND20FA-6

order no. day-nd20fa-6

EUR 30,90 excl. VAT: € 25.97 / $ 31.42

19 mm tweeter with fabric cone.

  • power handling (continuous/programme) = 15 W
  • frequency range = 3500-25000 Hz
  • resonance frequency fs = 2005,0 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 90,0 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • voice coil inductance L = 0,22 mH
  • effective piston radiating area Sd = 2,8 cm2
  • total Q factor Qts = 0,99 (Qms=1,50, Qes=2,88)
  • voice coil diameter = 19 mm
  • mounting diameter d = 33 mm
  • overall diameter d = 45 mm
  • mounting depth (not countersunk) t = 15 mm

show kits to this chassis hide kits


Dayton ND20FB-4

order no. day-nd20fb-4

EUR 19,00 excl. VAT: € 15.97 / $ 19.32

19 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 3500-25000 Hz
  • resonance frequency fs = 1700 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,0 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,22 mH
  • voice coil diameter = 19 mm

show kits to this chassis hide kits


Dayton DC25T-8

order no. day-dc25t-8

EUR 27,10 excl. VAT: € 22.77 / $ 27.56

25 mm dome tweeter with titanium dome.

  • power handling (continuous/programme) = 50 W
  • frequency range = 3000-20000 Hz
  • resonance frequency fs = 1659 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (1W; 1m)
  • DC resistance Re = 7,2 Ohm
  • voice coil inductance L = 0,08 mH
  • effective piston radiating area Sd = 4,9 cm2
  • total Q factor Qts = 0,99 (Qms=1,55, Qes=2,74)
  • voice coil diameter = 25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 99,5 mm
  • mounting depth (not countersunk) t = 27,5 mm

show kits to this chassis hide kits


Dayton RS28A-4

order no. day-rs28a-4

EUR 89,40 excl. VAT: € 75.13 / $ 90.90

28 mm tweeter with aluminium cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 1600-20000 Hz
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,0 dB (2,83V; 1m)
  • DC resistance Re = 3,0 Ohm
  • voice coil diameter = 28 mm
  • mounting diameter d = 81,3 mm
  • overall diameter d = 103,0 mm
  • mounting depth (not countersunk) t = 4,4 mm

show kits to this chassis hide kits

Dayton DC28F-8

Dayton DC28F-8

order no. day-dc28-f8

EUR 28,10 excl. VAT: € 23.61 / $ 28.57

29 mm tweeter with silk cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 2200-20000 Hz
  • resonance frequency fs = 812,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,6 cm2
  • total Q factor Qts = 0,88 (Qms=1,97, Qes=1,6)
  • voice coil diameter = 29 mm
  • mounting diameter d = 78,0 mm
  • overall diameter d = 110,0 mm
  • mounting depth (not countersunk) t = 36,3 mm

show kits to this chassis hide kits

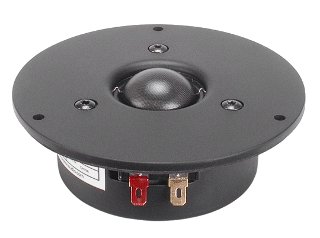

Dayton DC28-FS-8

Dayton DC28-FS-8

order no. day-dc28-fs8

EUR 29,10 excl. VAT: € 24.45 / $ 29.59

29 mm tweeter with silk cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 813 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,6 cm2
  • total Q factor Qts = 0,88 (Qms=1,97, Qes=1,6)
  • voice coil diameter = 29 mm
  • mounting diameter d = 78,0 mm
  • overall diameter d = 110,0 mm
  • mounting depth (not countersunk) t = 32,0 mm

show kits to this chassis hide kits

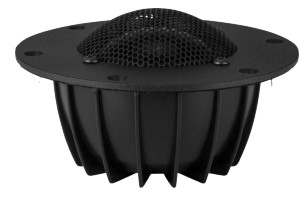

Dayton RS52AN-8

order no. day-rs52an-8

EUR 75,30 excl. VAT: € 63.28 / $ 76.57

51 mm mids dome with aluminium dome.

  • power handling (continuous/programme) = 90 W
  • resonance frequency fs = 382,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,0 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 20,4 cm2
  • total Q factor Qts = 0,77 (Qms=2,55, Qes=1,10)
  • voice coil diameter = 51 mm
  • mounting diameter d = 100 mm
  • overall diameter d = 130 mm
  • mounting depth (not countersunk) t = 74 mm

show kits to this chassis hide kits




Woofer

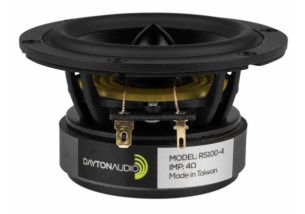

Dayton RS100-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 1 L volume
from 130/82 Hz (-3dB/-8dB)

recommended cabinet 2:
4,2 L volume bass reflex cabinet
with HP35 reflex tube, 11 cm long.
from 60/51 Hz (-3dB/-8dB).

Dayton RS100-4

order no. day-rs100-4

EUR 45,00 excl. VAT: € 37.82 / $ 45.76

9 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 80-20000 Hz
  • resonance frequency fs = 80,2 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84,2 dB (1W; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,22 N/A
  • voice coil inductance L = 0,67 mH
  • effective piston radiating area Sd = 37,4 cm2
  • effective mechanical mass incl. air load mms = 3,9 g
  • equivalent volume of compliance Vas = 2 l
  • total Q factor Qts = 0,48 (Qms=3,1, Qes=0,57)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 77,2 mm
  • overall diameter d = 98 mm
  • mounting depth (not countersunk) t = 51 mm

show kits to this chassis hide kits

Dayton RS100-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,9 L volume
from 126/80 Hz (-3dB/-8dB)

recommended cabinet 2:
7,7 L volume bass reflex cabinet
with HP35 reflex tube, 6 cm long.
from 57/49 Hz (-3dB/-8dB).

Dayton RS100-8

order no. day-rs100-8

EUR 45,10 excl. VAT: € 37.90 / $ 45.86

9 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 87-20000 Hz
  • resonance frequency fs = 87,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,6 dB (1W; 1m)
  • DC resistance Re = 6,05 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 37,4 cm2
  • effective mechanical mass incl. air load mms = 2,6 g
  • equivalent volume of compliance Vas = 2,5 l
  • total Q factor Qts = 0,55 (Qms=2,52, Qes=0,71)
  • voice coil diameter = 25,9 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 77,2 mm
  • overall diameter d = 98 mm
  • mounting depth (not countersunk) t = 51 mm

show kits to this chassis hide kits

Dayton ND105-8

order no. day-nd105-8

EUR 35,00 excl. VAT: € 29.41 / $ 35.59

10 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 60-10000 Hz
  • resonance frequency fs = 65,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83,2 dB (2,83V; 1m)
  • DC resistance Re = 6,7 Ohm
  • force factor BL = 4,9 N/A
  • voice coil inductance L = 1,37 mH
  • effective piston radiating area Sd = 51,5 cm2
  • effective mechanical mass incl. air load mms = 6,3 g
  • equivalent volume of compliance Vas = 3,5 l
  • total Q factor Qts = 0,67 (Qms=7,61, Qes=0,73)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 105 mm
  • mounting depth (not countersunk) t = 67 mm

show kits to this chassis hide kits

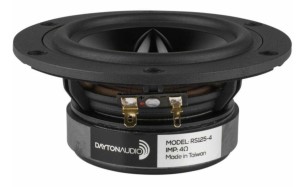

Dayton RS125-4

order no. day-rs125-4

EUR 46,00 excl. VAT: € 38.66 / $ 46.77

11 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 65-4500 Hz
  • resonance frequency fs = 76 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (1W; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 3,35 N/A
  • voice coil inductance L = 0,41 mH
  • effective piston radiating area Sd = 52,8 cm2
  • effective mechanical mass incl. air load mms = 5,93 g
  • equivalent volume of compliance Vas = 2,9 l
  • total Q factor Qts = 0,63 (Qms=3,97, Qes=0,75)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 54,2 mm

show kits to this chassis hide kits

Dayton RS125-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 2 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
8,4 L volume bass reflex cabinet
with HP50 reflex tube, 15 cm long.
from 54/45 Hz (-3dB/-8dB).

Dayton RS125-8

order no. day-rs125-8

EUR 46,90 excl. VAT: € 39.41 / $ 47.69

11 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 35 W
  • frequency range = 65-4500 Hz
  • resonance frequency fs = 70 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,8 dB (1W; 1m)
  • DC resistance Re = 5,86 Ohm
  • force factor BL = 4,8 N/A
  • voice coil inductance L = 0,59 mH
  • effective piston radiating area Sd = 55,4 cm2
  • effective mechanical mass incl. air load mms = 5,3 g
  • equivalent volume of compliance Vas = 4,2 l
  • total Q factor Qts = 0,48 (Qms=2,7, Qes=0,59)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 54,2 mm

show kits to this chassis hide kits

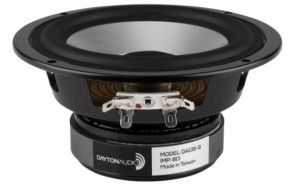

Dayton DA135-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 5,3 L volume
from 83/52 Hz (-3dB/-8dB)

recommended cabinet 2:
21 L volume bass reflex cabinet
with HP50 reflex tube, 10 cm long.
from 38/32 Hz (-3dB/-8dB).

Dayton DA135-8

order no. day-da135-8

EUR 32,10 excl. VAT: € 26.97 / $ 32.64

12 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 50-15000 Hz
  • resonance frequency fs = 56,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (1W; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,32 N/A
  • voice coil inductance L = 0,97 mH
  • effective piston radiating area Sd = 75,4 cm2
  • effective mechanical mass incl. air load mms = 8,54 g
  • equivalent volume of compliance Vas = 7,4 l
  • total Q factor Qts = 0,54 (Qms=2,61, Qes=0,68)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm
  • mounting diameter d = 111,5 mm
  • overall diameter d = 135 mm
  • mounting depth (not countersunk) t = 63,1 mm

show kits to this chassis hide kits

Dayton RS150-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 102/64 Hz (-3dB/-8dB)

recommended cabinet 2:
13,6 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 50/40 Hz (-3dB/-8dB).

Dayton RS150-4

order no. day-rs150-4

EUR 45,20 excl. VAT: € 37.98 / $ 45.96

14 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-3000 Hz
  • resonance frequency fs = 51,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (1W; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 4,05 N/A
  • voice coil inductance L = 0,47 mH
  • effective piston radiating area Sd = 84,9 cm2
  • effective mechanical mass incl. air load mms = 7,82 g
  • equivalent volume of compliance Vas = 12,2 l
  • total Q factor Qts = 0,4 (Qms=2,67, Qes=0,47)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4,4 mm
  • mounting diameter d = 121,5 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 70 mm

show kits to this chassis hide kits

Dayton RS150-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 4,1 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
15 L volume bass reflex cabinet
with HP70 reflex tube, 23 cm long.
from 48/38 Hz (-3dB/-8dB).

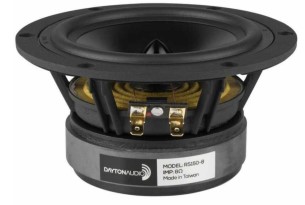

Dayton RS150-8

order no. day-rs150-8

EUR 65,30 excl. VAT: € 54.87 / $ 66.40

14 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 48-4200 Hz
  • resonance frequency fs = 47,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,1 dB (1W; 1m)
  • DC resistance Re = 6,13 Ohm
  • force factor BL = 5,3 N/A
  • voice coil inductance L = 0,59 mH
  • effective piston radiating area Sd = 84,9 cm2
  • effective mechanical mass incl. air load mms = 7,5 g
  • equivalent volume of compliance Vas = 15 l
  • total Q factor Qts = 0,4 (Qms=2,15, Qes=0,49)
  • voice coil diameter = 25,9 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 121,5 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 73,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 4,2 L volume
from 83/52 Hz (-3dB/-8dB)

recommended cabinet 2:
13,5 L volume bass reflex cabinet
with HP50 reflex tube, 19 cm long.
from 44/34 Hz (-3dB/-8dB).

Dayton DC160-8

order no. day-dc160-8

EUR 37,20 excl. VAT: € 31.26 / $ 37.83

15 cm bass driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 30-4000 Hz
  • resonance frequency fs = 34,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (1W; 1m)
  • DC resistance Re = 6,7 Ohm
  • force factor BL = 9,47 N/A
  • voice coil inductance L = 2,34 mH
  • effective piston radiating area Sd = 134,8 cm2
  • effective mechanical mass incl. air load mms = 22,42 g
  • equivalent volume of compliance Vas = 24,5 l
  • total Q factor Qts = 0,33 (Qms=3,47, Qes=0,36)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,4 mm
  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 77,2 mm

show kits to this chassis hide kits

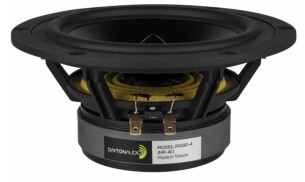

Dayton RS180-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,4 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
59 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 29/24 Hz (-3dB/-8dB).

Dayton RS180-4

order no. day-rs180-4

EUR 78,30 excl. VAT: € 65.80 / $ 79.62

16 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 40-2200 Hz
  • resonance frequency fs = 40,4 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (1W; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 4,26 N/A
  • voice coil inductance L = 0,51 mH
  • effective piston radiating area Sd = 126,7 cm2
  • effective mechanical mass incl. air load mms = 14,32 g
  • equivalent volume of compliance Vas = 24,5 l
  • total Q factor Qts = 0,5 (Qms=2,66, Qes=0,62)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 180,5 mm
  • mounting depth (not countersunk) t = 82 mm

show kits to this chassis hide kits

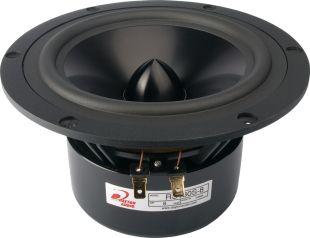

Dayton RS180S-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 8,1 L volume
from 78/49 Hz (-3dB/-8dB)

recommended cabinet 2:
32 L volume bass reflex cabinet
with HP70 reflex tube, 15 cm long.
from 37/31 Hz (-3dB/-8dB).

Dayton RS180S-8

order no. day-rs180s-8

EUR 66,50 excl. VAT: € 55.88 / $ 67.62

16 cm bass-midrange driver with aluminium cone. The driver is magnetically shielded.

  • power handling (continuous/programme) = 60 W
  • frequency range = 40-2200 Hz
  • resonance frequency fs = 43,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,6 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 6,42 N/A
  • voice coil inductance L = 0,40 mH
  • effective piston radiating area Sd = 124,7 cm2
  • effective mechanical mass incl. air load mms = 13,48 g
  • equivalent volume of compliance Vas = 21,45 l
  • total Q factor Qts = 0,44 (Qms=1,91, Qes=0,58)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 180,5 mm
  • mounting depth (not countersunk) t = 98 mm

show kits to this chassis hide kits

Dayton ES180-8

order no. day-da295-350

EUR 66,30 excl. VAT: € 55.71 / $ 67.41

16 cm bass-midrange driver with high quality cone.

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 2,9 L volume
from 173/109 Hz (-3dB/-8dB)

recommended cabinet 2:
6,1 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 109/81 Hz (-3dB/-8dB).

Dayton PS180-8

order no. day-ps180-8

EUR 168,00 excl. VAT: € 141.18 / $ 170.82

16 cm full range driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 48-25000 Hz
  • resonance frequency fs = 48,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94,7 dB (1W; 1m)
  • DC resistance Re = 6,32 Ohm
  • force factor BL = 7,6 N/A
  • voice coil inductance L = 0,69 mH
  • effective piston radiating area Sd = 132,7 cm2
  • effective mechanical mass incl. air load mms = 7,2 g
  • equivalent volume of compliance Vas = 40,4 l
  • total Q factor Qts = 0,23 (Qms=3,86, Qes=0,24)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,6 mm
  • mounting diameter d = 145 mm
  • overall diameter d = 180 mm
  • mounting depth (not countersunk) t = 77,7 mm

show kits to this chassis hide kits

Dayton DC200-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,8 L volume
from 61/38 Hz (-3dB/-8dB)

recommended cabinet 2:
56 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 30/24 Hz (-3dB/-8dB).

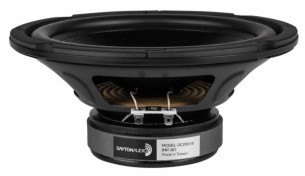

Dayton DC200-8

order no. day-dc200-8

EUR 43,10 excl. VAT: € 36.22 / $ 43.82

19 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 29-3000 Hz
  • resonance frequency fs = 31,0 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,0 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 9,35 N/A
  • voice coil inductance L = 1,79 mH
  • effective piston radiating area Sd = 211,2 cm2
  • effective mechanical mass incl. air load mms = 32,82 g
  • equivalent volume of compliance Vas = 50,48 l
  • total Q factor Qts = 0,41 (Qms=2,96, Qes=0,47)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 183 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 93,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 10,1 L volume
from 125/79 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with HP100 reflex tube, 13 cm long.
from 70/54 Hz (-3dB/-8dB).

Dayton PS220-8

order no. day-ps220-8

EUR 220,00 excl. VAT: € 184.87 / $ 223.70

20 cm full range driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 40-25000 Hz
  • resonance frequency fs = 45,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95,6 dB (1W; 1m)
  • DC resistance Re = 5,97 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 216,4 cm2
  • effective mechanical mass incl. air load mms = 10,6 g
  • equivalent volume of compliance Vas = 79 l
  • total Q factor Qts = 0,29 (Qms=3,61, Qes=0,32)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,8 mm
  • mounting diameter d = 181 mm
  • overall diameter d = 221,5 mm
  • mounting depth (not countersunk) t = 94 mm

show kits to this chassis hide kits

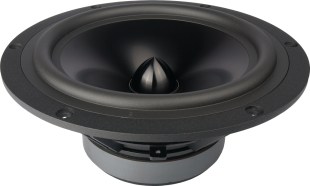

Dayton RS225-8
open a bigger photo

recommended cabinet 1:
closed cabinet with 13,7 L volume
from 60/38 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 30/24 Hz (-3dB/-8dB).

Dayton RS225-8

order no. day-rs225-8

EUR 89,40 excl. VAT: € 75.13 / $ 90.90

21 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 28-2400 Hz
  • resonance frequency fs = 28,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,8 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 9,05 N/A
  • voice coil inductance L = 0,86 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 35,8 g
  • equivalent volume of compliance Vas = 56,8 l
  • total Q factor Qts = 0,38 (Qms=1,46, Qes=0,51)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 223 mm
  • mounting depth (not countersunk) t = 89 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 18 L volume
from 46/29 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 22/18 Hz (-3dB/-8dB).

Dayton RSS265HF-4

order no. day-rss265hf4

EUR 236,00 excl. VAT: € 198.32 / $ 239.97

25 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 350 W
  • frequency range = 22-1000 Hz
  • resonance frequency fs = 26,2 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 84,0 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 12,48 N/A
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 356,3 cm2
  • effective mechanical mass incl. air load mms = 145,9 g
  • equivalent volume of compliance Vas = 44,95 l
  • total Q factor Qts = 0,44 (Qms=3,26, Qes=0,51)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 235 mm
  • overall diameter d = 266 mm
  • mounting depth (not countersunk) t = 136,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 11,4 L volume
from 52/33 Hz (-3dB/-8dB)

recommended cabinet 2:
46 L volume bass reflex cabinet
with HP70 reflex tube, 27 cm long.
from 25/20 Hz (-3dB/-8dB).

Dayton TIT280C-4

order no. day-tit280c-4

EUR 230,00 excl. VAT: € 193.28 / $ 233.87

26 cm bass driver with glass fibre cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 28-400 Hz
  • resonance frequency fs = 29,6 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,0 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 14,25 N/A
  • voice coil inductance L = 2,67 mH
  • effective piston radiating area Sd = 330,1 cm2
  • effective mechanical mass incl. air load mms = 156,1 g
  • equivalent volume of compliance Vas = 28,33 l
  • total Q factor Qts = 0,44 (Qms=7,34, Qes=0,47)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 18,7 mm
  • mounting diameter d = 237,1 mm
  • overall diameter d = 279,4 mm
  • mounting depth (not countersunk) t = 147,3 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 7,2 L volume
from 106/67 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 58/45 Hz (-3dB/-8dB).

Dayton ST255-8

order no. day-st255-8

EUR 160,00 excl. VAT: € 134.45 / $ 162.69

24 cm bass driver with paper cone.

  • power handling (continuous/programme) = 250 W
  • frequency range = 35-3000 Hz
  • resonance frequency fs = 41,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,7 dB (1W; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 16,03 N/A
  • voice coil inductance L = 1,23 mH
  • effective piston radiating area Sd = 339,8 cm2
  • effective mechanical mass incl. air load mms = 50,09 g
  • equivalent volume of compliance Vas = 48,7 l
  • total Q factor Qts = 0,31 (Qms=9,94, Qes=0,32)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 229,74 mm
  • overall diameter d = 256,11 mm
  • mounting depth (not countersunk) t = 111,22 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 25 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
85 L volume bass reflex cabinet
with 2x HP100 reflex tube, 33 cm long.
from 35/28 Hz (-3dB/-8dB).

Dayton ST305-8

order no. day-st305-8

EUR 210,00 excl. VAT: € 176.47 / $ 213.53

29 cm bass driver with paper cone.

  • power handling (continuous/programme) = 275 W
  • frequency range = 25-2000 Hz
  • resonance frequency fs = 29,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (1W; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 15,92 N/A
  • voice coil inductance L = 3,07 mH
  • effective piston radiating area Sd = 506,7 cm2
  • effective mechanical mass incl. air load mms = 81,33 g
  • equivalent volume of compliance Vas = 128,1 l
  • total Q factor Qts = 0,35 (Qms=10,55, Qes=0,36)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 278,13 mm
  • overall diameter d = 305,46 mm
  • mounting depth (not countersunk) t = 144,12 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 44 L volume
from 49/31 Hz (-3dB/-8dB)

recommended cabinet 2:
173 L volume bass reflex cabinet
with 2x HP100 reflex tube, 30 cm long.
from 24/19 Hz (-3dB/-8dB).

Dayton DC300-8

order no. day-dc300-8

EUR 69,30 excl. VAT: € 58.24 / $ 70.46

29 cm bass-midrange driver with paper cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 28-2500 Hz
  • resonance frequency fs = 26,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,0 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 14,67 N/A
  • voice coil inductance L = 2,06 mH
  • effective piston radiating area Sd = 498,8 cm2
  • effective mechanical mass incl. air load mms = 96,59 g
  • equivalent volume of compliance Vas = 133,1 l
  • total Q factor Qts = 0,43 (Qms=3,98, Qes=0,48)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 4,3 mm
  • mounting diameter d = 279,5 mm
  • overall diameter d = 306,5 mm
  • mounting depth (not countersunk) t = 131,5 mm

show kits to this chassis hide kits

Dayton RSS315HF-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 47 L volume
from 40/25 Hz (-3dB/-8dB)

recommended cabinet 2:
193 L volume bass reflex cabinet
with 2x HP100 reflex tube, 44 cm long.
from 18/15 Hz (-3dB/-8dB).

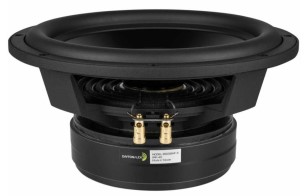

Dayton RSS315HF-4

order no. day-rss315hf4

EUR 279,00 excl. VAT: € 234.45 / $ 283.69

30 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 23-1000 Hz
  • resonance frequency fs = 25,0 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,0 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 13,95 N/A
  • voice coil inductance L = 1,71 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 212,1 g
  • equivalent volume of compliance Vas = 85 l
  • total Q factor Qts = 0,49 (Qms=3,12, Qes=0,58)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 314 mm
  • mounting depth (not countersunk) t = 146 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 10,5 L volume
from 61/38 Hz (-3dB/-8dB)

recommended cabinet 2:
40 L volume bass reflex cabinet
with HP100 reflex tube, 52 cm long.
from 30/24 Hz (-3dB/-8dB).

Dayton RSS315HO-4

order no. day-rss315ho-4

EUR 259,00 excl. VAT: € 217.65 / $ 263.35

30 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 700 W
  • frequency range = 26-600 Hz
  • resonance frequency fs = 31,6 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85 dB (1W; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 20,7 N/A
  • voice coil inductance L = 1,93 mH
  • effective piston radiating area Sd = 514,7 cm2
  • effective mechanical mass incl. air load mms = 280,9 g
  • equivalent volume of compliance Vas = 33,5 l
  • total Q factor Qts = 0,41 (Qms=4,27, Qes=0,45)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 12,3 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 314 mm
  • mounting depth (not countersunk) t = 146 mm

show kits to this chassis hide kits

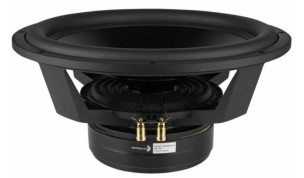

Dayton RSS390HF-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 100 L volume
from 33/21 Hz (-3dB/-8dB)

recommended cabinet 2:
395 L volume bass reflex cabinet
with 2x HP100 reflex tube, 29 cm long.
from 16/13 Hz (-3dB/-8dB).

Dayton RSS390HF-4

order no. day-rss390hf-4

EUR 320,00 excl. VAT: € 268.91 / $ 325.38

37 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 18-800 Hz
  • resonance frequency fs = 18,0 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,0 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 14,67 N/A
  • effective piston radiating area Sd = 829,6 cm2
  • effective mechanical mass incl. air load mms = 282,6 g
  • equivalent volume of compliance Vas = 281,8 l
  • total Q factor Qts = 0,42 (Qms=3,10, Qes=0,49)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 355,8 mm
  • overall diameter d = 388,4 mm
  • mounting depth (not countersunk) t = 178 mm

show kits to this chassis hide kits

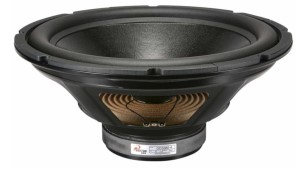

Dayton DCS380-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 101 L volume
from 39/24 Hz (-3dB/-8dB)

recommended cabinet 2:
402 L volume bass reflex cabinet
with 2x HP100 reflex tube, 18 cm long.
from 18/15 Hz (-3dB/-8dB).

Dayton DCS380-4

order no. day-dcs380-4

EUR 115,00 excl. VAT: € 96.64 / $ 116.93

37 cm bass driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 20-500 Hz
  • resonance frequency fs = 21,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93,6 dB (2,83V; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 12,4 N/A
  • voice coil inductance L = 2,31 mH
  • effective piston radiating area Sd = 819,4 cm2
  • effective mechanical mass incl. air load mms = 190 g
  • equivalent volume of compliance Vas = 267 l
  • total Q factor Qts = 0,43 (Qms=3,79, Qes=0,49)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 8,4 mm
  • mounting diameter d = 349 mm
  • overall diameter d = 385 mm
  • mounting depth (not countersunk) t = 186 mm

show kits to this chassis hide kits




Passive Radiators

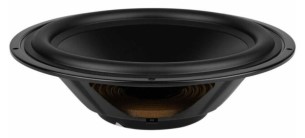

Dayton SD270-PR

order no. day-sd270-pr

EUR 39,10 excl. VAT: € 32.86 / $ 39.76

25 cm passive radiator.

  • resonance frequency fs = 19,5 Hz
  • effective piston radiating area Sd = 340,0 cm2
  • effective mechanical mass incl. air load mms = 100 g
  • equivalent volume of compliance Vas = 110 l
  • total Q factor Qts = (Qms=2,50, Qes=)
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 227 mm
  • overall diameter d = 270 mm

show kits to this chassis hide kits

Dayton SD315-PR

order no. day-sd315-pr

EUR 54,20 excl. VAT: € 45.55 / $ 55.11

.

  • resonance frequency fs = 16,8 Hz
  • effective piston radiating area Sd = 480,0 cm2
  • effective mechanical mass incl. air load mms = 200 g
  • equivalent volume of compliance Vas = 147 l
  • total Q factor Qts = (Qms=3,0, Qes=)
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 272 mm
  • overall diameter d = 314 mm

show kits to this chassis hide kits




Horn

Dayton H08RW

order no. day-h08rw

EUR 8,40 excl. VAT: € 7.06 / $ 8.54

show kits to this chassis hide kits

Dayton H10RW

order no. day-h10rw

EUR 18,50 excl. VAT: € 15.55 / $ 18.81

show kits to this chassis hide kits




no longer sold


Dayton ND28F-6

order no. day-nd28f-6

- not available

25 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 2200-20000 Hz
  • resonance frequency fs = 1097 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 91,0 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 4,9 cm2
  • total Q factor Qts = 1,25 (Qms=2,16, Qes=2,94)
  • voice coil diameter = 25 mm
  • mounting diameter d = 43,5 mm
  • overall diameter d = 65,0 mm
  • mounting depth (not countersunk) t = 19,5 mm

show kits to this chassis hide kits

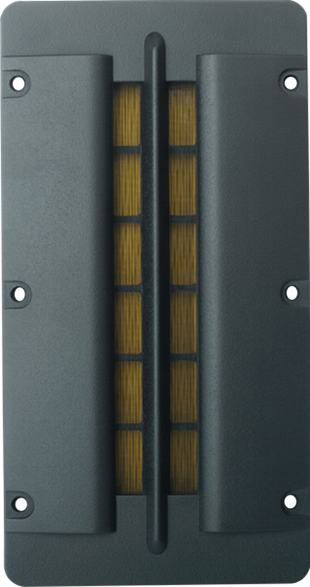

Dayton PT2C-8

Dayton PT2C-8

order no. day-dapt2c-8

- not available

ribbon tweeter.

  • power handling (continuous/programme) = 80 W
  • frequency range = 2000-26000 Hz
  • resonance frequency fs = 1654 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94,0 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 32,4 cm2
  • total Q factor Qts = 2,34 (Qms=2,48, Qes=41,17)
  • mounting depth (not countersunk) t = 9,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 33 L volume
from 50/32 Hz (-3dB/-8dB)

recommended cabinet 2:
124 L volume bass reflex cabinet
with HP100 reflex tube, 21 cm long.
from 25/20 Hz (-3dB/-8dB).

Dayton RS270-8

order no. not-available

- not available

26 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 25-1800 Hz
  • resonance frequency fs = 24,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (1W; 1m)
  • DC resistance Re = 6,78 Ohm
  • force factor BL = 10,8 N/A
  • voice coil inductance L = 0,9 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 57,1 g
  • equivalent volume of compliance Vas = 120,5 l
  • total Q factor Qts = 0,4 (Qms=1,75, Qes=0,52)
  • voice coil diameter = 49,5 mm
  • maximum peak linear excursion vibration xlin = +/- 6,6 mm
  • mounting diameter d = 236 mm
  • overall diameter d = 272 mm
  • mounting depth (not countersunk) t = 113 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 12 L volume
from 85/54 Hz (-3dB/-8dB)

recommended cabinet 2:
49 L volume bass reflex cabinet
with HP70 reflex tube, 6 cm long.
from 40/33 Hz (-3dB/-8dB).

Dayton ST210-8

order no. not-available

- not available

19 cm bass driver with paper cone.

  • power handling (continuous/programme) = 180 W
  • frequency range = 45-3000 Hz
  • resonance frequency fs = 51,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (1W; 1m)
  • DC resistance Re = 6,9 Ohm
  • force factor BL = 10,46 N/A
  • voice coil inductance L = 1,3 mH
  • effective piston radiating area Sd = 221,7 cm2
  • effective mechanical mass incl. air load mms = 26,38 g
  • equivalent volume of compliance Vas = 24,7 l
  • total Q factor Qts = 0,49 (Qms=4,99, Qes=0,54)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 5,55 mm
  • mounting diameter d = 176,53 mm
  • overall diameter d = 208,9 mm
  • mounting depth (not countersunk) t = 96,64 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 16 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
65 L volume bass reflex cabinet
with HP100 reflex tube, 25 cm long.
from 31/25 Hz (-3dB/-8dB).

Dayton RS225-4

order no. not-available

- not available

21 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 35-2000 Hz
  • resonance frequency fs = 37,7 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (1W; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 6,47 N/A
  • voice coil inductance L = 0,56 mH
  • effective piston radiating area Sd = 219 cm2
  • effective mechanical mass incl. air load mms = 32,02 g
  • equivalent volume of compliance Vas = 37,5 l
  • total Q factor Qts = 0,45 (Qms=2,39, Qes=0,56)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 223 mm
  • mounting depth (not countersunk) t = 92 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 5,7 L volume
from 95/60 Hz (-3dB/-8dB)

recommended cabinet 2:
23 L volume bass reflex cabinet
with HP70 reflex tube, 14 cm long.
from 44/37 Hz (-3dB/-8dB).

Dayton RS150T-8

order no. not-available

- not available

14 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 55-3500 Hz
  • resonance frequency fs = 61,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,6 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 4,87 N/A
  • voice coil inductance L = 0,74 mH
  • effective piston radiating area Sd = 84,9 cm2
  • effective mechanical mass incl. air load mms = 6,77 g
  • equivalent volume of compliance Vas = 9,7 l
  • total Q factor Qts = 0,51 (Qms=2,87, Qes=0,62)
  • voice coil diameter = 25,9 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 121,5 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 70,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 1,8 L volume
from 126/79 Hz (-3dB/-8dB)

recommended cabinet 2:
7,3 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 59/49 Hz (-3dB/-8dB).

Dayton RS125T-8

order no. not-available

- not available

11 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 70-15000 Hz
  • resonance frequency fs = 74,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (1W; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,04 N/A
  • voice coil inductance L = 0,73 mH
  • effective piston radiating area Sd = 54,1 cm2
  • effective mechanical mass incl. air load mms = 4,76 g
  • equivalent volume of compliance Vas = 3,9 l
  • total Q factor Qts = 0,47 (Qms=2,98, Qes=0,56)
  • voice coil diameter = 25,9 mm
  • maximum peak linear excursion vibration xlin = +/- 2,8 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 55 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 4,9 L volume
from 82/52 Hz (-3dB/-8dB)

recommended cabinet 2:
17 L volume bass reflex cabinet
with HP50 reflex tube, 14 cm long.
from 42/33 Hz (-3dB/-8dB).

Dayton DC160S-4

order no. not-available

- not available

15 cm bass driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 33-4000 Hz
  • resonance frequency fs = 37,7 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86 dB (1W; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 6,55 N/A
  • voice coil inductance L = 0,93 mH
  • effective piston radiating area Sd = 136,8 cm2
  • effective mechanical mass incl. air load mms = 21,51 g
  • equivalent volume of compliance Vas = 21,8 l
  • total Q factor Qts = 0,36 (Qms=3,45, Qes=0,4)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 3,4 mm
  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 86,6 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 0,92 L volume
from 124/79 Hz (-3dB/-8dB)

recommended cabinet 2:
3,3 L volume bass reflex cabinet
with HP35 reflex tube, 17 cm long.
from 63/50 Hz (-3dB/-8dB).

Dayton DS115-8

order no. not-available

- not available

10 cm bass driver with paper cone.

  • power handling (continuous/programme) = 25,4 W
  • frequency range = 60-8000 Hz
  • resonance frequency fs = 58,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,5 dB (1W; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 6,1 N/A
  • voice coil inductance L = 0,86 mH
  • effective piston radiating area Sd = 54,1 cm2
  • effective mechanical mass incl. air load mms = 7,9 g
  • equivalent volume of compliance Vas = 3,83 l
  • total Q factor Qts = 0,38 (Qms=2,12, Qes=0,46)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,1 mm
  • mounting diameter d = 93,6 mm
  • overall diameter d = 115,6 mm
  • mounting depth (not countersunk) t = 54,7 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 2,6 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
7,8 L volume bass reflex cabinet
with HP50 reflex tube, 21 cm long.
from 58/44 Hz (-3dB/-8dB).

Dayton DS 175-8

order no. not-available

- not available

16 cm bass driver with paper cone.

  • power handling (continuous/programme) = 35,5 W
  • frequency range = 40-4500 Hz
  • resonance frequency fs = 40,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,6 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 9 N/A
  • voice coil inductance L = 1,12 mH
  • effective piston radiating area Sd = 128,7 cm2
  • effective mechanical mass incl. air load mms = 20,5 g
  • equivalent volume of compliance Vas = 17,4 l
  • total Q factor Qts = 0,31 (Qms=1,82, Qes=0,37)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,25 mm
  • mounting diameter d = 144 mm
  • overall diameter d = 175,6 mm
  • mounting depth (not countersunk) t = 80,6 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 7,2 L volume
from 86/55 Hz (-3dB/-8dB)

recommended cabinet 2:
24 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 46/36 Hz (-3dB/-8dB).

Dayton DS215-8

order no. not-available

- not available

20 cm bass driver with paper cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 35-4000 Hz
  • resonance frequency fs = 36,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,1 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 1,26 mH
  • effective piston radiating area Sd = 211,2 cm2
  • effective mechanical mass incl. air load mms = 30,4 g
  • equivalent volume of compliance Vas = 39,2 l
  • total Q factor Qts = 0,34 (Qms=1,84, Qes=0,41)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 216 mm
  • mounting depth (not countersunk) t = 95,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 32 L volume
from 55/35 Hz (-3dB/-8dB)

recommended cabinet 2:
127 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 26/22 Hz (-3dB/-8dB).

Dayton DS270-8

order no. not-available

- not available

25 cm bass driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 30,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,1 dB (1W; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 10,4 N/A
  • voice coil inductance L = 1,15 mH
  • effective piston radiating area Sd = 353 cm2
  • effective mechanical mass incl. air load mms = 56,4 g
  • equivalent volume of compliance Vas = 84,6 l
  • total Q factor Qts = 0,44 (Qms=2,31, Qes=0,55)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 227 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 112 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 23 L volume
from 61/38 Hz (-3dB/-8dB)

recommended cabinet 2:
71 L volume bass reflex cabinet
with HP100 reflex tube, 27 cm long.
from 33/25 Hz (-3dB/-8dB).

Dayton DS315-8

order no. not-available

- not available

30 cm bass driver with paper cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 25-2500 Hz
  • resonance frequency fs = 24,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,4 dB (1W; 1m)
  • DC resistance Re = 6,1 Ohm
  • force factor BL = 16,2 N/A
  • voice coil inductance L = 1,4 mH
  • effective piston radiating area Sd = 506,7 cm2
  • effective mechanical mass incl. air load mms = 110,5 g
  • equivalent volume of compliance Vas = 141,9 l
  • total Q factor Qts = 0,32 (Qms=1,83, Qes=0,39)
  • voice coil diameter = 49,5 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 272 mm
  • overall diameter d = 314 mm
  • mounting depth (not countersunk) t = 130 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 1,3 L volume
from 126/79 Hz (-3dB/-8dB)

recommended cabinet 2:
5,4 L volume bass reflex cabinet
with HP35 reflex tube, 9 cm long.
from 57/49 Hz (-3dB/-8dB).

Dayton RS100T-8

order no. not-available

- not available

9 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 80-20000 Hz
  • resonance frequency fs = 82,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,3 dB (1W; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 4,22 N/A
  • voice coil inductance L = 0,73 mH
  • effective piston radiating area Sd = 37,4 cm2
  • effective mechanical mass incl. air load mms = 3,47 g
  • equivalent volume of compliance Vas = 2,1 l
  • total Q factor Qts = 0,53 (Qms=2,75, Qes=0,65)
  • voice coil diameter = 25,9 mm
  • maximum peak linear excursion vibration xlin = +/- 3,7 mm
  • mounting diameter d = 77 mm
  • overall diameter d = 98 mm
  • mounting depth (not countersunk) t = 51 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 25 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
89 L volume bass reflex cabinet
with HP100 reflex tube, 10 cm long.
from 39/31 Hz (-3dB/-8dB).

Dayton DA215-8

order no. not-available

- not available

20 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 35-8000 Hz
  • resonance frequency fs = 34,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,7 dB (1W; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 10 N/A
  • voice coil inductance L = 1,44 mH
  • effective piston radiating area Sd = 211,2 cm2
  • effective mechanical mass incl. air load mms = 30,3 g
  • equivalent volume of compliance Vas = 112 l
  • total Q factor Qts = 0,37 (Qms=1,95, Qes=0,45)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 5,3 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 216 mm
  • mounting depth (not countersunk) t = 94,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 36 L volume
from 52/33 Hz (-3dB/-8dB)

recommended cabinet 2:
141 L volume bass reflex cabinet
with HP100 reflex tube, 16 cm long.
from 25/21 Hz (-3dB/-8dB).

Dayton DA270-8

order no. not-available

- not available

25 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 25-6000 Hz
  • resonance frequency fs = 27,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,2 dB (1W; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 10,1 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 51,3 g
  • equivalent volume of compliance Vas = 108,5 l
  • total Q factor Qts = 0,43 (Qms=1,95, Qes=0,55)
  • voice coil diameter = 36 mm
  • maximum peak linear excursion vibration xlin = +/- 6,1 mm
  • mounting diameter d = 227 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 115 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 3,6 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
13,2 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 51/41 Hz (-3dB/-8dB).

Dayton DC130A-8

order no. not-available

- not available

12 cm bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 49,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,3 dB (1W; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 5,73 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 91,6 cm2
  • effective mechanical mass incl. air load mms = 9,2 g
  • equivalent volume of compliance Vas = 14 l
  • total Q factor Qts = 0,39 (Qms=1,79, Qes=0,5)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 134 mm
  • mounting depth (not countersunk) t = 69,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 6,2 L volume
from 88/55 Hz (-3dB/-8dB)

recommended cabinet 2:
25 L volume bass reflex cabinet
with HP50 reflex tube, 7 cm long.
from 40/34 Hz (-3dB/-8dB).

Dayton DC130AS-8

order no. not-available

- not available

12 cm bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 55-4000 Hz
  • resonance frequency fs = 56,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 5,27 N/A
  • voice coil inductance L = 0,88 mH
  • effective piston radiating area Sd = 91,6 cm2
  • effective mechanical mass incl. air load mms = 8,93 g
  • equivalent volume of compliance Vas = 10,5 l
  • total Q factor Qts = 0,51 (Qms=2,28, Qes=0,66)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 134 mm
  • mounting depth (not countersunk) t = 78,4 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 2,8 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
9,5 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 60/47 Hz (-3dB/-8dB).

Dayton DC130B-4

order no. not-available

- not available

13 cm bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 50,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,6 dB (1W; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,77 N/A
  • voice coil inductance L = 0,55 mH
  • effective piston radiating area Sd = 91,6 cm2
  • effective mechanical mass incl. air load mms = 8,8 g
  • equivalent volume of compliance Vas = 14,3 l
  • total Q factor Qts = 0,34 (Qms=2,4, Qes=0,39)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 67,8 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 3,4 L volume
from 107/67 Hz (-3dB/-8dB)

recommended cabinet 2:
12,4 L volume bass reflex cabinet
with HP50 reflex tube, 11 cm long.
from 54/43 Hz (-3dB/-8dB).

Dayton DC130B-8

order no. not-available

- not available

13 cm bass driver with paper cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 50,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,7 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 5,79 N/A
  • voice coil inductance L = 0,81 mH
  • effective piston radiating area Sd = 91,6 cm2
  • effective mechanical mass incl. air load mms = 8,8 g
  • equivalent volume of compliance Vas = 14,3 l
  • total Q factor Qts = 0,38 (Qms=1,75, Qes=0,48)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 67,8 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 3,8 L volume
from 110/69 Hz (-3dB/-8dB)

recommended cabinet 2:
14,8 L volume bass reflex cabinet
with HP50 reflex tube, 8 cm long.
from 53/43 Hz (-3dB/-8dB).

Dayton DC130BS-4

order no. not-available

- not available

13 cm bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 55-4000 Hz
  • resonance frequency fs = 58,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,8 dB (1W; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 4,47 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 93,3 cm2
  • effective mechanical mass incl. air load mms = 7,92 g
  • equivalent volume of compliance Vas = 11,4 l
  • total Q factor Qts = 0,42 (Qms=2,18, Qes=0,52)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 77,4 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 3,3 L volume
from 110/69 Hz (-3dB/-8dB)

recommended cabinet 2:
13,3 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 52/43 Hz (-3dB/-8dB).

Dayton DC130BS-8

order no. not-available

- not available

13 cm bass driver with paper cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 55-4000 Hz
  • resonance frequency fs = 61,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 5,95 N/A
  • voice coil inductance L = 0,87 mH
  • effective piston radiating area Sd = 91,6 cm2
  • effective mechanical mass incl. air load mms = 9,02 g
  • equivalent volume of compliance Vas = 8,8 l
  • total Q factor Qts = 0,45 (Qms=2,16, Qes=0,57)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 145 mm
  • mounting depth (not countersunk) t = 77,4 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 6,2 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
20 L volume bass reflex cabinet
with HP50 reflex tube, 17 cm long.
from 38/29 Hz (-3dB/-8dB).

Dayton DC160-4

order no. not-available

- not available

15 cm bass driver with paper cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 30-4000 Hz
  • resonance frequency fs = 30,3 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,9 dB (1W; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 6,31 N/A
  • voice coil inductance L = 1,03 mH
  • effective piston radiating area Sd = 136,8 cm2
  • effective mechanical mass incl. air load mms = 21,6 g
  • equivalent volume of compliance Vas = 33,7 l
  • total Q factor Qts = 0,33 (Qms=2,91, Qes=0,37)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,4 mm
  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 77,2 mm

show kits to this chassis hide kits


Dayton ND65-4

order no. not-available

- not available

6 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 19 W
  • frequency range = 85-20000 Hz
  • resonance frequency fs = 84,1 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 79,4 dB (1W; 1m)
  • DC resistance Re = 3,4 Ohm
  • force factor BL = 2,2 N/A
  • voice coil inductance L = 0,41 mH
  • effective piston radiating area Sd = 15,6 cm2
  • effective mechanical mass incl. air load mms = 2,2 g
  • equivalent volume of compliance Vas = 0,76 l
  • total Q factor Qts = 0,7 (Qms=5,76, Qes=0,8)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 52 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 43 mm

show kits to this chassis hide kits


Dayton ND65-8

order no. not-available

- not available

6 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 15 W
  • frequency range = 80-20000 Hz
  • resonance frequency fs = 80,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 78,3 dB (1W; 1m)
  • DC resistance Re = 7,2 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,58 mH
  • effective piston radiating area Sd = 15,6 cm2
  • effective mechanical mass incl. air load mms = 2,3 g
  • equivalent volume of compliance Vas = 0,58 l
  • total Q factor Qts = 0,61 (Qms=5,64, Qes=0,69)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 52 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 43 mm

show kits to this chassis hide kits


Dayton ND90-4

order no. not-available

- not available

8 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 80-15000 Hz
  • resonance frequency fs = 76,7 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 80,6 dB (1W; 1m)
  • DC resistance Re = 3,5 Ohm
  • force factor BL = 3 N/A
  • voice coil inductance L = 0,57 mH
  • effective piston radiating area Sd = 31,2 cm2
  • effective mechanical mass incl. air load mms = 4,3 g
  • equivalent volume of compliance Vas = 1,36 l
  • total Q factor Qts = 0,73 (Qms=5,71, Qes=0,84)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 76,5 mm
  • overall diameter d = 93 mm
  • mounting depth (not countersunk) t = 52,3 mm

show kits to this chassis hide kits


Dayton ND90-8

order no. not-available

- not available

8 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 80-15000 Hz
  • resonance frequency fs = 80 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 82,1 dB (1W; 1m)
  • DC resistance Re = 7,5 Ohm
  • force factor BL = 4,4 N/A
  • voice coil inductance L = 0,54 mH
  • effective piston radiating area Sd = 31,2 cm2
  • effective mechanical mass incl. air load mms = 4,7 g
  • equivalent volume of compliance Vas = 1,36 l
  • total Q factor Qts = 0,71 (Qms=4,25, Qes=0,85)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 76,5 mm
  • overall diameter d = 93 mm
  • mounting depth (not countersunk) t = 52,3 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 0,4 L volume
from 127/80 Hz (-3dB/-8dB)

recommended cabinet 2:
1,5 L volume bass reflex cabinet
with 2cm-Rohr reflex tube, 14 cm long.
from 63/51 Hz (-3dB/-8dB).

Dayton ND91-4

order no. not-available

- not available

8 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 25 W
  • frequency range = 65-17000 Hz
  • resonance frequency fs = 63,4 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 81,3 dB (1W; 1m)
  • DC resistance Re = 4,1 Ohm
  • force factor BL = 4,6 N/A
  • voice coil inductance L = 0,74 mH
  • effective piston radiating area Sd = 30,4 cm2
  • effective mechanical mass incl. air load mms = 5,6 g
  • equivalent volume of compliance Vas = 1,47 l
  • total Q factor Qts = 0,38 (Qms=3,06, Qes=0,44)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4,6 mm
  • mounting diameter d = 76,5 mm
  • overall diameter d = 93 mm
  • mounting depth (not countersunk) t = 54,9 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 0,36 L volume
from 140/88 Hz (-3dB/-8dB)

recommended cabinet 2:
1,3 L volume bass reflex cabinet
with 2cm-Rohr reflex tube, 13 cm long.
from 70/56 Hz (-3dB/-8dB).

Dayton ND91-8

order no. not-available

- not available

8 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 70-17000 Hz
  • resonance frequency fs = 69,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 81,8 dB (1W; 1m)
  • DC resistance Re = 7,4 Ohm
  • force factor BL = 6 N/A
  • voice coil inductance L = 1,42 mH
  • effective piston radiating area Sd = 30,4 cm2
  • effective mechanical mass incl. air load mms = 5,2 g
  • equivalent volume of compliance Vas = 1,31 l
  • total Q factor Qts = 0,4 (Qms=3,08, Qes=0,46)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 5,1 mm
  • mounting diameter d = 76,5 mm
  • overall diameter d = 93 mm
  • mounting depth (not countersunk) t = 54,9 mm

show kits to this chassis hide kits


Dayton ND140-8

order no. not-available

- not available

13 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 54-8000 Hz
  • resonance frequency fs = 53,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • force factor BL = 5,5 N/A
  • voice coil inductance L = 1,45 mH
  • effective piston radiating area Sd = 86,6 cm2
  • effective mechanical mass incl. air load mms = 8,9 g
  • equivalent volume of compliance Vas = 10,3 l
  • total Q factor Qts = 0,61 (Qms=5,55, Qes=0,68)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 138 mm
  • mounting depth (not countersunk) t = 70,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 0,48 L volume
from 150/95 Hz (-3dB/-8dB)

recommended cabinet 2:
1,8 L volume bass reflex cabinet
with 2cm-Rohr reflex tube, 8 cm long.
from 75/60 Hz (-3dB/-8dB).

Dayton DS90-8

order no. not-available

- not available

8 cm full range driver with paper cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 80-13000 Hz
  • resonance frequency fs = 74,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,5 dB (1W; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 4,7 N/A
  • voice coil inductance L = 0,58 mH
  • effective piston radiating area Sd = 31,2 cm2
  • effective mechanical mass incl. air load mms = 3,6 g
  • equivalent volume of compliance Vas = 1,74 l
  • total Q factor Qts = 0,4 (Qms=2,07, Qes=0,5)
  • voice coil diameter = 20,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 92,3 mm
  • mounting depth (not countersunk) t = 44,6 mm

show kits to this chassis hide kits


Dayton PK165-8

order no. not-available

- not available

15 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 95-9000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,7 dB (1W; 1m)
  • DC resistance Re = 7 Ohm
  • force factor BL = 7,25 N/A
  • voice coil inductance L = 1 mH
  • effective piston radiating area Sd = 113,1 cm2
  • effective mechanical mass incl. air load mms = 8,1 g
  • equivalent volume of compliance Vas = 8,7 l
  • total Q factor Qts = 0,6 (Qms=8,82, Qes=0,64)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm
  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75,2 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 5,3 L volume
from 131/83 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP70 reflex tube, 6 cm long.
from 59/51 Hz (-3dB/-8dB).

Dayton PA165-8

order no. not-available

- not available

15 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 75 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 87,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,9 dB (1W; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 6,29 N/A
  • voice coil inductance L = 0,61 mH
  • effective piston radiating area Sd = 120,8 cm2
  • effective mechanical mass incl. air load mms = 9,19 g
  • equivalent volume of compliance Vas = 7,9 l
  • total Q factor Qts = 0,54 (Qms=2,92, Qes=0,66)
  • voice coil diameter = 35 mm
  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 75,2 mm

show kits to this chassis hide kits


Dayton DC28FT-8

order no. not-available

- not available

29 mm dome tweeter with fabric dome.

  • power handling (continuous/programme) = 50 W
  • frequency range = 1300-20000 Hz
  • resonance frequency fs = 595,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil inductance L = 0,09 mH
  • effective piston radiating area Sd = 6,6 cm2
  • total Q factor Qts = 0,35 (Qms=0,86, Qes=0,6)
  • voice coil diameter = 29 mm
  • mounting diameter d = 69 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 39 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 64 L volume
from 39/25 Hz (-3dB/-8dB)

recommended cabinet 2:
255 L volume bass reflex cabinet
with 2x HP100 reflex tube, 31 cm long.
from 18/15 Hz (-3dB/-8dB).

Dayton RSS315HFA-8

order no. not-available

- not available

30 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 25-1000 Hz
  • resonance frequency fs = 27,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,0 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • force factor BL = 16,75 N/A
  • voice coil inductance L = 1,45 mH
  • effective piston radiating area Sd = 506,7 cm2
  • effective mechanical mass incl. air load mms = 158,4 g
  • equivalent volume of compliance Vas = 78,2 l
  • total Q factor Qts = 0,56 (Qms=3,16, Qes=0,68)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 12,3 mm
  • mounting diameter d = 282 mm
  • overall diameter d = 314 mm
  • mounting depth (not countersunk) t = 146 mm

show kits to this chassis hide kits


Dayton RS100S-8

order no. not-available

- not available

9 cm bass-midrange driver with aluminium cone. The driver is magnetically shielded.

  • power handling (continuous/programme) = 30 W
  • frequency range = 85-20000 Hz
  • resonance frequency fs = 85 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83,3 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 3,4 N/A
  • voice coil inductance L = 0,41 mH
  • effective piston radiating area Sd = 37,4 cm2
  • effective mechanical mass incl. air load mms = 3,9 g
  • equivalent volume of compliance Vas = 1,7 l
  • total Q factor Qts = 0,87 (Qms=3,48, Qes=1,16)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 77,2 mm
  • overall diameter d = 98,0 mm
  • mounting depth (not countersunk) t = 61 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 2,8 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
11,1 L volume bass reflex cabinet
with HP50 reflex tube, 9 cm long.
from 53/46 Hz (-3dB/-8dB).

Dayton RS125S-8

order no. not-available

- not available

11 cm bass-midrange driver with aluminium cone. The driver is magnetically shielded.

  • power handling (continuous/programme) = 30 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 82,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,5 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 4,49 N/A
  • voice coil inductance L = 0,25 mH
  • effective piston radiating area Sd = 52,8 cm2
  • effective mechanical mass incl. air load mms = 4,12 g
  • equivalent volume of compliance Vas = 3,6 l
  • total Q factor Qts = 0,56 (Qms=3,31, Qes=0,67)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,8 mm
  • mounting diameter d = 94 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 68,7 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 43 L volume
from 53/33 Hz (-3dB/-8dB)

recommended cabinet 2:
164 L volume bass reflex cabinet
with HP100 reflex tube, 12 cm long.
from 26/21 Hz (-3dB/-8dB).

Dayton RS270S-8

order no. not-available

- not available

26 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 25-1500 Hz
  • resonance frequency fs = 26,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90,5 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • force factor BL = 9,27 N/A
  • voice coil inductance L = 0,53 mH
  • effective piston radiating area Sd = 346,4 cm2
  • effective mechanical mass incl. air load mms = 40,03 g
  • equivalent volume of compliance Vas = 147,2 l
  • total Q factor Qts = 0,41 (Qms=1,81, Qes=0,53)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 6,6 mm
  • mounting diameter d = 236 mm
  • overall diameter d = 272 mm
  • mounting depth (not countersunk) t = 135,5 mm

show kits to this chassis hide kits

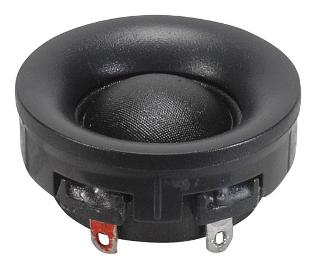

Dayton ND16FA-6

Dayton ND16FA-6

order no. not-available

- not available

16 mm tweeter with high quality cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 3500-27000 Hz
  • resonance frequency fs = 2200 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 90,0 dB (2,83V; 1m)
  • DC resistance Re = 5,0 Ohm
  • voice coil diameter = 16 mm

show kits to this chassis hide kits

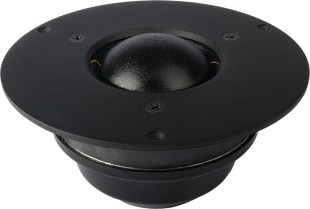

Dayton DC50F-8

order no. not-available

- not available

51 mm mids dome with high quality dome.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-6000 Hz
  • resonance frequency fs = 383,6 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 4,5 Ohm
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 20,4 cm2
  • total Q factor Qts = 0,8 (Qms=3,11, Qes=1,07)
  • voice coil diameter = 51 mm
  • mounting diameter d = 104,4 mm
  • overall diameter d = 145,3 mm
  • mounting depth (not countersunk) t = 78,7 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 3,7 L volume
from 76/48 Hz (-3dB/-8dB)

recommended cabinet 2:
14,7 L volume bass reflex cabinet
with HP50 reflex tube, 20 cm long.
from 34/30 Hz (-3dB/-8dB).

Dayton ND105-4

order no. not-available

- not available

10 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 30 W
  • frequency range = 60-10000 Hz
  • resonance frequency fs = 53,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 82,6 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 3,9 N/A
  • voice coil inductance L = 0,78 mH
  • effective piston radiating area Sd = 51,5 cm2
  • effective mechanical mass incl. air load mms = 7,2 g
  • equivalent volume of compliance Vas = 4,5 l
  • total Q factor Qts = 0,55 (Qms=7,16, Qes=0,59)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 105 mm
  • mounting depth (not countersunk) t = 67 mm

show kits to this chassis hide kits


Dayton ND140-4

order no. not-available

- not available

13 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 40 W
  • frequency range = 54-8000 Hz
  • resonance frequency fs = 53,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,3 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 3,9 N/A
  • voice coil inductance L = 0,72 mH
  • effective piston radiating area Sd = 86,6 cm2
  • effective mechanical mass incl. air load mms = 9,0 g
  • equivalent volume of compliance Vas = 10,2 l
  • total Q factor Qts = 0,67 (Qms=6,59, Qes=0,74)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 120 mm
  • overall diameter d = 138 mm
  • mounting depth (not countersunk) t = 70,5 mm

show kits to this chassis hide kits


Dayton RS75-4

order no. not-available

- not available

6 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 15 W
  • frequency range = 150-20000 Hz
  • resonance frequency fs = 154,1 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83 dB (1W; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,94 N/A
  • voice coil inductance L = 0,19 mH
  • effective piston radiating area Sd = 15,2 cm2
  • effective mechanical mass incl. air load mms = 1,1 g
  • equivalent volume of compliance Vas = 0,31 l
  • total Q factor Qts = 0,78 (Qms=5,39, Qes=0,91)
  • voice coil diameter = 16,4 mm
  • maximum peak linear excursion vibration xlin = +/- 1,1 mm
  • mounting diameter d = 54 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 38,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 1,4 L volume
from 115/73 Hz (-3dB/-8dB)

recommended cabinet 2:
5,3 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 56/46 Hz (-3dB/-8dB).

Dayton DA115-8

order no. not-available

- not available

10 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 20 W
  • frequency range = 60-15000 Hz
  • resonance frequency fs = 60 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84,9 dB (1W; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 5,7 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 53,1 cm2
  • effective mechanical mass incl. air load mms = 6,6 g
  • equivalent volume of compliance Vas = 4,4 l
  • total Q factor Qts = 0,41 (Qms=2,6, Qes=0,49)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 93 mm
  • overall diameter d = 115,6 mm
  • mounting depth (not countersunk) t = 57,3 mm

show kits to this chassis hide kits


Dayton RS75T-8

order no. not-available

- not available

6 cm full range driver with aluminium cone.

  • power handling (continuous/programme) = 15 W
  • frequency range = 160-20000 Hz
  • resonance frequency fs = 164,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 82,7 dB (1W; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 2,5 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 15,2 cm2
  • effective mechanical mass incl. air load mms = 1,1 g
  • equivalent volume of compliance Vas = 0,29 l
  • total Q factor Qts = 0,89 (Qms=4,7, Qes=1,1)
  • voice coil diameter = 16,4 mm
  • maximum peak linear excursion vibration xlin = +/- 1,3 mm
  • mounting diameter d = 54 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 38,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 2,2 L volume
from 152/96 Hz (-3dB/-8dB)

recommended cabinet 2:
8,9 L volume bass reflex cabinet
with HP50 reflex tube, 6 cm long.
from 71/59 Hz (-3dB/-8dB).

Dayton PA130-8

order no. not-available

- not available

12 cm full range driver with paper cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 90-15000 Hz
  • resonance frequency fs = 92,2 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (1W; 1m)
  • DC resistance Re = 7,1 Ohm
  • force factor BL = 6,11 N/A
  • voice coil inductance L = 0,78 mH
  • effective piston radiating area Sd = 73,9 cm2
  • effective mechanical mass incl. air load mms = 5,07 g
  • equivalent volume of compliance Vas = 4,5 l
  • total Q factor Qts = 0,49 (Qms=4,99, Qes=0,54)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 112 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 67,5 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 54 L volume
from 50/32 Hz (-3dB/-8dB)

recommended cabinet 2:
158 L volume bass reflex cabinet
with 2x HP100 reflex tube, 33 cm long.
from 28/21 Hz (-3dB/-8dB).

Dayton DC380-8

order no. day-dc380-8

- not available

37 cm bass driver with paper cone.

  • power handling (continuous/programme) = 100 W
  • frequency range = 20-1500 Hz
  • resonance frequency fs = 18,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,8 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 20,4 N/A
  • voice coil inductance L = 3,09 mH
  • effective piston radiating area Sd = 834,7 cm2
  • effective mechanical mass incl. air load mms = 182,9 g
  • equivalent volume of compliance Vas = 391,4 l
  • total Q factor Qts = 0,3 (Qms=2,87, Qes=0,34)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 4,35 mm
  • mounting diameter d = 349 mm
  • overall diameter d = 385 mm

show kits to this chassis hide kits

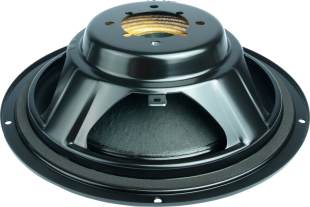

Dayton SD215-PR

order no. day-sd215-pr

- not available

20 cm passive radiator.

  • resonance frequency fs = 21,0 Hz
  • effective piston radiating area Sd = 194,0 cm2
  • effective mechanical mass incl. air load mms = 75 g
  • equivalent volume of compliance Vas = 39,9 l
  • total Q factor Qts = (Qms=2, Qes=)
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 216 mm
  • mounting depth (not countersunk) t = 58 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 17 L volume
from 59/37 Hz (-3dB/-8dB)

recommended cabinet 2:
69 L volume bass reflex cabinet
with HP100 reflex tube, 29 cm long.
from 28/23 Hz (-3dB/-8dB).

Dayton SD215-88

order no. not-available

- not available

20 cm bass driver with paper cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 30-2000 Hz
  • resonance frequency fs = 33,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 3,0 Ohm
  • force factor BL = 6,47 N/A
  • voice coil inductance L = 0,88 mH
  • effective piston radiating area Sd = 208,7 cm2
  • effective mechanical mass incl. air load mms = 32,03 g
  • equivalent volume of compliance Vas = 42,72 l
  • total Q factor Qts = 0,45 (Qms=3,97, Qes=0,51)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 216 mm
  • mounting depth (not countersunk) t = 107 mm

show kits to this chassis hide kits

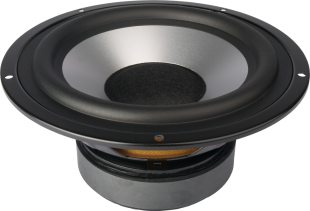

Dayton DA175_8
open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
60 L volume bass reflex cabinet
with HP70 reflex tube, 18 cm long.
from 24/21 Hz (-3dB/-8dB).

Dayton DA175_8

order no. day-da175-8

- not available

16 cm bass-midrange driver with aluminium cone.

  • power handling (continuous/programme) = 50 W
  • frequency range = 35-10000 Hz
  • resonance frequency fs = 39,0 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,0 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 7,17 N/A
  • voice coil inductance L = 0,72 mH
  • effective piston radiating area Sd = 132,7 cm2
  • effective mechanical mass incl. air load mms = 25,17 g
  • equivalent volume of compliance Vas = 16,34 l
  • total Q factor Qts = 0,58 (Qms=3,31, Qes=0,70)
  • mounting diameter d = 144 mm
  • overall diameter d = 175,6 mm
  • mounting depth (not countersunk) t = 81,1 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 40 L volume
from 54/34 Hz (-3dB/-8dB)

recommended cabinet 2:
157 L volume bass reflex cabinet
with HP100 reflex tube, 12 cm long.
from 26/21 Hz (-3dB/-8dB).

Dayton SD270-88

order no. not-available

- not available

25 cm bass driver with paper cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 30-1500 Hz
  • resonance frequency fs = 29,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92,7 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 7,27 N/A
  • voice coil inductance L = 0,77 mH
  • effective piston radiating area Sd = 359,7 cm2
  • effective mechanical mass incl. air load mms = 46,78 g
  • equivalent volume of compliance Vas = 112,2 l
  • total Q factor Qts = 0,44 (Qms=3,20, Qes=0,51)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 227 mm
  • overall diameter d = 270 mm
  • mounting depth (not countersunk) t = 123,4 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 29 L volume
from 42/26 Hz (-3dB/-8dB)

recommended cabinet 2:
120 L volume bass reflex cabinet
with HP100 reflex tube, 34 cm long.
from 20/16 Hz (-3dB/-8dB).

Dayton TIT320C-4

order no. day-tit320c-4

- not available

30 cm bass driver with glass fibre cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 22-500 Hz
  • resonance frequency fs = 24,9 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 86,0 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 15,45 N/A
  • voice coil inductance L = 2,5 mH
  • effective piston radiating area Sd = 502,7 cm2
  • effective mechanical mass incl. air load mms = 225,6 g
  • equivalent volume of compliance Vas = 64,28 l
  • total Q factor Qts = 0,46 (Qms=7,03, Qes=0,49)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 18,7 mm
  • mounting diameter d = 279,4 mm
  • overall diameter d = 317,5 mm
  • mounting depth (not countersunk) t = 160,9 mm

show kits to this chassis hide kits

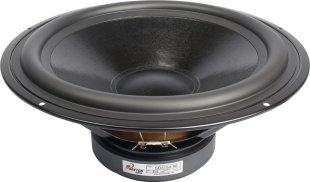

Dayton SD315-88
open a bigger photo

recommended cabinet 1:
closed cabinet with 23 L volume
from 63/40 Hz (-3dB/-8dB)

recommended cabinet 2:
74 L volume bass reflex cabinet
with HP100 reflex tube, 23 cm long.
from 33/26 Hz (-3dB/-8dB).

Dayton SD315-88

order no. not-available

- not available

30 cm bass driver with paper cone.

  • power handling (continuous/programme) = 120 W
  • frequency range = 30-1000 Hz
  • resonance frequency fs = 26,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 94,0 dB (2,83V; 1m)
  • DC resistance Re = 3,0 Ohm
  • force factor BL = 12,07 N/A
  • voice coil inductance L = 0,99 mH
  • effective piston radiating area Sd = 522,8 cm2
  • effective mechanical mass incl. air load mms = 109,2 g
  • equivalent volume of compliance Vas = 122,8 l
  • total Q factor Qts = 0,34 (Qms=3,44, Qes=0,38)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 272 mm
  • overall diameter d = 314 mm
  • mounting depth (not countersunk) t = 153,5 mm

show kits to this chassis hide kits

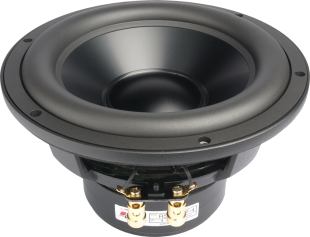

Dayton RSS210HF-4
open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
78 L volume bass reflex cabinet
with HP70 reflex tube, 21 cm long.
from 20/17 Hz (-3dB/-8dB).

Dayton RSS210HF-4

order no. not-available

- not available

20 cm bass driver with aluminium cone.

  • power handling (continuous/programme) = 280 W
  • frequency range = 27-1000 Hz
  • resonance frequency fs = 28,3 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 83,0 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 7,76 N/A
  • voice coil inductance L = 0,29 mH
  • effective piston radiating area Sd = 219,0 cm2
  • effective mechanical mass incl. air load mms = 66,02 g
  • equivalent volume of compliance Vas = 32,36 l
  • total Q factor Qts = 0,5 (Qms=3,08, Qes=0,6)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm
  • mounting diameter d = 185 mm
  • overall diameter d = 213 mm
  • mounting depth (not countersunk) t = 124 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 48 L volume
from 47/30 Hz (-3dB/-8dB)

recommended cabinet 2:
150 L volume bass reflex cabinet
with 2x HP100 reflex tube, 41 cm long.
from 25/20 Hz (-3dB/-8dB).

Dayton ST385-8

order no. day-st385-8

- not available

37 cm bass driver with paper cone.

  • power handling (continuous/programme) = 300 W
  • frequency range = 20-1000 Hz
  • resonance frequency fs = 18,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,5 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 22,41 N/A
  • voice coil inductance L = 4,09 mH
  • effective piston radiating area Sd = 850,1 cm2
  • effective mechanical mass incl. air load mms = 240,6 g
  • equivalent volume of compliance Vas = 301 l
  • total Q factor Qts = 0,32 (Qms=8,3, Qes=0,33)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 7,9 mm
  • mounting diameter d = 349,8 mm
  • overall diameter d = 384,8 mm
  • mounting depth (not countersunk) t = 153,85 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 60 L volume
from 40/25 Hz (-3dB/-8dB)

recommended cabinet 2:
226 L volume bass reflex cabinet
with 2x HP100 reflex tube, 36 cm long.
from 20/16 Hz (-3dB/-8dB).

Dayton TIT400C-4

order no. not-available

- not available

39 cm bass driver with paper cone.

  • power handling (continuous/programme) = 1100 W
  • frequency range = 19-500 Hz
  • resonance frequency fs = 20 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,0 dB (2,83V; 1m)
  • DC resistance Re = 3,7 Ohm
  • force factor BL = 16,8 N/A
  • voice coil inductance L = 3,84 mH
  • effective piston radiating area Sd = 804,2 cm2
  • effective mechanical mass incl. air load mms = 253,9 g
  • equivalent volume of compliance Vas = 220,0 l
  • total Q factor Qts = 0,38 (Qms=5,89, Qes=0,41)
  • voice coil diameter = 64 mm
  • maximum peak linear excursion vibration xlin = +/- 20,5 mm
  • mounting diameter d = 393,7 mm
  • overall diameter d = 395,0 mm

show kits to this chassis hide kits


recommended cabinet 1:
closed cabinet with 42 L volume
from 12/8 Hz (-3dB/-8dB)

recommended cabinet 2:
168 L volume bass reflex cabinet
with HP70 reflex tube, 159 cm long.
from 6/5 Hz (-3dB/-8dB).

Dayton DC250-8

order no. not-available

- not available

24 cm bass driver with paper cone.

  • power handling (continuous/programme) = 70 W
  • frequency range = 25-2500 Hz
  • resonance frequency fs = 6,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 6,7 Ohm
  • force factor BL = 10,24 N/A
  • voice coil inductance L = 1,71 mH
  • effective piston radiating area Sd = 343,1 cm2
  • effective mechanical mass incl. air load mms = 44,88 g
  • equivalent volume of compliance Vas = 111,4 l
  • total Q factor Qts = 0,45 (Qms=4,05, Qes=0,50)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 234 mm
  • overall diameter d = 256 mm
  • mounting depth (not countersunk) t = 112,8 mm

show kits to this chassis hide kits


Dayton H12RW

order no. not-available

- not available

.

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2020 Iris Strassacker; All rights reserved. - errors and omissions excepted
