Measurements Copernicus Top passiv

Measurements Copernicus Top passiv

Here you can find the measurements for the kit Copernicus Top passiv.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

Frequency response

Measurements Copernicus Top passiv, Frequency response



Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements Copernicus Top passiv, Frequency response measured at 0°, 15°, 30° and 45° angle
  • Blue = 0°
  • Green = 15°
  • Red = 30°
  • Violet = 45°

Frequency response of the individual paths (for each driver)

Measurements Copernicus Top passiv, Frequency response of the individual paths (for each driver)
  • Blue = Sum of tweeter and woofer measured on axis
  • Green = high frequency branch
  • Violet = Midtone branch
  • Red = low frequency branch

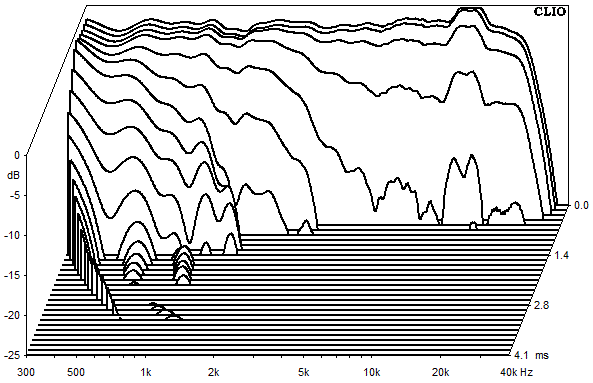

Waterfall spectrum

Measurements Copernicus Top passiv, Waterfall spectrum

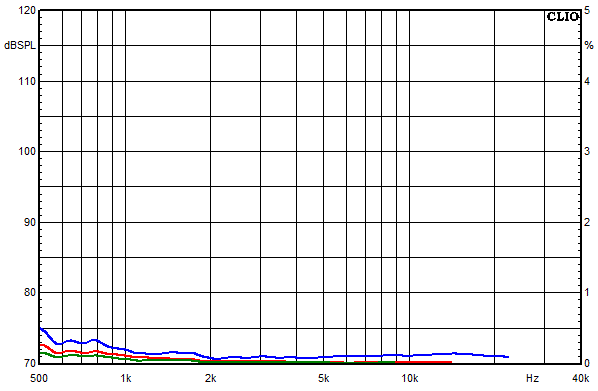

Distortion over frequency at 85 dB sound pressure level

Measurements Copernicus Top passiv, Distortion over frequency at 85 dB sound pressure level
  • Blue = k2
  • Red = k3
  • Green = k5

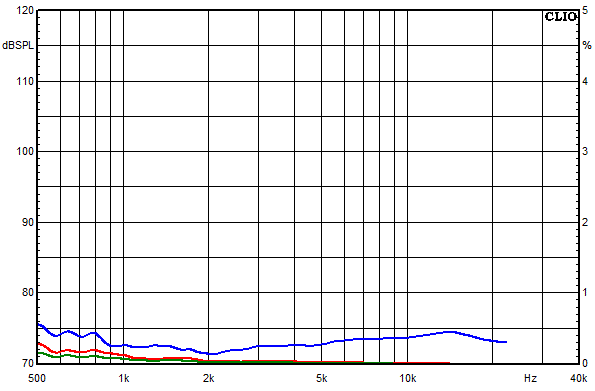

Distortion over frequency at 95 dB sound pressure level

Measurements Copernicus Top passiv, Distortion over frequency at 95 dB sound pressure level
  • Blue = k2
  • Red = k3
  • Green = k5

Impedance frequency response

Measurements Copernicus Top passiv, Impedance frequency response
  • Blue = without impedance correction
  • Red = with impedance correction

Frequency response of the tweeter

Measurements Copernicus Top passiv, Frequency response of the tweeter
  • Blue = with crossover
  • Orange = without crossover

Frequency response of tweeter with parallel capacitor at series resistor

Measurements Copernicus Top passiv, Frequency response of tweeter with parallel capacitor at series resistor
  • Blue = with crossover
  • Orange = without crossover

Frequency response of the mids-woofer

Measurements Copernicus Top passiv, Frequency response of the mids-woofer
  • Blue = with crossover
  • Orange = without crossover

Frequency response of the mids-woofer with trap circuit

Measurements Copernicus Top passiv, Frequency response of the mids-woofer with trap circuit
  • Blue = with trap circuit
  • Orange = without trap circuit

Frequency response of the woofer

Measurements Copernicus Top passiv, Frequency response of the woofer
  • Blue = with crossover
  • Orange = without crossover

Frequency response of the woofer with trap circuit

Measurements Copernicus Top passiv, Frequency response of the woofer with trap circuit
  • Blue = with trap circuit
  • Orange = without trap circuit
