Here you can find the measurements for the kit Powercor Light.

The measurements are made with the Clio FW measurement system from Audiomatica

The measuring amplifier is a Clio QC-Box 5. This control unit performs a variety of tasks, e.g. controlling a laser, controlling turntables, etc.

For the measurements a calibrated Audiomatica Mic-01 with a length of 25 cm is used.

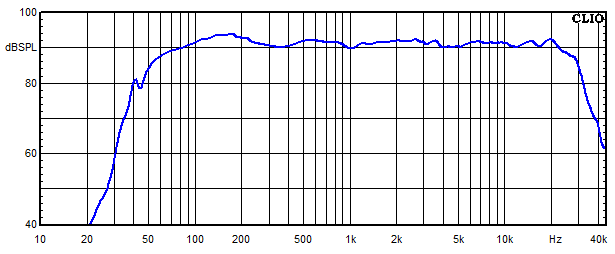

Frequency response

Measurements Powercor Light, Frequency response

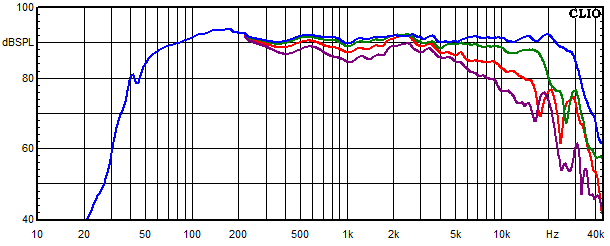

Frequency response measured at 0°, 15°, 30° and 45° angle

Measurements Powercor Light, Frequency response measured at 0°, 15°, 30° and 45° angle

Blue = 0°
Green = 15°
Red = 30°
Violet = 45°

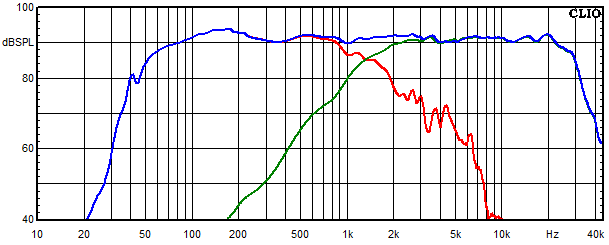

Frequency response of the individual paths (for each driver)

Measurements Powercor Light, Frequency response of the individual paths (for each driver)

Blue = Sum of tweeter and woofer measured on axis
Green = high frequency branch
Red = low frequency branch

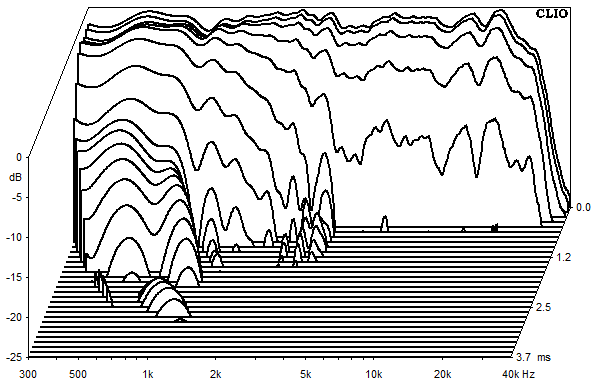

Waterfall spectrum

Measurements Powercor Light, Waterfall spectrum

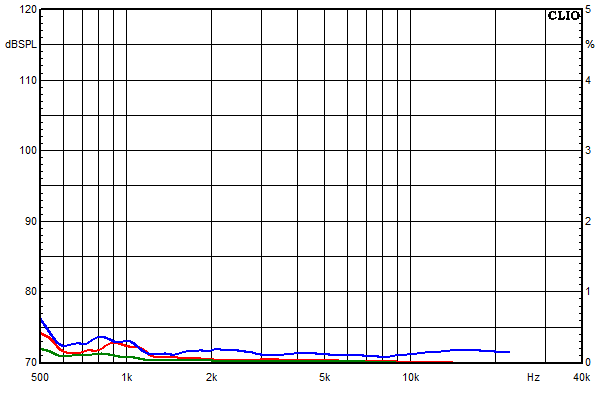

Distortion over frequency at 85 dB sound pressure level

Measurements Powercor Light, Distortion over frequency at 85 dB sound pressure level

Blue = k2
Red = k3
Green = k5

Distortion over frequency at 95 dB sound pressure level

Measurements Powercor Light, Distortion over frequency at 95 dB sound pressure level

Blue = k2
Red = k3
Green = k5

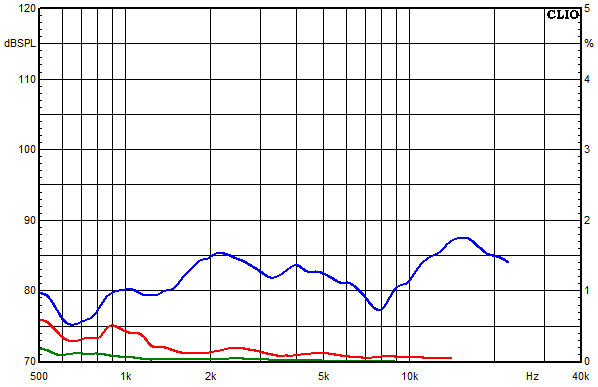

Distortion over frequency at 105 dB sound pressure level

Measurements Powercor Light, Distortion over frequency at 105 dB sound pressure level

Blue = k2
Red = k3
Green = k5

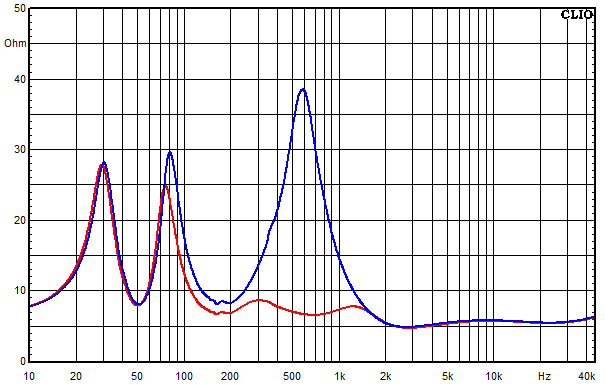

Impedance frequency response

Measurements Powercor Light, Impedance frequency response

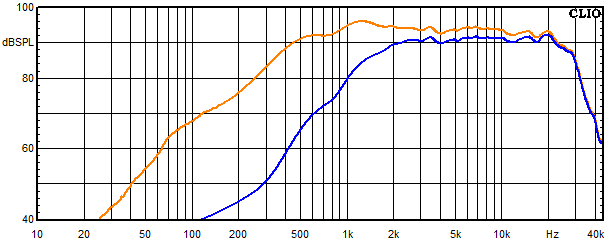

Frequency response of the tweeter

Measurements Powercor Light, Frequency response of the tweeter

Blue = with crossover
Orange = without crossover

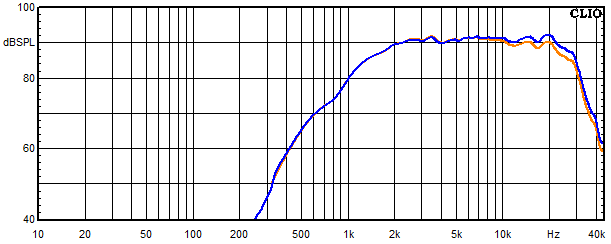

Frequency response of the tweeter with bypass capacitor

Measurements Powercor Light, Frequency response of the tweeter with bypass capacitor

Blue = with capacitor
Orange = without capacitor

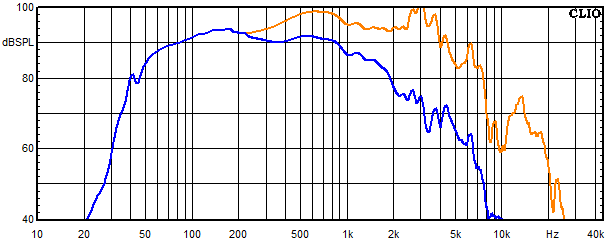

Frequency response of the woofer

Measurements Powercor Light, Frequency response of the woofer

Blue = with crossover
Orange = without crossover

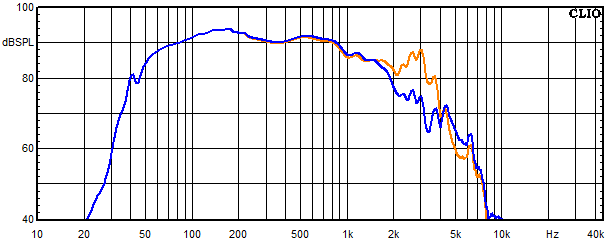

Frequency response of the woofer with trap circuit

Measurements Powercor Light, Frequency response of the woofer with trap circuit

Blue = with trap circuit
Orange = without trap circuit
