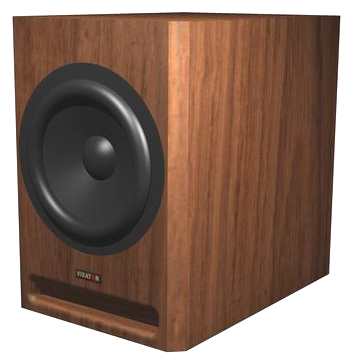

Visaton Subwoofer SUB T25.50

The SUB T25.50 is available with or without amplifier module. This sub is a solid low bass specialist. The somewhat smaller Sub T25.30 produces less bass and is, therefore, suited for smaller rooms where extreme low bass might sound boomy.

The SUB T25.50 shows the following characteristics:

• enormous low bass due to TIW 250 XS bass driver
• still reasonably compact size with 45 x 32.4 x 45 cm (height x width x depth)

Technical data:

• frequency response: from 25 Hz (-10 dB, according to Visaton)
• maximum SPL: 110 dB

The Visaton SUB T25.50 kit contains: the TIW 250 XS bass driver, 8 Ohm one terminal ST 77 or T105 2.5 bags polyester damping material 6x Allen wood screws 5 x 30 mm 4x screws 3.5 x 25 mm cable 2x 2.5 mm2 Description and building instruction

Picture: frequency response and impedance curve of Sub T25.50

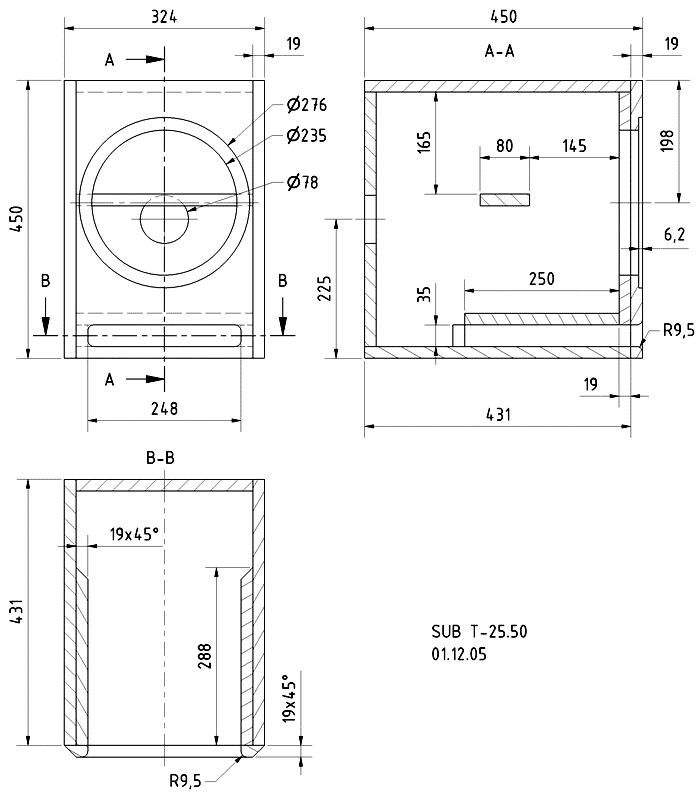

The plan of the cabinet.

Order No. str-t2550,   Price for one subwoofer kit (without amplifier and without cabinet):   EUR 351,00 excl. VAT: € 294.96 / $ 312.66

Visaton subwoofer SUB T25.50 kit with amplifier module Mivoc AM80 MK II

The subwoofer is available with different amplifier modules. If you are looking for a solid but not very expensive module we recommend Mivoc AM 80.

technical data of Mivoc AM 80 MK II:
- output: 80/160 Watt into 4 Ohm
- cut-off frequency: adjustable 50-150 Hz, 12 db/oct

Subwoofer module Mivoc AM 80 MK II is a module with gain control, cut-off frequency control and phase inversion switch. RCA sockets (to connect to pre-amp out) and binding posts (to connect to the main amp) are available. The satellites may be looped through the module. Required cut-out see description of the module.

The Visaton SUB T25.50 kit contains:

• the TIW 250 XS bass driver, 8 Ohm
• Subwoofer module Mivoc AM 80
• 3 bags polyester damping material
• 6x Allen wood screws 5 x 30 mm
• cable 2x 2.5 mm2
• Description and building instruction

Required cut-out for the amplifier see description of the module

Order No. str-t2550-am80,   Price for one subwoofer kit with amplifier AM80 (without cabinet):   EUR 446,00 excl. VAT: € 374.79 / $ 397.28

Visaton subwoofer SUB T25.50 kit with amplifier module Audaphon AMP-24

The kit is also available with amplifier Audaphon AMP-24 with digital signal processor (DSP)

The DSP plate amplifier AMP-24 provides:

• 2x 90 Watt RMS into 4 Ohm
• or 180 Watt RMS into 8 Ohm (bridged)
• The possibility to adapt the amplifier to the loudspeaker or subwoofer.
• In addition the possibility to tune the DSP according to room conditions.
• We would like to help you tuning the signal processors for your room.
• Or we delivered them tuned for your room.

Additional information on digital signal processors (DSP): what is a DSP?, Tuning according to room conditions and Examples Of DSP use (e.g. in subwoofers).

The Visaton SUB T25.50 kit contains:

• the TIW 250 XS bass driver, 8 Ohm
• the DSP amplifier Audaphon AMP-24
• 1.5 bags polyester damping material
• 6x Allen wood screws 5 x 30 mm
• cable 2x 2.5 mm2
• Description and building instruction

Required cut-out for the amplifier see description of the module

Order No. str-t2550-amp24,   Price for one subwoofer kit with amplifier Audaphon AMP-24 (without cabinet):   - not available (_)

The T25.50 kit with other amplifier modules

Upon request we also supply the Sub T25.50 with amplifier modules by Hypex or other manufacturers. Please enquire.
