PA Kit DE25-15B450

Technical Data:
- Dimensions (HxWxD): 84 x 46 x 26.5 cm
- Impedance: 8 Ohm
- Crossover frequency 2.1 kHz
- Filters (tweeter/bass driver) 18/12 dB
- Sensitivity: 99 dB (2.83V/1m)
- SPL (peak/1m) 128 dB
- Frequency range (-3dB): 50 - 18 kHz (extremely linear 70 - 17kHz +/- 1.5 dB)
The DE25-15B450 combines hi-fi sound with the high efficiency of a PA loudspeaker. To achieve this we:
- used one of the most linear tweeters, the B&C DE 25
    please refer to K&T 3/98:...inside tip...
- fitted a perfectly matched bass driver, the Oberton 15 B450
- developed a crossover according to hi-fi specs
- designed the crossover in such a way that it copes easily with the high power.
The crossover frequency is 2.1 kHz with 18 dB / octave to avoid an overdriven tweeter, while the phase response remains in tact. Bausatz mit B&C Treiber und Oberton

The 60 litre bass reflex speaker has a high efficiency of 99 dB, a power handling of 450/900 Watts (continuous/peak) and a frequency response of 50 - 18.000 Hz (with a fluctuation of only +/- 1.5 dB between 70 - 17.000 Hz).

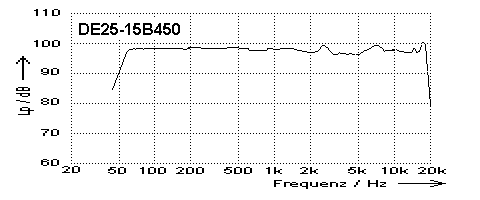

  Frequenzgang

The frequency response is measured at the tweeter's lower edge, in 2, 4 or 8 metres distance. Please enquire for additional data should the listening position be considerably lower or higher.
Bausatz mit B&C Treiber und Oberton

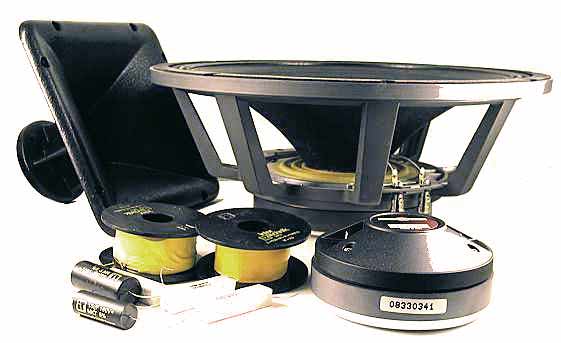

The kit consists of:

  • 1 x B&C DE 25, 1'' tweeter
  • 1 x RCF Horn H100
  • 1 x Oberton 15 B450, bass driver
all crossover components needed,
    to ensure an absolutely flat frequency response comprising
    air core coils, foil capacitors and resistors.
  • 1 x SE 1.6, protection element for the horn
  • 2 x HP 100, bass reflex tubes, shortened to 10 cm
  • 8 x synthetic protection corners
  • 1/2 mat N25, napped foam for the upper half of the rear wall
  • 1/2 pack sealing tape for the drivers
  • 8 x Allen screws, 30 x 5 mm
  • 8 x PAN screws, 4 x 20 mm for the horn
  • 1 x terminal with gold plated brass binding posts
          (or Speakon connector, if required)
  • 2.5 metre cable, 2 x 2.5mm2 diameter
  • the building instruction, see below


Price per unit without cabinet: EUR 505,00 excl. VAT: € 424.37 / $ 449.83

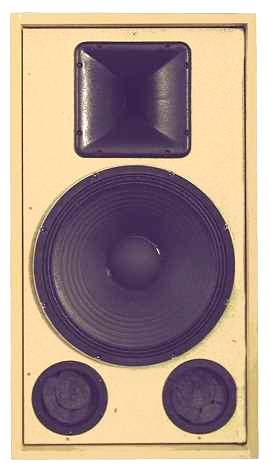

Building instruction (60 litre cabinet)

The napped foam should be fitted to the upper half of the rear wall, behind the DE25 and the bass driver.
Bauplan
Building instruction for reduced height:
If you prefer a lower cabinet the two bass reflex tubes may be replaced by a 22 x 6 cm duct with a depth of 10 cm. Therefore, the horn needs to be moved 6 cm to the side.

Two wooden panels are needed, one with 22 x 8 cm, one with 9.8 x 8cm.

This reduces the height by 14 cm, while the depth is increased by 3.4 cm, ensuring the same volume.



The crossover kit with wiring diagram is included.
