Compression driver for Horns

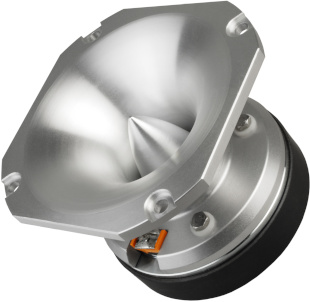

Faital Pro FD 371 A
open a bigger photo
Faital Pro FD 371 A
open a bigger photo

Faital Pro FD 371 A

order no. ah-FPFD371A

EUR 156,00 excl. VAT: € 131.09 / $ 138.96

.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 2600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • mounting diameter d = 91 mm
  • overall diameter d = 115,2 mm
  • mounting depth (not countersunk) t = 79 mm
  • mass m = 1,3 kg
PDF data sheet

Faital Pro FD 375 A
open a bigger photo
Faital Pro FD 375 A
open a bigger photo

Faital Pro FD 375 A

order no. ah-fpfd375a

EUR 156,00 excl. VAT: € 131.09 / $ 138.96

.

  • power handling (continuous/programme) = 35/70 W
  • frequency range = 2600-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • mounting diameter d = 91 mm
  • overall diameter d = 115,2 mm
  • mounting depth (not countersunk) t = 79 mm
  • mass m = 1,24 kg
PDF data sheet

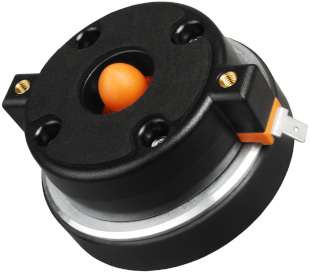

Faital Pro HF 100 A
open a bigger photo
Faital Pro HF 100 A
open a bigger photo

Faital Pro HF 100 A

order no. ah-FPHF100A

EUR 64,00 excl. VAT: € 53.78 / $ 57.01

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil diameter = 25 mm
  • overall diameter d = 108 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 0,83 kg
PDF data sheet

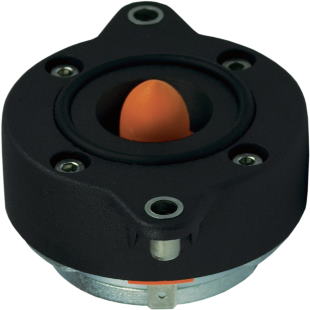

Faital Pro HF 102 A
open a bigger photo
Faital Pro HF 102 A
open a bigger photo

Faital Pro HF 102 A

order no. ah-FPHF102A

EUR 84,00 excl. VAT: € 70.59 / $ 74.82

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 1800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 6 Ohm
  • voice coil diameter = 25 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 43 mm
  • mass m = 0,3 kg
PDF data sheet

Faital Pro HF 103 A
open a bigger photo
Faital Pro HF 103 A
open a bigger photo

Faital Pro HF 103 A

order no. ah-fphf103a

EUR 130,00 excl. VAT: € 109.24 / $ 115.80

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,3 kg
PDF data sheet

Faital Pro HF 103 B
open a bigger photo
Faital Pro HF 103 B
open a bigger photo

Faital Pro HF 103 B

order no. ah-fphf103b

EUR 130,00 excl. VAT: € 109.24 / $ 115.80

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,3 kg
PDF data sheet

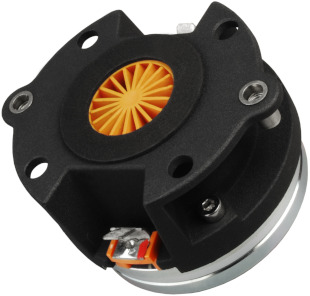

Faital Pro HF 104 A
open a bigger photo
Faital Pro HF 104 A
open a bigger photo

Faital Pro HF 104 A

order no. ah-FPHF104A

EUR 139,00 excl. VAT: € 116.81 / $ 123.82

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 51 mm
  • mass m = 0,67 kg
PDF data sheet

Faital Pro HF 104 B
open a bigger photo
Faital Pro HF 104 B
open a bigger photo

Faital Pro HF 104 B

order no. ah-fphf104b

EUR 129,00 excl. VAT: € 108.40 / $ 114.91

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 51 mm
  • mass m = 0,67 kg
PDF data sheet

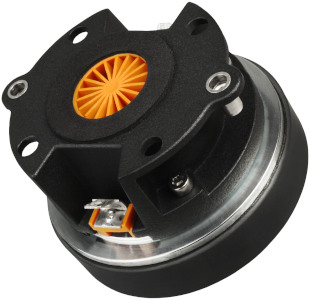

Faital Pro HF 105 A
open a bigger photo
Faital Pro HF 105 A
open a bigger photo

Faital Pro HF 105 A

order no. ah-FPHF105A

EUR 119,00 excl. VAT: € 100.00 / $ 106.00

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1400-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 1,1 kg
PDF data sheet

Faital Pro HF 105 B
open a bigger photo
Faital Pro HF 105 B
open a bigger photo

Faital Pro HF 105 B

order no. ah-fphf105b

EUR 119,00 excl. VAT: € 100.00 / $ 106.00

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 1400-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 91 mm
  • mounting depth (not countersunk) t = 61 mm
  • mass m = 1,1 kg
PDF data sheet

Faital Pro HF 106 A
open a bigger photo
Faital Pro HF 106 A
open a bigger photo

Faital Pro HF 106 A

order no. ah-fphf106a

EUR 225,00 excl. VAT: € 189.08 / $ 200.42

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1300-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 95,7 mm
  • mounting depth (not countersunk) t = 58,8 mm
  • mass m = 1,1 kg
PDF data sheet

Faital Pro HF 106 B
open a bigger photo
Faital Pro HF 106 B
open a bigger photo

Faital Pro HF 106 B

order no. ah-fphf106b

EUR 225,00 excl. VAT: € 189.08 / $ 200.42

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1300-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 10,3 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 95,7 mm
  • mounting depth (not countersunk) t = 58,8 mm
  • mass m = 1,1 kg
PDF data sheet

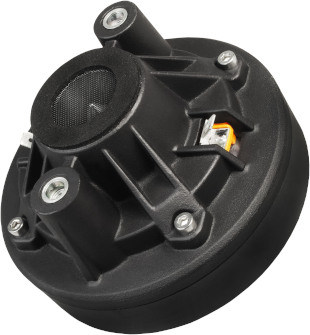

Faital Pro HF 107 A
open a bigger photo
Faital Pro HF 107 A
open a bigger photo

Faital Pro HF 107 A

order no. ah-FPHF107A

EUR 150,00 excl. VAT: € 126.05 / $ 133.61

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 1300-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 75,4 mm
  • mass m = 2,5 kg
PDF data sheet

Faital Pro HF 107 B
open a bigger photo
Faital Pro HF 107 B
open a bigger photo

Faital Pro HF 107 B

order no. ah-fphf107b

EUR 169,00 excl. VAT: € 142.02 / $ 150.54

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 1300-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 10,3 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 75,4 mm
  • mass m = 2,5 kg
PDF data sheet

Faital Pro HF 108 A
open a bigger photo
Faital Pro HF 108 A
open a bigger photo

Faital Pro HF 108 A

order no. ah-fphf108a

EUR 189,00 excl. VAT: € 158.82 / $ 168.35

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

Faital Pro HF 108 B
open a bigger photo
Faital Pro HF 108 B
open a bigger photo

Faital Pro HF 108 B

order no. ah-fphf108b

EUR 179,00 excl. VAT: € 150.42 / $ 159.45

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

Faital Pro HF 108R A
open a bigger photo
Faital Pro HF 108R A
open a bigger photo

Faital Pro HF 108R A

order no. ah-fphf108ra

EUR 179,00 excl. VAT: € 150.42 / $ 159.45

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

Faital Pro HF 108R B
open a bigger photo
Faital Pro HF 108R B
open a bigger photo

Faital Pro HF 108R B

order no. ah-fphf108rb

EUR 179,00 excl. VAT: € 150.42 / $ 159.45

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 87 mm
  • mounting depth (not countersunk) t = 41 mm
  • mass m = 0,8 kg
PDF data sheet

Faital Pro HF 109 A
open a bigger photo
Faital Pro HF 109 A
open a bigger photo

Faital Pro HF 109 A

order no. ah-fphf109a

EUR 152,00 excl. VAT: € 127.73 / $ 135.39

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,2 kg
PDF data sheet

Faital Pro HF 109 B
open a bigger photo
Faital Pro HF 109 B
open a bigger photo

Faital Pro HF 109 B

order no. ah-fphf109b

EUR 152,00 excl. VAT: € 127.73 / $ 135.39

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1000-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 10,5 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 121 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,2 kg
PDF data sheet

Faital Pro HF 110 A
open a bigger photo
Faital Pro HF 110 A
open a bigger photo

Faital Pro HF 110 A

order no. ah-fphf110a

EUR 119,00 excl. VAT: € 100.00 / $ 106.00

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 35 mm
  • mass m = 0,52 kg
PDF data sheet

Faital Pro HF 111 A
open a bigger photo
Faital Pro HF 111 A
open a bigger photo

Faital Pro HF 111 A

order no. ah-fphf111a

EUR 98,00 excl. VAT: € 82.35 / $ 87.29

1 inch high frequency compression driver with ketone polymer cone.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 2000-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 107 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 1,3 kg
PDF data sheet

Faital Pro HF 1000 A
open a bigger photo
Faital Pro HF 1000 A
open a bigger photo

Faital Pro HF 1000 A

order no. ah-fphf1000a

EUR 260,00 excl. VAT: € 218.49 / $ 231.60

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 1000-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 52 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 48,5 mm
  • mass m = 0,985 kg
PDF data sheet

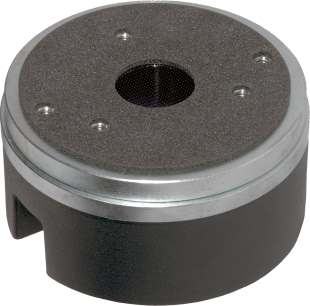

Faital Pro HF 10AK A
open a bigger photo
Faital Pro HF 10AK A
open a bigger photo

Faital Pro HF 10AK A

order no. ah-FPHF10AKA

EUR 231,00 excl. VAT: € 194.12 / $ 205.76

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,8 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,4 kg
PDF data sheet

Faital Pro HF 10AK B
open a bigger photo
Faital Pro HF 10AK B
open a bigger photo

Faital Pro HF 10AK B

order no. ah-fphf10akb

EUR 219,00 excl. VAT: € 184.03 / $ 195.08

1 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 800-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 44 mm
  • overall diameter d = 102 mm
  • mounting depth (not countersunk) t = 54 mm
  • mass m = 1,4 kg
PDF data sheet

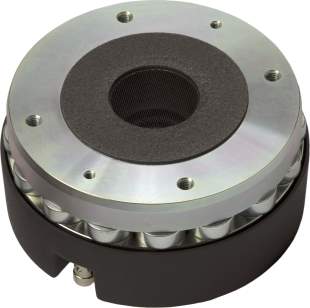

Faital Pro HF 140 A
open a bigger photo
Faital Pro HF 140 A
open a bigger photo

Faital Pro HF 140 A

order no. ah-FPHF140A

EUR 285,00 excl. VAT: € 239.50 / $ 253.87

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 2,9 kg
PDF data sheet

Faital Pro HF 140 B
open a bigger photo
Faital Pro HF 140 B
open a bigger photo

Faital Pro HF 140 B

order no. ah-fphf140b

EUR 285,00 excl. VAT: € 239.50 / $ 253.87

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 62 mm
  • mass m = 2,9 kg
PDF data sheet

Faital Pro HF 141 A
open a bigger photo
Faital Pro HF 141 A
open a bigger photo

Faital Pro HF 141 A

order no. ah-fphf141a

EUR 285,00 excl. VAT: € 239.50 / $ 253.87

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,7 kg
PDF data sheet

Faital Pro HF 141 B
open a bigger photo
Faital Pro HF 141 B
open a bigger photo

Faital Pro HF 141 B

order no. ah-fphf141b

EUR 282,00 excl. VAT: € 236.97 / $ 251.19

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,7 kg
PDF data sheet

Faital Pro HF 142 A
open a bigger photo
Faital Pro HF 142 A
open a bigger photo

Faital Pro HF 142 A

order no. ah-fphf142a

EUR 307,00 excl. VAT: € 257.98 / $ 273.46

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 6,7 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 54,5 mm
  • mass m = 1,64 kg
PDF data sheet

Faital Pro HF 142 B
open a bigger photo
Faital Pro HF 142 B
open a bigger photo

Faital Pro HF 142 B

order no. ah-fphf142b

EUR 307,00 excl. VAT: € 257.98 / $ 273.46

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 13,4 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 115 mm
  • mounting depth (not countersunk) t = 54,5 mm
  • mass m = 1,64 kg
PDF data sheet

Faital Pro HF 143 A
open a bigger photo
Faital Pro HF 143 A
open a bigger photo

Faital Pro HF 143 A

order no. ah-fphf143a

EUR 262,00 excl. VAT: € 220.17 / $ 233.38

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 64,5 mm
  • mass m = 4 kg
PDF data sheet

Faital Pro HF 143 B
open a bigger photo
Faital Pro HF 143 B
open a bigger photo

Faital Pro HF 143 B

order no. ah-fphf143b

EUR 262,00 excl. VAT: € 220.17 / $ 233.38

1.4 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 156 mm
  • mounting depth (not countersunk) t = 64,5 mm
  • mass m = 4 kg
PDF data sheet

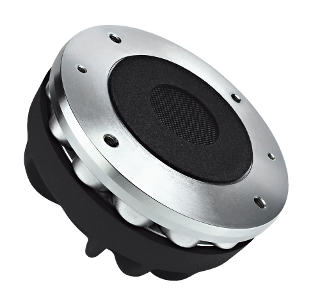

Faital Pro HF 144 A
open a bigger photo
Faital Pro HF 144 A
open a bigger photo

Faital Pro HF 144 A

order no. ah-FPHF144A

EUR 269,00 excl. VAT: € 226.05 / $ 239.61

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 144 B
open a bigger photo
Faital Pro HF 144 B
open a bigger photo

Faital Pro HF 144 B

order no. ah-fphf144b

EUR 273,00 excl. VAT: € 229.41 / $ 243.18

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 146 A
open a bigger photo
Faital Pro HF 146 A
open a bigger photo

Faital Pro HF 146 A

order no. ah-fphf146a

EUR 283,00 excl. VAT: € 237.82 / $ 252.08

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 146 B
open a bigger photo
Faital Pro HF 146 B
open a bigger photo

Faital Pro HF 146 B

order no. ah-fphf146a

EUR 283,00 excl. VAT: € 237.82 / $ 252.08

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 146R A
open a bigger photo
Faital Pro HF 146R A
open a bigger photo

Faital Pro HF 146R A

order no. ah-fphf146ra

EUR 283,00 excl. VAT: € 237.82 / $ 252.08

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

Faital Pro HF 146R B
open a bigger photo
Faital Pro HF 146R B
open a bigger photo

Faital Pro HF 146R B

order no. ah-fphf146rb

EUR 283,00 excl. VAT: € 237.82 / $ 252.08

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 700-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 63,5 mm
  • mass m = 2 kg
PDF data sheet

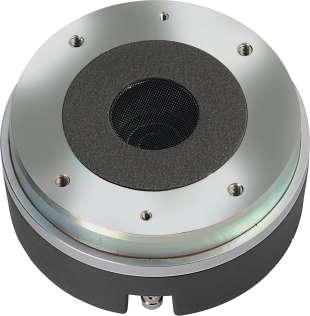

Faital Pro HF 148C A
open a bigger photo
Faital Pro HF 148C A
open a bigger photo

Faital Pro HF 148C A

order no. ah-fphf148ca

EUR 375,00 excl. VAT: € 315.13 / $ 334.03

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 600-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 116 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,9 kg
PDF data sheet

Faital Pro HF 1400 A
open a bigger photo
Faital Pro HF 1400 A
open a bigger photo

Faital Pro HF 1400 A

order no. ah-fphf1400a

EUR 439,00 excl. VAT: € 368.91 / $ 391.04

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,5 kg
PDF data sheet

Faital Pro HF 1400 B
open a bigger photo
Faital Pro HF 1400 B
open a bigger photo

Faital Pro HF 1400 B

order no. ah-fphf1400b

EUR 439,00 excl. VAT: € 368.91 / $ 391.04

1.4 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 2,5 kg
PDF data sheet

Faital Pro HF 1440 A
open a bigger photo
Faital Pro HF 1440 A
open a bigger photo

Faital Pro HF 1440 A

order no. ah-fphf1440a

EUR 404,00 excl. VAT: € 339.50 / $ 359.87

1.4 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 120/240 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 6,8 Ohm
  • voice coil diameter = 86 mm
  • overall diameter d = 124 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 2,1 kg
PDF data sheet

Faital Pro HF 1460 A
open a bigger photo
Faital Pro HF 1460 A
open a bigger photo

Faital Pro HF 1460 A

order no. ah-fphf1460a

EUR 545,00 excl. VAT: € 457.98 / $ 485.46

1.4 inch high frequency compression driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 120/240 W
  • frequency range = 600-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 86 mm
  • overall diameter d = 120 mm
  • mounting depth (not countersunk) t = 65 mm
  • mass m = 2 kg
PDF data sheet

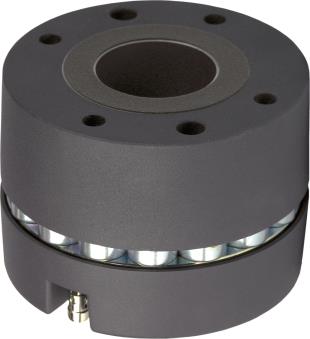

Faital Pro HF 200 A
open a bigger photo
Faital Pro HF 200 A
open a bigger photo

Faital Pro HF 200 A

order no. ah-FPHF200A

EUR 310,00 excl. VAT: € 260.50 / $ 276.13

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 3,2 kg
PDF data sheet

Faital Pro HF 200 B
open a bigger photo
Faital Pro HF 200 B
open a bigger photo

Faital Pro HF 200 B

order no. ah-fphf200b

EUR 295,00 excl. VAT: € 247.90 / $ 262.77

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 70/140 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 3,2 kg
PDF data sheet

Faital Pro HMF 200 A
open a bigger photo
Faital Pro HMF 200 A
open a bigger photo

Faital Pro HMF 200 A

order no. ah-fphmf200a

EUR 315,00 excl. VAT: € 264.71 / $ 280.59

2 inch high frequency compression driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 40/80 W
  • frequency range = 450-9000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 37 mm
  • overall diameter d = 144 mm
  • mounting depth (not countersunk) t = 77 mm
  • mass m = 1,65 kg
PDF data sheet

Faital Pro HF 201 A
open a bigger photo
Faital Pro HF 201 A
open a bigger photo

Faital Pro HF 201 A

order no. ah-fphf201a

EUR 285,00 excl. VAT: € 239.50 / $ 253.87

2 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,6 kg
PDF data sheet

Faital Pro HF 201 B
open a bigger photo
Faital Pro HF 201 B
open a bigger photo

Faital Pro HF 201 B

order no. ah-fphf201b

EUR 285,00 excl. VAT: € 239.50 / $ 253.87

2 inch high frequency compression driver with titanium cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 8,2 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 170 mm
  • mounting depth (not countersunk) t = 66 mm
  • mass m = 4,6 kg
PDF data sheet

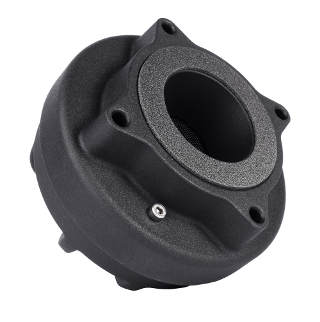

Faital Pro HF 204 A
open a bigger photo
Faital Pro HF 204 A
open a bigger photo

Faital Pro HF 204 A

order no. ah-FPHF204A

EUR 225,00 excl. VAT: € 189.08 / $ 200.42

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

Faital Pro HF 204 B
open a bigger photo
Faital Pro HF 204 B
open a bigger photo

Faital Pro HF 204 B

order no. ah-fphf204b

EUR 285,00 excl. VAT: € 239.50 / $ 253.87

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 108 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

Faital Pro HF 206 A
open a bigger photo
Faital Pro HF 206 A
open a bigger photo

Faital Pro HF 206 A

order no. ah-fphf206a

EUR 296,00 excl. VAT: € 248.74 / $ 263.66

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 5,5 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

Faital Pro HF 206 B
open a bigger photo
Faital Pro HF 206 B
open a bigger photo

Faital Pro HF 206 B

order no. ah-fphf206b

EUR 296,00 excl. VAT: € 248.74 / $ 263.66

2 inch high frequency compression driver with ketone polymer cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 80/160 W
  • frequency range = 500-18000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 109 dB (1W; 1m)
  • DC resistance Re = 11 Ohm
  • voice coil diameter = 65 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 91,5 mm
  • mass m = 2,3 kg
PDF data sheet

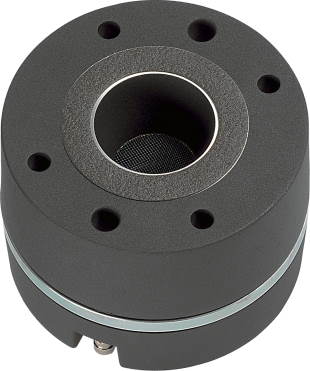

Faital Pro HF 2000 A
open a bigger photo
Faital Pro HF 2000 A
open a bigger photo

Faital Pro HF 2000 A

order no. ah-fphf2000a

EUR 439,00 excl. VAT: € 368.91 / $ 391.04

2 inch high frequency compression driver with titanium cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 500-18000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 110 dB (1W; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil diameter = 74 mm
  • overall diameter d = 130,5 mm
  • mounting depth (not countersunk) t = 83,5 mm
  • mass m = 2,75 kg
PDF data sheet

Compression driver for Horns   Horn   Coaxial speaker   Full Range   Mids   Woofer   8 inch woofer   10 inch woofer   12 inch woofer   15 inch woofer   18 inch woofer   no longer sold
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright 2020 Iris Strassacker; All rights reserved. - errors and omissions excepted
