Defender III Cable crossover

Defender III Cable crossover

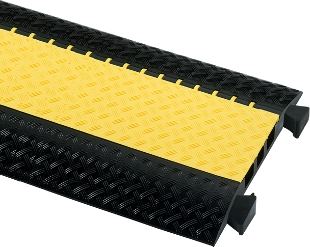

Cable Crossover. Lid load bearing capacity per typical tyre imprint (20x20 cm): 5 tons. Crossover lengths are joined by individually available connector plugs. Each crossover is supplied with one pair of connector plugs. The lid closes down onto a patented "interlock zipper" which is moulded into the base and lid - no Velcro to tear off or clog with dirt. A complete range of accessories expands the Defender II into a flexible system to protect your cables and multicores.

Basic module with patented interlocking lid.

Technical Data:

  • Weight 19 kg
  • Length: ca. 100 cm
  • Width: ca. 60 cm
  • Height: ca. 7,3 cm
  • Channels: 3
  • Width, channel: ca. 52 mm, 45 mm, 56 mm
  • Heigth, channel: ca. 49 mm, 50 mm, 49 mm
  • Material: UV resistant high density pressure moulded Polyurethane
  • Flame class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)
  • Oil-, acid- and gasoline-resistant
  • Temperature range: - 40° C to + 70° C

Laser labelling on request (see template and requirements in download section).

PDF data sheet Technical drawing
PDF data sheet Technical Report (German Technical Control Board - TÜV, in German)
PDF data sheet Laser engraving template and requirements
PDF data sheet EG Declaration of Conformity

price per unit   (Order No. ah-85002) EUR 300,00 excl. VAT: € 252.10 / $ 292.44


Defender III joining piece

Defender III Cable crossover, Defender III joining piece
Connector plugs are available in pairs only.
PDF data sheet Laser engraving template and requirements
PDF data sheet EG Declaration of Conformity

price per unit   (Order No. ah-85004) EUR 29,10 excl. VAT: € 24.45 / $ 28.37


Defender III Cable Crossover end ramp

End ramp for cable outlet reduces the risk of tripping.
PDF data sheet Technical drawing
PDF data sheet Laser engraving template and requirements
PDF data sheet EG Declaration of Conformity

price per unit   (Order No. ah-85008) EUR 95,40 excl. VAT: € 80.17 / $ 92.99


Defender III Cable Crossover 45 degree curve with connection

Cable Crossover 45 degree curve with connection.
PDF data sheet Laser engraving template and requirements
PDF data sheet EG Declaration of Conformity

price per unit   (Order No. ah-85009) EUR 190,00 excl. VAT: € 159.66 / $ 185.21
