Defender Ultra

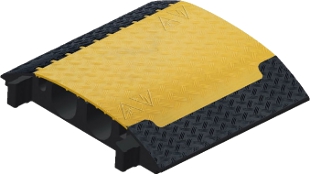

Defender Ultra L Cable Crossover

Enlarge Enlarge Enlarge Enlarge The latest development in the Defender cable crossover series. This cable crossover was developed in collaboration with suppliers for major events. The key feature of this heavy-duty crossover is the two oversized cable/hose ducts for lines up to 120 mm, and for fragile connections and connector housings not exceeding 100 mm.

  • Basic module with patented interlocking lid (EU Patent No.: EP1366550).
  • Length: 70 cm
  • Width: 78,3 cm
  • Heigth: 13,9 cm
  • Channels: 2 + 2
  • Material: UV resistant high density pressure moulded Polyurethane
  • Flame class: B2 (also available as B1 - hardly combustible, in accordance with DIN 4102)
  • Degree of Hardness: : 88 Shore ± 4 A
  • Load bearing capacity: up to 6 t (on 20 x 20 cm)
  • Oil-, acid- and gasoline-resistant
  • Temperature range: - 30° C to + 60° C

PDF data sheet Technical drawing

PDF data sheet Technical Report (German Technical Control Board - TÜV, in German)

PDF data sheet Laser engraving template and requirements

PDF data sheet EG Declaration of Conformity

price per piece   (Order No ah-85600) EUR 360,00 excl. VAT: € 302.52 / $ 335.80
