Auditorium Sub   Subwoofer as in K+T 5/2022

Technical data
  • impedance: 4 Ohm
  • sensivity (2,83V/1m): aktiv dB
  • size (HxWxD): 350 x 900 x 350 mm
  • frequency range (-8dB): 22 - 100 Hz
  • crossover frequency(s): aktiv Hz
  • speaker type: passive radiator

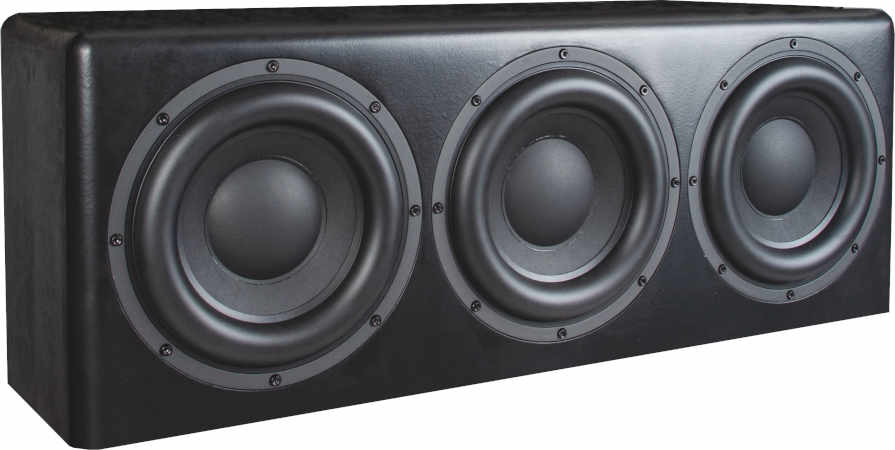

Auditorium Subwoofer is a versatile subwoofer which complements the rest of the loudspeakers with a powerful and deep bass.

Auditorium Monitor can be perfectly complemented by the bass supplements Auditorium Sub or even more powerful Auditorium Sub XL.

Auditorium Subwoofer is a loudspeaker with drivers of Wavecor . Passive radiators provide deep bass.

The kit is delivered with a Wavecor SW275BD01 + 2x Wavecor PR275BD01 subwoofer

The loudspeaker has been developed by Dennis Frank and Daniel Gattig.

The frequency response of this speaker is perfectly linear.

An excerpt from the Klang+Ton review (Translation of the author into English)

"What can I say? For the first time ever I had the feeling that our listening room was too small - and not because it would have boomed unduly - on the contrary: I have never experienced such a disciplined and at the same time such a deep bass - great respect to the developers, who have not relied on a cheap sensation here. No, the problem was the listening distance, which only feels "right" from about 4 meters and more, because then the precision and size of the voices and instruments gets realistic - closer up, it is impressive, but everything, really everything seems a bit too large. With the right distance, however, the world of really big, really good studio monitors opens up, which really doesn't miss anything, absolutely nothing, and which don't let anything loud or dynamic upset them. That is great precision, great dynamics, overview and at volumes that one would not normally listen to at all - with the Auditorium they become a thoroughly pleasant experience."

Conclusion of the magazine Klang+Ton:

"Nothing less than a statement of what is possible when it comes to large monitors."

Our kit consists of

  • 2x Wavecor PR275BD01 Passive Radiator, die cast alu, mica/paper laminated cone, incl. 3 detachable weights
  • Wavecor Subwoofer SW275BD01, die cast alu, mica/paper laminated cone, 4 ohm
  • Hypex FusionAmp FA501
  • 3x Damping Sonofil 100 x 35 cm for 20 litres
  • 2m Speaker cable 2x2.5 mm2 black/red
  • Pan screws 4x20 black, torx, 8 pieces
  • 3x Allen wood screws, black, 5x30 mm, 8 pieces
  • Plan for DIY kit

Kit without cabinet, price per speaker   EUR 1866,00 excl. VAT: € 1568.07 / $ 1677.83

Price for a pair of custom speakers of any color   - not available (_)
