MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil

Condensadores MundorfMCAP EVO

Mundorf está considerado un especialista en componentes de alta gama.

El condensador tiene conexiones axiales y es de forma cilíndrica.

Si desea adquirir condensadores seleccionados por pares, se los suministramos con un precio adicional de   EUR 2,60 sin IVA: € 2.18 / $ 2.60 (Diferencia de capacidad << 1%).

Condensadores Mundorf MCAP EVO 450Vdc (350, 250 Vdc)

Condensadores MundorfMCAP EVO, Condensadores Mundorf MCAP EVO 450Vdc (350, 250 Vdc)
Aumentar imagen

Mundorf MCap EVO (Condensador Mundorf con tecnología Evolution) es un condensador MKP de bajo precio, que fue recortado para una baja resistencia en serie con respecto a la geometría.

N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-evo-1 0,010 650,0 5,0 x 12,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-10 0,10 650,0 18,0 x 12,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-15 0,15 450,0 16,0 x 14,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-22 0,22 450,0 16,0 x 14,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-27 0,27 450,0 18,0 x 14,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-33 0,33 450,0 18,0 x 14,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-39 0,39 450,0 20,0 x 14,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-47 0,47 450,0 20,0 x 14,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-56 0,56 450,0 22,0 x 16,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-68 0,68 450,0 22,0 x 16,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-82 0,82 450,0 25,0 x 16,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-100 1,0 450,0 25,0 x 16,0 EUR 8,50 sin IVA: € 7.14 / $ 8.50
M-evo-150 1,5 450,0 30,0 x 16,0 EUR 8,60 sin IVA: € 7.23 / $ 8.60
M-evo-180 1,8 450,0 25,0 x 21,0 EUR 8,70 sin IVA: € 7.31 / $ 8.70
M-evo-220 2,2 450,0 25,0 x 21,0 EUR 8,80 sin IVA: € 7.39 / $ 8.80
M-evo-270 2,7 450,0 30,0 x 21,0 EUR 9,00 sin IVA: € 7.56 / $ 9.00
M-evo-330 3,3 450,0 30,0 x 21,0 EUR 9,20 sin IVA: € 7.73 / $ 9.20
M-evo-390 3,9 450,0 25,0 x 27,0 EUR 9,40 sin IVA: € 7.90 / $ 9.40
M-evo-470 4,7 450,0 30,0 x 27,0 EUR 9,80 sin IVA: € 8.24 / $ 9.80
M-evo-560 5,6 450,0 30,0 x 27,0 EUR 10,70 sin IVA: € 8.99 / $ 10.70
M-evo-680 6,8 450,0 35,0 x 27,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-820 8,2 450,0 35,0 x 27,0 EUR 12,60 sin IVA: € 10.59 / $ 12.60
M-evo-1000 10,0 450,0 40,0 x 27,0 EUR 14,60 sin IVA: € 12.27 / $ 14.60
M-evo-1200 12,0 450,0 35,0 x 35,0 EUR 16,60 sin IVA: € 13.95 / $ 16.60
M-evo-1500 15,0 450,0 40,0 x 35,0 EUR 19,50 sin IVA: € 16.39 / $ 19.50
M-evo-1800 18,0 450,0 50,0 x 35,0 EUR 24,40 sin IVA: € 20.50 / $ 24.40
M-evo-2200 22,0 450,0 50,0 x 35,0 EUR 29,30 sin IVA: € 24.62 / $ 29.30
M-evo-3300 33,0 450,0 65,0 x 35,0 EUR 39,10 sin IVA: € 32.86 / $ 39.10
M-evo-4700 47,0 350,0 50,0 x 50,0 EUR 39,10 sin IVA: € 32.86 / $ 39.10
M-evo-5600 56,0 350,0 65,0 x 50,0 EUR 48,90 sin IVA: € 41.09 / $ 48.90
M-evo-6800 68,0 350,0 65,0 x 50,0 EUR 58,70 sin IVA: € 49.33 / $ 58.70
M-evo-8200 82,0 350,0 75,0 x 50,0 EUR 78,30 sin IVA: € 65.80 / $ 78.30
M-evo-10000 100,0 350,0 75,0 x 50,0 EUR 83,20 sin IVA: € 69.92 / $ 83.20
M-evo-15000 150,0 250,0 50,0 x 90,0 EUR 83,20 sin IVA: € 69.92 / $ 83.20
M-evo-22000 220,0 250,0 65,0 x 90,0 EUR 97,90 sin IVA: € 82.27 / $ 97.90
M-evo-27000 270,0 250,0 65,0 x 90,0 EUR 118,00 sin IVA: € 99.16 / $ 118.00
M-evo-33000 330,0 250,0 75,0 x 90,0 EUR 147,00 sin IVA: € 123.53 / $ 147.00

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil

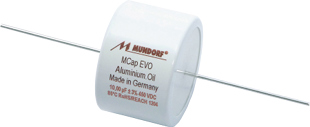

Condensadores Mundorf MCAP EVO Oil 450Vdc (350 Vdc)

Condensadores MundorfMCAP EVO, Condensadores Mundorf MCAP EVO Oil 450Vdc (350 Vdc)
Aumentar imagen

El condensador MCap EVO Oil de Mundorf combina las ventajas sonoras del condensador MCap EVO con las ventajas de los condensadores impregnados de aceite.

N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-evo-oil-1 0,010 450,0 5,0 x 12,0 - No disponible (_)
M-evo-oil-10 0,10 450,0 18,0 x 12,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-15 0,15 450,0 16,0 x 14,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-22 0,22 450,0 16,0 x 14,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-33 0,33 450,0 18,0 x 14,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-47 0,47 450,0 20,0 x 14,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-68 0,68 450,0 22,0 x 16,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-100 1,0 450,0 25,0 x 16,0 EUR 11,70 sin IVA: € 9.83 / $ 11.70
M-evo-oil-150 1,5 450,0 30,0 x 16,0 EUR 12,30 sin IVA: € 10.34 / $ 12.30
M-evo-oil-220 2,2 450,0 25,0 x 21,0 EUR 12,60 sin IVA: € 10.59 / $ 12.60
M-evo-oil-270 2,7 450,0 30,0 x 21,0 EUR 13,20 sin IVA: € 11.09 / $ 13.20
M-evo-oil-330 3,3 450,0 30,0 x 21,0 EUR 13,60 sin IVA: € 11.43 / $ 13.60
M-evo-oil-390 3,9 450,0 25,0 x 27,0 EUR 14,20 sin IVA: € 11.93 / $ 14.20
M-evo-oil-470 4,7 450,0 30,0 x 27,0 EUR 14,60 sin IVA: € 12.27 / $ 14.60
M-evo-oil-560 5,6 450,0 30,0 x 27,0 EUR 15,60 sin IVA: € 13.11 / $ 15.60
M-evo-oil-680 6,8 450,0 35,0 x 27,0 EUR 16,60 sin IVA: € 13.95 / $ 16.60
M-evo-oil-820 8,2 450,0 35,0 x 27,0 EUR 17,50 sin IVA: € 14.71 / $ 17.50
M-evo-oil-1000 10,0 450,0 40,0 x 27,0 EUR 19,50 sin IVA: € 16.39 / $ 19.50
M-evo-oil-1500 15,0 450,0 40,0 x 35,0 EUR 24,40 sin IVA: € 20.50 / $ 24.40
M-evo-oil-2200 22,0 450,0 50,0 x 35,0 EUR 34,20 sin IVA: € 28.74 / $ 34.20
M-evo-oil-3300 33,0 450,0 65,0 x 35,0 EUR 44,00 sin IVA: € 36.97 / $ 44.00
M-evo-oil-4700 47,0 350,0 50,0 x 50,0 EUR 44,00 sin IVA: € 36.97 / $ 44.00
M-evo-oil-6800 68,0 350,0 65,0 x 50,0 EUR 63,60 sin IVA: € 53.45 / $ 63.60
M-evo-oil-10000 100,0 350,0 75,0 x 50,0 EUR 88,10 sin IVA: € 74.03 / $ 88.10

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil



Condensadores Mundorf MCAP EVO Silver Gold Oil 450Vdc (350 Vdc)

Condensadores MundorfMCAP EVO, Condensadores Mundorf MCAP EVO Silver Gold Oil 450Vdc (350 Vdc)
Aumentar imagen



N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-evo-s-g-o-1 0,010 450,0 5,0 x 12,0 EUR 20,90 sin IVA: € 17.56 / $ 20.90
M-evo-s-g-o-10 0,10 450,0 18,0 x 12,0 EUR 21,00 sin IVA: € 17.65 / $ 21.00
M-evo-s-g-o-15 0,15 450,0 16,0 x 14,0 EUR 21,50 sin IVA: € 18.07 / $ 21.50
M-evo-s-g-o-22 0,22 450,0 16,0 x 14,0 EUR 21,50 sin IVA: € 18.07 / $ 21.50
M-evo-s-g-o-33 0,33 450,0 18,0 x 14,0 EUR 23,40 sin IVA: € 19.66 / $ 23.40
M-evo-s-g-o-47 0,47 450,0 20,0 x 14,0 EUR 25,40 sin IVA: € 21.34 / $ 25.40
M-evo-s-g-o-68 0,68 450,0 22,0 x 16,0 EUR 27,30 sin IVA: € 22.94 / $ 27.30
M-evo-s-g-o-100 1,0 450,0 25,0 x 16,0 EUR 29,60 sin IVA: € 24.87 / $ 29.60
M-evo-s-g-o-150 1,5 450,0 30,0 x 16,0 EUR 34,60 sin IVA: € 29.08 / $ 34.60
M-evo-s-g-o-220 2,2 450,0 25,0 x 21,0 EUR 39,50 sin IVA: € 33.19 / $ 39.50
M-evo-s-g-o-270 2,7 450,0 30,0 x 21,0 EUR 44,50 sin IVA: € 37.39 / $ 44.50
M-evo-s-g-o-330 3,3 450,0 30,0 x 21,0 EUR 49,40 sin IVA: € 41.51 / $ 49.40
M-evo-s-g-o-390 3,9 450,0 25,0 x 27,0 EUR 54,40 sin IVA: € 45.71 / $ 54.40
M-evo-s-g-o-430 4,3 450,0 30,0 x 27,0 EUR 50,50 sin IVA: € 42.44 / $ 50.50
M-evo-s-g-o-470 4,7 450,0 30,0 x 27,0 EUR 59,30 sin IVA: € 49.83 / $ 59.30
M-evo-s-g-o-510 5,1 450,0 30,0 x 27,0 EUR 55,30 sin IVA: € 46.47 / $ 55.30
M-evo-s-g-o-560 5,6 450,0 30,0 x 27,0 EUR 64,30 sin IVA: € 54.03 / $ 64.30
M-evo-s-g-o-620 6,2 450,0 35,0 x 27,0 EUR 60,10 sin IVA: € 50.50 / $ 60.10
M-evo-s-g-o-680 6,8 450,0 35,0 x 27,0 EUR 69,20 sin IVA: € 58.15 / $ 69.20
M-evo-s-g-o-750 7,5 450,0 35,0 x 27,0 EUR 64,90 sin IVA: € 54.54 / $ 64.90
M-evo-s-g-o-820 8,2 450,0 35,0 x 27,0 EUR 79,10 sin IVA: € 66.47 / $ 79.10
M-evo-s-g-o-1000 10,0 450,0 40,0 x 27,0 EUR 89,00 sin IVA: € 74.79 / $ 89.00
M-evo-s-g-o-1500 15,0 450,0 40,0 x 35,0 EUR 98,90 sin IVA: € 83.11 / $ 98.90
M-evo-s-g-o-2200 22,0 450,0 50,0 x 35,0 EUR 119,00 sin IVA: € 100.00 / $ 119.00
M-evo-s-g-o-3300 33,0 450,0 65,0 x 35,0 EUR 168,00 sin IVA: € 141.18 / $ 168.00
M-evo-s-g-o-4700 47,0 350,0 50,0 x 50,0 EUR 216,00 sin IVA: € 181.51 / $ 216.00
M-evo-s-g-o-6800 68,0 350,0 65,0 x 50,0 EUR 265,00 sin IVA: € 222.69 / $ 265.00
M-evo-s-g-o-10000 100,0 350,0 75,0 x 50,0 EUR 314,00 sin IVA: € 263.87 / $ 314.00

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil

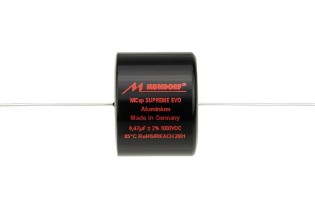

MCAP Supreme EVO 1000Vdc

Condensadores MundorfMCAP EVO, MCAP Supreme EVO 1000Vdc
Aumentar imagen



N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-SE-10 0,10 1000,0 17,0 x 23,0 EUR 15,60 sin IVA: € 13.11 / $ 15.60
M-SE-15 0,15 1000,0 21,0 x 23,0 EUR 16,20 sin IVA: € 13.61 / $ 16.20
M-SE-22 0,22 1000,0 26,0 x 23,0 EUR 17,20 sin IVA: € 14.45 / $ 17.20
M-SE-33 0,33 1000,0 31,0 x 23,0 EUR 18,10 sin IVA: € 15.21 / $ 18.10
M-SE-47 0,47 1000,0 31,0 x 23,0 EUR 19,10 sin IVA: € 16.05 / $ 19.10
M-SE-68 0,68 1000,0 36,0 x 23,0 EUR 21,00 sin IVA: € 17.65 / $ 21.00

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil

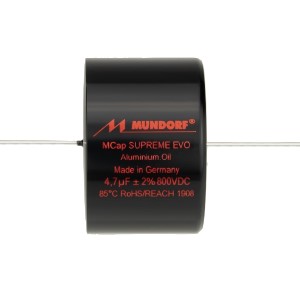

MCAP Supreme EVO Oil

Condensadores MundorfMCAP EVO, MCAP Supreme EVO Oil



N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-SEO-100 1,0 1000,0 36,0 x 28,0 EUR 23,90 sin IVA: € 20.08 / $ 23.90
M-SEO-150 1,5 1000,0 41,0 x 28,0 EUR 26,80 sin IVA: € 22.52 / $ 26.80
M-SEO-220 2,2 800,0 36,0 x 34,0 EUR 28,70 sin IVA: € 24.12 / $ 28.70
M-SEO-270 2,7 800,0 41,0 x 34,0 EUR 30,60 sin IVA: € 25.71 / $ 30.60
M-SEO-330 3,3 800,0 46,0 x 34,0 EUR 33,50 sin IVA: € 28.15 / $ 33.50
M-SEO-390 3,9 800,0 46,0 x 34,0 EUR 38,30 sin IVA: € 32.18 / $ 38.30
M-SEO-470 4,7 800,0 51,0 x 34,0 EUR 43,10 sin IVA: € 36.22 / $ 43.10
M-SEO-560 2,7 800,0 56,0 x 34,0 EUR 47,90 sin IVA: € 40.25 / $ 47.90
M-SEO-680 6,8 800,0 51,0 x 41,0 EUR 52,70 sin IVA: € 44.29 / $ 52.70
M-SEO-820 8,2 800,0 56,0 x 41,0 EUR 57,50 sin IVA: € 48.32 / $ 57.50
M-SEO-1000 10,0 800,0 66,0 x 41,0 EUR 67,10 sin IVA: € 56.39 / $ 67.10
M-SEO-1500 15,0 800,0 76,0 x 41,0 EUR 76,70 sin IVA: € 64.45 / $ 76.70
M-SEO-1800 18,0 700,0 66,0 x 55,0 EUR 78,30 sin IVA: € 65.80 / $ 78.30
M-SEO-2200 22,0 700,0 66,0 x 55,0 EUR 86,30 sin IVA: € 72.52 / $ 86.30
M-SEO-2700 27,0 700,0 67,0 x 55,0 EUR 97,90 sin IVA: € 82.27 / $ 97.90
M-SEO-3300 33,0 600,0 66,0 x 67,0 EUR 110,00 sin IVA: € 92.44 / $ 110.00
M-SEO-4700 47,0 600,0 76,0 x 67,0 EUR 125,00 sin IVA: € 105.04 / $ 125.00

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil

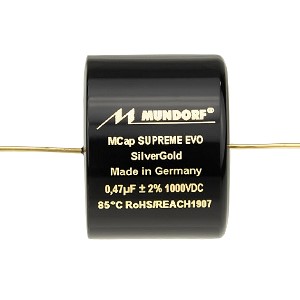

MCAP Supreme EVO Silver Gold (Plata Oro)

Condensadores MundorfMCAP EVO, MCAP Supreme EVO Silver Gold (Plata Oro)
Aumentar imagen



N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-SESG-01 0,001 1000,0 11,0 x 23,0 EUR 33,50 sin IVA: € 28.15 / $ 33.50
M-SESG-1 0,010 1000,0 11,0 x 23,0 EUR 37,10 sin IVA: € 31.18 / $ 37.10
M-SESG-10 0,10 1000,0 17,0 x 23,0 EUR 38,30 sin IVA: € 32.18 / $ 38.30
M-SESG-15 0,15 1000,0 21,0 x 23,0 EUR 34,30 sin IVA: € 28.82 / $ 34.30
M-SESG-22 0,22 1000,0 26,0 x 23,0 EUR 43,10 sin IVA: € 36.22 / $ 43.10
M-SESG-33 0,33 1000,0 31,0 x 23,0 EUR 48,90 sin IVA: € 41.09 / $ 48.90
M-SESG-47 0,47 1000,0 31,0 x 23,0 EUR 53,80 sin IVA: € 45.21 / $ 53.80
M-SESG-68 0,68 1000,0 36,0 x 23,0 EUR 58,70 sin IVA: € 49.33 / $ 58.70

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil

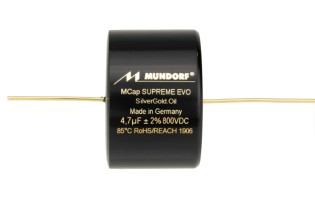

MCAP Supreme EVO Silver Gold Oil (Plata Oro)

Condensadores MundorfMCAP EVO, MCAP Supreme EVO Silver Gold Oil (Plata Oro)
Aumentar imagen



N° de Art. C/µF U/Vdc Alambre-
D/mm
Precio
M-SESGO-100 1,0 1000,0 36,0 x 28,0 EUR 69,60 sin IVA: € 58.49 / $ 69.60
M-SESGO-150 1,5 1000,0 41,0 x 28,0 EUR 78,30 sin IVA: € 65.80 / $ 78.30
M-SESGO-220 2,2 800,0 36,0 x 34,0 EUR 86,80 sin IVA: € 72.94 / $ 86.80
M-SESGO-270 2,7 800,0 41,0 x 34,0 EUR 97,90 sin IVA: € 82.27 / $ 97.90
M-SESGO-330 3,3 800,0 46,0 x 34,0 EUR 106,00 sin IVA: € 89.08 / $ 106.00
M-SESGO-390 3,9 800,0 46,0 x 34,0 EUR 116,00 sin IVA: € 97.48 / $ 116.00
M-SESGO-430 4,3 800,0 51,0 x 34,0 EUR 127,00 sin IVA: € 106.72 / $ 127.00
M-SESGO-470 4,7 800,0 51,0 x 34,0 EUR 137,00 sin IVA: € 115.13 / $ 137.00
M-SESGO-510 5,1 800,0 56,0 x 34,0 EUR 147,00 sin IVA: € 123.53 / $ 147.00
M-SESGO-560 5,6 800,0 56,0 x 34,0 EUR 157,00 sin IVA: € 131.93 / $ 157.00
M-SESGO-620 6,2 800,0 51,0 x 41,0 EUR 167,00 sin IVA: € 140.34 / $ 167.00
M-SESGO-680 6,8 800,0 51,0 x 41,0 EUR 173,00 sin IVA: € 145.38 / $ 173.00
M-SESGO-750 7,5 800,0 56,0 x 41,0 EUR 186,00 sin IVA: € 156.30 / $ 186.00
M-SESGO-820 8,2 800,0 56,0 x 41,0 EUR 196,00 sin IVA: € 164.71 / $ 196.00
M-SESGO-1000 10,0 800,0 66,0 x 41,0 EUR 240,00 sin IVA: € 201.68 / $ 240.00
M-SESGO-1500 15,0 800,0 76,0 x 41,0 EUR 336,00 sin IVA: € 282.35 / $ 336.00
M-SESGO-2200 22,0 700,0 66,0 x 55,0 EUR 392,00 sin IVA: € 329.41 / $ 392.00
M-SESGO-3300 33,0 600,0 66,0 x 67,0 EUR 573,00 sin IVA: € 481.51 / $ 573.00
M-SESGO-4700 47,0 600,0 76,0 x 67,0 EUR 669,00 sin IVA: € 562.18 / $ 669.00

MCAP EVO - MCAP EVO Oil - MCAP EVO Silver Gold Oil - MCAP Supreme EVO - MCAP Supreme EVO Oil - MCAP Supreme EVO Silver Gold - MCAP Supreme EVO Silver Gold Oil
