Horn Driver   Mids   Woofer   Coaxial speaker   no longer sold

BMS

BMS products are used by professional speaker and high-end companies globally. BMS was founded 1994 and is located in Hannover, Germany. Its a leading designer and manufacturer of highest quality transducers.




Compression driver for Horns

BMS 4540ND

BMS 4540ND

order no. ah-BMS4540NDL

EUR 199,80 excl. VAT: € 167.90 / $ 183.01

38 mm driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1200-30000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 114 dB (2,83V; 1m)
  • voice coil diameter = 38 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 45 mm
  • mass m = 0,53 kg
PDF data sheet

BMS 4540ND-16

BMS 4540ND-16

order no. ah-BMS4540NDH

EUR 199,80 excl. VAT: € 167.90 / $ 183.01

38 mm driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1200-30000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 114 dB (2,83V; 1m)
  • voice coil diameter = 38 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 45 mm
  • mass m = 0,53 kg
PDF data sheet

BMS 4538

BMS 4538

order no. ah-BMS4538L

- not available

38 mm driver with high quality cone.

  • power handling (continuous/programme) = 60 W
  • frequency range = 1200-30000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 114 dB (2,83V; 1m)
  • voice coil diameter = 38 mm
  • overall diameter d = 96 mm
  • mounting depth (not countersunk) t = 40 mm
  • mass m = 0,98 kg
PDF data sheet

BMS 4544

BMS 4544

order no. ah-BMS4544L

on request

44,4 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44,4 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 1,53 kg
PDF data sheet

BMS 4544-16

BMS 4544-16

order no. ah-BMS4544H

- not available

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 1,53 kg
PDF data sheet

BMS 4554

BMS 4554

order no. ah-BMS4554L

EUR 188,70 excl. VAT: € 158.57 / $ 172.84

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 2,25 kg
PDF data sheet

BMS 4554-16

BMS 4554-16

order no. ah-BMS4554H

EUR 188,70 excl. VAT: € 158.57 / $ 172.84

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 47 mm
  • mass m = 2,25 kg
PDF data sheet

BMS 4550

BMS 4550

order no. ah-BMS4550L

- not available

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 2,25 kg
PDF data sheet

BMS 4550-16

BMS 4550-16

order no. ah-BMS4550H

- not available

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 2,25 kg
PDF data sheet

BMS 4552ND

BMS 4552ND

order no. ah-BMS4552NDL

EUR 327,00 excl. VAT: € 274.79 / $ 299.52

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 0,83 kg
PDF data sheet

BMS 4552ND-16

BMS 4552ND-16

order no. ah-BMS4552NDH

- not available

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 0,83 kg
PDF data sheet

BMS 4555

BMS 4555

order no. ah-BMS4555L

EUR 188,70 excl. VAT: € 158.57 / $ 172.84

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 2,25 kg
PDF data sheet

BMS 4555-16

BMS 4555-16

order no. ah-BMS4555H

EUR 188,70 excl. VAT: € 158.57 / $ 172.84

44 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 500-20000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 113 dB (2,83V; 1m)
  • voice coil diameter = 44 mm
  • overall diameter d = 123 mm
  • mounting depth (not countersunk) t = 52 mm
  • mass m = 2,25 kg
PDF data sheet

BMS 4592ND

BMS 4592ND

order no. ah-BMS4592NDL

EUR 894,60 excl. VAT: € 751.76 / $ 819.42

44-90 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 200-22000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 115 dB (2,83V; 1m)
  • voice coil diameter = 44-90 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 118 mm
  • mass m = 2,3 kg
PDF data sheet

BMS 4592ND-16

BMS 4592ND-16

order no. ah-BMS4592NDH

EUR 894,60 excl. VAT: € 751.76 / $ 819.42

44-90 mm driver with high quality cone.

  • power handling (continuous/programme) = 80 W
  • frequency range = 200-22000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 115 dB (2,83V; 1m)
  • voice coil diameter = 44-90 mm
  • overall diameter d = 132 mm
  • mounting depth (not countersunk) t = 118 mm
  • mass m = 2,3 kg
PDF data sheet

BMS 4591

BMS 4591

order no. ah-BMS4591L

EUR 482,80 excl. VAT: € 405.71 / $ 442.23

90 mm driver with high quality cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 200-9000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 115 dB (2,83V; 1m)
  • voice coil diameter = 90 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 6 kg
PDF data sheet

BMS 4591-16

BMS 4591-16

order no. ah-BMS4591H

EUR 482,80 excl. VAT: € 405.71 / $ 442.23

90 mm driver with high quality cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 200-9000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 115 dB (2,83V; 1m)
  • voice coil diameter = 90 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 90 mm
  • mass m = 6 kg
PDF data sheet




Mids

BMS 5N160
open a bigger photo
BMS 5N160
open a bigger photo

BMS 5N160

order no. ah-BMS5N160H

- not available (_)

13 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 65/130 W
  • frequency range = 80-4000 Hz
  • resonance frequency fs = 94 Hz
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 12 Ohm
  • force factor BL = 12,3 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 100 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 3,07 l
  • total Q factor Qts = 0,415 (Qms=4,4, Qes=0,46)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 117 mm
  • overall diameter d = 128 mm
  • mounting depth (not countersunk) t = 74 mm
  • mass m = 0,9 kg
PDF data sheet

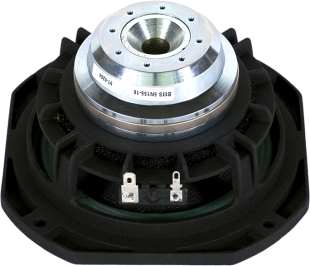

BMS 5N155
open a bigger photo

recommended cabinet 1:
closed cabinet with 0,93 L volume
from 184/116 Hz (-3dB/-8dB)

recommended cabinet 2:
3,7 L volume bass reflex cabinet
with HP50 reflex tube, 13 cm long.
from 89/73 Hz (-3dB/-8dB).

BMS 5N155

order no. ah-BMS5N155H

EUR 175,20 excl. VAT: € 147.23 / $ 160.48

14 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 65/130 W
  • frequency range = 80-4000 Hz
  • resonance frequency fs = 100,6 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 11,65 Ohm
  • force factor BL = 12 N/A
  • voice coil inductance L = 1,07 mH
  • effective piston radiating area Sd = 100 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 2,63 l
  • total Q factor Qts = 0,44 (Qms=4,17, Qes=0,49)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 116,5 mm
  • overall diameter d = 135,5 mm
  • mounting depth (not countersunk) t = 63,8 mm
  • mass m = 0,85 kg

BMS 6N160
open a bigger photo
BMS 6N160
open a bigger photo

BMS 6N160

order no. ah-BMS6N160H

- not available (_)

16 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 65/130 W
  • frequency range = 70-4000 Hz
  • resonance frequency fs = 89,9 Hz
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 12,2 Ohm
  • force factor BL = 12,3 N/A
  • voice coil inductance L = 0,95 mH
  • effective piston radiating area Sd = 100 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 7,7 l
  • total Q factor Qts = 0,47 (Qms=2,8, Qes=0,56)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 146 mm
  • overall diameter d = 162 mm
  • mounting depth (not countersunk) t = 81 mm
  • mass m = 0,95 kg

BMS 8S215
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,6 L volume
from 226/143 Hz (-3dB/-8dB)

recommended cabinet 2:
5 L volume bass reflex cabinet
with HP70 reflex tube, 11 cm long.
from 123/95 Hz (-3dB/-8dB).

BMS 8S215

order no. ah-BMS8S215L

EUR 208,30 excl. VAT: € 175.04 / $ 190.80

20 cm midrange driver with paper cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 80-3000 Hz
  • resonance frequency fs = 87,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 13,6 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 200 cm2
  • effective mechanical mass incl. air load mms = 20 g
  • equivalent volume of compliance Vas = 11,04 l
  • total Q factor Qts = 0,31 (Qms=4,4, Qes=0,33)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 4,25 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 93 mm
  • mass m = 3,25 kg
PDF data sheet

BMS 8N515
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,5 L volume
from 233/147 Hz (-3dB/-8dB)

recommended cabinet 2:
4,5 L volume bass reflex cabinet
with HP70 reflex tube, 12 cm long.
from 129/99 Hz (-3dB/-8dB).

BMS 8N515

order no. ah-BMS8N515L

EUR 349,30 excl. VAT: € 293.53 / $ 319.95

20 cm midrange driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 80-3000 Hz
  • resonance frequency fs = 87,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 13,8 N/A
  • voice coil inductance L = 0,2 mH
  • effective piston radiating area Sd = 200 cm2
  • effective mechanical mass incl. air load mms = 20 g
  • equivalent volume of compliance Vas = 11,04 l
  • total Q factor Qts = 0,3 (Qms=4,34, Qes=0,32)
  • voice coil diameter = 52 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 182 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 1,98 kg
PDF data sheet

BMS 12N620

recommended cabinet 1:
closed cabinet with 7,9 L volume
from 124/78 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP100 reflex tube, 20 cm long.
from 70/54 Hz (-3dB/-8dB).

BMS 12N620

order no. ah-BMS12N620L

EUR 425,20 excl. VAT: € 357.31 / $ 389.47

30 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 45-2500 Hz
  • resonance frequency fs = 43,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 20,6 N/A
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 78 g
  • equivalent volume of compliance Vas = 67,3 l
  • total Q factor Qts = 0,28 (Qms=5,44, Qes=0,29)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 145 mm
  • mass m = 3,5 kg
PDF data sheet

BMS 12S320

recommended cabinet 1:
closed cabinet with 4 L volume
from 172/108 Hz (-3dB/-8dB)

recommended cabinet 2:
7,6 L volume bass reflex cabinet
with HP100 reflex tube, 34 cm long.
from 113/84 Hz (-3dB/-8dB).

BMS 12S320

order no. ah-BMS12S320L

- not available

30 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 45-2500 Hz
  • resonance frequency fs = 43,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 23,8 N/A
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 76 g
  • equivalent volume of compliance Vas = 68,6 l
  • total Q factor Qts = 0,2 (Qms=4,8, Qes=0,21)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 149 mm
  • mass m = 8,1 kg
PDF data sheet

BMS 12N810

recommended cabinet 1:
closed cabinet with 3,6 L volume
from 179/113 Hz (-3dB/-8dB)

recommended cabinet 2:
5,6 L volume bass reflex cabinet
with HP100 reflex tube, 45 cm long.
from 127/94 Hz (-3dB/-8dB).

BMS 12N810

order no. ah-BMS12N810L

EUR 574,80 excl. VAT: € 483.03 / $ 526.50

30 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 600 W
  • frequency range = 80-2000 Hz
  • resonance frequency fs = 39,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 100 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 24,3 N/A
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 77 g
  • equivalent volume of compliance Vas = 84,9 l
  • total Q factor Qts = 0,18 (Qms=6,4, Qes=0,18)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 155 mm
  • mass m = 5,5 kg
PDF data sheet

BMS 12N820

recommended cabinet 1:
closed cabinet with 3,8 L volume
from 163/103 Hz (-3dB/-8dB)

recommended cabinet 2:
6,4 L volume bass reflex cabinet
with HP100 reflex tube, 48 cm long.
from 112/83 Hz (-3dB/-8dB).

BMS 12N820

order no. ah-BMS12N820L

EUR 574,80 excl. VAT: € 483.03 / $ 526.50

30 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 800 W
  • frequency range = 45-1700 Hz
  • resonance frequency fs = 37,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 25 N/A
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 88 g
  • equivalent volume of compliance Vas = 80,9 l
  • total Q factor Qts = 0,18 (Qms=6, Qes=0,19)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 154 mm
  • mass m = 5,5 kg
PDF data sheet

BMS 15S320

recommended cabinet 1:
closed cabinet with 18 L volume
from 118/75 Hz (-3dB/-8dB)

recommended cabinet 2:
50 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 66/51 Hz (-3dB/-8dB).

BMS 15S320

order no. ah-BMS15S320L

EUR 334,60 excl. VAT: € 281.18 / $ 306.48

37 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 40-2500 Hz
  • resonance frequency fs = 43 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 23,4 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 108 g
  • equivalent volume of compliance Vas = 137,7 l
  • total Q factor Qts = 0,29 (Qms=4,49, Qes=0,31)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 179 mm
  • mass m = 9 kg
PDF data sheet

BMS 15N620

recommended cabinet 1:
closed cabinet with 21 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
65 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 56/43 Hz (-3dB/-8dB).

BMS 15N620

order no. ah-BMS15N620L

EUR 428,90 excl. VAT: € 360.42 / $ 392.86

37 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 35-2500 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 22,9 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 150 g
  • equivalent volume of compliance Vas = 144,8 l
  • total Q factor Qts = 0,31 (Qms=6,1, Qes=0,33)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 177 mm
  • mass m = 3,7 kg
PDF data sheet

BMS 15N820

recommended cabinet 1:
closed cabinet with 11,8 L volume
from 136/86 Hz (-3dB/-8dB)

recommended cabinet 2:
26 L volume bass reflex cabinet
with 2x HP100 reflex tube, 26 cm long.
from 84/63 Hz (-3dB/-8dB).

BMS 15N820

order no. ah-BMS15N820L

EUR 645,80 excl. VAT: € 542.69 / $ 591.53

37 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 900 W
  • frequency range = 40-2500 Hz
  • resonance frequency fs = 39,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 26,4 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 114 g
  • equivalent volume of compliance Vas = 152 l
  • total Q factor Qts = 0,23 (Qms=5,34, Qes=0,24)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 186 mm
  • mass m = 6,9 kg
PDF data sheet




Woofer

BMS 12N630

recommended cabinet 1:
closed cabinet with 16 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
54 L volume bass reflex cabinet
with HP100 reflex tube, 31 cm long.
from 34/27 Hz (-3dB/-8dB).

BMS 12N630

order no. ah-BMS12N630L

EUR 453,40 excl. VAT: € 381.01 / $ 415.30

30 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 600 W
  • frequency range = 25-300 Hz
  • resonance frequency fs = 28,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 19,75 N/A
  • effective piston radiating area Sd = 498 cm2
  • effective mechanical mass incl. air load mms = 133 g
  • equivalent volume of compliance Vas = 81,37 l
  • total Q factor Qts = 0,35 (Qms=6,24, Qes=0,37)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 159 mm
  • mass m = 4,1 kg
PDF data sheet

BMS 12S330

recommended cabinet 1:
closed cabinet with 16 L volume
from 65/41 Hz (-3dB/-8dB)

recommended cabinet 2:
54 L volume bass reflex cabinet
with HP100 reflex tube, 31 cm long.
from 34/27 Hz (-3dB/-8dB).

BMS 12S330

order no. ah-BMS12S330L

EUR 328,40 excl. VAT: € 275.97 / $ 300.80

30 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 600 W
  • frequency range = 25-3000 Hz
  • resonance frequency fs = 28,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 19,75 N/A
  • effective piston radiating area Sd = 500 cm2
  • effective mechanical mass incl. air load mms = 133 g
  • equivalent volume of compliance Vas = 81,37 l
  • total Q factor Qts = 0,35 (Qms=6,24, Qes=0,37)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 159 mm
  • mass m = 9,4 kg
PDF data sheet

BMS 15N630

recommended cabinet 1:
closed cabinet with 28 L volume
from 92/58 Hz (-3dB/-8dB)

recommended cabinet 2:
92 L volume bass reflex cabinet
with 2x HP100 reflex tube, 12 cm long.
from 48/38 Hz (-3dB/-8dB).

BMS 15N630

order no. ah-BMS15N630L

EUR 451,00 excl. VAT: € 378.99 / $ 413.10

37 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 600 W
  • frequency range = 35-2500 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 21,76 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 119 g
  • equivalent volume of compliance Vas = 152 l
  • total Q factor Qts = 0,34 (Qms=6,74, Qes=0,36)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 184 mm
  • mass m = 4,3 kg
PDF data sheet

BMS 15S330

recommended cabinet 1:
closed cabinet with 16 L volume
from 111/70 Hz (-3dB/-8dB)

recommended cabinet 2:
45 L volume bass reflex cabinet
with 2x HP100 reflex tube, 21 cm long.
from 63/48 Hz (-3dB/-8dB).

BMS 15S330

order no. ah-BMS15S330L

EUR 346,80 excl. VAT: € 291.43 / $ 317.66

37 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 600 W
  • frequency range = 35-2500 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 22,93 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 115 g
  • equivalent volume of compliance Vas = 139,5 l
  • total Q factor Qts = 0,28 (Qms=3,4, Qes=0,3)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 196 mm
  • mass m = 9,6 kg
PDF data sheet

BMS 18N830
open a bigger photo

recommended cabinet 1:
closed cabinet with 49 L volume
from 75/48 Hz (-3dB/-8dB)

recommended cabinet 2:
165 L volume bass reflex cabinet
with 4x HP100 reflex tube, 28 cm long.
from 39/31 Hz (-3dB/-8dB).

BMS 18N830

order no. ah-BMS18N830LV2

EUR 710,80 excl. VAT: € 597.31 / $ 651.07

46 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 550/1000 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 32,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 23,3 N/A
  • voice coil inductance L = 0,79 mH
  • effective piston radiating area Sd = 1212 cm2
  • effective mechanical mass incl. air load mms = 200 g
  • equivalent volume of compliance Vas = 247 l
  • total Q factor Qts = 0,35 (Qms=6,8, Qes=0,37)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 412 mm
  • overall diameter d = 458 mm
  • mounting depth (not countersunk) t = 209 mm
  • mass m = 7,72 kg
PDF data sheet

BMS 18N850
open a bigger photo

recommended cabinet 1:
closed cabinet with 49 L volume
from 68/43 Hz (-3dB/-8dB)

recommended cabinet 2:
165 L volume bass reflex cabinet
with 4x HP100 reflex tube, 37 cm long.
from 35/28 Hz (-3dB/-8dB).

BMS 18N850

order no. ah-BMS18N850LV2

EUR 919,10 excl. VAT: € 772.35 / $ 841.86

46 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 29,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 26,2 N/A
  • voice coil inductance L = 0,89 mH
  • effective piston radiating area Sd = 1212 cm2
  • effective mechanical mass incl. air load mms = 240 g
  • equivalent volume of compliance Vas = 247 l
  • total Q factor Qts = 0,34 (Qms=7,45, Qes=0,36)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 13 mm
  • mounting diameter d = 412 mm
  • overall diameter d = 458 mm
  • mounting depth (not countersunk) t = 220 mm
  • mass m = 9,8 kg
PDF data sheet




Coaxial speaker

BMS 5CN140
open a bigger photo

BMS 5CN140

order no. ah-BMS5CN140H

on request

14 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 60/120 W
  • frequency range = 1500-20000 Hz
  • resonance frequency fs = 138 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 12,2 Ohm
  • force factor BL = 10,7 N/A
  • effective piston radiating area Sd = 700 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 1,03 l
  • total Q factor Qts = 0,69 (Qms=3,4, Qes=0,87)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 117 mm
  • overall diameter d = 135,5 mm
  • mounting depth (not countersunk) t = 82 mm
  • mass m = 0,98 kg
PDF data sheet

BMS 8C250
open a bigger photo

recommended cabinet 1:
closed cabinet with 6,8 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
28 L volume bass reflex cabinet
with HP70 reflex tube, 5 cm long.
from 54/46 Hz (-3dB/-8dB).

BMS 8C250

order no. ah-BMS8C250L

EUR 300,30 excl. VAT: € 252.35 / $ 275.06

20 cm coax driver with paper cone.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 70-3000 Hz
  • resonance frequency fs = 79,1 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 9,95 N/A
  • effective piston radiating area Sd = 200 cm2
  • effective mechanical mass incl. air load mms = 20 g
  • equivalent volume of compliance Vas = 10,18 l
  • total Q factor Qts = 0,52 (Qms=4,85, Qes=0,61)
  • voice coil diameter = 51 mm
  • maximum peak linear excursion vibration xlin = +/- 4,25 mm
  • mounting diameter d = 180 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 104 mm
  • mass m = 3 kg
PDF data sheet

BMS 8CN552
open a bigger photo

recommended cabinet 1:
closed cabinet with 1,2 L volume
from 249/157 Hz (-3dB/-8dB)

recommended cabinet 2:
3,3 L volume bass reflex cabinet
with HP50 reflex tube, 7 cm long.
from 142/108 Hz (-3dB/-8dB).

BMS 8CN552

order no. ah-BMS8CN552L

EUR 514,70 excl. VAT: € 432.52 / $ 471.45

20 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 100/200 W
  • frequency range = 1500-20000 Hz
  • resonance frequency fs = 87,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95,5 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • force factor BL = 13,44 N/A
  • effective piston radiating area Sd = 200 cm2
  • effective mechanical mass incl. air load mms = 20 g
  • equivalent volume of compliance Vas = 10,08 l
  • total Q factor Qts = 0,29 (Qms=5,28, Qes=0,3)
  • voice coil diameter = 52 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 182 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 115 mm
  • mass m = 2,15 kg
PDF data sheet

BMS 12C262

recommended cabinet 1:
closed cabinet with 4,9 L volume
from 156/98 Hz (-3dB/-8dB)

recommended cabinet 2:
10,8 L volume bass reflex cabinet
with HP100 reflex tube, 28 cm long.
from 96/72 Hz (-3dB/-8dB).

BMS 12C262

order no. ah-BMS12C262L

EUR 392,20 excl. VAT: € 329.58 / $ 359.24

30 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 55-20000 Hz
  • resonance frequency fs = 45,4 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 21 N/A
  • effective piston radiating area Sd = 487 cm2
  • effective mechanical mass incl. air load mms = 65 g
  • equivalent volume of compliance Vas = 62,8 l
  • total Q factor Qts = 0,23 (Qms=5,4, Qes=0,24)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 179 mm
  • mass m = 7,8 kg
PDF data sheet

BMS 12CN860
open a bigger photo

recommended cabinet 1:
closed cabinet with 2,3 L volume
from 202/127 Hz (-3dB/-8dB)

recommended cabinet 2:
3,4 L volume bass reflex cabinet
with HP100 reflex tube, 61 cm long.
from 147/108 Hz (-3dB/-8dB).

BMS 12CN860

order no. ah-BMS12CN860L

EUR 1601,70 excl. VAT: € 1345.97 / $ 1467.10

30 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 400/800 W
  • frequency range = 40-22000 Hz
  • resonance frequency fs = 41,6 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 24,46 N/A
  • voice coil inductance L = 0,89 mH
  • effective piston radiating area Sd = 449 cm2
  • effective mechanical mass incl. air load mms = 66 g
  • equivalent volume of compliance Vas = 62,1 l
  • total Q factor Qts = 0,16 (Qms=4,5, Qes=0,17)
  • voice coil diameter = 44,4 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 318 mm
  • mounting depth (not countersunk) t = 263 mm
  • mass m = 8,55 kg
PDF data sheet

BMS 12C362

recommended cabinet 1:
closed cabinet with 2,6 L volume
from 206/130 Hz (-3dB/-8dB)

recommended cabinet 2:
4,5 L volume bass reflex cabinet
with HP100 reflex tube, 42 cm long.
from 142/105 Hz (-3dB/-8dB).

BMS 12C362

order no. ah-BMS12C362L

EUR 487,80 excl. VAT: € 409.92 / $ 446.81

30 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 45-20000 Hz
  • resonance frequency fs = 47,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 24,1 N/A
  • effective piston radiating area Sd = 487 cm2
  • effective mechanical mass incl. air load mms = 66 g
  • equivalent volume of compliance Vas = 56,45 l
  • total Q factor Qts = 0,18 (Qms=4,24, Qes=0,19)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 198 mm
  • mass m = 10,2 kg
PDF data sheet

BMS 12CN680
open a bigger photo

recommended cabinet 1:
closed cabinet with 7,9 L volume
from 117/74 Hz (-3dB/-8dB)

recommended cabinet 2:
22 L volume bass reflex cabinet
with HP100 reflex tube, 23 cm long.
from 67/51 Hz (-3dB/-8dB).

BMS 12CN680

order no. ah-BMS12CN680L

EUR 720,60 excl. VAT: € 605.55 / $ 660.05

32 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 50-20000 Hz
  • resonance frequency fs = 41,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 20,03 N/A
  • effective piston radiating area Sd = 500 cm2
  • effective mechanical mass incl. air load mms = 80 g
  • equivalent volume of compliance Vas = 67,12 l
  • total Q factor Qts = 0,28 (Qms=6,25, Qes=0,29)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 193 mm
  • overall diameter d = 318 mm
  • mounting depth (not countersunk) t = 180 mm
  • mass m = 5,1 kg
PDF data sheet

BMS 15CN680
open a bigger photo

recommended cabinet 1:
closed cabinet with 31 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
105 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 47/37 Hz (-3dB/-8dB).

BMS 15CN680

order no. ah-BMS15CN680L

EUR 763,50 excl. VAT: € 641.60 / $ 699.34

37 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 40-2000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 20,17 N/A
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 110 g
  • equivalent volume of compliance Vas = 157,8 l
  • total Q factor Qts = 0,35 (Qms=6,86, Qes=0,37)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 203 mm
  • mass m = 5,3 kg
PDF data sheet

BMS 15C262

recommended cabinet 1:
closed cabinet with 23 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
70 L volume bass reflex cabinet
with 2x HP100 reflex tube, 13 cm long.
from 56/43 Hz (-3dB/-8dB).

BMS 15C262

order no. ah-BMS15C262L

EUR 416,70 excl. VAT: € 350.17 / $ 381.68

37 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2500 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 20,5 N/A
  • effective piston radiating area Sd = 834 cm2
  • effective mechanical mass incl. air load mms = 990 g
  • equivalent volume of compliance Vas = 155,8 l
  • total Q factor Qts = 0,31 (Qms=4,64, Qes=0,33)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 211 mm
  • mass m = 7,6 kg
PDF data sheet

BMS 15C362

recommended cabinet 1:
closed cabinet with 16 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
45 L volume bass reflex cabinet
with 2x HP100 reflex tube, 19 cm long.
from 66/50 Hz (-3dB/-8dB).

BMS 15C362

order no. ah-BMS15C362L

EUR 514,70 excl. VAT: € 432.52 / $ 471.45

37 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 40-20000 Hz
  • resonance frequency fs = 40,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 23,4 N/A
  • effective piston radiating area Sd = 834 cm2
  • effective mechanical mass incl. air load mms = 108 g
  • equivalent volume of compliance Vas = 137,7 l
  • total Q factor Qts = 0,28 (Qms=4,28, Qes=0,3)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 229 mm
  • mass m = 7,6 kg
PDF data sheet

BMS 15CN860
open a bigger photo
BMS 15CN860
open a bigger photo

recommended cabinet 1:
closed cabinet with 11,1 L volume
from 135/85 Hz (-3dB/-8dB)

recommended cabinet 2:
29 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 78/59 Hz (-3dB/-8dB).

BMS 15CN860

order no. ah-BMS15CN860L

EUR 1614,00 excl. VAT: € 1356.30 / $ 1478.37

37 cm coax driver with high quality cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 500/1000 W
  • frequency range = 40-22000 Hz
  • resonance frequency fs = 46 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 24,28 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 804 cm2
  • effective mechanical mass incl. air load mms = 106 g
  • equivalent volume of compliance Vas = 102 l
  • total Q factor Qts = 0,27 (Qms=3,5, Qes=0,3)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 292 mm
  • mass m = 8,95 kg
PDF data sheet

BMS 15CN682
open a bigger photo

recommended cabinet 1:
closed cabinet with 31 L volume
from 89/56 Hz (-3dB/-8dB)

recommended cabinet 2:
105 L volume bass reflex cabinet
with 2x HP100 reflex tube, 10 cm long.
from 47/37 Hz (-3dB/-8dB).

BMS 15CN682

order no. ah-BMS15CN682L

EUR 763,50 excl. VAT: € 641.60 / $ 699.34

38 cm coax driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 250/500 W
  • frequency range = 40-20000 Hz
  • resonance frequency fs = 39 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 20,17 N/A
  • effective piston radiating area Sd = 900 cm2
  • effective mechanical mass incl. air load mms = 110 g
  • equivalent volume of compliance Vas = 157,8 l
  • total Q factor Qts = 0,35 (Qms=6,86, Qes=0,37)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 215 mm
  • mass m = 5,3 kg
PDF data sheet




no longer sold

BMS 4590 / 4590p

BMS 4590 / 4590p

order no. ah-BMS4590PL

- not available (_)

44-90 mm driver with high quality cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 200-22000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 115 dB (2,83V; 1m)
  • voice coil diameter = 44-90 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 129 mm
  • mass m = 9 kg
PDF data sheet

BMS 4590 / 4590p-16

BMS 4590 / 4590p-16

order no. ah-BMS4590PH

- not available (_)

44-90 mm driver with high quality cone.

  • power handling (continuous/programme) = 150 W
  • frequency range = 200-22000 Hz
  • impedance R = 16 Ohm
  • sound pressure level SPL = 115 dB (2,83V; 1m)
  • voice coil diameter = 44-90 mm
  • overall diameter d = 182 mm
  • mounting depth (not countersunk) t = 129 mm
  • mass m = 9 kg
PDF data sheet

BMS 18N860
open a bigger photo

recommended cabinet 1:
closed cabinet with 73 L volume
from 53/33 Hz (-3dB/-8dB)

recommended cabinet 2:
264 L volume bass reflex cabinet
with 4x HP100 reflex tube, 35 cm long.
from 27/21 Hz (-3dB/-8dB).

BMS 18N860

order no. ah-BMS18N860L

- not available (_)

16 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 750/1500 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 24,85 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,33 Ohm
  • force factor BL = 24,93 N/A
  • voice coil inductance L = 0,81 mH
  • effective piston radiating area Sd = 1212 cm2
  • effective mechanical mass incl. air load mms = 280 g
  • equivalent volume of compliance Vas = 304 l
  • total Q factor Qts = 0,37 (Qms=5,33, Qes=0,4)
  • voice coil diameter = 101 mm
  • maximum peak linear excursion vibration xlin = +/- 19 mm
  • mounting diameter d = 112 mm
  • overall diameter d = 158 mm
  • mounting depth (not countersunk) t = 234 mm
  • mass m = 10,5 kg
PDF data sheet

BMS 15S420

recommended cabinet 1:
closed cabinet with 14 L volume
from 126/80 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with 2x HP100 reflex tube, 22 cm long.
from 75/57 Hz (-3dB/-8dB).

BMS 15S420

order no. ah-BMS15S420L

- not available (_)

37 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 900 W
  • frequency range = 40-2500 Hz
  • resonance frequency fs = 39,8 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 25,5 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 114 g
  • equivalent volume of compliance Vas = 152 l
  • total Q factor Qts = 0,25 (Qms=4,96, Qes=0,26)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 184 mm
  • mass m = 10,7 kg
PDF data sheet

BMS 12P200

recommended cabinet 1:
closed cabinet with 6,7 L volume
from 139/88 Hz (-3dB/-8dB)

recommended cabinet 2:
16 L volume bass reflex cabinet
with HP100 reflex tube, 22 cm long.
from 83/63 Hz (-3dB/-8dB).

BMS 12P200

order no. ah-BMS12P200L

- not available (_)

30 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 55-2500 Hz
  • resonance frequency fs = 44 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 21 N/A
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 72 g
  • equivalent volume of compliance Vas = 72 l
  • total Q factor Qts = 0,25 (Qms=5, Qes=0,26)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 145 mm
  • mass m = 7,9 kg
PDF data sheet

BMS 12S310

recommended cabinet 1:
closed cabinet with 3,5 L volume
from 187/118 Hz (-3dB/-8dB)

recommended cabinet 2:
6,3 L volume bass reflex cabinet
with HP100 reflex tube, 36 cm long.
from 125/93 Hz (-3dB/-8dB).

BMS 12S310

order no. ah-BMS12S310L

- not available (_)

30 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 55-2500 Hz
  • resonance frequency fs = 45,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 99 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 24,2 N/A
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 73 g
  • equivalent volume of compliance Vas = 66,9 l
  • total Q factor Qts = 0,19 (Qms=5,81, Qes=0,2)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 2,5 mm
  • mounting diameter d = 283 mm
  • overall diameter d = 315 mm
  • mounting depth (not countersunk) t = 149 mm
  • mass m = 8,1 kg
PDF data sheet

BMS 15N620-4

recommended cabinet 1:
closed cabinet with 25 L volume
from 96/61 Hz (-3dB/-8dB)

recommended cabinet 2:
80 L volume bass reflex cabinet
with 2x HP100 reflex tube, 13 cm long.
from 51/40 Hz (-3dB/-8dB).

BMS 15N620-4

order no. ah-BMS15N620-4

- not available (_)

37 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 501 W
  • frequency range = 35-2500 Hz
  • resonance frequency fs = 39,8 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 16,06 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 117 g
  • equivalent volume of compliance Vas = 144,8 l
  • total Q factor Qts = 0,31 (Qms=6,05, Qes=0,33)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 177 mm
  • mass m = 3,7 kg
PDF data sheet

BMS 15P200

recommended cabinet 1:
closed cabinet with 26 L volume
from 103/65 Hz (-3dB/-8dB)

recommended cabinet 2:
78 L volume bass reflex cabinet
with 2x HP100 reflex tube, 11 cm long.
from 56/43 Hz (-3dB/-8dB).

BMS 15P200

order no. ah-BMS15P200L

- not available (_)

37 cm midrange driver with high quality cone.

  • power handling (continuous/programme) = 400 W
  • frequency range = 40-2500 Hz
  • resonance frequency fs = 40,1 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 20,5 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 990 g
  • equivalent volume of compliance Vas = 172,5 l
  • total Q factor Qts = 0,31 (Qms=4,65, Qes=0,33)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 182 mm
  • mass m = 8,9 kg
PDF data sheet

BMS 15N830

recommended cabinet 1:
closed cabinet with 14 L volume
from 119/75 Hz (-3dB/-8dB)

recommended cabinet 2:
34 L volume bass reflex cabinet
with 2x HP100 reflex tube, 26 cm long.
from 71/53 Hz (-3dB/-8dB).

BMS 15N830

order no. ah-BMS15N830L

- not available (_)

37 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 1000 W
  • frequency range = 35-2500 Hz
  • resonance frequency fs = 37,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 26,05 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 129 g
  • equivalent volume of compliance Vas = 152 l
  • total Q factor Qts = 0,25 (Qms=6,67, Qes=0,26)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 186 mm
  • mass m = 5,7 kg
PDF data sheet

BMS 15N840

recommended cabinet 1:
closed cabinet with 23 L volume
from 77/48 Hz (-3dB/-8dB)

recommended cabinet 2:
73 L volume bass reflex cabinet
with 2x HP100 reflex tube, 29 cm long.
from 41/32 Hz (-3dB/-8dB).

BMS 15N840

order no. ah-BMS15N840LV

- not available (_)

37 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 22-300 Hz
  • resonance frequency fs = 31,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 25,09 N/A
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 195 g
  • equivalent volume of compliance Vas = 133,05 l
  • total Q factor Qts = 0,33 (Qms=4,72, Qes=0,35)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 186 mm
  • mass m = 8,55 kg
PDF data sheet

BMS 15N840-4

recommended cabinet 1:
closed cabinet with 26 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
89 L volume bass reflex cabinet
with 2x HP100 reflex tube, 28 cm long.
from 37/29 Hz (-3dB/-8dB).

BMS 15N840-4

order no. ah-BMS15N840-4

- not available (_)

37 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 22-300 Hz
  • resonance frequency fs = 31 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 18,2 N/A
  • effective piston radiating area Sd = 855 cm2
  • effective mechanical mass incl. air load mms = 203 g
  • equivalent volume of compliance Vas = 133,05 l
  • total Q factor Qts = 0,33 (Qms=4,82, Qes=0,36)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 14 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 186 mm
  • mass m = 6,8 kg
PDF data sheet

BMS 15S430

recommended cabinet 1:
closed cabinet with 17 L volume
from 112/70 Hz (-3dB/-8dB)

recommended cabinet 2:
44 L volume bass reflex cabinet
with 2x HP100 reflex tube, 21 cm long.
from 65/49 Hz (-3dB/-8dB).

BMS 15S430

order no. ah-BMS15S430L

- not available (_)

37 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 35-2500 Hz
  • resonance frequency fs = 36,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 24,9 N/A
  • effective piston radiating area Sd = 880 cm2
  • effective mechanical mass incl. air load mms = 132 g
  • equivalent volume of compliance Vas = 173,5 l
  • total Q factor Qts = 0,26 (Qms=6,14, Qes=0,27)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 184 mm
  • mass m = 10,7 kg
PDF data sheet

BMS 18N850-4

recommended cabinet 1:
closed cabinet with 31 L volume
from 70/44 Hz (-3dB/-8dB)

recommended cabinet 2:
83 L volume bass reflex cabinet
with 2x HP100 reflex tube, 32 cm long.
from 40/31 Hz (-3dB/-8dB).

BMS 18N850-4

order no. ah-BMS18N850-4

- not available (_)

44 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 23,7 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 23 N/A
  • effective piston radiating area Sd = 1212 cm2
  • effective mechanical mass incl. air load mms = 322 g
  • equivalent volume of compliance Vas = 288 l
  • total Q factor Qts = 0,26 (Qms=7,45, Qes=0,27)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 13 mm
  • mounting diameter d = 414 mm
  • overall diameter d = 457 mm
  • mounting depth (not countersunk) t = 233 mm
  • mass m = 9,8 kg
PDF data sheet

BMS 18S430

recommended cabinet 1:
closed cabinet with 74 L volume
from 53/33 Hz (-3dB/-8dB)

recommended cabinet 2:
272 L volume bass reflex cabinet
with 4x HP100 reflex tube, 37 cm long.
from 26/21 Hz (-3dB/-8dB).

BMS 18S430

order no. ah-BMS18S430L

- not available (_)

44 cm bass driver with high quality cone.

  • power handling (continuous/programme) = 1200 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 25,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 96 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 24,5 N/A
  • effective piston radiating area Sd = 1212 cm2
  • effective mechanical mass incl. air load mms = 279 g
  • equivalent volume of compliance Vas = 288 l
  • total Q factor Qts = 0,38 (Qms=5,8, Qes=0,41)
  • voice coil diameter = 102 mm
  • maximum peak linear excursion vibration xlin = +/- 8 mm
  • mounting diameter d = 414 mm
  • overall diameter d = 457 mm
  • mounting depth (not countersunk) t = 218 mm
  • mass m = 12,8 kg

BMS 15N830
open a bigger photo

recommended cabinet 1:
closed cabinet with 14,3 L volume
from 121/76 Hz (-3dB/-8dB)

recommended cabinet 2:
36 L volume bass reflex cabinet
with 2x HP100 reflex tube, 23 cm long.
from 71/53 Hz (-3dB/-8dB).

BMS 15N830

order no. ah-BMS15N830LV

- not available (_)

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 550/1100 W
  • frequency range = 35-1000 Hz
  • resonance frequency fs = 39,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 97 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 24,6 N/A
  • voice coil inductance L = 0,7 mH
  • effective piston radiating area Sd = 1000 cm2
  • effective mechanical mass incl. air load mms = 130 g
  • equivalent volume of compliance Vas = 142 l
  • total Q factor Qts = 0,26 (Qms=6,6, Qes=0,27)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 7,5 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 181 mm
  • mass m = 5,7 kg
PDF data sheet

BMS 15N850
open a bigger photo
BMS 15N850
open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 90/57 Hz (-3dB/-8dB)

recommended cabinet 2:
61 L volume bass reflex cabinet
with 2x HP100 reflex tube, 24 cm long.
from 48/37 Hz (-3dB/-8dB).

BMS 15N850

order no. ah-BMS15N850L

- not available (_)

38 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 600/1200 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 37 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 25,2 N/A
  • voice coil inductance L = 1,43 mH
  • effective piston radiating area Sd = 800 cm2
  • effective mechanical mass incl. air load mms = 170 g
  • equivalent volume of compliance Vas = 110,96 l
  • total Q factor Qts = 0,33 (Qms=7,38, Qes=0,34)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 13 mm
  • mounting diameter d = 355 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 187 mm
  • mass m = 8,55 kg
PDF data sheet

BMS 18N840
open a bigger photo

recommended cabinet 1:
closed cabinet with 46 L volume
from 71/45 Hz (-3dB/-8dB)

recommended cabinet 2:
144 L volume bass reflex cabinet
with 4x HP100 reflex tube, 40 cm long.
from 38/30 Hz (-3dB/-8dB).

BMS 18N840

order no. ah-BMS18N840LV2

- not available (_)

46 cm bass driver with paper cone. The magnet system is based on Neodymium technology.

  • power handling (continuous/programme) = 600/1199 W
  • frequency range = 20-200 Hz
  • resonance frequency fs = 28,5 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 95 dB (2,83V; 1m)
  • DC resistance Re = 5 Ohm
  • force factor BL = 24,4 N/A
  • voice coil inductance L = 0,87 mH
  • effective piston radiating area Sd = 1212 cm2
  • effective mechanical mass incl. air load mms = 220 g
  • equivalent volume of compliance Vas = 288 l
  • total Q factor Qts = 0,32 (Qms=6,66, Qes=0,33)
  • voice coil diameter = 101,6 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm
  • mounting diameter d = 412 mm
  • overall diameter d = 458 mm
  • mounting depth (not countersunk) t = 220 mm
  • mass m = 9,8 kg
PDF data sheet

BMS 15C682

recommended cabinet 1:
closed cabinet with 20 L volume
from 105/66 Hz (-3dB/-8dB)

recommended cabinet 2:
61 L volume bass reflex cabinet
with 2x HP100 reflex tube, 15 cm long.
from 57/44 Hz (-3dB/-8dB).

BMS 15C682

order no. ah-BMS15C682L

- not available (_)

37 cm coax driver with high quality cone.

  • power handling (continuous/programme) = 500 W
  • frequency range = 40-20000 Hz
  • resonance frequency fs = 40,7 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 98 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 22,9 N/A
  • effective piston radiating area Sd = 834 cm2
  • effective mechanical mass incl. air load mms = 108 g
  • equivalent volume of compliance Vas = 136,3 l
  • total Q factor Qts = 0,3 (Qms=6,28, Qes=0,32)
  • voice coil diameter = 77 mm
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm
  • mounting diameter d = 358 mm
  • overall diameter d = 388 mm
  • mounting depth (not countersunk) t = 219 mm
  • mass m = 5,2 kg
PDF data sheet

Horn Driver   Mids   Woofer   Coaxial speaker   no longer sold
The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.

Please note: the frequency response doesn't say much about the cut-off frequency inside the cabinet! Therefore, we mostly give you 2 examples with dimensioning considerations and an indication, how low the loudspeaker will reproduce.

Home

© Copyright (c) Daniel Gattig, 2023; All rights reserved. - errors and omissions excepted
