Audiomatica

Clio Pocket

CLIO Pocket is Audiomatica's new Electro-Acoustical Multi-Platform Personal measurement system.

The system comes complete of the CLIO Pocket software (Windows and OSX native), the CLIO CP-01 Audio Interface hardware, and accessories.

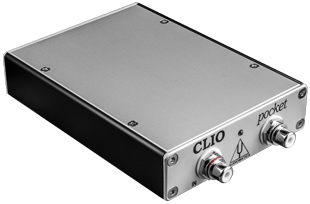

The CLIO CP-01 Audio Interface uses an USB 2.0 connection for maximum portability and compatibility with current and future computer hardware architectures.

CLIO Pocket is a powerful, rugged and lightweight portable measurement system. Inside the box you find:

• The CP-01 Audio Interface
• The CLIO Pocket CD with software and drivers
• The Microphone MIC-02
• One USB 2.0 cable
• One RCA to RCA 2.7m long microphone cable
• One RCA to alligators impedance cable

LOG CHIRP ANALYSIS

• General purpose system response analyzer in the audio band Amplitude, frequency and time calibrated response
• Chirp length: 16384, 65536 points
• Impulse length range: 1.36s down to 170ms
• Frequency range: 10Hz to 45kHz
• Frequency response units: dBV, dBu, dBRel, dBSPL
• Impedance response units: Ohm
• Frequency and time simultaneous display, analysis and post-processing
• Frequency smoothing (1/48 to 1 fraction of octave)
• Phase response (Normal, Minimum and Excess)
• Auto-Capture Delay with manual interactive fine-tuning
• Group Delay response (Normal, Minimum and Excess)
• Time Impulse response
• Distortion measurement (only V2.0)
• Step response
• Schroeder impulse decay
• Energy Time Curve
• Quasi-Anechoic acoustic response with time window selection
• Time window: Rectangular or Auto-Half Hann tuned to impulse max
• Continuous loop measurements for easy interactive tuning of systems
• AutoStore to Overlay function to track up to 10 curves on screen
• Math processing: Add file
• Math processing: Divide by file
• Math processing: Merge High and Low frequency response
• Math processing: dB Shift
• Math processing: MIB (Microphone In the Box) technique
• Save Impulse time data to wav file
• Export ASCII data to file or clipboard to be imported in simulation software

CLIO POCKET SOFTWARE REL.1.3 UNDER X-RAYS

• All controls speeded up by hot keys
• Button control input sensitivity in 10dB steps
• Input-Output Loop button
• Input polarity inversion
• Input gain autorange
• Microphone power supply

WATERFALL

• Decay analysis with 3-D gesture-controlled swiveling graph
• Multiple windows allowed for easy comparison
• Analyzes Log Chirp Impulse response or FFT time data
• Classical Cumulative Spectral Decay for loudspeakers characterization
• Frequency smoothing (1/48 to 1 fraction of octave)
• Reference operation
• Fully configurable frequency, time and amplitude axis
• Number of spectra: 15 to 120

THIELE & SMALL PARAMETERS

• Interactive Control Panel to simplify operation
• Free Air parameters
• Added Mass or Known Volume methods for full parameters estimation
• Direct measurement of ReDC
• Multiple windows allowed for easy comparison

SYSTEM

• Software operates native under Windows or OSX
• Touch and gesture compliant software design
• Hardware relies on dedicated USB driver
• Ultra stable, glitch-free, streaming operation
• Self-calibration with comparison to Audiomatica Labs calibration conditions
• Stored calibration parameters trace international standards
• Assistance warning in case of any component run out of spec with time
• Security warning in case of any unauthorized parameter change

PC CONFIGURATION

• The CLIO CP-01 audio interface running the CLIO Pocket software can be installed in any personal computer with the following system specs:
• Pentium IV class processor (suggested minimum 2GHz)
• One free USB 2.0 port
• 1024x786 video adapter
• Microsoft Windows (XP, Vista, 7, 8, 8.1) or Apple Mac OSX (10.5 to 10.10).

Generator

• 24 bit Sigma-Delta D/A converter
• frequency range: 1 Hz till 45 kHz
• frequency accuracy : better than 0.01 %
• frequency resolution: 0.01 Hz
• output impedance: 150 Ohm
• maximum output level (sine): 13 dBu (3,46 Vrms)
• attenuation: 0.1 dB steps till mute
• THD + Noise (sine): 0.008 %

CLIO pocket is a 32 bit application, thus is not compatible with MacOS 10.15 Catalina.

Price per unit (Order No clio-pocket-20) EUR 649,00 excl. VAT: € 545.38 / $ 594.46

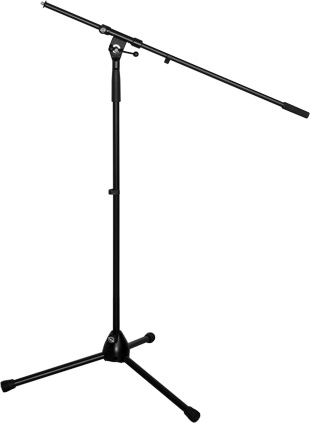

microphone tripod Clio Pocket

price per unit (Art.-Nr. ah-M21020B) EUR 58,40 excl. VAT: € 49.08 / $ 53.49


microphone clamp Clio Pocket

• EAN: 4016842816873
• Material: plastic
• Special features: elastic mic support
• Threaded connector: 3/8" and 5/8"
• Type: 3/8" and 5/8"
• Weight: 0.03 kg

Price per unit (Order No KuM-85035-000-55) EUR 4,90 excl. VAT: € 4.12 / $ 4.49
