Subwoofer

Revelator:Subwoofer

open a bigger photo

recommended cabinet 1:
closed cabinet with 22 L volume
from 35/22 Hz (-3dB/-8dB)

recommended cabinet 2:
89 L volume bass reflex cabinet
with HP70 reflex tube, 32 cm long.
from 16/14 Hz (-3dB/-8dB).

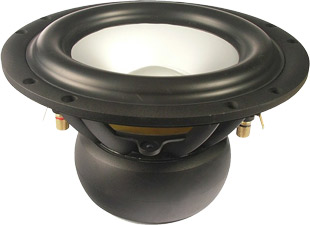

ScanSpeak 23W/4557T00

order no. ss-23W-4557T00

EUR 437,40 excl. VAT: € 367.56 / $ 389.62

24 cm bass driver with aluminium cone.

power handling (continuous/programme) = 225 W
frequency range = 20-800 Hz
resonance frequency fs = 21 Hz
impedance R = 4 Ohm
sound pressure level SPL = 82 dB (2,83V; 1m)
DC resistance Re = 3,45 Ohm
force factor BL = 9,3 N/A
voice coil inductance L = 0,45 mH
effective piston radiating area Sd = 232 cm²
effective mechanical mass incl. air load mms = 101 g
equivalent volume of compliance Vas = 45 l
total Q factor Qts = 0,47 (Qms=4,8, Qes=0,52)
voice coil diameter = 50 mm
maximum peak linear excursion vibration x_lin = +/- 13 mm
mounting diameter d = 225 mm
overall diameter d = 255 mm
mounting depth (not countersunk) t = 141 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

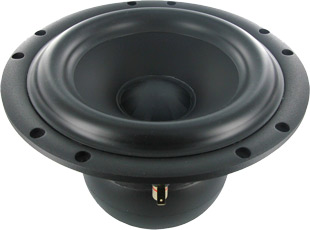

ScanSpeak 23W/4557T02

order no. ss-23W-4557T02

EUR 437,40 excl. VAT: € 367.56 / $ 389.62

24 cm bass driver with aluminium cone.

power handling (continuous/programme) = 225 W
frequency range = 20-800 Hz
resonance frequency fs = 21 Hz
impedance R = 4 Ohm
sound pressure level SPL = 82 dB (2,83V; 1m)
DC resistance Re = 3,45 Ohm
force factor BL = 9,3 N/A
voice coil inductance L = 0,45 mH
effective piston radiating area Sd = 232 cm²
effective mechanical mass incl. air load mms = 101 g
equivalent volume of compliance Vas = 45 l
total Q factor Qts = 0,47 (Qms=4,8, Qes=0,52)
voice coil diameter = 50 mm
maximum peak linear excursion vibration x_lin = +/- 13 mm
mounting diameter d = 225 mm
overall diameter d = 255 mm
mounting depth (not countersunk) t = 141 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 19 L volume
from 46/29 Hz (-3dB/-8dB)

recommended cabinet 2:
57 L volume bass reflex cabinet
with HP70 reflex tube, 28 cm long.
from 25/20 Hz (-3dB/-8dB).

ScanSpeak 28W/4878T00

order no. ss-28W4878T00

EUR 688,50 excl. VAT: € 578.57 / $ 613.29

27 cm bass driver with high quality cone.

power handling (continuous/programme) = 200/500 W
frequency range = 15-400 Hz
resonance frequency fs = 18 Hz
impedance R = 4 Ohm
sound pressure level SPL = 88,2 dB (2,83V; 1m)
DC resistance Re = 3,1 Ohm
force factor BL = 11,2 N/A
voice coil inductance L = 0,5 mH
effective piston radiating area Sd = 363 cm²
effective mechanical mass incl. air load mms = 114,5 g
equivalent volume of compliance Vas = 127 l
total Q factor Qts = 0,3 (Qms=5,6, Qes=0,32)
voice coil diameter = 75 mm
maximum peak linear excursion vibration x_lin = +/- 14 mm
mounting diameter d = 250,5 mm
overall diameter d = 280 mm
mounting depth (not countersunk) t = 146,2 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 35 L volume
from 44/28 Hz (-3dB/-8dB)

recommended cabinet 2:
112 L volume bass reflex cabinet
with HP100 reflex tube, 35 cm long.
from 23/18 Hz (-3dB/-8dB).

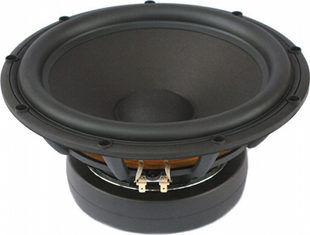

ScanSpeak 32W4878T00

order no. ss-32W-4878T00

EUR 697,50 excl. VAT: € 586.13 / $ 621.30

31 cm bass driver with high quality cone.

power handling (continuous/programme) = 200/550 W
frequency range = 15-400 Hz
resonance frequency fs = 18 Hz
impedance R = 4 Ohm
sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 3,1 Ohm
force factor BL = 12,5 N/A
voice coil inductance L = 0,5 mH
effective piston radiating area Sd = 526 cm²
effective mechanical mass incl. air load mms = 150 g
equivalent volume of compliance Vas = 203,9 l
total Q factor Qts = 0,32 (Qms=7, Qes=0,33)
voice coil diameter = 75 mm
maximum peak linear excursion vibration x_lin = +/- 14 mm
mounting diameter d = 290,5 mm
overall diameter d = 320 mm
mounting depth (not countersunk) t = 156,6 mm

PDF data sheet

show kits to this chassis hide kits

Discovery:Subwoofer

open a bigger photo

recommended cabinet 1:
closed cabinet with 15 L volume
from 52/33 Hz (-3dB/-8dB)

recommended cabinet 2:
47 L volume bass reflex cabinet
with HP70 reflex tube, 27 cm long.
from 28/22 Hz (-3dB/-8dB).

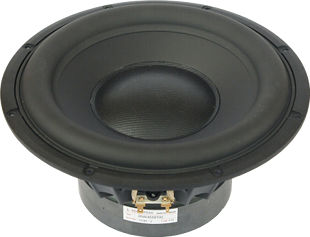

ScanSpeak 26W/4558T00

order no. ss-26W-4558T00

EUR 299,00 excl. VAT: € 251.26 / $ 266.34

26 cm bass driver with aluminium cone.

power handling (continuous/programme) = 150/350 W
frequency range = 20-800 Hz
resonance frequency fs = 21 Hz
impedance R = 4 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 2,6 Ohm
force factor BL = 10,5 N/A
effective piston radiating area Sd = 352 cm²
effective mechanical mass incl. air load mms = 105 g
equivalent volume of compliance Vas = 94,9 l
total Q factor Qts = 0,31 (Qms=5,56, Qes=0,33)
voice coil diameter = 51 mm
maximum peak linear excursion vibration x_lin = +/- 12,5 mm
mounting diameter d = 240 mm
overall diameter d = 270 mm
mounting depth (not countersunk) t = 141 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

recommended cabinet 1:
closed cabinet with 34 L volume
from 41/26 Hz (-3dB/-8dB)

recommended cabinet 2:
108 L volume bass reflex cabinet
with HP100 reflex tube, 42 cm long.
from 22/17 Hz (-3dB/-8dB).

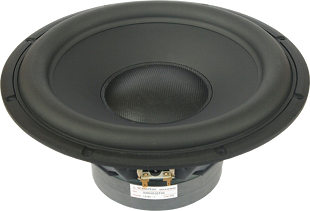

ScanSpeak 30W/4558T00

order no. ss-30W-4558T00

EUR 325,00 excl. VAT: € 273.11 / $ 289.50

29 cm bass driver with aluminium cone.

power handling (continuous/programme) = 150/350 W
frequency range = 15-400 Hz
resonance frequency fs = 17 Hz
impedance R = 4 Ohm
sound pressure level SPL = 89 dB (2,83V; 1m)
DC resistance Re = 2,6 Ohm
force factor BL = 10,5 N/A
effective piston radiating area Sd = 466 cm²
effective mechanical mass incl. air load mms = 135 g
equivalent volume of compliance Vas = 197 l
total Q factor Qts = 0,32 (Qms=5,01, Qes=0,34)
voice coil diameter = 51 mm
maximum peak linear excursion vibration x_lin = +/- 12,5 mm
mounting diameter d = 280 mm
overall diameter d = 308 mm
mounting depth (not countersunk) t = 149,3 mm

PDF data sheet

show kits to this chassis hide kits

Passiv

open a bigger photo

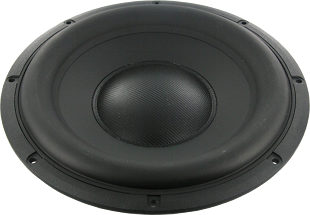

ScanSpeak 26W/0-00-00

order no. ss-26W-00000

EUR 161,10 excl. VAT: € 135.38 / $ 143.50

resonance frequency fs = 11 Hz
effective piston radiating area Sd = 352 cm²
effective mechanical mass incl. air load mms = 400 g
equivalent volume of compliance Vas = 95 l
total Q factor Qts = (Qms=13,7, Qes=)
maximum peak linear excursion vibration x_lin = +/- 28 mm
mounting diameter d = 240 mm
overall diameter d = 270 mm
mounting depth (not countersunk) t = 76 mm

PDF data sheet

show kits to this chassis hide kits

open a bigger photo

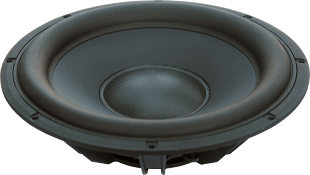

ScanSpeak 30W/0-00-00

order no. ss-30W-00000

EUR 196,20 excl. VAT: € 164.87 / $ 174.77

resonance frequency fs = 9,5 Hz
effective piston radiating area Sd = 466 cm²
effective mechanical mass incl. air load mms = 435 g
equivalent volume of compliance Vas = 200 l
total Q factor Qts = (Qms=14, Qes=)
maximum peak linear excursion vibration x_lin = +/- 28 mm
mounting diameter d = 280 mm
overall diameter d = 308 mm
mounting depth (not countersunk) t = 85 mm

PDF data sheet

show kits to this chassis hide kits

The cabinet volume calculations are executed considering an external resistance of 0.3 Ohm. We are using, if no other data is known or available, the information supplied by the manufacturer.
