Rolled cables: Video cables

High-quality coaxial antenna cable ACC-168/100

High-quality coaxial antenna cable, 75 Ω, white, for digital cable TV and satellite systems.

  • Shielding value: 100 dB, class A according to EN 50117
  • 100 m reel
  • Rigid internal copper conductor: Ø 1.13 mm
  • Double shielding
  • Attenuation (100 m): 5.2 dB/100 MHz
  • Cable diameter: Ø 6.8 mm
  • Metre marking
Matching F-standard plug: FCH-14 Attenuation at 20 °C in dB/100 m:
  • 100 MHz/5.2 dB
  • 200 MHz/7.2 dB
  • 300 MHz/8.8 dB
  • 500 MHz/12.3 dB
  • 800 MHz/15.6 dB
  • 1,000 MHz/18.3 dB
  • 1,350 MHz/21.8 dB
  • 1,750 MHz/24.9 dB
  • 2,050 MHz/28.4 dB
  • 2,450 MHz/33.4 dB



Price per unit   (Order No. mo-150770) EUR 57,51 excl. VAT: € 48.33 / $ 57.51


Video coaxial cables VCC-100/SW

Video coaxial cables, 75 Ω.

  • Cable material: RG59/U
  • Rigid internal conductor: Ø 0.65 mm
  • Double shielding
  • Outside diameter: Ø 6 mm
VCC-100/SW: 100 m reel

VCC-300/SW: 300 m reel




Price per unit   (Order No. mo-150700) EUR 101,30 excl. VAT: € 85.13 / $ 101.30


Video Coaxial Cables VCC-259/SW

Video Coaxial Cables, 75 Ω.

  • 100 m reel
  • Ø 6.0 mm
  • Highly flexible due to bunched internal conductor: Ø 0.6 mm
  • Braided copper shield
  • Attenuation (100 m): 2.8 dB/5 MHz
Specifications:
  • Length: 200 m reel
  • Colour: black
  • Other features:

Price per unit   (Order No. mo-150560) EUR 175,80 excl. VAT: € 147.73 / $ 175.80

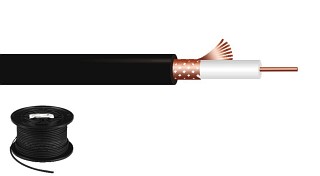

Video coaxial cables VCC-300/SW

Video coaxial cables, 75 Ω.

  • Cable material: RG59/U
  • Rigid internal conductor: Ø 0.65 mm
  • Double shielding
  • Outside diameter: Ø 6 mm
VCC-100/SW: 100 m reel

VCC-300/SW: 300 m reel



Price per unit   (Order No. mo-150710) - not available

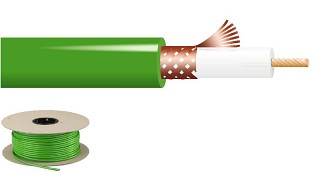

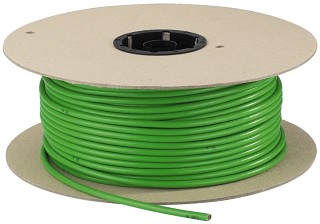

Video Coaxial Cables VCC-59

Video Coaxial Cables, 75 Ω.100 m reel

  • Ø 6.0 mm
  • Highly flexible due to bunched internal conductor: Ø 0.6 mm
  • Braided copper shield
  • Attenuation (100 m): 2.8 dB/5 MHz
Specifications:
  • Length: 100 m reel
  • Colour: green
  • Other features:

Price per unit   (Order No. mo-150320) EUR 88,26 excl. VAT: € 74.17 / $ 88.26

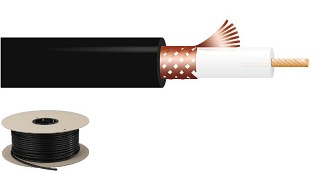

Video Coaxial Cables VCC-59/SW

Video Coaxial Cables, 75 Ω.100 m reel

  • Ø 6.0 mm
  • Highly flexible due to bunched internal conductor: Ø 0.6 mm
  • Braided copper shield
  • Attenuation (100 m): 2.8 dB/5 MHz
Specifications:
  • Length: 100 m reel
  • Colour: black
  • Other features:

Price per unit   (Order No. mo-150530) EUR 88,26 excl. VAT: € 74.17 / $ 88.26

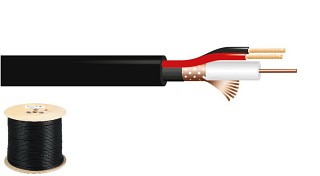

Combined video cable VSC-103/SW

Combined video cable
  • 100 m reel
  • 75 Ω coaxial cable with rigid internal conductor: Ø 0.6 mm, attenuation: 5.3 dB/100 m (10 MHz)
  • 2 x 0.75 mm2, litz wire, e.g. for the power supply (48 V max.) of CCTV cameras
  • Outside diameter: Ø 8 mm
  • Suitable for the combination with the video and voltage distributor VSV-9A
  • Matching BNC plug: UG-88/UCR58



Price per unit   (Order No. mo-150690) EUR 233,70 excl. VAT: € 196.39 / $ 233.70

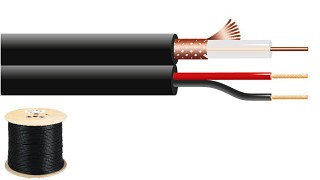

Combined video cables VSC-502/SW

Combined video cables
  • 75 Ω coaxial cable, bunched internal conductor: Ø 0.6 mm, attenuation: 2.5 dB/100 m (5 MHz)
  • 2 x 0.75 mm2, e.g. for the power supply (48 V max.) of CCTV cameras
  • Highly flexible version
  • Matching BNC plug: UG-88/UCR


VSC-152/SW: 150 m reel

VSC-502/SW: 500 m reel

Matching BNC plug: e.g. UG-88/UCR.



Price per unit   (Order No. mo-505150) EUR 807,50 excl. VAT: € 678.57 / $ 807.50
