Active PA speakers: 15"

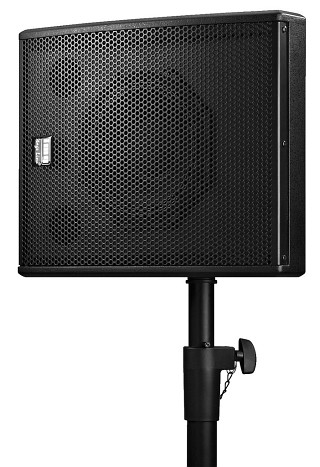

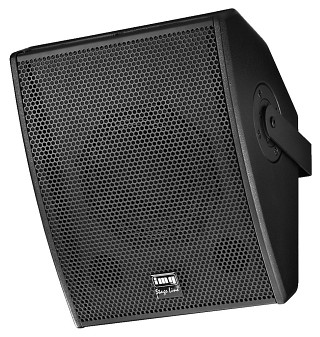

Universal active PA speaker system with DSP, 370 WRMS, PAK-308M/SW

Multi-purpose PA speakers for versatile applications: the 300 series from IMG Stage Line. They can be used for both fixed installations and mobile applications. Ideally suited for powerful PA applications of good level stability in rooms as well as for rearfill applications and sidefill applications. The very compact and easy-to-transport systems are also very well-suited for mobile applications when combined with suitable subwoofers, e.g. PSUB-12AKA or PSUB-15AKA and as small floor monitors.

Universal active PA speaker system with DSP, 370 WRMS

  • Compact 8/2 full range bass-reflex system
  • 20 cm (8") coaxial speaker system with 25 mm (1", 44 mm voice coil) horn tweeter
  • DSP-controlled 2-channel amplifier system, bass: class D, tweeter: analogue
  • Max. sound pressure at nominal power: 118 dB, music: 121 dB, peak: 124 dB
  • 3 selectable presets: music, flat and low cut (120 Hz)
  • Indication for signal and clip

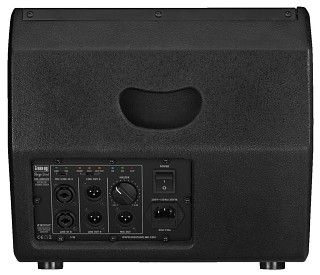

  • Feed-through outputs and mix output
  • High-quality cabinet made of multiplex wood with protective metal grille
  • Multi-purpose positioning and installation options, especially as a floor monitor
  • M10 threaded inserts for bracket mounting, M8 threaded insert as a mounting safeguard
  • Supplied with mounting bracket and integrated stand sleeve


www.musicnstuff.de 07/2014

"The PAK-308M/SW is capable of really high volume levels. We clearly recommend to use the PAK-308M/SW from IMG Stage Line as follows: In the rehearsal room, it is ideally suited as a PA system or optionally as a monitor speaker. For on-the-road applications, you can simply take it with you, set it up on stage and enjoy the sound in the usual manner. This speaker is a great choice because most of the wedge speakers vegetating in clubs or bars are usually inadequate. Oh, by the way: the new monitor speakers PAB-308M/SW are also available as passive versions."

SOUNDCHECK 08/2014

"Impresses by a powerful sound performance of high level stability and thus, is suitable for fixed installations as well as vertaile mobile applications. During the practical test, the floor monitor also impressed with a respectable and distortion-free sound at higher volume levels."
Specifications:
  • Frequency range: 60-20,000 Hz
  • Amplifier power: DSP-controlled, 370 WRMS (300+70) bass: 300 WRMS tweeter: 70 WRMS
  • Inputs: 1 x line/mic (bal.), switchable 1 x line (bal.)
  • SPL (1 W/1 m): 97 dB
  • Max. rated SPL: 118 dB at nominal power RMS
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 230 V /50 Hz/350 VA
  • Dimensions (WxHxD): 340x303x379 mm
  • Weight: 10.75 kg
  • Connections: 2 x comb. XLR/6.3 mm (line/mic A, line B) 2 x XLR, par. out, 1 x XLR MIX out
  • Other features: DSP-controlled limiter

Price per unit   (Order No. mo-255110) EUR 515,70 excl. VAT: € 433.36 / $ 515.70
