Gooseneck microphones

Miniature electret directional microphone with gooseneck EMG-330P

Miniature electret directional microphone with gooseneck

Transformer-balanced
Hypercardioid/lobe characteristic
Foam windshield
3-pole XLR plug
With optional desktop microphone base DMS-1, especially suitable as PA desktop microphone

Specifications:

System: back electret hypercardioid/lobe
Frequency range: 50-18,000 Hz
Impedance: 250 Ω
Sensitivity: 10 mV/Pa/1 kHz
Max. SPL: 125 dB
S/N ratio: -
Power supply: 9-48 V DC current , phantom
Body: -
Dimensions: Ø 19 mm x 330 mm
Weight: 125 g
Connection, microphone: XLR
Connection, cable: -
Cable: -

Price per unit (Order No. mo-234270) EUR 85,25 excl. VAT: € 71.64 / $ 83.10

Electret gooseneck microphone EMG-500P

Electret gooseneck microphone

Cardioid characteristic
Microphone windshield
3-pole XLR plug
Total length: 480 mm

Specifications:

System: electret/cardioid
Frequency range: 80-16,000 Hz
Impedance: 250 Ω
Sensitivity: 5 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 9-48 V DC current , phantom
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 19 mm x 480 mm
Weight: 194 g
Connection: XLR

Price per unit (Order No. mo-231980) EUR 81,18 excl. VAT: € 68.22 / $ 79.13

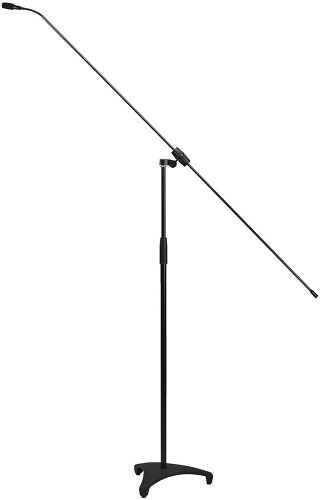

Floor stand microphone FGM-170

Floor stand microphone, with carbon fibre boom.

Unobtrusive appearance and a magnificant sound! With the FGM-170 (with long shaft) or FGM-62 (with short shaft), it is possible to very easily and conveniently realise state-of-the-art remote miking for highest requirements. In order to achieve a perfect result, one of the three high-quality back electret microphone cartridges of different directional characteristics can be used, depending on the application. With the extra lightweight (105 g) but extra stable carbon fibre boom, it is possible to perfectly align the cartridge. A miniature gooseneck provides maximum flexibility when adjusting the exact tilting angle. The stand is very stable due to the diecast base plate and decoupled from structure-borne noise due to rubber feet. The 8 m connection cable allows for an electronically balanced signal transmission via the connector plug. Further features like low cut filter and 10 dB attenuator (both switchable) are also available. The red LED ring at the cartridge indicates the operational availability.

Supplied with 2 replacement cartridges in a wooden box, connection cable and windshield

FGM-170: with long shaft, for overhead miking

FGM-62: with short shaft, for front miking

Specifications:

System: back electret/cardioid, supercardioid, omnidir.
Frequency range: 50-18,000 Hz
Impedance: 220 kΩ
Sensitivity: 16 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V phantom power
Connections: cable with 4-pole mini XLR to XLR
Total length boom: 1.46 m
Total length stand: 1.6 m
Weight: 3.6 kg

Price per unit (Order No. mo-236070) EUR 259,70 excl. VAT: € 218.24 / $ 253.15

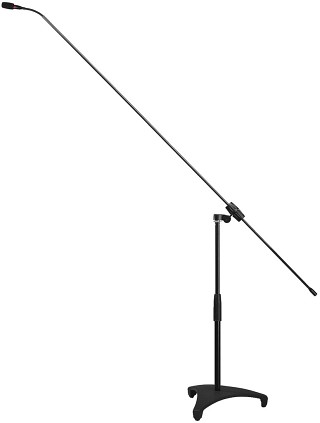

Floor stand microphone FGM-62

Specifications:

System: back electret/cardioid, supercardioid, omnidir.
Frequency range: 50-18,000 Hz
Impedance: 220 kΩ
Sensitivity: 16 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V phantom power
Connections: cable with 4-pole mini XLR to XLR
Total length boom: 1.46 m
Total length stand: 0.6 m
Weight: 3.2 kg

Price per unit (Order No. mo-236080) EUR 241,30 excl. VAT: € 202.77 / $ 235.22

Electret gooseneck microphone GM-5212

Electret gooseneck microphone

This gooseneck microphone of supercardioid characteristic has been optimised for voice transmissions and thus provides a perfect sound with a very high speech intelligibility and minimum susceptibility to acoustic feedback at the same time. The reliable and high-quality workmanship ensures a long life even at severe conditions in general applications. This microphone is suitable for general applications due to the rigidly installed 3-pole XLR plug and can be operated via an external phantom power supply or the microphone base ST-5030.

Specifications:

System: back electret/supercardioid
Frequency range: 80-18,000Hz
Impedance: 220Ω ±30%
Sensitivity: 16mV/Pa/1kHz
Max. SPL: 125dB
Power supply: 48V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 455mm
Weight: 170g

Price per unit (Order No. mo-234380) EUR 63,30 excl. VAT: € 53.19 / $ 61.70

Electret gooseneck microphone with LED GM-5212L

Electret gooseneck microphone with LED

This microphone with an LED as an operating indication can be used for versatile applications and meets all the requirements with regard to avoiding acoustic feedback and providing a natural sound. The microphone impresses by a frequency response which is perfectly matched to the voice, thus resulting in a precise voice reproduction. The reliable and high-quality workmanship ensures a long life. Design: gooseneck with an integrated 3-pole XLR plug. Both of the microphone series can be operated via an external phantom power supply or the microphone base ST-5030.

Specifications:

System: electret/supercardioid
Frequency range: 80-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 12.6 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 465 mm
Weight: 170 g

Price per unit (Order No. mo-234410) EUR 66,38 excl. VAT: € 55.78 / $ 64.71

Double gooseneck microphone, electret version GM-5215DU

Double gooseneck microphone, electret version

These double microphones are always the first choice when a high operating reliability, flexible positioning, increased sensitivity and an easy installation are required. The rigid goosenecks allow for a vertical adjustment of 160°, independent of each other. The audio signal is balanced and fed through a common 3-pole XLR plug. Professional features are integrated, e.g. switchable 10 dB attenuator and low cut filter. The high-quality back electret supercardioid cartridges feature a +48 V phantom power supply. Total length:

GM-5212DU: 415 mm

GM-5215DU: 492 mm

Specifications:

System: back electret/supercardioid
Frequency range: 80-18,000 Hz
Impedance: 220 Ω
Sensitivity: 16 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 492 mm
Weight: 335 g

Price per unit (Order No. mo-236300) EUR 146,00 excl. VAT: € 122.69 / $ 142.32

Electret gooseneck microphone GM-5218

Specifications:

System: back electret/supercardioid
Frequency range: 80-18,000Hz
Impedance: 220Ω ±30%
Sensitivity: 16mV/Pa/1kHz
Max. SPL: 125dB
Power supply: 48V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 605mm
Weight: 190g

Price per unit (Order No. mo-234390) EUR 69,66 excl. VAT: € 58.54 / $ 67.90

Electret gooseneck microphone with LED GML-5212

Electret gooseneck microphone with LED

The flagship among the gooseneck microphones. Supplied with 3 replaceable microphone cartridges of different characteristics (cardioid, supercardioid and omnidirectional) which ensure most versatile applications. It is almost impossible to be more versatile! The GML gooseneck series is perfectly suitable for almost any application. The speech intelligibility which is already excellent, of course, and the high-quality workmanship are completed by a -10 dB PAD switch, a switchable low cut filter and an LED as an operating indication which makes it very suitable for practical applications. The microphone can be operated via an external phantom power or the microphone base ST-5030.

Specifications:

System: back electret/cardioid/supercardioid/omnidir.
Frequency range: 80-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 16 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 465 mm
Weight: 250 g

Price per unit (Order No. mo-234560) EUR 117,70 excl. VAT: € 98.91 / $ 114.73

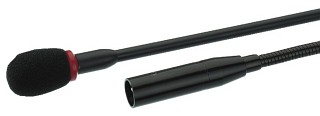

Electret gooseneck microphone EMG-600P

Electret gooseneck microphone, with red lighting ring.

Especially suitable for PA applications
Cardioid characteristic
Microphone windshield
3-pole XLR plug
Total length: 445 mm

Specifications:

System: electret/cardioid
Frequency range: 100-16,000 Hz
Impedance: 1,000 Ω
Sensitivity: 4 mV/Pa/1 kHz
Max. SPL: -
Power supply: 3-9 V DC current , external via optional PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 13/19 mm x 445 mm
Weight: 190 g
Connection: XLR

Price per unit (Order No. mo-232800) EUR 103,90 excl. VAT: € 87.31 / $ 101.28

Electret gooseneck microphone EMG-610P

Electret gooseneck microphone, with red lighting ring.

Especially suitable for PA applications
Cardioid characteristic
Microphone windshield
Threaded part: Ø 10 mm x 40 mm
For console and front mounting
Total length: 450 mm

Specifications:

System: electret/cardioid
Frequency range: 100-16,000 Hz
Impedance: 1,000 Ω
Sensitivity: 4 mV/Pa/1 kHz
Max. SPL: -
Power supply: 3-9 V DC current , external via optional PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 13/19 mm x 450 mm
Weight: 190 g
Connection: bare cable ends

Price per unit (Order No. mo-232810) EUR 103,90 excl. VAT: € 87.31 / $ 101.28

Electret gooseneck microphone EMG-648P

Electret gooseneck microphone, with red lighting ring.

Especially suitable for PA applications
Transformer-balanced
Cardioid characteristic
Microphone windshield
3-pole XLR plug
Total length: 440 mm

Specifications:

System: electret/cardioid
Frequency range: 50-16,000 Hz
Impedance: 300 Ω
Sensitivity: 4 mV/Pa/1 kHz
Max. SPL: -
Power supply: 9-48 V DC current , phantom
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 13/19 mm x 440 mm
Weight: 175 g
Connection: XLR

Price per unit (Order No. mo-233250) EUR 108,80 excl. VAT: € 91.43 / $ 106.06

Electret gooseneck microphone EMG-650P

Electret gooseneck microphone, with switchable low cut filter. This microphone features an excellent radiation and a clear voice reproduction.

Cardioid characteristic
Wide transmission range
Switchable low cut 180 Hz (12 dB/oct)
Electronically balanced output
Low acoustic feedback
Unobtrusive power LED in the XLR connection terminal
Foam windshield
Total length: 600 mm

Specifications:

System: electret/cardioid
Frequency range: 30-18,000 Hz
Impedance: 180 Ω
Sensitivity: 4.5 mV/Pa/1 kHz
Max. SPL: 130 dB
Power supply: 9-48 V DC current , phantom
Admiss. ambient temp.: 0-40 °C
Dimensions: Ø 9/19 mm x 600 mm
Weight: 175 g
Connection: XLR

Price per unit (Order No. mo-234330) EUR 131,50 excl. VAT: € 110.50 / $ 128.18

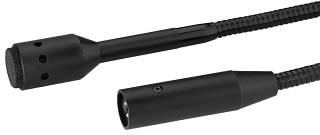

Dynamic gooseneck microphone DMG-400

Dynamic gooseneck microphone

Excellent sound characteristics
Balanced version
Cardioid characteristic
M10 threaded part (length: 8 mm)
For console and front mounting
Total length: 385 mm

Specifications:

System: dynamic/cardioid
Frequency range: 150-12,000 Hz
Impedance: 500 Ω
Sensitivity: 2.2 mV/Pa/1 kHz
Max. SPL: -
Power supply: -
Admiss. ambient temp.: -
Dimensions: Ø 28 mm x 385 mm
Weight: 252 g
Connection: bare cable ends

Price per unit (Order No. mo-231550) EUR 47,32 excl. VAT: € 39.76 / $ 46.13

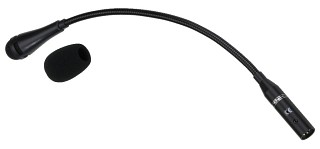

Dynamic gooseneck microphone DMG-450

Dynamic gooseneck microphone

Balanced connection
Cardioid characteristic
3-pole XLR connection
Total length: 450 mm
Supplied with microphone windshield WS-40

Specifications:

System: dyn./cardioid
Frequency range: 80-16,000 Hz
Impedance: 500 Ω
Sensitivity: 1.4 mV/Pa/1 kHz
Power supply: -
Dimensions: Ø 30 mm x 450 mm

Price per unit (Order No. mo-232620) EUR 54,36 excl. VAT: € 45.68 / $ 52.99

Dynamic gooseneck microphone DMG-600

Dynamic gooseneck microphone

Balanced version
Cardioid characteristic
3-pole XLR plug
Total length: 565 mm

Specifications:

System: dynamic/cardioid
Frequency range: 200-12,000 Hz
Impedance: 500 Ω
Sensitivity: 2 mV/Pa/1 kHz
Max. SPL: -
Power supply: -
Admiss. ambient temp.: -
Dimensions: Ø 21 mm x 565 mm
Weight: 162 g
Connection: XLR

Price per unit (Order No. mo-231560) EUR 54,36 excl. VAT: € 45.68 / $ 52.99

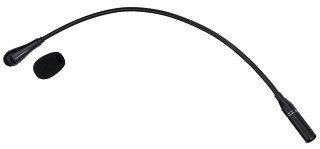

Dynamic gooseneck microphone DMG-700

Dynamic gooseneck microphone

Balanced connection
Cardioid characteristic
3-pole XLR connection
Total length: 700 mm
Supplied with microphone windshield WS-40

Specifications:

System: dyn./cardioid
Frequency range: 80-16,000 Hz
Impedance: 500 Ω
Sensitivity: 1.4 mV/Pa/1 kHz
Power supply: -
Dimensions: Ø 30 mm x 700 mm

Price per unit (Order No. mo-232630) EUR 67,38 excl. VAT: € 56.62 / $ 65.68

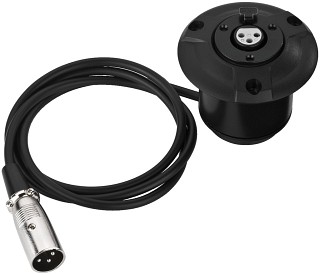

XLR chassis structure-borne noise attenuator ST-5070

XLR chassis structure-borne noise attenuator

Due to an elastic rubber support, this chassis structure-borne noise attenuator effectively suppresses low-frequency structure-borne noise as it often occurs at speakers' desks, or similar, when the speaker is particularly nervous or emotional. Solderless version with screw terminal. The gooseneck microphone to be used is securely locked to avoid accidental unplugging.

Specifications:
