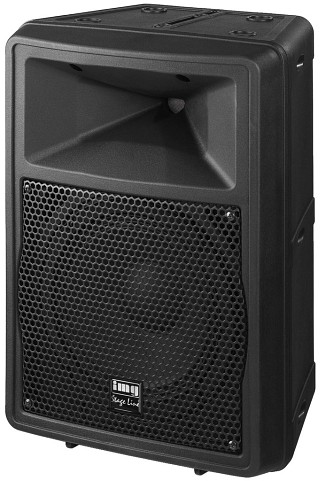

Active DJ and power speaker system, 130 WMAX, 75 WRMS, PAK-108MK2
Enlarge
Enlarge
The 100 series provides PA speaker systems of high power capability with a nice sound for PA and DJ applications, suitable for medium-sized to large function rooms. The timeless plastic cabinets are also very robust and have extensively been tested in practical operation. The active PAK version features a warm sound due to well-approved transistor technology and keeps dynamic reserves and power reserves.
Active DJ and power speaker system, 130 WMAX, 75 WRMS
Full range system of high efficiency
Robust plastic cabinet
20 cm (8") bass speaker with diecast aluminium basket
25 mm (1", 34 mm voice coil) horn tweeter
Bass-reflex system
High-performance active module
Multi-purpose positioning and installation options
M6 threaded inserts (2 x top, 1 x bottom)
XLR and RCA L/R (line), XLR (mic)
Stand adapter for standard stands
djmagazin.de 05/2012
"With quiet, so-called dinner music, both of the speaker systems provide a well-balanced sound with a very good reproduction of all frequencies. At higher volume levels, both of the speaker systems provide a reliable reproduction and a neutral sound. Suitable for versatile applications. Also provided a surprisingly powerful reproduction outdoors which is still well audible at a distance. Both speaker systems received a grade 1!" (PAK-108MK2 and PAK-110MK2 in the test)
Specifications:
Frequency range: 60-20,000 Hz
Amplifier power: 75 W
RMS
, 130 W
MAX
Inputs: 1 x line (bal., 125 mV, stereo unbal., 100 mV) 1 x mic (bal., 6.5 mV)
SPL (1 W/1 m): 94 dB
Max. rated SPL: 112 dB
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/200 VA
Dimensions (WxHxD): 290x405x220 mm
Weight: 9 kg
Connections: XLR and RCA L/R (line) XLR (mic)
Other features: par. line out (XLR bal.) integr. limiter
Price per unit
(Order No. mo-252260)
- not available
