Tie clip microphones

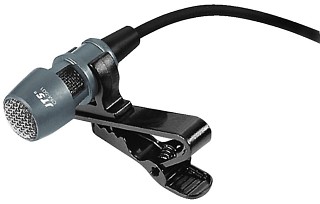

Electret lavalier microphone CM-501

This microphone is designed for presentations and discussions. It ensures good audibility, allows for a secure fit due to the supplied tie clip and is quickly attached. The cartridge design of cardioid characteristic allows to pick up a precise voice of high quality over a wide dynamic range. Supplied with windshield.

Specifications:

• System: electret/cardioid
• Frequency range: 100-15,000 Hz
• Impedance: 2.2 kΩ
• Sensitivity: 3.2 mV/Pa/1 kHz
• Max. SPL: 130 dB
• Power supply: pocket transmitter IN/PT/UF series or PS-500
• Connections: cable with 4-pole mini XLR
• Weight: 20 g

Price per unit   (Order No mo-234690) EUR 36,85 excl. VAT: € 31.77 / $ 37.17

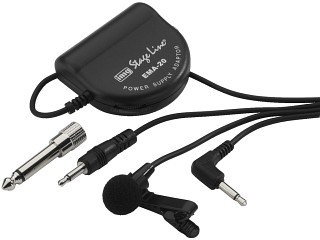

Electret tie clip microphone ECM-2500

• Microphone cartridge of omnidirectional characteristic
• Removable clip
• Supplied with phantom power supply adapter EMA-20
• Connection via 3.5 mm plug
• Supplied without 1.5 V battery AAA size

Specifications:

• Frequency range: 20-16,000 Hz
• Sensitivity: 6 mV/Pa/1 kHz
• Impedance: -
• Max. SPL: 120 dB
• S/N ratio: 50 dB
• Power supply: via suppl. EMA-20, 1.5 V batt. AAA size (not suppl.)
• Dimensions mic.: Ø 8.5 mm x 20 mm

Price per unit   (Order No mo-232670) EUR 27,38 excl. VAT: € 23.60 / $ 27.62


Replacement electret tie clip microphone ECM-821LT

• Microphone cartridge of cardioid characteristic
• Removable clip
• 0.8 m connection cable with 3.5 mm plug, with latching device
• Operation via a pocket transmitter of the series TXS-820SX, TXS-822SX, TXS-820LT or TXS-822LT
• Microphone windshield

Specifications:

• System: electret/cardioid
• Frequency range: 50-16,000 Hz
• Impedance: 680 Ω
• Sensitivity: 5.6 mV/Pa/1 kHz
• Max. SPL: 110 dB
• Power supply: 1.5-3 V
• Admiss. ambient temp.: 0-40 °C
• Dimensions: Ø 12 mm x 18 mm
• Weight: 22 g
• Connection: 3.5 mm plug

Price per unit   (Order No mo-235450) EUR 19,50 excl. VAT: € 16.81 / $ 19.67


Electret tie clip microphone ECM-2005

• Microphone cartridge of omnidirectional characteristic
• Removable clip
• Battery compartment can be switched off, with belt clip
• 5 m cable with 3.5 mm right-angle plug
• Supplied without button cell battery LR-44

Specifications:

• Frequency range: 50-16,000 Hz
• Sensitivity: 6 mV/Pa/1 kHz
• Impedance: 600 Ω
• Max. SPL: 120 dB
• S/N ratio:>40 dB
• Power supply: button cell 1.5 V Ø 11.6 mm x 5.4 mm
• Dimensions mic.: Ø 10 mm x 17 mm

Price per unit   (Order No mo-231570) - not available (_)

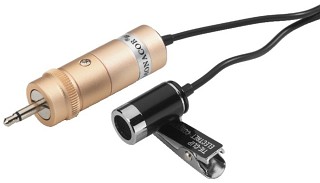

Electret tie clip microphone ECM-3003

• Excellent sound quality
• Microphone cartridge of omnidirectional characteristic
• Strong clip
• Power supply in the 3.5 mm plug
• 4 m connection cable
• Supplied without button cell battery LR-44

Specifications:

• Frequency range: 50-16,000 Hz
• Sensitivity: 5.6 mV/Pa/1 kHz
• Impedance: 1 kΩ
• Max. SPL: 120 dB
• S/N ratio:>40 dB
• Power supply: button cell 1.5 V Ø 11.6 mm x 5.4 mm
• Dimensions mic.: Ø 12 mm x 23 mm

Price per unit   (Order No mo-230340) EUR 22,23 excl. VAT: € 19.16 / $ 22.42

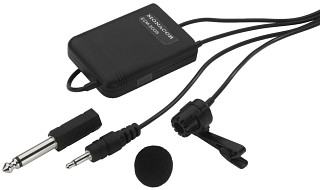

Electret tie clip microphone ECM-3005

• Excellent sound quality
• Microphone cartridge of omnidirectional charasteristic
• Push-on microphone windshield
• Strong, removable clip
• Belt clip and switch
• 4 m cable with 3.5 mm plug
• Supplied without 1.5 V battery AAA size

Specifications:

• Frequency range: 50-16,000 Hz
• Sensitivity: 6 mV/Pa/1 kHz
• Impedance: 600 Ω
• Max. SPL: 120 dB
• S/N ratio:>40 dB
• Power supply: 1.5 V batt. AAA size
• Dimensions mic.: Ø 13 mm x 19 mm

Price per unit   (Order No mo-231580) EUR 18,00 excl. VAT: € 15.52 / $ 18.16


Electret lavalier microphone ECM-300L

• Extra compact version
• Phantom power via adapter EMA-300P, available at option
• With 6 m connection cable and tie clip

Specifications:

• System: electret/omnidir.
• Frequency range: 50-18,000 Hz
• Impedance: 400 Ω
• Sensitivity: 4 mV/Pa/1 kHz
• Max. SPL: 120 dB
• Power supply: via power supply adapter
• Admiss. ambient temp.: 0-40 °C
• Dimensions: Ø 9 mm x 21 mm
• Weight: 4 g
• Connection: 3-pole mini XLR, unbal.

Price per unit   (Order No mo-232400) EUR 36,85 excl. VAT: € 31.77 / $ 37.17

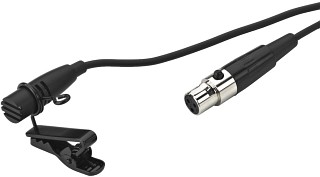

Electret tie clip microphone ECM-402L

• Microphone cartridge of cardioid characteristic
• Removable clip and 1.2 m connection cable
• 3-pole mini XLR inline jack for connection to an optional phantom power supply adapter (EMA-300P) or a pocket transmitter TXS-...HSE

Specifications:

• System: electret/cardioid
• Frequency range: 70-15,000 Hz
• Impedance: 1.5 kΩ
• Sensitivity: 7 mV/Pa/1 kHz
• Max. SPL: 120 dB
• Power supply: via power supply adapter
• Admiss. ambient temp.: 0-40 °C
• Dimensions: Ø 7 mm x 22 mm
• Weight: 4 g
• Connection: 3-pole mini XLR

Price per unit   (Order No mo-233520) EUR 34,85 excl. VAT: € 30.04 / $ 35.15

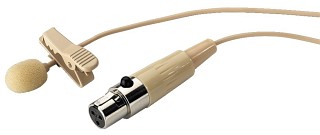

Electret tie clip microphone ECM-501L/SK

• Unobtrusive fit due to beige miniature design
• High-quality microphone cartridge of omnidirectional characteristic
• Removable clip and 1.2 m connection cable
• 3-pole mini XLR inline jack for connection to an optional phantom power supply adapter (EMA-1, EMA-300P) or a pocket transmitter TXS-...HSE

Specifications:

• System: electret/omnidir.
• Frequency range: 20-20,000 Hz
• Impedance: 1 kΩ
• Sensitivity: 5.6 mV/Pa/1 kHz
• Max. SPL: 110 dB
• Power supply: 1.5-9 V DC current
• Admiss. ambient temp.: 0-40 °C
• Dimensions: Ø 5 mm x 10 mm
• Weight: 5 g
• Connection: 3-pole mini XLR

Price per unit   (Order No mo-233900) EUR 36,24 excl. VAT: € 31.24 / $ 36.55
