Network technology: Network accessories

8-port patch panel PATCH-8

8-port patch panel, for network installations.

  • Category 6 (Cat. 6), 10/100/1,000 Mbps
  • 8 x RJ45 jack
  • Fully shielded version with cable strain relief
  • LSA connection technology
  • Colour codes according to EIA/TIA 568 A/B, printed on PCB for an easier orientation
  • Earth connection
  • Dimensions: 160x44x110 mm
  • Weight: 600 g



Price per unit   (Order No. mo-068320) EUR 24,90 excl. VAT: € 20.92 / $ 24.27

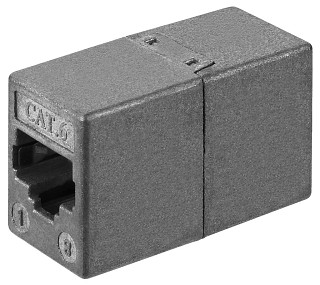

Cat. 6 dual inline jack CAT-6C

Cat. 6 dual inline jack, for extending Cat. 6 network cables as desired. Fitted with RJ45 jacks on both ends, fully wired (all 8 poles). Diecast metal housing, with shielding. Picture is similar.



Price per unit   (Order No. mo-080350) EUR 4,79 excl. VAT: € 4.03 / $ 4.67

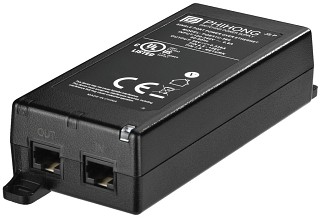

Power over Ethernet injector POE-130MID

Power over Ethernet injector, for feeding the supply voltage into a PoE network at any position required. For this purpose, an existing network cable is fed through.

  • 1 port (RJ45) with 10/100 Mbps
  • Output rating: 30 W
  • Output voltage: 56 V DC current
  • Compatible with the standard IEEE802.3at
  • Power supply: 100-240 V /50-60 Hz
  • Dimensions: 65x40x165 mm
  • Weight: 230 g
Please order matching mains cable AAC-180/SW or AAC-182/SW separately.




Price per unit   (Order No. mo-181287) EUR 46,14 excl. VAT: € 38.77 / $ 44.98

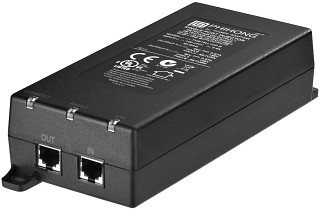

Power over Ethernet Gigabit injector POE-175MID

Power over Ethernet Gigabit injector, for feeding the supply voltage into a PoE network at any position required. For this purpose, an existing network cable is fed through.

  • 1 port (RJ45) with 10/100/1,000 Mbps
  • Output rating: 75 W
  • Output voltage: 56 V DC current
  • Compatible with the standard IEEE802.3af
  • Protection function in case of overload and cable disconnection
  • Cable failure detection
  • Power supply: 100-240 V /50-60 Hz
  • Dimensions: 80x45x190 mm
  • Weight: 480 g
Please order matching mains cable AAC-180/SW or AAC-182/SW separately.




Price per unit   (Order No. mo-181289) EUR 102,10 excl. VAT: € 85.80 / $ 99.53
