Active column PA speaker system with DSP, 800 WMAX, 400 WRMS, C-RAY/8

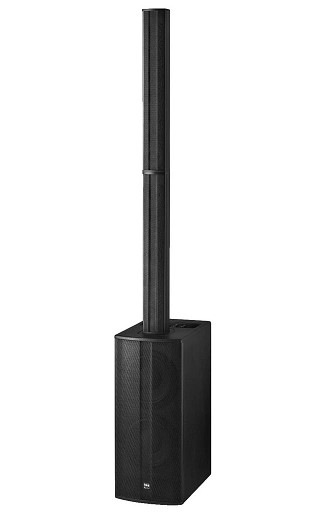

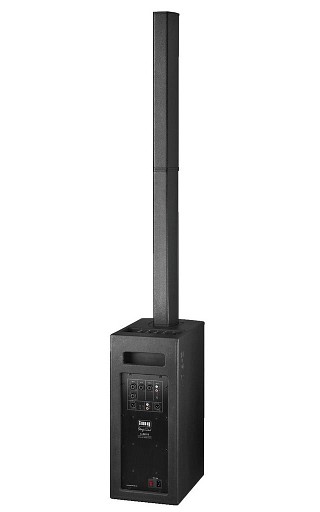

The C-RAY/8 is a compact active 3-way column PA speaker system with a DSP-controlled 2-channel class D amplifier module and a 4-channel mixer. The system consists of a subwoofer of very high power capability with two 20 cm (8") bass speakers as well as two column modules which are equipped with a total of twelve 7.6 cm (3") full range speakers and two 2.5 cm (1") tweeters. The different connection method and configuration of the column modules allow for an easy and fine tuning with continuously adjustable equalizers via DSP in the inputs. The system provides a powerful sound and is suitable for various applications. The components are attached and connected via a twist-and-lock mechanism and therefore do not require any cables. The four inputs can be mixed and parallel out and mix out are also available.

Active column PA speaker system with DSP, 800 WMAX, 400 WRMS

  • Compact full range system with bass-reflex subwoofer and two column modules
  • 2 x 20 cm (8") bass speaker, 12 x 7.6 cm (3") full range speaker + 2 x 2.5 cm (1") tweeter in a closed cabinet
  • 2-channel class D amplifier system with 2 x 200 WRMS
  • DSP-controlled functions for crossover network, equalizer and limiter
  • Sound pressure at nominal power: 115 dB, music: 118 dB, peak: 122 dB
  • 4-channel mixer
  • Continuously adjustable sound characteristics
  • Mono selector switch
  • Indication of signal, limiter and clip
  • Feed-through outputs, rec out and mix output
  • High-quality wooden cabinet with protective metal grille
  • No cables, components attached via twist-and-lock mechanism


tools4music 01/2015

"Like it! The C-RAY/8 from IMG Stage Line is easy to transport, provides a perfectly tuned sound and is of an unobtrusive design. It is quickly set up and ready for use. These are perfect prerequisites for leaving a lasting impression with small acoustic bands, DJs and multimedia PA applications. Thanks to digital signal processing, it is possible to carry out audible sound adjustments quickly with one equalizer control only. Thus, operating the mixer is child's play and also suitable for inexperienced users. When purchasing this device, the customer should also consider the intermediate pieces C-RAY/8EXT which considerably extend the range of applicaiton."

+ Unobtrusive design suitable for galas

+ Easy to use

+ Internal 4-channel mixer

+ Sound tuning

+ Individual volume control for the bass speaker system

+ Top-operated mixer

+ Price

+ Quickly set up and disassembled

+ Easy to transport

+ Protective covers available at a relatively unfavourable price

okey 121, 11/2014

"There are many column PA speakers available already. We may have to ask ourselves: do we need any more of those? If they are well-designed speakers, of course we do! With the C-RAY/8, IMG Stage Line offers a speaker which is available at a reasonable price and provides an absolutely impressive sound in its class. It is suitable for versatile applications with sufficient power capabilities for entertainers. At the same time, it provides a well-balanced sound and is easy to use. What more do you want? If you are looking for a new and compact speaker system with a particularly good price-performance ratio, come and try out the C-RAY/8. It is worth it!"

SOUNDCHECK 09/2014

"A high-quality PA column speaker ... easy to transport, quick to assemble and easy to use. ... even smaller concerts can be realised with this system."

tastenwelt 05/2014

"Clever column speaker! The arrangement of the speakers in the columns allows for an extraordinary operating range and a consistent radiation pattern. It provides an impressive bass performance ... volume levels suitable for a party."
Specifications:
  • Frequency range: 50-20,000 Hz
  • Amplifier power: DSP-controlled 400 WRMS (200+200) bass: 200 W mid-high range: 200 W
  • Inputs: 1 x line in L/R, bal. 1 x mic, bal. 1 x comb. 1 x aux
  • SPL (1 W/1 m): 95 dB
  • Max. rated SPL: 115 dB at nominal power RMS
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 230 V /50 Hz/510 VA
  • Dimensions (WxHxD): 250x1,730x400 mm
  • Weight: 23 kg

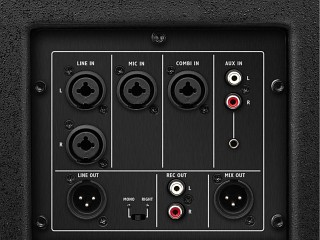

  • Connections: 2 x XLR/6.3 mm comb. (line L/R) 1 x XLR/6.3 mm comb. (mic) 1 x XLR/6.3 mm comb. (comb.) 1 x RCA (aux L/R) 1 x RCA (rec out L/R) 1 x 3.5 mm jack (aux L/R) 1 x XLR, par. out, 1 x XLR, MIX out
  • Other features: DSP-controlled limiter

Price per unit   (Order No. mo-255630) EUR 807,50 excl. VAT: € 678.57 / $ 800.71


Intermediate piece C-RAY/8EXT

Intermediate piece, for the C-RAY/8.

  • Increases mounting height of column satellite modules by 57 cm
  • No cables, components attached via twist-and-lock mechanism
  • Dimensions: 85x605x107 mm
  • Weight: 1.34 kg



Price per unit   (Order No. mo-255700) EUR 82,61 excl. VAT: € 69.42 / $ 81.92
