Signal processing: Transformers

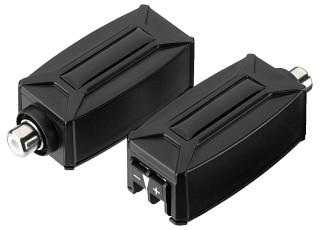

Passive 2-wire transmission set VB-202A

Passive 2-wire transmission set, for audio signals.

  • Audio transmission via one pair of wires of a Cat. 5 cable, 1,000 m max.
  • Transmission range: 20-20,000 Hz
  • RCA connections
  • Cable connection via screw terminals
  • Passive, no power supply required
  • Supplied in pairs



Price per unit   (Order No. mo-181020) EUR 41,35 excl. VAT: € 34.75 / $ 41.35

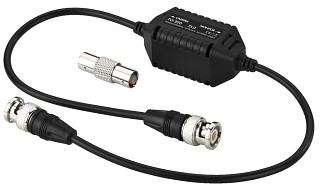

Video isolation transformer, 75 Ω, high-quality TVI-200

Video isolation transformer, 75 Ω, high-quality, for galvanic isolation of unbalanced video signals.

  • Prevents video-signal distortion caused by ground loops
  • Passive, no power supply required
  • Wide bandwidth: 20 Hz to 11 MHz
  • High linearity
  • 15 cm connection cable with 2 x BNC jack
  • Dimensions: 73x26x28 mm (w/o cable)
  • Weight: 160 g



Price per unit   (Order No. mo-181490) EUR 43,65 excl. VAT: € 36.68 / $ 43.65
