Plugs and inline jacks: Other plugs and inline jacks

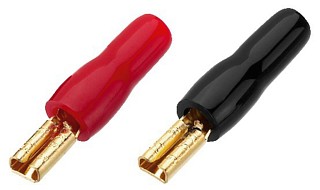

Push-on Terminals MFC-2028
Enlarge Push-on Terminals
  • Gold-plated
  • In packs of 20

Specifications:

  • For pin: 2.8 mm
  • For cables up to: 2.5 mm2
  • Cable inlet: Ø 2.0 mm

Price for 20 pcs   (Order No mo-344910) EUR 8,85 excl. VAT: € 7.44 / $ 8.33

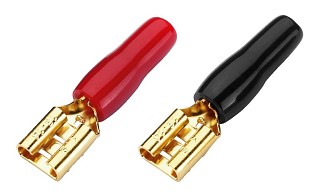

Push-on Terminals MFC-2063
Enlarge Push-on Terminals
  • Gold-plated
  • In packs of 20

Specifications:

  • For pin: 6.3 mm
  • For cables up to: 2.5 mm2
  • Cable inlet: Ø 2.0 mm

Price for 20 pcs   (Order No mo-344930) EUR 9,95 excl. VAT: € 8.36 / $ 9.36

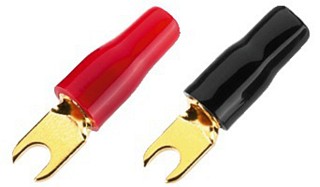

Forked Terminals MFC-410S
Enlarge Forked Terminals
  • Gold-plated
  • In packs of 4

Specifications:

  • For cables up to: 10.0 mm2
  • Cable inlet: Ø 4.0 mm
  • Fork width: 4.2 mm

Price for 4 pcs   (Order No mo-344960) EUR 5,47 excl. VAT: € 4.60 / $ 5.15

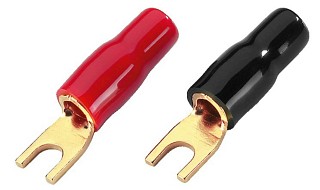

Forked Terminals MFC-416S
Enlarge Forked Terminals
  • Gold-plated
  • In packs of 4

Specifications:

  • For cables up to: 16 mm2
  • Cable inlet: Ø 5.5 mm
  • Fork width: 6.3 mm

Price for 4 pcs   (Order No mo-346900) EUR 9,16 excl. VAT: € 7.70 / $ 8.62


Ring Terminals MFC-42R
Enlarge Ring Terminals
  • Gold-plated
  • In packs of 4

Specifications:

  • For cables up to: 2.5 mm2
  • Cable inlet: Ø 2.0 mm
  • Ring diameter: 4.5 mm

Price for 4 pcs   (Order No mo-346910) - not available

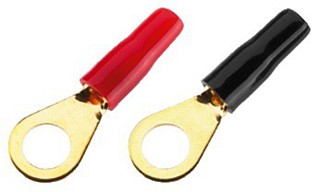

Ring Terminals MFC-46R
Enlarge Ring Terminals
  • Gold-plated
  • In packs of 4

Specifications:

  • For cables up to: 6 mm2
  • Cable inlet: Ø 3.0 mm
  • Ring diameter: 8.4 mm

Price for 4 pcs   (Order No mo-345010) EUR 5,16 excl. VAT: € 4.34 / $ 4.86


Converter USB/RS-485 DA-70157
Enlarge Converter USB/RS-485, for connecting a PC or notebook with USB interface to units with a serial RS-485 interface.

It is possible to address and configure several units connected to each other via the serial RS-485 interface, e.g. L-RAY/1000, L-RAY/1000WS or DSM-480LAN, DSM-240, DRM-880LAN, DEQ-230.

Corresponding to the device connection RS-485, only a 3-pole XLR plug or RJ45 plug (available at option) has to be connected to the screw terminals of the supplied adapter PCB.

  • Compatible with USB 2.0
  • Data transfer rates up to 3 Mbps
  • Supplied with USB/RS-485 adapter, adapter PCB with screw terminals and 80 cm USB extension cable
  • Supplied with product support CD
  • Supports Windows*7, Vista, Mac OS X and Linux




Price per unit   (Order No mo-068200) EUR 24,90 excl. VAT: € 20.92 / $ 23.44

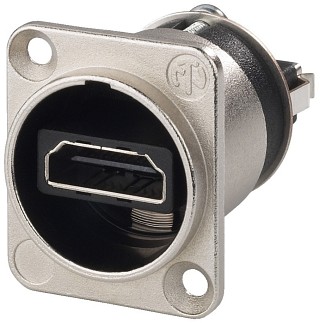

HDMI™ feed-through panel jacks NAHDMIW
Enlarge HDMI™ feed-through panel jacks, for the high-resolution transmission of digital video and audio data.

  • Compatible with HDMI™ 1.3
  • 19-pole HDMI™ type A jack on both ends
  • Ground connection between HDMI™ jack and body
  • D series standard

NAHDMIW = nickel-plated

NAHDMIWB = black




Price per unit   (Order No mo-348630) EUR 15,82 excl. VAT: € 13.29 / $ 14.89

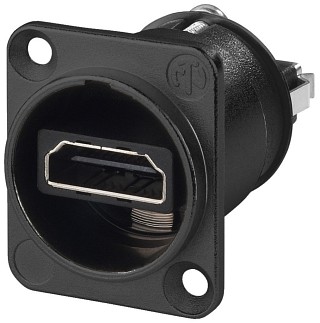

HDMI™ feed-through panel jacks NAHDMIWB
Enlarge HDMI™ feed-through panel jacks, for the high-resolution transmission of digital video and audio data.

  • Compatible with HDMI™ 1.3
  • 19-pole HDMI™ type A jack on both ends
  • Ground connection between HDMI™ jack and body
  • D series standard

NAHDMIW = nickel-plated

NAHDMIWB = black




Price per unit   (Order No mo-348640) EUR 16,10 excl. VAT: € 13.53 / $ 15.15

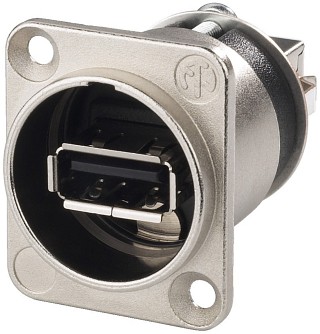

USB feed-through panel jacks NAUSBW
Enlarge USB feed-through panel jacks, for integrating computer-based devices into audio systems and video systems as well as for audio networks like M-LAN, Cobra Net, etc.

  • Reversible adapter for feed-through direction: type A/B or B/A
  • Ground connection between USB jack and body
  • D series standard

NAUSBW = nickel-plated

NAUSBB = black




Price per unit   (Order No mo-348650) EUR 6,90 excl. VAT: € 5.80 / $ 6.49

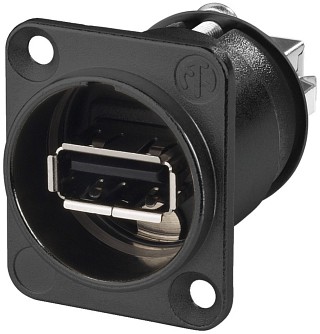

USB feed-through panel jacks NAUSBWB
Enlarge USB feed-through panel jacks, for integrating computer-based devices into audio systems and video systems as well as for audio networks like M-LAN, Cobra Net, etc.

  • Reversible adapter for feed-through direction: type A/B or B/A
  • Ground connection between USB jack and body
  • D series standard

NAUSBW = nickel-plated

NAUSBB = black




Price per unit   (Order No mo-348660) EUR 7,67 excl. VAT: € 6.45 / $ 7.22


EtherCon feed-through panel jacks NE-8FDP
Enlarge Enlarge EtherCon feed-through panel jacks, for industrial use and Ethernet cabling on stage.

  • RJ45 jack with strain relief
  • RJ45 jack in patch version
  • D series standard
  • Corresponds to the requirements of Cat. 5 according to TIA/EIA and ISO/IEC

NE-8FDP = nickel-plated

NE-8FDPB = black




Price per unit   (Order No mo-346890) EUR 13,49 excl. VAT: € 11.34 / $ 12.70


EtherCon feed-through panel jacks NE-8FDPB
Enlarge Enlarge EtherCon feed-through panel jacks, for industrial use and Ethernet cabling on stage.

  • RJ45 jack with strain relief
  • RJ45 jack in patch version
  • D series standard
  • Corresponds to the requirements of Cat. 5 according to TIA/EIA and ISO/IEC

NE-8FDP = nickel-plated

NE-8FDPB = black




Price per unit   (Order No mo-348750) EUR 13,53 excl. VAT: € 11.37 / $ 12.73


EtherCon panel jack NE-8FDVYK
Enlarge EtherCon panel jack, for industrial use and Ethernet cabling on stage.
  • RJ45 jack with insulation displacement contacts (IDC)
  • Strain relief
  • D series standard
  • Corresponds to the requirements of Cat. 5 according to TIA/EIA and ISO/IEC



Price per unit   (Order No mo-346690) EUR 12,19 excl. VAT: € 10.24 / $ 11.47


EtherCon panel jacks NE-8FDYC6
Enlarge EtherCon panel jacks, for industrial applications and Ethernet cabling on stage.

  • Corresponds to the requirements of Cat. 6 according to TIA/EIA and ISO/IEC, data rate up to 10 Gbps
  • Weatherproof
  • RJ45 jack with tool-free and gas-tight insulation displacement contacts (IDC)
  • Shielded system
  • Earthing jumper with selectable grounding option
  • D series standard

NE-8FDYC6 = nickel-plated

NE-8FDYC6B = black




Price per unit   (Order No mo-344070) EUR 28,94 excl. VAT: € 24.32 / $ 27.24


EtherCon panel jacks NE-8FDYC6B
Enlarge EtherCon panel jacks, for industrial applications and Ethernet cabling on stage.

  • Corresponds to the requirements of Cat. 6 according to TIA/EIA and ISO/IEC, data rate up to 10 Gbps
  • Weatherproof
  • RJ45 jack with tool-free and gas-tight insulation displacement contacts (IDC)
  • Shielded system
  • Earthing jumper with selectable grounding option
  • D series standard

NE-8FDYC6 = nickel-plated

NE-8FDYC6B = black




Price per unit   (Order No mo-344080) EUR 30,46 excl. VAT: € 25.60 / $ 28.67


EtherCon connector shell NE-8MC
Enlarge EtherCon connector shell
  • For twisted pair cables with an outside diameter of up to 8 mm
  • Diecast shell with cable bending protection
  • Corresponds to the requirements of Cat. 5 according to TIA/EIA and ISO/IEC
Note: The EtherCon connector shell must be connected to a Cat. cable fitted with an RJ45 plug!


Price per unit   (Order No mo-346700) EUR 4,81 excl. VAT: € 4.04 / $ 4.53

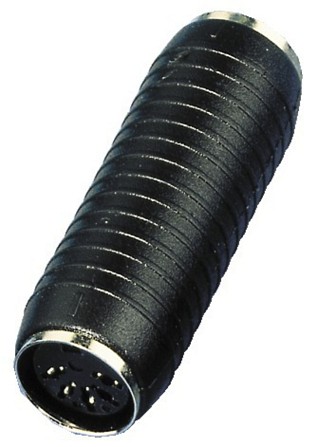

DIN inline jack NTA-55
Enlarge DIN inline jack, with 2 x 5-pole DIN jack.


Price per unit   (Order No mo-061170) EUR 7,99 excl. VAT: € 6.71 / $ 7.52


Crocodile clip T-101B/RT
Enlarge Enlarge Crocodile clip With soft plastic insulating cap, available in different sizes and colours.

Specifications:

  • Size: small, length: approx. 39.5 mm
  • Colour: red

Price per unit   (Order No mo-031120) - not available


Crocodile clip T-102A/RT
Enlarge Enlarge Crocodile clip With soft plastic insulating cap, available in different sizes and colours.

Specifications:

  • Size: medium, length: approx. 44 mm
  • Colour: red

Price per unit   (Order No mo-031140) - not available


Crocodile clip T-102B/RT
Enlarge Enlarge Crocodile clip With soft plastic insulating cap, available in different sizes and colours.

Specifications:

  • Size: large, length: approx. 56 mm
  • Colour: red

Price per unit   (Order No mo-031160) - not available

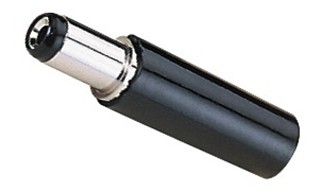

Plug for power supply T-252
Enlarge Plug for power supply, 2 poles, coaxial. T-252 = 5.5/2.1 mm

T-253 = 5.5/2.5 mm


Price per unit   (Order No mo-341290) EUR 0,87 excl. VAT: € 0.73 / $ 0.82

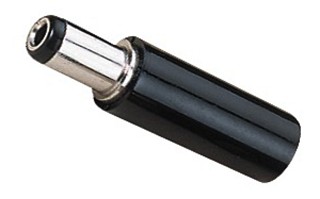

Plug for power supply T-253
Enlarge Plug for power supply, 2 poles, coaxial. T-252 = 5.5/2.1 mm

T-253 = 5.5/2.5 mm


Price per unit   (Order No mo-341310) EUR 0,87 excl. VAT: € 0.73 / $ 0.82

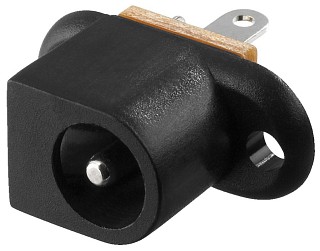

Low-voltage panel jack T-321
Enlarge Low-voltage panel jack, switching contact, NC, with mounting flange, 5.5/2.1 mm.


Price per unit   (Order No mo-341330) EUR 1,04 excl. VAT: € 0.87 / $ 0.98


Low-voltage panel jack T-425
Enlarge Low-voltage panel jack, with central fixing for 8 mm drill hole. With switching contact, length: 21 mm. T-421 = 5.5/2.1 mm

T-425 = 5.5/2.5 mm


Price per unit   (Order No mo-344470) EUR 2,67 excl. VAT: € 2.24 / $ 2.51

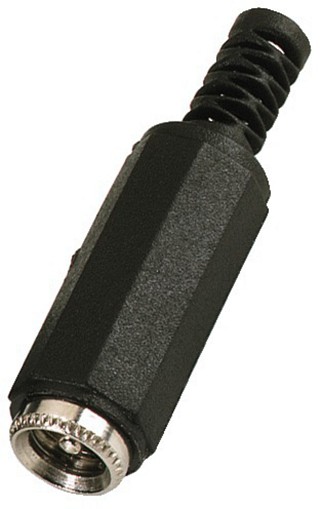

Inline jack for power supply T-521J
Enlarge Inline jack for power supply, 2 poles, coaxial, with cable bending protection. T-521J = 5.5/2.1 mm

T-525J = 5.5/2.5 mm


Price per unit   (Order No mo-346120) EUR 2,06 excl. VAT: € 1.73 / $ 1.94


Inline jack for power supply T-525J
Enlarge Inline jack for power supply, 2 poles, coaxial, with cable bending protection. T-521J = 5.5/2.1 mm

T-525J = 5.5/2.5 mm


Price per unit   (Order No mo-346930) EUR 2,24 excl. VAT: € 1.88 / $ 2.11


Pair of banana plugs SPC-425/B
Enlarge Pair of banana plugs. High-quality, gold-plated version of the 4 mm standard type, solderless fitting up to 4 mm2.


Price per pair   (Order No mo-121330) EUR 6,90 excl. VAT: € 5.80 / $ 6.49


Set of cable lugs (4 pcs.) SPC-60/L
Enlarge Set of cable lugs (4 pcs.). Gold-plated, for different pin diameters, to be soldered and crimped up to 4 mm2.


Price for 4 pcs   (Order No mo-123120) EUR 7,80 excl. VAT: € 6.55 / $ 7.34

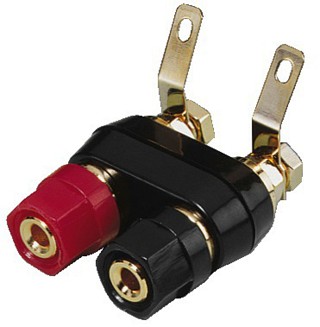

Speaker terminal ST-922G
Enlarge Speaker terminal, for units. With gold-plated contacts and plastic covers, for screwing as well as for 4 mm banana plugs.


Price per unit   (Order No mo-122400) EUR 6,52 excl. VAT: € 5.48 / $ 6.14


High-end speaker terminal ST-926GM
Enlarge High-end speaker terminal. To be screwed on, with gold-plated all-metal connectors, for screwing as well as for 4 mm banana plugs. Insulated installation.


Price per unit   (Order No mo-122330) EUR 20,84 excl. VAT: € 17.51 / $ 19.61
