Volume controls and accessories

Passive stereo level control (RCA version) ILA-100RCA

Passive stereo level control (RCA version), for a precise volume control of line signals, for inserting between analogue signal sources and amplifiers or active speakers, e.g. between a PC sound card and active speaker systems.

  • 1 x stereo RCA input, 1 x 3.5 mm stereo input
  • 1 x stereo RCA output, 1 x 3.5 mm stereo output
  • Large, easy-turning level control
  • Mute button
  • Frequency range: 20-20,000 Hz
  • Passive, no power supply required
  • High-quality metal console housing with brushed aluminium front panel
  • Dimensions: 142x60x86 mm
  • Weight: 300 g



Price per unit   (Order No. mo-212900) EUR 73,95 excl. VAT: € 62.14 / $ 72.09


Passive level attenuators ILA-1020

Passive level attenuators

  • Attenuation to be adjusted in 3 steps: 10 dB/15 dB/20 dB
  • RCA plug to RCA inline jack
  • Gold-plated contacts
  • No power supply required


Beat 10/2011

"The passive level attenuators appear to be solid and heavy ... provide an absolutely neutral sound in practical applications which will be highly appreciated by every musician and DJ, especially for on-the-road applications and on stage."



Price per pair   (Order No. mo-212840) EUR 36,49 excl. VAT: € 30.66 / $ 35.57

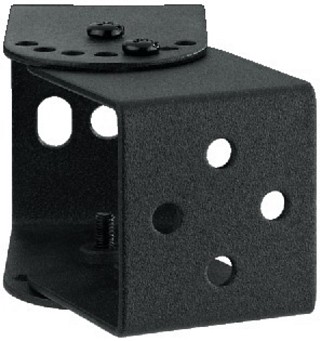

Universal support LST-10

Universal support, black lacquered, for wall mounting or ceiling suspension of speaker systems, cameras, lights, etc., adjustable angle ±60° in 7 steps, to be secured with supplied screws. Supplied with 4 fixing screws. Maximum load: 10 kg.



Price per unit   (Order No. mo-129830) EUR 9,56 excl. VAT: € 8.03 / $ 9.32


Pair of universal supports LST-40

Pair of universal supports, robust plastic version, for wall mounting or ceiling suspension of speaker systems, movable and tiltable, tooth locking mechanism, to be secured with hexagon socket screws.

  • Max. load capacity at central weight concentration: 8 kg
  • Dimensions mounting flange: 82x58 mm, mounting plate: 82x58 mm
  • Weight: 280 g (pair)
Specifications:
  • Max. load capacity at centr. weight concentration: 8 kg
  • Dimensions: -
  • Mounting flange: 82x58 mm
  • Mounting plate: 82x58 mm
  • Tube length: -
  • Weight: 280 g (pair)

Price per pair   (Order No. mo-110860) EUR 42,93 excl. VAT: € 36.08 / $ 41.85


6-way PA volume control for 482 mm (19") rack installation ATT-19100

6-way PA volume control for 482 mm (19") rack installation

  • 6 audio transformers for 100 V line technique
  • Connection for priority circuit, 6 priority relays (24 V DC current /20 mA)
  • Attenuation in 10 steps, position 0 is OFF
  • Aluminium front panel
  • Available in 3 power classes
  • Plug-in screw terminal


100 V
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 6 x 100 WRMS
  • Priority facility: yes
  • Dimensions: 484x88x77 mm, 2 RS
  • Weight: 1.8 kg
  • Surface-mounted housing: -

Price per unit   (Order No. mo-172640) EUR 407,00 excl. VAT: € 342.02 / $ 396.74


6-way PA volume control for 482 mm (19") rack installation ATT-1950

6-way PA volume control for 482 mm (19") rack installation

  • 6 audio transformers for 100 V line technique
  • Connection for priority circuit, 6 priority relays (24 V DC current /20 mA)
  • Attenuation in 10 steps, position 0 is OFF
  • Aluminium front panel
  • Available in 3 power classes
  • Plug-in screw terminal


100 V
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 6 x 50 WRMS
  • Priority facility: yes
  • Dimensions: 484x88x77 mm, 2 RS
  • Weight: 1.6 kg
  • Surface-mounted housing: -

Price per unit   (Order No. mo-171370) EUR 389,10 excl. VAT: € 326.97 / $ 379.29

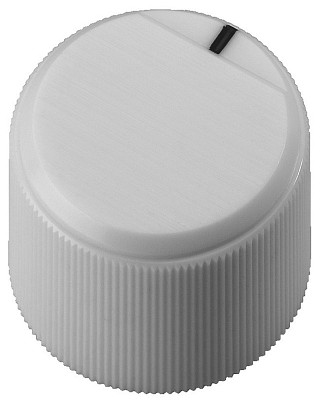

Rotary knob, white ATT-20

Rotary knob, white

  • For shafts Ø 6 mm, 18 teeth
  • Suitable for PA volume controls ATT-.../WS
  • Diameter: approx. 20 mm
  • Height: approx. 17 mm



Price per unit   (Order No. mo-034500) EUR 3,36 excl. VAT: € 2.82 / $ 3.28


Surface-mounted housing ATT-200

Surface-mounted housing, for wall-mounted PA volume controls but also as protective housing for flush mounting. White plastic, suitable for the 200 series with 2-hole fixing.



Price per unit   (Order No. mo-170550) EUR 14,64 excl. VAT: € 12.30 / $ 14.27

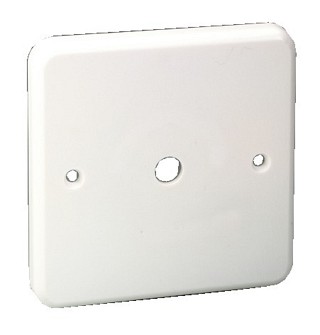

Front panel, white, plastic ATT-200P

Front panel, white, plastic

  • For universal mounting in combination with surface-mounted housing ATT-200
  • Without imprint
  • With drill hole Ø 9.0 mm



Price per unit   (Order No. mo-170870) EUR 5,84 excl. VAT: € 4.91 / $ 5.69

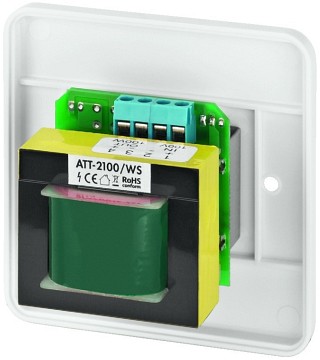

Wall-Mounted PA Volume Controls ATT-2100/WS

Wall-Mounted PA Volume Controls

  • Attenuation in 10 steps, position 0 is OFF
  • Audio transformer for 100 V line technique
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option


PA volume control, to be integrated,
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 100 WRMS
  • Priority facility: no
  • Dimensions: 85x85x71 mm
  • Mounting depth: 42 mm
  • Weight: 210 g
  • Surface-mounted housing: ATT-200

Price per unit   (Order No. mo-172610) EUR 66,51 excl. VAT: € 55.89 / $ 64.83

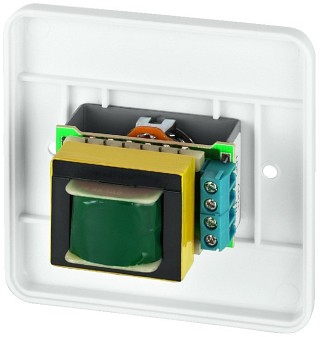

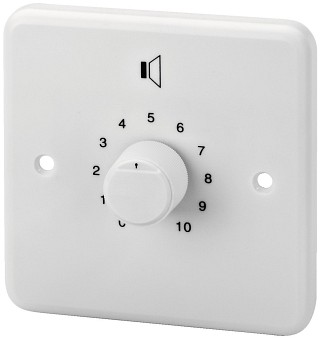

Wall-Mounted PA Volume Controls ATT-212/WS

Wall-Mounted PA Volume Controls

  • Attenuation in 10 steps, position 0 is OFF
  • Audio transformer for 100 V line technique
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option


Wall-Mounted PA Volume Controls
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 12 WRMS
  • Priority facility: no
  • Dimensions: 85x85x66 mm
  • Mounting depth: 42 mm
  • Weight: 160 g
  • Surface-mounted housing: ATT-200

Price per unit   (Order No. mo-173670) EUR 47,14 excl. VAT: € 39.61 / $ 45.95


Wall-Mounted PA Volume Controls ATT-224/WS

Wall-Mounted PA Volume Controls

  • Attenuation in 10 steps, position 0 is OFF
  • Audio transformer for 100 V line technique
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option


Wall-Mount PA Volume Controls
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 24 WRMS
  • Priority facility: no
  • Dimensions: 85x85x66 mm
  • Mounting depth: 38 mm
  • Weight: 160 g
  • Surface-mounted housing: ATT-200

Price per unit   (Order No. mo-173680) EUR 51,21 excl. VAT: € 43.03 / $ 49.92

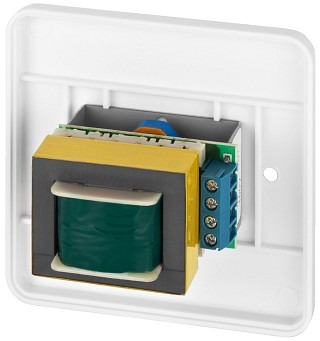

Wall-Mounted PA Volume Controls ATT-235/WS

Wall-Mounted PA Volume Controls

  • Attenuation in 10 steps, position 0 is OFF
  • Audio transformer for 100 V line technique
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option


PA volume control, to be integrated,
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 35 WRMS
  • Priority facility: no
  • Dimensions: 85x85x71 mm
  • Mounting depth: 42 mm
  • Weight: 210 g
  • Surface-mounted housing: ATT-200

Price per unit   (Order No. mo-170580) EUR 54,29 excl. VAT: € 45.62 / $ 52.92

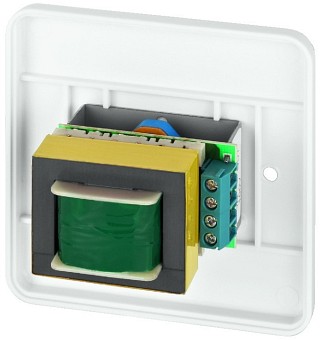

Wall-Mounted PA Volume Controls ATT-250/WS

Wall-Mounted PA Volume Controls

  • Attenuation in 10 steps, position 0 is OFF
  • Audio transformer for 100 V line technique
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option


PA volume control, to be integrated,
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 50 WRMS
  • Priority facility: no
  • Dimensions: 85x85x71 mm
  • Mounting depth: 42 mm
  • Weight: 210 g
  • Surface-mounted housing: ATT-200

Price per unit   (Order No. mo-170590) EUR 58,36 excl. VAT: € 49.04 / $ 56.89

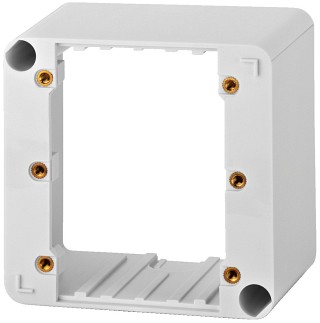

Surface-mounted housing ATT-300

Surface-mounted housing, for wall-mounted PA volume controls of the series ATT-3...PEU. Snow-white plastic.



Price per unit   (Order No. mo-171440) EUR 13,42 excl. VAT: € 11.28 / $ 13.08


PA programme selector ATT-306

PA programme selector

  • Switches one of 6 signal sources to one speaker output
  • For 100 V audio technique or other signals
  • Built-in relay (24 V) for priority circuit
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65 mm wall sockets
  • Surface mounting with matching housing ATT-300, available at option
  • Mounting depth: 35 mm
  • Plug-in screw terminal



Price per unit   (Order No. mo-171420) EUR 36,81 excl. VAT: € 30.93 / $ 35.88

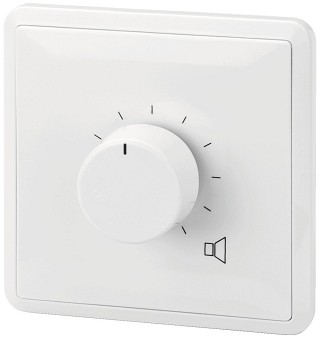

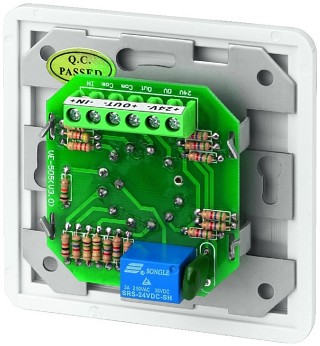

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-306PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 6 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 190 g
  • Surface-mounted housing: ATT-300

Price per unit   (Order No. mo-173690) EUR 27,76 excl. VAT: € 23.33 / $ 27.06


Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-3100PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 100 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 295 g
  • Surface-mounted housing: ATT-300

Price per unit   (Order No. mo-172630) EUR 91,04 excl. VAT: € 76.50 / $ 88.74

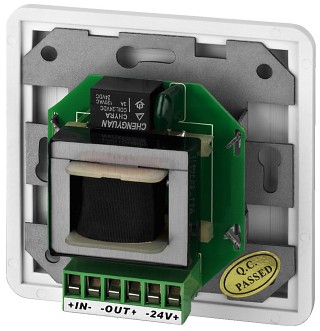

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-312PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 12 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 190 g
  • Surface-mounted housing: ATT-300

Price per unit   (Order No. mo-171380) EUR 54,29 excl. VAT: € 45.62 / $ 52.92

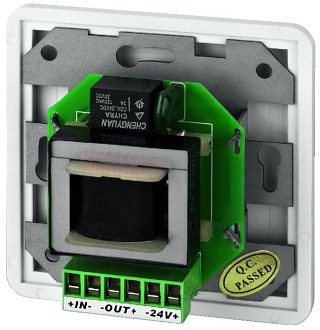

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-324PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal


PA volume control, to be integrated, with 24V emergency priority relay,
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 24 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 190 g
  • Surface-mounted housing: ATT-300

Price per unit   (Order No. mo-171390) EUR 66,51 excl. VAT: € 55.89 / $ 64.83

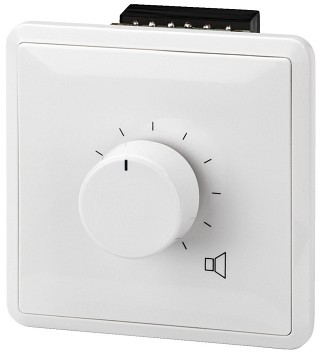

Stereo volume control ATT-325ST

Stereo volume control, of high-quality transmitting technology.4 Ω amplifier input and 4 Ω speaker output Power rating: 25 WRMS per channel Attenuation in 10 steps, position 0 is OFF Snow-white plastic front panel and knob Surface mounting with matching housing ATT-300, available at option Mounting depth: 50 mm Plug-in screw terminal



Price per unit   (Order No. mo-171430) EUR 138,20 excl. VAT: € 116.13 / $ 134.72

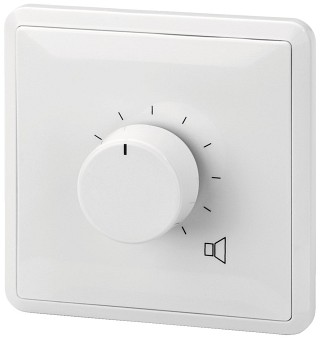

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-336PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 36 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 240 g
  • Surface-mounted housing: ATT-300

Price per unit   (Order No. mo-171400) EUR 78,03 excl. VAT: € 65.57 / $ 76.06


Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-350PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • Snow-white plastic front panel and knob
  • Flush mounting into standard 65mm wall sockets (except ATT-3100PEU)
  • Surface mounting with matching housing ATT-300, available at option
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 50 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 240 g
  • Surface-mounted housing: ATT-300

Price per unit   (Order No. mo-171410) EUR 86,18 excl. VAT: € 72.42 / $ 84.01


4-channel speaker volume control, stereo ATT-442ST

4-channel speaker volume control, stereo
  • Particularly high quality due to transformer technique with universal output assignment (4-16 Ω for each speaker), 20-20,000 Hz, attenuation in 10 steps for each pair, position 0 is OFF.2 stereo inputs (100 WRMS max. for each channel) and 4 stereo speaker outputs (18 WRMS/4-16 Ω each)
  • Source selector switch for each speaker output
  • Screw terminals
  • Black metal housing
  • Dimensions: 432x78x190 mm
  • Weight: 3.4 kg


With this unit, it is finally possible to adjust the level of several pairs of speakers (up to 4) independently, even without 100 V line technique and connect them together to basic amplifiers without any problems. Even speaker systems with different impedances between 4 and 16 Ω can be mixed as desired. Ideally suited for restaurants and bars.




Price per unit   (Order No. mo-171860) EUR 371,20 excl. VAT: € 311.93 / $ 361.84

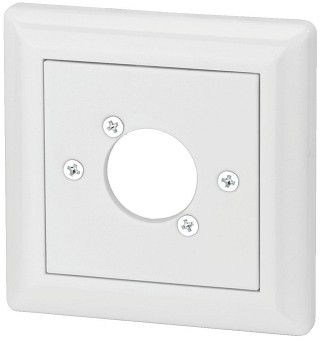

Mounting frame ATT-500PD

Mounting frame

  • For all panel jacks of the D series from NEUTRIK
  • Flush mounting in standard 60 mm wall sockets
  • Also suitable for already existing series of switches with standard cover frame (50 mm or 55 mm cutout)
  • Dimensions: 80x80x10 mm
  • Supplied with mounting screws



Price per unit   (Order No. mo-173880) EUR 33,05 excl. VAT: € 27.77 / $ 32.22

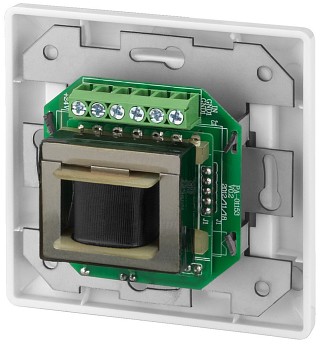

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-506PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • White plastic front panel and knob
  • Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
  • Flush mounting into standard 60 mm wall sockets (ATT-5100PEU into 65 mm wall socket)
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 6 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 165 g
  • Surface-mounted housing: -

Price per unit   (Order No. mo-173890) EUR 54,29 excl. VAT: € 45.62 / $ 52.92


Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-5100PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • White plastic front panel and knob
  • Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
  • Flush mounting into standard 60 mm wall sockets (ATT-5100PEU into 65 mm wall socket)
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 100 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x70 mm
  • Mounting depth: 50 mm
  • Weight: 350 g
  • Surface-mounted housing: -

Price per unit   (Order No. mo-173940) EUR 78,81 excl. VAT: € 66.23 / $ 76.82

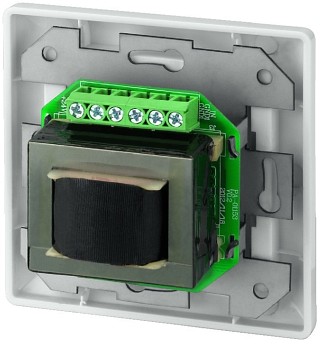

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-512PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • White plastic front panel and knob
  • Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
  • Flush mounting into standard 60 mm wall sockets (ATT-5100PEU into 65 mm wall socket)
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 12 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x67 mm
  • Mounting depth: 45 mm
  • Weight: 230 g
  • Surface-mounted housing: -

Price per unit   (Order No. mo-173900) EUR 58,36 excl. VAT: € 49.04 / $ 56.89

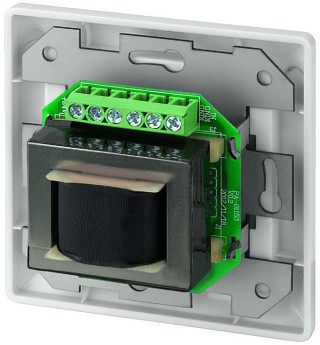

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-524PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • White plastic front panel and knob
  • Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
  • Flush mounting into standard 60 mm wall sockets (ATT-5100PEU into 65 mm wall socket)
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 24 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x66 mm
  • Mounting depth: 45 mm
  • Weight: 230 g
  • Surface-mounted housing: -

Price per unit   (Order No. mo-173910) EUR 62,44 excl. VAT: € 52.47 / $ 60.87

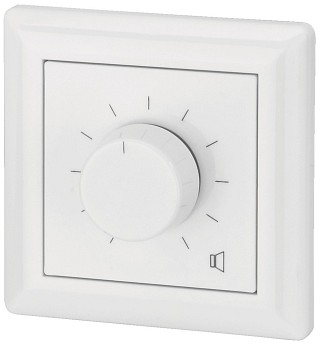

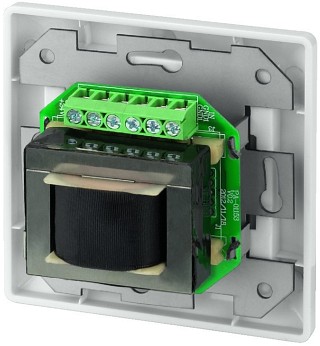

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay ATT-536PEU

Wall-Mounted PA Volume Controls with 24 V Emergency Priority Relay

  • Attenuation in 10 steps, position 0 is OFF
  • For 100 V line technique
  • White plastic front panel and knob
  • Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
  • Flush mounting into standard 60 mm wall sockets (ATT-5100PEU into 65 mm wall socket)
  • Plug-in screw terminal
Specifications:
  • Frequency range: 50-18,000 Hz
  • Power rating: 36 WRMS
  • Priority facility: yes
  • Dimensions: 80x80x66 mm
  • Mounting depth: 45 mm
  • Weight: 235 g
  • Surface-mounted housing: -

Price per unit   (Order No. mo-173920) - not available

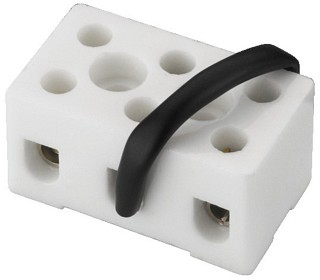

Connection terminal LKB-1

Connection terminal, for 100 V PA speakers.

  • 3-pole ceramic screw terminal
  • Thermal fuse 1 A/150 °C for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker line is maintained
  • Dimensions: 35x20x20 mm



Price per unit   (Order No. mo-161830) EUR 5,13 excl. VAT: € 4.31 / $ 5.00


Push-to-talk microphone holder MH-95

Push-to-talk microphone holder, screw-mounted.



Price per unit   (Order No. mo-230920) EUR 1,80 excl. VAT: € 1.51 / $ 1.75


Mounting frame PA-1200RM

Mounting frame, for the installation of PA mixing amplifier PA-1200 into a 482 mm (19") rack, black lacquered. Inside dimensions: 420x290 mm, 3 RS



Price per unit   (Order No. mo-126740) EUR 78,68 excl. VAT: € 66.12 / $ 76.70

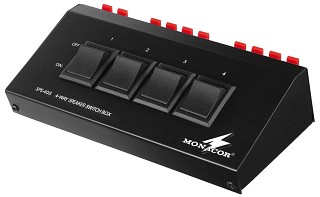

Speaker switch box SPS-40S

Speaker switch box
  • For connecting up to 4 pairs of speakers (4-8 Ω) in any combination to 1 stereo amplifier output
  • With built-in power protective resistors
  • Music power: 200 WMAX
  • Dimensions: 176x50x100 mm
  • Weight: 615 g



Price per unit   (Order No. mo-210390) EUR 66,38 excl. VAT: € 55.78 / $ 64.71

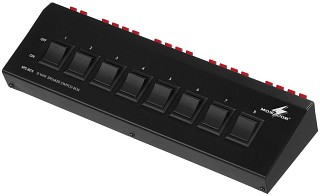

Speaker switch box SPS-80S

Speaker switch box
  • For connecting up to 8 pairs of speakers (4-8 Ω) in any combination to 1 stereo amplifier output
  • With built-in power protective resistors
  • Music power: 300 WMAX
  • Dimensions: 310x60x115 mm
  • Weight: 1.1 kg



Price per unit   (Order No. mo-211750) EUR 126,70 excl. VAT: € 106.47 / $ 123.51

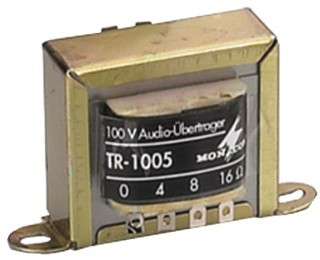

100 V high-performance audio transformer TR-1005

100 V high-performance audio transformer , An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 10 WRMS
  • Primary: 10/5/2.5/1.25/0.625 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 40-30,000 Hz, -3 dB
  • Dimensions: 71x43x41 mm

Price per unit   (Order No. mo-170230) EUR 20,04 excl. VAT: € 16.84 / $ 19.53

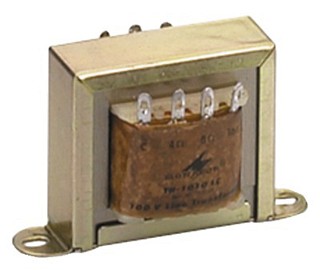

100 V high-performance audio transformer TR-1010LC

100 V high-performance audio transformer . An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 10 WRMS
  • Primary: 10/7.5/5/2.5 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 35-20,000 Hz, -3 dB
  • Dimensions: 71x43x38 mm

Price per unit   (Order No. mo-170250) EUR 20,04 excl. VAT: € 16.84 / $ 19.53


100 V high-performance audio transformer TR-1025LC

100 V high-performance audio transformer . An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 25 WRMS
  • Primary: 25/20/12/6 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 25-20,000 Hz, -3 dB
  • Dimensions: 92x60x52 mm

Price per unit   (Order No. mo-170270) EUR 36,81 excl. VAT: € 30.93 / $ 35.88

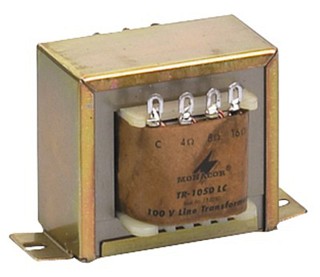

100 V high-performance audio transformer TR-1050LC

100 V high-performance audio transformer . An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 50 WRMS
  • Primary: 50/37.5/25/12.5 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 30-15,000 Hz, -3 dB
  • Dimensions: 92x60x58 mm

Price per unit   (Order No. mo-170290) EUR 42,67 excl. VAT: € 35.86 / $ 41.59

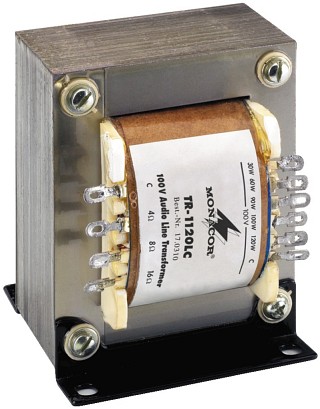

100 V high-performance audio transformer TR-1120LC

100 V high-performance audio transformer . An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 120 WRMS
  • Primary: 120/100/90/60/30 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 20-20,000 Hz, -3 dB
  • Dimensions: 72x99x78 mm

Price per unit   (Order No. mo-170310) EUR 152,00 excl. VAT: € 127.73 / $ 148.17

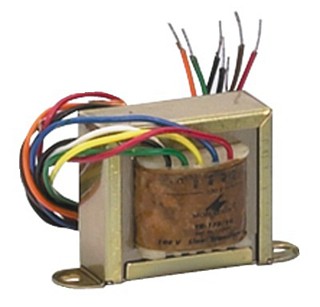

100 V high-performance audio transformer TR-175/10

100 V high-performance audio transformer . An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 10 WRMS
  • Primary: 10/6/4/2/1 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 35-25,000 Hz, -3 dB
  • Dimensions: 71x42x40 mm

Price per unit   (Order No. mo-170450) EUR 22,40 excl. VAT: € 18.82 / $ 21.84

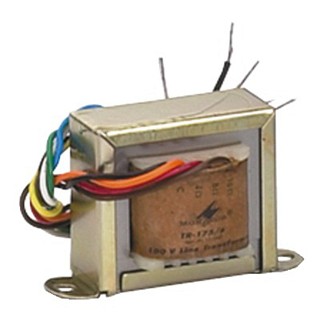

100 V high-performance audio transformer TR-175/6

100 V high-performance audio transformer . An external 100 V transformer is necessary for an amplifier or speaker without installed 100 V audio transformer. Each of the offered 100 V audio transformers can be used.
Specifications:
  • Power: 6 WRMS
  • Primary: 6/4/2/1 W
  • Secondary: 4/8/16 Ω
  • Frequency range: 28-25,000 Hz, -3 dB
  • Dimensions: 71x42x40 mm

Price per unit   (Order No. mo-170440) EUR 21,51 excl. VAT: € 18.08 / $ 20.97

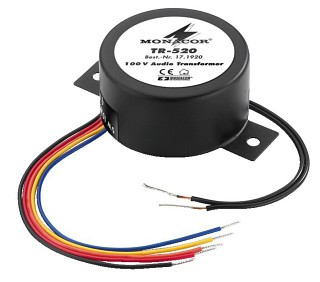

100 V Toroidal Audio Transformers TR-520

100 V Toroidal Audio Transformers

  • Very high-quality version with a perfect frequency response and extra low THD
  • Flat version
  • Sealed
Specifications:
  • Primary: 5/10/15/20 W
  • Secondary: 4 Ω
  • Frequency range: 80-18,000 Hz
  • Dimensions: Ø 60 mm x 30 mm
  • Weight: 400 g

Price per unit   (Order No. mo-171920) EUR 44,96 excl. VAT: € 37.78 / $ 43.83


100 V Toroidal Audio Transformers TR-525

100 V Toroidal Audio Transformers

  • Very high-quality version with a perfect frequency response and extra low THD
  • Flat version
  • Sealed
Specifications:
  • Primary: 2.5/5 W
  • Secondary: 4 Ω
  • Frequency range: 80-18,000 Hz
  • Dimensions: Ø 50 mm x 20 mm
  • Weight: 160 g

Price per unit   (Order No. mo-171210) EUR 32,74 excl. VAT: € 27.51 / $ 31.91


Voltage-controlled 2-channel VCA volume control VCA-202

Voltage-controlled 2-channel VCA volume control

  • 2-channel mono operation or stereo operation
  • Remote control for each channel via optional wall-mounted volume control VCA-202RN or via lin. 10 kΩ potentiometer (not supplied), control voltage: 0-10 V DC current
  • 10 V voltage output for potentiometer
  • Servo-balanced inputs and outputs
  • 482 mm (19") rack installation, 1 RS


For the remote volume control of PA systems in large areas (e.g. churches, workshops). The volume control VCA-202 is inserted between preamplifier and power amplifier. The surface-mounted housing ATT-300 can be used for universal mounting of the potentiometers.
Specifications:
  • Line input, mono: 1 V/30 kΩ
  • Input control voltage: 0-10 V DC current /100 kΩ
  • Line output, mono: 1 V/600 Ω
  • Output control voltage: 10 V DC current /5 mA
  • Frequency range: 20-20,000 Hz
  • THD: 0.1 %
  • S/N ratio: 70 dB
  • Power supply: 230 V /50 Hz/10 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 482x48x105 mm, 1 RS
  • Weight: 1.5 kg
  • Line input, mono: 2 x XLR, bal.
  • Input control voltage: plug-in screw connection
  • Line output, mono: 2 x XLR, bal.
  • Output control voltage: plug-in screw connection

Price per unit   (Order No. mo-171880) EUR 195,20 excl. VAT: € 164.03 / $ 190.28


Shock-mount base with XLR socket XLR-703JSM

Shock-mount base with XLR socket, for the installation into lecterns, for gooseneck microphones.

  • Attenuation of impact noise and structure-borne noise due to rubber-cushioned 3-pole XLR socket
  • 1.2 m connection cable with 3-pole XLR plug



Price per unit   (Order No. mo-348810) EUR 43,06 excl. VAT: € 36.18 / $ 41.97


Signal cable JYSTY-2206

Signal cable, for alarm, PA and communication technology.100 m coil

  • Type J-Y(St)Y acc. to VDE 0815
  • Common foil shield
  • Copper wires with coloured insulation, Ø 0.6 mm
Specifications:
  • Cores: 4 x Ø 0.6 mm
  • Length: 100 m coil
  • Outside diameter: Ø 5.5 mm
  • Colour: grey
  • Other features:

Price per unit   (Order No. mo-192310) EUR 48,19 excl. VAT: € 40.50 / $ 46.98
