Megaphones

With the megaphone series TM-1..., MONACOR offers new entry-level products for price-conscious customers. Even the lightweight units of compact size provide every important feature for most varying applications.

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone


• Built-in microphone
• Siren, switchable
• Volume control



Specifications:

• Built-in microphone: X
• Hand-held microphone: -
• Wireless microphone: -
• Lockable button microphone: -
• Pistol grip: X
• Carrying strap: -
• Wrist strap: X
• Shoulder strap: -
• Connection cable for motor vehicles: -
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: -
• Aux input with level control: -
• Output power: 10 W_MAX
• SPL (1 W/m): 90 dB
• Power supply: 8 x 1.5 V batt. AA size not supplied
• 12 V connection: -
• Dimensions: Ø 158 mm x 244 mm
• Weight: 595 g

With the megaphone series TM-1..., MONACOR offers new entry-level products for price-conscious customers. Even the lightweight units of compact size provide every important feature for most varying applications.

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone


• Built-in microphone
• Siren, switchable
• Volume control



Specifications:

• Built-in microphone: X
• Hand-held microphone: -
• Wireless microphone: -
• Lockable button microphone: -
• Pistol grip: X
• Carrying strap: -
• Wrist strap: X
• Shoulder strap: -
• Connection cable for motor vehicles: -
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: -
• Aux input with level control: -
• Output power: 15 W_MAX
• SPL (1 W/m): 100 dB
• Power supply: 8 x 1.5 V battery AA size not supplied
• 12 V connection: -
• Dimensions: Ø 205 mm x 340 mm
• Weight: 1.1 kg

With the megaphone series TM-1..., MONACOR offers new entry-level products for price-conscious customers. Even the lightweight units of compact size provide every important feature for most varying applications.

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone


• Hand-held microphone with helix cable
• Lockable talk button and volume control at the microphone
• Operating switch for siren, speech and whistling sound
• Jack for external 12 V battery operation
• Connection cable for motor vehicles

Specifications:

• Built-in microphone: -
• Hand-held microphone: X
• Wireless microphone: -
• Lockable button microphone: X
• Pistol grip: X
• Carrying strap: -
• Wrist strap: -
• Shoulder strap: X
• Connection cable for motor vehicles: X
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: -
• Aux input with level control: -
• Output power: 25 W_MAX
• SPL (1 W/m): 110 dB
• Power supply: 8 x 1.5 V batt. C size not supplied, ext. 12 V DC current /2 A
• 12 V connection: X
• Dimensions: Ø 230 mm x 340 mm
• Weight: 1.7 kg

Attention guaranteed!

With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone, with piezo converter


• Low weight and low power consumption due to piezo technology
• Built-in microphone
• Siren and acoustic signal, switchable
• Volume control
• Battery status indication

Specifications:

• Built-in microphone: X
• Hand-held microphone: -
• Wireless microphone: -
• Lockable button microphone: -
• Pistol grip: X
• Carrying strap: -
• Wrist strap: X
• Shoulder strap: -
• Connection cable for motor vehicles: -
• Siren: X
• Acoustic signal: X
• Volume control: X
• Battery status indication: X
• 8 mm thread: -
• Aux input with level control: -
• Output power: 20 W_MAX
• SPL (1 W/m): 115 dB
• Power supply: 8 x 1.5 V batt. AA size not supplied
• 12 V connection: -
• Dimensions: Ø 195 mm x 315 mm
• Weight: 850 g

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone


• Built-in microphone
• Siren, switchable
• Jack for external 12 V battery operation
• Volume control
• Connection cable for motor vehicles



Specifications:

• Built-in microphone: X
• Hand-held microphone: -
• Wireless microphone: -
• Lockable button microphone: -
• Pistol grip: X
• Carrying strap: -
• Wrist strap: X
• Shoulder strap: -
• Connection cable for motor vehicles: X
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: -
• Aux input with level control: -
• Output power: 25 W_MAX
• SPL (1 W/m): 115 dB
• Power supply: 8 x 1.5 V batt. C size not supplied, ext. 12 V DC current /2 A
• 12 V connection: X
• Dimensions: Ø 230 mm x 370 mm
• Weight: 1.7 kg

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone


• Hand-held microphone with fixed helix cable
• Lockable talk button and volume control at the microphone
• Siren, switchable
• Jack for external 12 V battery operation
• Connection cable for motor vehicles

Specifications:

• Built-in microphone: -
• Hand-held microphone: X
• Wireless microphone: -
• Lockable button microphone: X
• Pistol grip: X
• Carrying strap: -
• Wrist strap: -
• Shoulder strap: X
• Connection cable for motor vehicles: X
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: -
• Aux input with level control: -
• Output power: 25 W_MAX
• SPL (1 W/m): 119 dB
• Power supply: 8 x 1.5 V batt. C size not supplied, ext. 12 V DC current /2 A
• 12 V connection: X
• Dimensions: Ø 230 mm x 340 mm
• Weight: 1.7 kg

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

MegaphoneHand-held microphone with helix cable Lockable talk button and volume control at the microphone Jack for external 12 V battery operation Siren, switchable Connection cable for motor vehicles 8 mm threaded bushing for mounting onto a stand

Specifications:

• Built-in microphone: -
• Hand-held microphone: X
• Wireless microphone: -
• Lockable button microphone: X
• Pistol grip: -
• Carrying strap: X
• Wrist strap: -
• Shoulder strap: X
• Connection cable for motor vehicles: X
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: X
• Aux input with level control: -
• Output power: 35 W_MAX
• SPL (1 W/m): 122 dB
• Power supply: 8 x 1.5 V batt. C size not supplied, ext. 12 V DC current /3 A
• 12 V connection: X
• Dimensions: Ø 300 mm x 460 mm
• Weight: 2.5 kg

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone


• Hand-held microphone with removable helix cable
• Lockable talk button and volume control at the microphone
• Aux input with level control
• Jack for external 12 V battery operation
• Siren, switchable
• Connection cable for motor vehicles
• 8 mm threaded bushing for mounting onto a stand

Specifications:

• Built-in microphone: -
• Hand-held microphone: X
• Wireless microphone: -
• Lockable button microphone: X
• Pistol grip: -
• Carrying strap: -
• Wrist strap: -
• Shoulder strap: X
• Connection cable for motor vehicles: X
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: X
• Aux input with level control: X
• Output power: 45 W_MAX
• SPL (1 W/m): 124 dB
• Power supply: 10 x 1.5 V batt. D size not supplied, ext. 12 V DC current /4 A
• 12 V connection: X
• Dimensions: Ø 350 mm x 505 mm
• Weight: 3.3 kg

Attention guaranteed! With our range of reliable megaphones, we provide the perfect solution for each application. A few basic selection criteria will help you to choose the right unit. The operating range is surely the most important one. Here, the following applies: with increasing sound pressure (in dB), the operating range of the megaphone increases, too. Furthermore, it is possible to choose between megaphones with integrated microphone, with hand-held microphone or units with an additional wireless microphone. Each megaphone from MONACOR is supplied with power by standard batteries. As an alternative, a few units also feature a 12V connection. Size, weight and the power supply are further selection criteria for choosing the right megaphone. With these comparison criteria, you will surely find the ideal megaphone meeting your individual requirements very quickly.

Megaphone, in a plastic housing, small design.


• Built-in microphone
• Siren, switchable
• Volume control

Specifications:

• Built-in microphone: X
• Hand-held microphone: -
• Wireless microphone: -
• Lockable button microphone: -
• Pistol grip: X
• Carrying strap: -
• Wrist strap: X
• Shoulder strap: -
• Connection cable for motor vehicles: -
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: -
• Aux input with level control: -
• Output power: 8 W_MAX
• SPL (1 W/m): 94 dB
• Power supply: 6 x 1.5 V batt. AA size not supplied
• 12 V connection: -
• Dimensions: Ø 150 mm x 237 mm
• Weight: 620 g

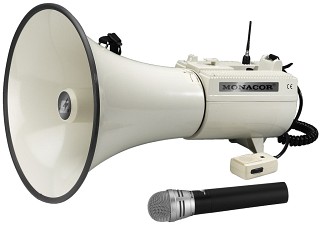

Wireless megaphone, with microphone transmitter.

• Carrier frequency: 863.05-864.95 MHz, operating range: approx. 30 m
• Removable hand-held microphone with helix cable
• Lockable talk button and volume control at the cable-connected microphone
• Aux input with level control
• Jack for external 12 V battery operation
• Siren, switchable
• Connection cable for motor vehicles
• 8 mm threaded bushing for mounting onto a stand

Licence-free in the EU.


Specifications:

• Built-in microphone: -
• Hand-held microphone: X
• Wireless microphone: X
• Lockable button microphone: X
• Pistol grip: -
• Carrying strap: -
• Wrist strap: -
• Shoulder strap: X
• Connection cable for motor vehicles: X
• Siren: X
• Acoustic signal: -
• Volume control: X
• Battery status indication: -
• 8 mm thread: X
• Aux input with level control: X
• Output power: 45 W_MAX
• SPL (1 W/m): 124 dB
• Power supply: 10 x 1.5 V batt. D size not supplied, ext. 12 V DC current /4 A
• 12 V connection: X
• Dimensions: Ø 350 mm x 505 mm
• Weight: 3.4 kg

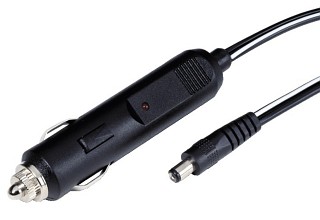

Connection cable


• For megaphones with external power supply
• Fitted with low-voltage plug 5.5/2.1 mm and cigarette lighter plug with power LED
• Integrated fine-wire fuse 5 A
• Also suitable for general use
• Length: 6 m
