Weatherproof speakers: Low-impedance

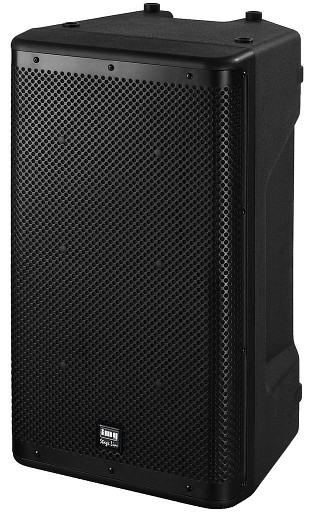

Weatherproof high-performance PA speaker system, 400 WMAX/200 WRMS, 8 Ω, PAB-12WP/SW

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 400 WMAX/200 WRMS, 8 Ω

  • High-performance 2-way bass-reflex system with cabinet made of ABS plastic
  • 30 cm (12") PA bass speaker with impregnated paper cone
  • 25 mm (1") horn tweeter system
  • Excellent sound characteristics
  • Front grille with water-repellent gauze

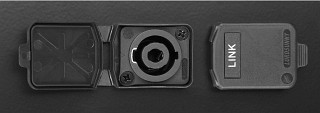

  • Speaker in and parallel out
  • Metal parts made of stainless steel
  • 4 x M10 threaded insert each at the top and bottom for suspended installation
  • Stand sleeve


Production Partner 04/2012

"With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions." Test author Anselm Goertz

tools4music 02/2012

"... for users and service providers who are often working at outdoor events or have to attend permanent outdoor applications, the PAB-12WP/SW is definitely worth considering ... open-air event in the Rhineland area, Germany ... continuous rain, from light drizzle to downpour ... despite plenty of water, even from every angle, the PAB-12WP/SW provided a smooth performance throughout the 6-hour test. Soaking wet on the outside, bone-dry on the inside."

+ Pleasant sound - with impressive power reserves

+ Truly waterproof

+ Practice-orientated handling

+ Good workmanship
Specifications:
  • Frequency range: 42-20,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: -
  • Power capability, 8 Ω: 400 WMAX, 200 WRMS
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 98 dB
  • Max. rated SPL: 121 dB
  • Type of speaker: 300
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 370x655x410 mm
  • Weight: 20 kg
  • Other features: 2 x SPEAKER par. in/out bass-reflex

Price per unit   (Order No. mo-253740) EUR 966,10 excl. VAT: € 811.85 / $ 966.10

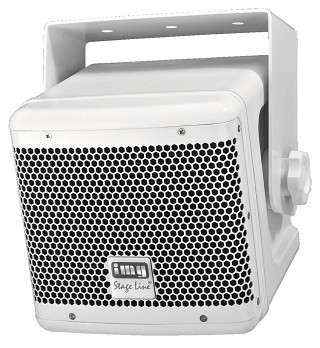

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation, PAB-52WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation

  • Compact wideband bass-reflex system with cabinet made of ABS plastic
  • 100 V or 4 Ω operation, selectable
  • 13 cm (5") high-quality full range speaker with aluminium cone
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Metal parts and wall bracket made of stainless steel


PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."
Specifications:
  • Frequency range: 60-18,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: 50/25/12.5 WRMS
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 100 WMAX, 50 WRMS
  • SPL (1 W/m): 87 dB
  • Max. rated SPL: 104 dB
  • Type of speaker: 130
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 200x200x190 mm
  • Weight: 5.1 kg
  • Other features: screw terminal mounting bracket, bass-reflex

Price per unit   (Order No. mo-253580) EUR 307,60 excl. VAT: € 258.49 / $ 307.60


Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation, PAB-6WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation

  • Compact 2-way bass-reflex system with cabinet made of ABS plastic
  • 100 V or 8 Ω operation, selectable
  • 16 cm bass speaker with coated carbon fibre cone
  • 30 mm dome tweeter with horn front attachment
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Metal parts and wall bracket made of stainless steel


PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."
Specifications:
  • Frequency range: 42-19,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: 100/50/25 WRMS
  • Power capability, 8 Ω: 180 WMAX, 100 WRMS
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 90 dB
  • Max. rated SPL: 110 dB
  • Type of speaker: 165
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 200x370x240 mm
  • Weight: 7.1 kg
  • Other features: screw terminal mounting bracket, bass-reflex

Price per unit   (Order No. mo-253560) EUR 468,50 excl. VAT: € 393.70 / $ 468.50

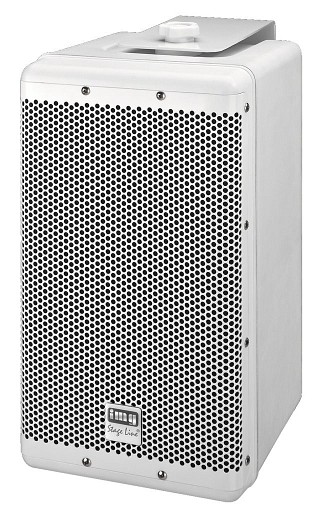

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation, PAB-8WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation

  • High-performance 2-way bass-reflex system with cabinet made of ABS plastic
  • 100 V or 8 Ω operation, selectable
  • 20 cm (8") PA bass speaker with impregnated paper cone
  • 25 mm (1") horn tweeter system
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Speaker in and parallel out, screw terminal
  • Metal parts and wall bracket made of stainless steel


PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."
Specifications:
  • Frequency range: 48-20,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: 120/60/30 WRMS
  • Power capability, 8 Ω: 240 WMAX, 120 WRMS
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 96 dB
  • Max. rated SPL: 117 dB
  • Type of speaker: 200
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 240x430x250 mm
  • Weight: 13.1 kg
  • Other features: 2 x SPEAKER par in/out screw terminal mounting bracket, bass-reflex

Price per unit   (Order No. mo-253570) EUR 680,10 excl. VAT: € 571.51 / $ 680.10


Extension speaker, 5 WMAX, 3 WRMS, 8 Ω AES-6

Extension speaker, 5 WMAX, 3 WRMS, 8 Ω

  • Black plastic housing
  • Moisture-proof due to speaker with solid plastic cone
  • Mounting bracket
  • 1.70 m connection cable with 3.5 mm plug
  • Frequency range: 300-15,000 Hz
  • Dimensions: 80x75x45 mm
  • Weight: 195 g



Price per unit   (Order No. mo-132300) EUR 30,76 excl. VAT: € 25.85 / $ 30.76

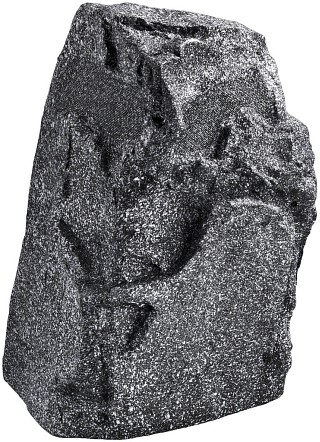

Weatherproof PA garden speaker "Rock" GLS-301/GR

Weatherproof PA garden speaker "Rock", stone look, for general PA applications, e.g. in gardens, hotels, restaurants and pubs.

  • Omnidirectional radiation
  • 100 V line technique or 8 Ω operation
  • Robust, glass fibre reinforced plastic cabinet
  • 2-way coaxial speaker system (200 mm bass speaker and 13 mm tweeter)
  • Integrated audio transformer with 4 power taps (30/20/10/5 WRMS)
  • Connection cable with luster terminals


HiFiTest 04/2013

Price-performance: very good

"The speaker with an unobtrusive appearance and a height of about 32 cm provides a pleasant omnidirectional radiation with an extra voluminous sound."
Specifications:
  • Frequency range: 60-20,000 Hz
  • Number of speakers: 2
  • Power rating: 30/20/10/5 WRMS (100 V) 90WMAX/45 WRMS (8 Ω)
  • SPL (1 W/1 m): 85 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: approx. 310x320x500 mm
  • Weight: 9.5 kg

Price per unit   (Order No. mo-163070) EUR 325,50 excl. VAT: € 273.53 / $ 325.50


Weatherproof pair of 2-way wall-mount speaker systems, 50 WMAX, 8 Ω MKS-232/SW

Weatherproof pair of 2-way wall-mount speaker systems, 50 WMAX, 8 Ω

  • PA speaker systems with an excellent sound
  • 13 cm polypropylene bass-midrange speaker and dome tweeter
  • High efficiency
  • Black (SW) or white (WS) plastic cabinet with lacquered aluminium grille
  • Supplied with matching metal wall brackets
Specifications:
  • Music power: 50 WMAX
  • Power rating: 30 WRMS
  • Max. frequency range: 75-20,000 Hz
  • Impedance: 8 Ω
  • SPL (1 W/1 m): 89 dB
  • Max. rated SPL: 103 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 160x260x180 mm
  • Weight: 1.8 kg
  • Connections: spring-load. speaker term.
  • Mounting facility: mounting bracket
  • System:

Price per pair   (Order No. mo-132160) EUR 181,30 excl. VAT: € 152.35 / $ 181.30

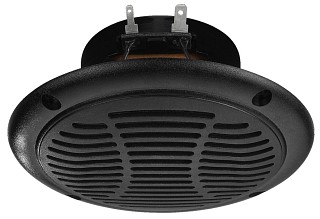

Weatherproof flush-mount speaker, 30 WMAX, 4 Ω, heat-resistant up to 120 °C. SPE-110P/SW

Weatherproof flush-mount speaker, 30 WMAX, 4 Ω, heat-resistant up to 120 °C. For saunas and swimming pool areas, as well as other areas where a reliable operation at high temperatures must be ensured.

  • Black (SW) or white (WS) plastic housing
  • Plastic material of ABS and self-extinguishing according to UL 94V-0
  • Weatherproof speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
Specifications:
  • Frequency range: 180-18,000 Hz
  • Resonant frequency (fs): 250 Hz
  • Power capability, 100 V: -
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 30 WMAX, 15 WRMS
  • SPL (1 W/m): 86 dB
  • Max. rated SPL: -
  • Type of speaker: 130
  • Mounting cutout: Ø 101 mm
  • Mounting depth: 40 mm
  • Admiss. ambient temp.: -20 °C to +120 °C
  • Dimensions: Ø 132 mm
  • Weight: 285 g
  • Other features: -

Price per unit   (Order No. mo-162530) EUR 43,85 excl. VAT: € 36.85 / $ 43.85

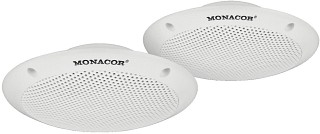

Weatherproof pair of flush-mount PA speakers, 30 WMAX SPE-15F/WS

Weatherproof pair of flush-mount PA speakers, 30 WMAX, with UV-stabilised plastic housing, slimline design. For general use in car hi-fi or PA applications, on a terrace, a boat or in swimming pool areas.

  • White plastic housing for mounting positions of low mounting depth
  • Weatherproof polypropylene speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
  • Low stray magnetic field
  • Supplied with stainless mounting accessories and connection cable
Specifications:
  • Frequency range: 80-16,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: -
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 30 WMAX, 15 WRMS
  • SPL (1 W/m): 86 dB
  • Max. rated SPL: -
  • Type of speaker: 130
  • Mounting cutout: Ø 111 mm
  • Mounting depth: 25 mm
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: Ø 150 mm x 45 mm
  • Weight: 270 g
  • Other features: -

Price per pair   (Order No. mo-162840) EUR 60,94 excl. VAT: € 51.21 / $ 60.94


Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-254/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

  • 2-way system with dome tweeter
  • Excellent sound
  • White plastic housing
  • Weatherproof speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
  • For a ceiling thickness from 2 to 25 mm
  • Spring-loaded speaker terminals
Specifications:
  • Frequency range: 65-20,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: -
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 80 WMAX, 40 WRMS
  • SPL (1 W/m): 87dB
  • Max. rated SPL: 102 dB
  • Type of speaker: 130
  • Mounting cutout: Ø 165 mm
  • Mounting depth: 68 mm
  • Admiss. ambient temp.: -20 °C to +100 °C
  • Dimensions: Ø 206 mm x 82 mm
  • Weight: 0.86 kg
  • Other features: -

Price per pair   (Order No. mo-105510) - not available

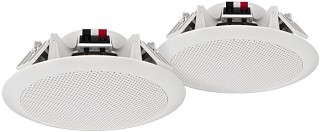

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-264/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

  • 2-way system with dome tweeter
  • Excellent sound
  • White plastic housing
  • Weatherproof speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
  • For a ceiling thickness from 2 to 25 mm
  • Spring-loaded speaker terminals
Specifications:
  • Frequency range: 60-20,000 Hz
  • Power capability, 100 V: -
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 90 WMAX, 45 WRMS
  • SPL (1 W/m): 88 dB
  • Max. rated SPL: 103 dB
  • Type of speaker: 165
  • Mounting cutout: Ø 190 mm
  • Mounting depth: 71 mm
  • Admiss. ambient temp.: -20 °C to +100 °C
  • Dimensions: Ø 226 mm x 100 mm
  • Weight: 0.9 kg
  • Other features: -

Price per pair   (Order No. mo-104900) EUR 154,40 excl. VAT: € 129.75 / $ 154.40

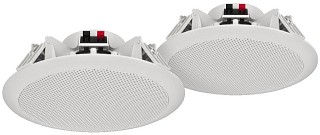

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. SPE-284/WS

Weatherproof pair of PA ceiling speakers, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

  • 2-way system with dome tweeter
  • Excellent sound
  • White plastic housing
  • Weatherproof speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
  • For a ceiling thickness from 2 to 25 mm
  • Spring-loaded speaker terminals
Specifications:
  • Frequency range: 45-20,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: -
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 100 WMAX, 50 WRMS
  • SPL (1 W/m): 89 dB
  • Max. rated SPL: 104 dB
  • Type of speaker: 200
  • Mounting cutout: Ø 210 mm
  • Mounting depth: 85 mm
  • Admiss. ambient temp.: -20 °C to +100 °C
  • Dimensions: Ø 250 mm x 96 mm
  • Weight: 0.95 kg
  • Other features: -

Price per pair   (Order No. mo-105520) EUR 167,00 excl. VAT: € 140.34 / $ 167.00

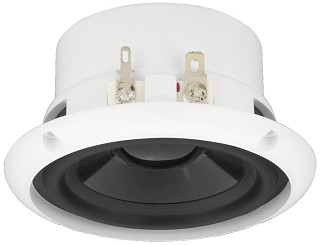

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 WMAX, 8 Ω SPE-70/WS

Weatherproof flush-mount full range speaker and bass-midrange speaker, 40 WMAX, 8 Ω

  • Weatherproof speaker of compact size and high power capability with a wide bandwidth reproduction
  • High-quality white plastic basket with magnetic sleeve in one piece
  • Polypropylene cone, rubber surround, supplied with matching plastic grille (to be glued in)
  • Suitable for PA applications also in a damp environment and outdoors
  • As a bass-midrange speaker also suitable in small hi-fi systems
Specifications:
  • Frequency range: 100-20,000 Hz
  • Resonant frequency (fs): 100 Hz
  • Power capability, 100 V: -
  • Power capability, 8 Ω: 40 WMAX, 20 WRMS
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 86 dB
  • Max. rated SPL: -
  • Type of speaker: 75
  • Mounting cutout: Ø 73 mm
  • Mounting depth: 37 mm
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: Ø 90 mm x 50 mm
  • Weight: 230 g
  • Other features: -

Price per unit   (Order No. mo-162300) EUR 27,19 excl. VAT: € 22.85 / $ 27.19

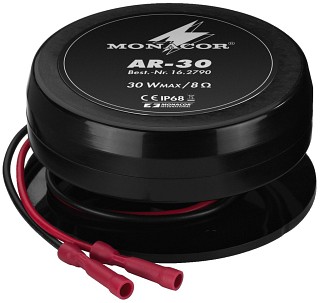

Weatherproof audio exciter/resonator, 8 Ω, AR-30

Weatherproof and robust exciters/resonators for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!

Weatherproof audio exciter/resonator, 8 Ω

  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • High power capability of 30 WMAX (AR-30) or 50 WMAX (AR-50)
  • Very robust and weatherproof version, thus suitable for outdoor applications and in extra dirty conditions
  • Suitable for home and outdoor PA applications, e.g. on doors, cupboards, shelves and on boats
  • Waterproof (IP68)
  • Supplied with screwable mounting plate
Specifications:
  • Power rating: 30 WMAX
  • Impedance: 8 Ω
  • Frequency range: depending on the installation
  • Resonant frequency: 600 Hz
  • Minimum mounting surface: Ø 80 mm
  • Dimensions: Ø 80 mm x 40 mm
  • Weight: 0.65 kg

Price per unit   (Order No. mo-162790) EUR 21,83 excl. VAT: € 18.34 / $ 21.83

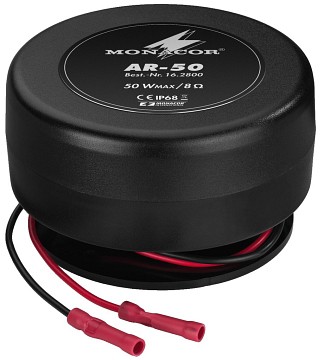

Weatherproof audio exciter/resonator, 8 Ω, AR-50

Weatherproof and robust exciters/resonators for music and voice reproductions via surfaces capable of vibrating. These resonators are simply screwed onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces already create a partly impressive sound in the entire surrounding area. These resonators are not suitable for use on glass surfaces!

Weatherproof audio exciter/resonator, 8 Ω

  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • High power capability of 30 WMAX (AR-30) or 50 WMAX (AR-50)
  • Very robust and weatherproof version, thus suitable for outdoor applications and in extra dirty conditions
  • Suitable for home and outdoor PA applications, e.g. on doors, cupboards, shelves and on boats
  • Waterproof (IP68)
  • Supplied with screwable mounting plate
Specifications:
  • Power rating: 50 WMAX
  • Impedance: 8 Ω
  • Frequency range: depending on the installation
  • Resonant frequency: 500 Hz
  • Minimum mounting surface: Ø 80 mm
  • Dimensions: Ø 90 mm x 55 mm
  • Weight: 0.95 kg

Price per unit   (Order No. mo-162800) EUR 32,55 excl. VAT: € 27.35 / $ 32.55
