Desktop microphones

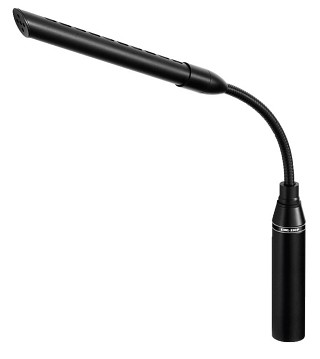

Miniature electret directional microphone with gooseneck EMG-330P

Miniature electret directional microphone with gooseneck

Transformer-balanced
Hypercardioid/lobe characteristic
Foam windshield
3-pole XLR plug
With optional desktop microphone base DMS-1, especially suitable as PA desktop microphone

Specifications:

System: back electret hypercardioid/lobe
Frequency range: 50-18,000 Hz
Impedance: 250 Ω
Sensitivity: 10 mV/Pa/1 kHz
Max. SPL: 125 dB
S/N ratio: -
Power supply: 9-48 V DC current , phantom
Body: -
Dimensions: Ø 19 mm x 330 mm
Weight: 125 g
Connection, microphone: XLR
Connection, cable: -
Cable: -

Price per unit (Order No. mo-234270) EUR 85,25 excl. VAT: € 71.64 / $ 78.09

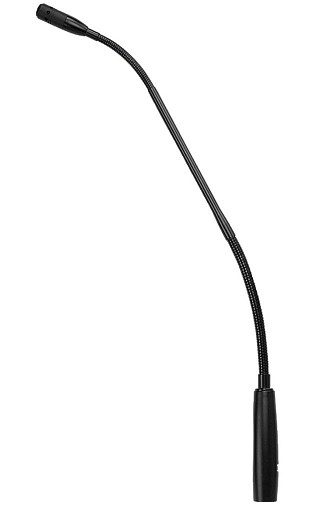

Electret gooseneck microphone GM-5212

Electret gooseneck microphone

This gooseneck microphone of supercardioid characteristic has been optimised for voice transmissions and thus provides a perfect sound with a very high speech intelligibility and minimum susceptibility to acoustic feedback at the same time. The reliable and high-quality workmanship ensures a long life even at severe conditions in general applications. This microphone is suitable for general applications due to the rigidly installed 3-pole XLR plug and can be operated via an external phantom power supply or the microphone base ST-5030.

Specifications:

System: back electret/supercardioid
Frequency range: 80-18,000Hz
Impedance: 220Ω ±30%
Sensitivity: 16mV/Pa/1kHz
Max. SPL: 125dB
Power supply: 48V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 455mm
Weight: 170g

Price per unit (Order No. mo-234380) EUR 63,30 excl. VAT: € 53.19 / $ 57.98

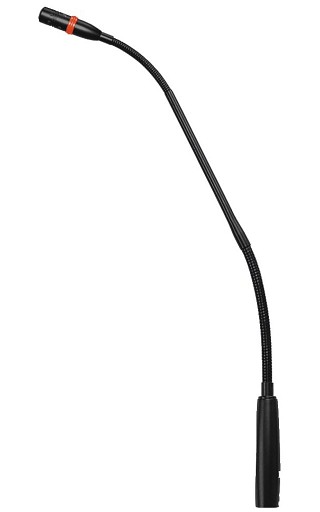

Electret gooseneck microphone with LED GM-5212L

Electret gooseneck microphone with LED

This microphone with an LED as an operating indication can be used for versatile applications and meets all the requirements with regard to avoiding acoustic feedback and providing a natural sound. The microphone impresses by a frequency response which is perfectly matched to the voice, thus resulting in a precise voice reproduction. The reliable and high-quality workmanship ensures a long life. Design: gooseneck with an integrated 3-pole XLR plug. Both of the microphone series can be operated via an external phantom power supply or the microphone base ST-5030.

Specifications:

System: electret/supercardioid
Frequency range: 80-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 12.6 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 465 mm
Weight: 170 g

Price per unit (Order No. mo-234410) EUR 66,38 excl. VAT: € 55.78 / $ 60.80

Double gooseneck microphone, electret version GM-5215DU

Double gooseneck microphone, electret version

These double microphones are always the first choice when a high operating reliability, flexible positioning, increased sensitivity and an easy installation are required. The rigid goosenecks allow for a vertical adjustment of 160°, independent of each other. The audio signal is balanced and fed through a common 3-pole XLR plug. Professional features are integrated, e.g. switchable 10 dB attenuator and low cut filter. The high-quality back electret supercardioid cartridges feature a +48 V phantom power supply. Total length:

GM-5212DU: 415 mm

GM-5215DU: 492 mm

Specifications:

System: back electret/supercardioid
Frequency range: 80-18,000 Hz
Impedance: 220 Ω
Sensitivity: 16 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 492 mm
Weight: 335 g

Price per unit (Order No. mo-236300) EUR 146,00 excl. VAT: € 122.69 / $ 133.73

Electret gooseneck microphone GM-5218

Specifications:

System: back electret/supercardioid
Frequency range: 80-18,000Hz
Impedance: 220Ω ±30%
Sensitivity: 16mV/Pa/1kHz
Max. SPL: 125dB
Power supply: 48V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 605mm
Weight: 190g

Price per unit (Order No. mo-234390) EUR 69,66 excl. VAT: € 58.54 / $ 63.81

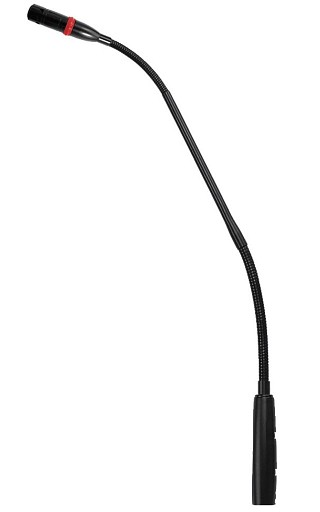

Electret gooseneck microphone with LED GML-5212

Electret gooseneck microphone with LED

The flagship among the gooseneck microphones. Supplied with 3 replaceable microphone cartridges of different characteristics (cardioid, supercardioid and omnidirectional) which ensure most versatile applications. It is almost impossible to be more versatile! The GML gooseneck series is perfectly suitable for almost any application. The speech intelligibility which is already excellent, of course, and the high-quality workmanship are completed by a -10 dB PAD switch, a switchable low cut filter and an LED as an operating indication which makes it very suitable for practical applications. The microphone can be operated via an external phantom power or the microphone base ST-5030.

Specifications:

System: back electret/cardioid/supercardioid/omnidir.
Frequency range: 80-18,000 Hz
Impedance: 220 Ω ±30 %
Sensitivity: 16 mV/Pa/1 kHz
Max. SPL: 125 dB
Power supply: 48 V DC current phantom power
Connection, microphone: XLR, bal.
Connection, cable: -
Length: 465 mm
Weight: 250 g

Price per unit (Order No. mo-234560) EUR 117,70 excl. VAT: € 98.91 / $ 107.81

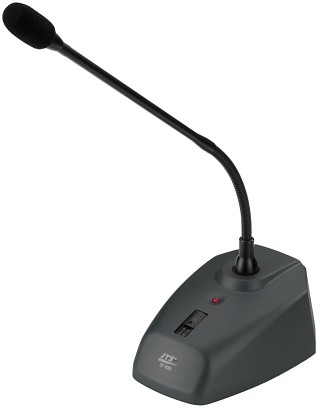

Gooseneck microphone for an optional wireless operation ST-850

Gooseneck microphone for an optional wireless operation

The first choice for audible voice transmissions. The ST-850 can be operated with any pocket transmitter of the PT series, either wireless without extensive cabling or cable-connected with phantom power. The high-quality back electret cartridge of supercardioid characteristic features a high resistance to acoustic feedback and a precise voice reproduction. During speech intervals, the microphone can be switched off via a low-noise reed switch. An LED indicates the status of the switch. A solid diecast base ensures perfect stability. A pocket transmitter which is available at option can be positioned in the diecast base.

Specifications:

System: back electret/supercardioid
Frequency range: 50-18,000 Hz
Impedance (wireless/cable-connected): 2 kΩ/100 Ω
Sensitivity (wireless/cable-connected): 5 mV/Pa, 15.8 mV/Pa
Max. SPL: 125 dB
Power supply: via pocket transmitter, +48 V phantom power
Connection: 4-pole mini XLR inline jack, XLR chassis plug
Dimensions base: 110x65x150 mm
Gooseneck length: 305 mm
Weight: 1 kg

Price per unit (Order No. mo-235510) EUR 154,30 excl. VAT: € 129.66 / $ 141.33

XLR chassis structure-borne noise attenuator ST-5070

XLR chassis structure-borne noise attenuator

Due to an elastic rubber support, this chassis structure-borne noise attenuator effectively suppresses low-frequency structure-borne noise as it often occurs at speakers' desks, or similar, when the speaker is particularly nervous or emotional. Solderless version with screw terminal. The gooseneck microphone to be used is securely locked to avoid accidental unplugging.

Specifications:

Connection: XLR jack, screw terminal
Dimensions: 82x43x86 mm
Weight: 67 g

Price per unit (Order No. mo-348240) EUR 43,06 excl. VAT: € 36.18 / $ 39.44

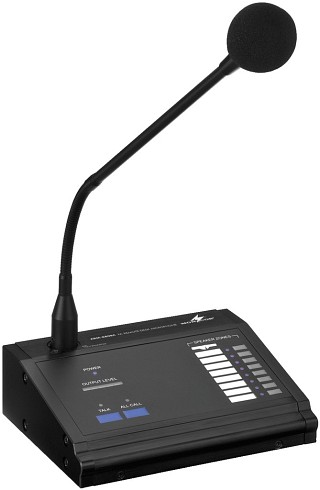

Audio Matrix System ARM-880RC

Audio Matrix System

The system ARM-880... from MONACOR is a highly flexible PA solution for multi-room applications. It is ideally suited for the application in hotels, in restaurants and bars, in conference rooms, schools, sports and fitness centres. Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required. The audio matrix router ARM-880 is the heart of the system. For the operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system. Matching wall modules ARM-880WP1, ARM-880WP2 and ARM-880WP3 for the remote control of ARM-880 and with additional local inputs for the zone are available at option. With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for the various alarm signals and a local microphone are available. Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.

PA zone paging microphone, for the audio matrix router ARM-880.

8 zones
Zones can individually be controlled, group call
Replaceable label for marking the zones
Plug-in electret gooseneck microphone (3-pole XLR jack from NEUTRIK)
2-tone or 4-tone chime, can be switched off
Volume control for microphone and chime
LEDs for indicating operation, output level and selected zone
8 additional zones with each extension module (available at option), 32 zones in total with a maximum of 3 extension modules, connection via available flat cable
Connection to ARM-880 via RJ45 jack and Cat. 5 network cable (supplied w/o cable)
Power supply via supplied PSU

Price per unit (Order No. mo-173810) EUR 367,10 excl. VAT: € 308.49 / $ 336.25

Dynamic hand-held microphone DH-95N

Dynamic hand-held microphone

Low impedance
With a push-to-talk button
Especially suitable for CB and PA
Supplied with microphone holder
300-6,000 Hz, 2.5 mV/Pa/1 kHz, 500 Ω

DH-95N: helix connection cable with bare cable ends

DH-95NP: helix connection cable with 6.3 mm stereo plug

Price per unit (Order No. mo-230030) EUR 20,01 excl. VAT: € 16.82 / $ 18.33

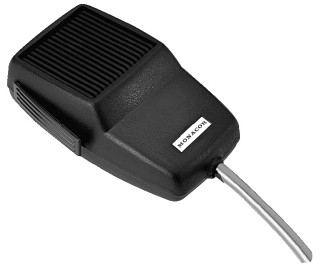

Dynamic hand-held microphone DH-95NP

Dynamic hand-held microphone

Low impedance
With a push-to-talk button
Especially suitable for CB and PA
Supplied with microphone holder
300-6,000 Hz, 2.5 mV/Pa/1 kHz, 500 Ω

DH-95N: helix connection cable with bare cable ends

DH-95NP: helix connection cable with 6.3 mm stereo plug

Price per unit (Order No. mo-234100) EUR 20,25 excl. VAT: € 17.02 / $ 18.55

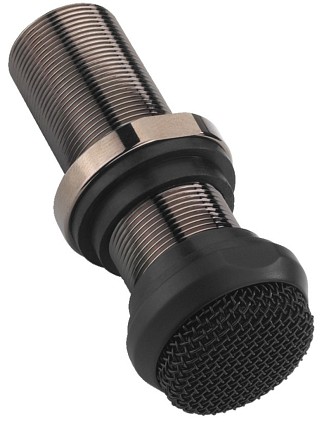

Built-in phantom microphone ECM-10/SW

Built-in phantom microphone

Especially suitable for PA applications
Metal housing
Black (SW) or white (WS) cartridge cover

Specifications:

System: electret/omnidir.
Frequency range: 30-17,000 Hz
Impedance: 300 Ω
Sensitivity: 2.3 mV/Pa/1 kHz
Max. SPL: 110 dB
S/N ratio:
Power supply: 9-48 V DC current , phantom power
Body: metal
Dimensions: Ø 30 mm x 71 mm
Weight: 90 g
Connection, microphone: XRL, bal.
Connection, cable: -
Cable: -

Price per unit (Order No. mo-232720) EUR 91,04 excl. VAT: € 76.50 / $ 83.39

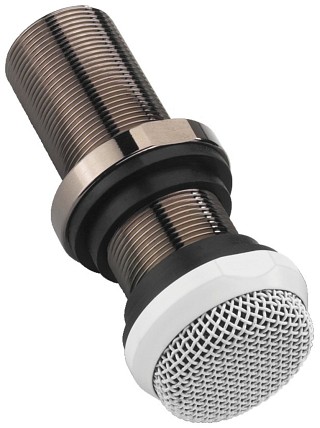

Built-in phantom microphone ECM-10/WS

Built-in phantom microphone

Especially suitable for PA applications
Metal housing
Black (SW) or white (WS) cartridge cover

Specifications:

System: electret/omnidir.
Frequency range: 30-17,000 kHz
Impedance: 300 Ω
Sensitivity: 2.3 mV/Pa/1 kHz
Max. SPL: 110 dB
S/N ratio:
Power supply: 9-48 V DC current , phantom power
Body: metal
Dimensions: Ø 30 mm x 71 mm
Weight: 90 g
Connection, microphone: XLR, bal.
Connection, cable: -
Cable: -

Price per unit (Order No. mo-232730) EUR 91,04 excl. VAT: € 76.50 / $ 83.39

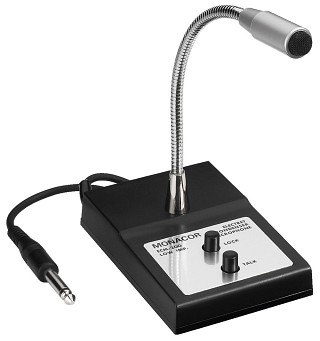

PA desktop microphone ECM-200

PA desktop microphone, with gooseneck.

Electret, omnidirectional characteristic
Push-to-talk button and lock button

Specifications:

General information:
Frequency range: 60-12,000 Hz
Sensitivity: 6 mV/Pa/1 kHz
Impedance: 1 kΩ
S/N ratio:>40 dB
Admiss. ambient temp.: 0-40 °C
Power supply: 1 x 1.5 V batt. AA size
Dimensions:
console housing only: 75x25x110 mm
Total length of gooseneck: 200 mm
Weight: 380 g
Connections: 6.3 mm plug

Price per unit (Order No. mo-230280) EUR 42,85 excl. VAT: € 36.01 / $ 39.25

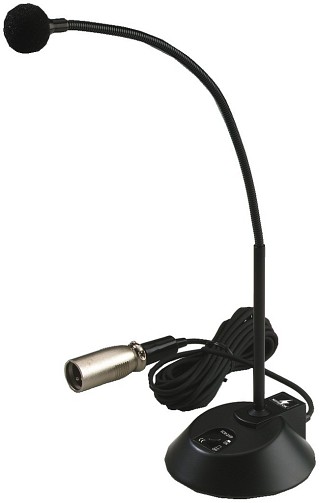

PA desktop microphone ECM-310P

PA desktop microphone, with gooseneck.

Electret, cardioid characteristic
Phantom power
ON/OFF switch
3 m connection cable with XLR plug, balanced

Specifications:

General information:
Frequency range: 80-14,000 Hz
Sensitivity: 8 mV/Pa/1 kHz
Impedance: 250 Ω
S/N ratio:>55 dB
Admiss. ambient temp.: 0-40 °C
Power supply: 22-48 V DC current , phantom power
Dimensions:
console housing only: Ø 80 mm x 25 mm
Total length of gooseneck: 200 mm
Weight: 372 g
Connections: XLR, bal.

Price per unit (Order No. mo-232430) EUR 123,70 excl. VAT: € 103.95 / $ 113.31

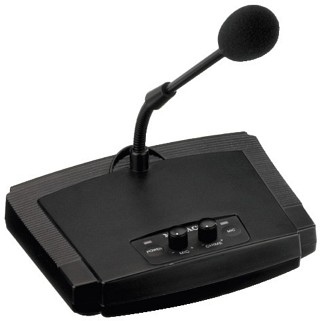

PA desktop microphone ECM-450

PA desktop microphone, with gooseneck.

Electret, cardioid characteristic
Volume control for speech and chime
Different types of chimes can be selected
Automatic chime activation (can be switched off)
Power supply via supplied PSU or batteries (not supplied)
1.5 m connection cable with 6.3 mm connector (on both ends)

Specifications:

General information:
Frequency range: 100-12,000 Hz
Sensitivity: 3.2 mV/Pa/1 kHz
Impedance: 600 Ω
S/N ratio:>40 dB
Admiss. ambient temp.: 0-40 °C
Power supply: via suppl. PSU or 2 x 1.5 V batt. C size
Dimensions:
console housing only: 180x50x130 mm
Total length of gooseneck: 210 mm
Weight: 925 g
Connections: 6.3 mm jack low-voltage jack

Price per unit (Order No. mo-233370) EUR 129,23 excl. VAT: € 108.60 / $ 118.37

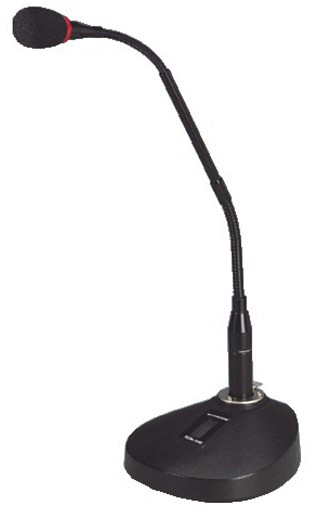

PA desktop microphone ECM-500

PA desktop microphone, with gooseneck.

Electret, cardioid characteristic
Indicating light for microphone operation
ON/OFF switch
Removable gooseneck (XLR connection)
Solid version

Specifications:

General information:
Frequency range: 100-16,000 Hz
Sensitivity: 3.9 mV/Pa/1 kHz
Impedance: 600 Ω
S/N ratio:>40 dB
Admiss. ambient temp.: 0-40 °C
Power supply: 2 x 1.5 V batt. AA size
Dimensions:
console housing only: 135x60x145 mm
Total length of gooseneck: 450 mm
Weight: 1.5 kg
Connections: 1 x XLR

Price per unit (Order No. mo-232550) EUR 144,90 excl. VAT: € 121.76 / $ 132.72

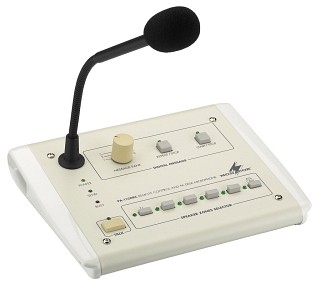

PA zone paging desktop microphone PA-1120RC

PA zone paging desktop microphone, for connecting to PA-1120 and PA-1240.

Selection buttons for speaker zones 1-5
Start/pause function for 6 selectable announcements which are stored in the digital module PA-1120DMT
Adjustable line input (RCA L/R) for the connection of a signal source, e.g. CD player or tape deck
LED indication for transmission mode
Automatic chime via microphone announcement button
Power supply via PA-1120, PA-1240
RJ45 jacks for connecting additional PA-1120RC microphones with slave/priority switch
Supplied with connection module for PA-1120 and PA-1240

Ten PA-1120RC max. can be connected to each amplifier!

Price per unit (Order No. mo-232440) EUR 385,00 excl. VAT: € 323.53 / $ 352.65

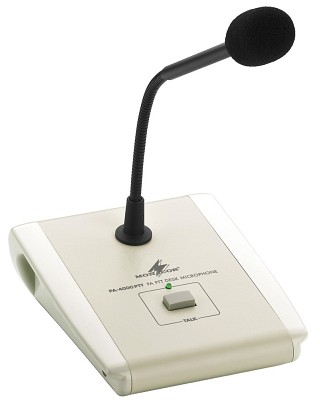

PA desktop microphone (push-to-talk) PA-4000PTT

PA desktop microphone (push-to-talk), for connecting to PA-40120 or PA-1120, PA-1240, PA-1412MX and the PA-6000 series.

Automatic chime via microphone announcement button (talk)
Chime can additionally be switched on or off
Power supply via connected amplifiers
RJ45 jack for the connection to suitable amplifiers
Supplied with 3 m connection cable (Cat. 5e)
7-pole DIN jack for the connection to suitable amplifiers

Only one PA-4000PTT can be connected to each amplifier

Price per unit (Order No. mo-236000) EUR 244,00 excl. VAT: € 205.04 / $ 223.50

PA desktop microphone (push-to-talk) PA-4300PTT

PA desktop microphone (push-to-talk), for connecting to PA-1120 or PA-1240.

Automatic chime via microphone announcement button (talk)
Chime can additionally be switched on or off
LED indication for talk and busy
Power supply via connected amplifier
RJ45 jack for connecting additional PA-4300PTT with slave/priority switch

Three PA-4300PTT can be connected to each amplifier

Price per unit (Order No. mo-230980) EUR 226,10 excl. VAT: € 190.00 / $ 207.10

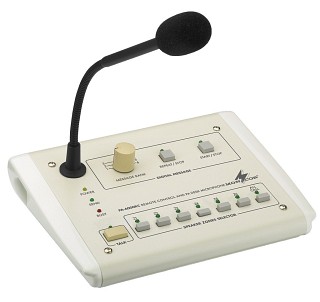

PA zone paging desktop microphone PA-6000RC

PA zone paging desktop microphone, for connecting to PA-6240, PA-6480 and PA-6600.

Selection buttons for speaker zones 1-6
Start/pause function for 6 selectable announcements which are stored in the digital module PA-1120DMT
Automatic chime via microphone announcement button
Adjustable line input (RCA L/R) for the connection of a signal source, e.g. CD player or tape deck
LED indication for transmission mode
Power supply via PA-6240, PA-6480, PA-6600
RJ45 jack for connecting additional PA-6000RC microphones with slave/priority switch
Supplied with connection module for PA-6240, PA-6480 and PA-6600

Price per unit (Order No. mo-235370) EUR 402,80 excl. VAT: € 338.49 / $ 368.95

PA desktop microphone PDM-300

PA desktop microphone, with gooseneck.

Dynamic, cardioid characteristic
Low-noise push-to-talk switch, latching or non-latching
1 m helix cable, balanced, with 6.3 mm mono plug

Specifications:

General information:
Frequency range: 60-12,000 Hz
Sensitivity: 3.2 mV/Pa/1 kHz
Impedance: 600 Ω
S/N ratio: -
Admiss. ambient temp.: 0-40 °C
Power supply: -
Dimensions:
console housing only: 120x60x160 mm
Total length of gooseneck: 310 mm
Weight: 1,100 g
Connections: 6.3 mm plug

Price per unit (Order No. mo-231200) EUR 83,60 excl. VAT: € 70.25 / $ 76.57

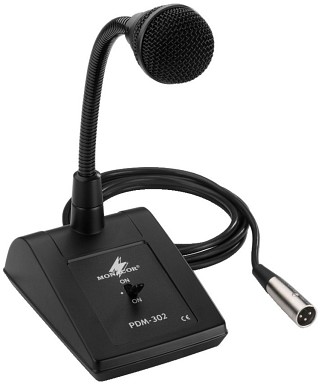

PA desktop microphone PDM-302

PA desktop microphone, with gooseneck.

Dynamic, cardioid characteristic
Low-noise push-to-talk switch, latching or non-latching
5 m connection cable with XLR plug, balanced

Specifications:

General information:
Frequency range: 60-12,000 Hz
Sensitivity: 3.2 mV/Pa/1 kHz
Impedance: 600 Ω
S/N ratio: -
Admiss. ambient temp.: 0-40 °C
Power supply: -
Dimensions:
console housing only: 120x60x160 mm
Total length of gooseneck: 310 mm
Weight: 1,100 g
Connections: XLR, bal.

Price per unit (Order No. mo-235560) EUR 86,90 excl. VAT: € 73.03 / $ 79.60

PA amplifier PAM-10

PA amplifier, with zone paging microphone.

Integrated amplifier 10 WRMS
Talk button and volume control, speaker connection 4-16 Ω
Power supply: 230 V /50 Hz/12 VA
Dimensions: 167x65x130 mm
Mains operation

Price per unit (Order No. mo-170150) EUR 131,71 excl. VAT: € 110.68 / $ 120.64

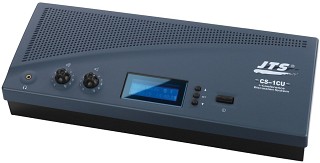

Control unit CS-1CU

Conference System CS-1

Your opinion will be heard! The control unit CS-1CU, the microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference system with extensive configuration facilities for maximum flexibility.

Control unit

The central control unit of the conference system. The CS-1CU allows to set up a system with up to 50 microphone stations and at the same time supplies their operating voltage. Due to adjustable discussion modes (e.g. number of simultaneous speakers, limited speaking time, sole activation for the chairperson ...), it is possible to perfectly adjust the system to the respective requirements. The discussion developments can be monitored directly at the control unit via an integrated speaker or optional headphones. Further features: keypad lock, display of date/time, stopwatch, test function for connected microphone stations. Connection facilities for optional units, e.g. external microphone, telephone coupler, signal processing units (e.g. equalizer), recorders, amplifiers, audio line sources.

Matching microphone stations: CS-1DU and CS-1CH.

AV-views 02/2010

"A solid and reliable conference system which provides a very clear voice transmission."

Specifications:

Connections: 2 x RCA (input/output for telephone coupler) 2 x RCA (input/output, e.g. for equalizer) 2 x RCA L/R (input/output for recorder) 2 x RCA (input/output for line signals) 1 x XLR (microphone input) 2 x 7-pole DIN jack (connection for microphone stations)
Power supply: 100-240 V /50-60 Hz/90 VA
Dimensions: 360x90x150 mm
Weight: 1.7 kg

Price per unit (Order No. mo-173060) EUR 402,69 excl. VAT: € 338.39 / $ 368.85

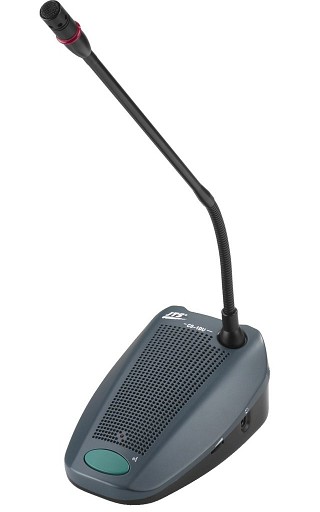

Microphone station for the conference delegates CS-1DU

Microphone station for the conference delegates

The back electret cartridge of cardioid characteristic which has been optimised for voice transmissions and the low-distortion speaker provide a prominent and transparent sound, even in difficult acoustic conditions. Thus, your contributions will get the necessary attention. The contents of the discussion can also be reproduced via optional headphones. The large function button allows for a convenient operation of the microphone station. The status displays of the microphone and desktop station reliably indicate the operating status of the unit.

Matching control unit: CS-1CU.

Matching microphone station: CS-1CH.

AV-views 02/2010

"A solid and reliable conference system which provides a very clear voice transmission."

Specifications:

System: back electret/cardioid
Frequency range: 50-18,000 Hz
Connections: 2 x 3.5 mm jack 1 x 2 m connection cable with 7-pole DIN plug 1 x 7-pole DIN jack
Power supply: via control unit CS-1CU
Dimensions: 115x65x170 mm (console housing)
Gooseneck length: 400 mm
Weight: 1.1 kg

Price per unit (Order No. mo-173080) EUR 197,30 excl. VAT: € 165.80 / $ 180.72

Push-to-talk microphone holder MH-95

Push-to-talk microphone holder, screw-mounted.

Price per unit (Order No. mo-230920) EUR 1,80 excl. VAT: € 1.51 / $ 1.65
