Active PA speakers: 10"

Professional active DSP speaker system with 2-channel amplifier, 600 WRMS, MEGA-DSP10

State-of-the-art DSP-controlled digital amplifier technology combined with high-performance speakers from Beyma and Faital accommodated in cabinets of first-class workmanship provide a performance which has not yet been achieved with standard active speaker systems. The integrated DSP is programmed via Ethernet LAN connection and a user-friendly software. With the free app DSP-Control for iOS and Android, this impressive system can also conveniently be controlled via network using WLAN. Switches and router are used for the central administration, grouping as well as for the individual programming and tuning of any number of MEGA-DSP systems. The user can store up to 80 presets in the active DSP module and activate them directly at the speaker. In user mode, it is possible to adjust up to 10 equalizers with 8 filter functions, delay, limiter, gain and low cut as well as load and store presets for each input. Each speaker of the MEGA-DSP series is equipped with the same high-power 2-channel amplifier system which features a total power capability of more than 600 WRMS. This high performance is matched internally to the different models of the MEGA-DSP series via DSP in order to achieve the maximum sound pressure.

Professional active DSP speaker system with 2-channel amplifier, 600 WRMS
  • Compact 10/2 full range system with cabinet made of birch plywood
  • DSP-controlled amplifier (bass: class D, tweeter: class A/B)
  • Max. sound pressure at nominal power: 119 dB, music: 122 dB, peak: 125 dB
  • Sample frequency: 65 kHz and 64-bit technology
  • Programming and administration via Ethernet LAN connection and control software
  • With the control software, the following parameters can be adjusted:Activating and storing presets
  • 10 equalizers for each channel with the filter functions: bell, notch, all-pass, low-shelf, high-shelf, band-pass, high-pass, low-pass
  • Delay
  • Limiter
  • Gain control for each input
  • Master volume
  • Low cut filter
  • 5 presets available
  • Up to 80 presets can be activated directly at the speaker, no software required
  • 25 cm (10", FAITAL) bass speaker and 25 mm (1", 44 mm voice coil, BEYMA) horn tweeter
  • High-quality workmanship and coating
  • Multi-purpose positioning and installation options
  • Horn tweeter with an even beaming, can be turned by 90°
  • M8 threaded inserts for suspended installation, stand sleeve
  • 2 x balanced line/mic inputs and parallel outputs A and B
  • 1 x unbalanced input RCA L/R
  • 1 x balanced output Mix A+B
  • Auto power on/off with LED indication
  • POWERCON mains connection and POWERCON parallel output


okey 119

"Hats off to Bremen! Really impressive quality. The MEGA-DSP10 also provides a remarkable power capability with very dynamic signals and sufficient power reserves."

AV-views 01/2014

"The MEGA-DSP10 is a multi-purpose speaker system with particular strengths in reproducing the medium frequencies which are precise and clear, even at high volume levels. The system can ideally be matched to the surroundings due to DSP parameters. You get a great speaker for your money."

Beat 01/2014

"A little more of everything! The MEGA-DSP10 is a professional active PA speaker system for versatile applications. Top features and workmanship, high-quality equipment, impressive specifications. With regard to flexibility, the sound management system with professional tools sets new standards. It is definitely worth buying."

Workmanship: 6 of 6 possible points

Technology: 6 of 6 possible points

Price-performance: 6 of 6 possible points

tools4music 04/2013

"With the active speaker series MEGA-DSP, IMG Stage Line offers professional (DSP) technology at an affordable level. The speaker systems are suitable for general applications: from fixed installations and entertainment to stage applications. As an additional bonus, it is possible to adjust your own presets via the controller to suit various applications. The two mixable input channels are also worth emphasising."

+ Each jack with feed-through function

+ Controller with presets and additional storage spaces

+ Controller software with intuitive menu control

+ Good workmanship

+ Integrated suspension points with supplied eyebolt

+ Network connection

+ PowerCon

+ 2-channel design with microphone input

PROSOUND 04/2013

"The MEGA-DSP10 gives a good impression when carrying out the various tasks that can only be performed by DSP speaker systems. The speaker system provides a powerful performance during practical operation, is reliable and suitable for commercial applications. Compared to the general market, it is available at a very attractive price."
Specifications:
  • Frequency range: 55-20,000 Hz
  • Amplifier power: DSP-controlled, 600 WRMS (500+100) bass: 500 W treble: 100 W
  • Inputs: 1 x line/mic (bal.) 1 x line (bal.) aux RCA L/R
  • SPL (1 W/1 m): 97 dB
  • Max. rated SPL: 119 dB at nominal power RMS
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 230 V /50 Hz/360 VA
  • Dimensions (WxHxD): 320x540x350 mm
  • Weight: 18 kg
  • Connections: 2 x comb. XLR/6.3 mm (line/mic A, line B) 2 x XLR, par. out, 1 x XLR MIX A+B out RCA L/R
  • Other features: DSP programming via Ethernet

Price per unit   (Order No. mo-254760) EUR 1103,00 excl. VAT: € 926.89 / $ 1103.00

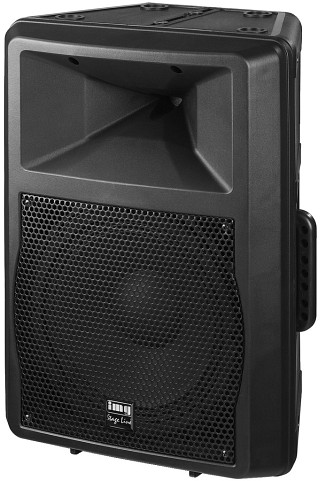

Active DJ and power speaker system, 200 WMAX, 110 WRMS, PAK-110MK2

The 100 series provides PA speaker systems of high power capability with a nice sound for PA and DJ applications, suitable for medium-sized to large function rooms. The timeless plastic cabinets are also very robust and have extensively been tested in practical operation. The active PAK version features a warm sound due to well-approved transistor technology and keeps dynamic reserves and power reserves.

Active DJ and power speaker system, 200 WMAX, 110 WRMS

  • Full range system of high efficiency
  • Robust plastic cabinet
  • 25 cm (10") bass speaker with diecast aluminium basket
  • 25 mm (1", 34 mm voice coil) horn tweeter
  • Bass-reflex system
  • High-performance active module
  • Multi-purpose positioning and installation options
  • M8 threaded inserts (2 x top, 1 x bottom)
  • XLR and RCA L/R (line), XLR (mic)
  • Stand sleeve and carrying handle


Due to the centre of gravity inside these very compact cabinets, stands with legs of a sufficient size have to be selected for the PAK-110MK2 and the PAB-110MK2, e.g. PAST-164/SW.

djmagazin.de 05/2012

"With quiet, so-called dinner music, both of the speaker systems provide a well-balanced sound with a very good reproduction of all frequencies. At higher volume levels, both of the speaker systems provide a reliable reproduction and a neutral sound. Suitable for versatile applications. Also provided a surprisingly powerful reproduction outdoors which is still well audible at a distance. Both speaker systems received a grade 1!" (PAK-108MK2 and PAK-110MK2 in the test)
Specifications:
  • Frequency range: 59-20,000 Hz
  • Amplifier power: 110 WRMS, 200 WMAX
  • Inputs: 1 x line (bal., 150 mV, stereo unbal., 620 mV) 1 x mic (bal., 6.5 mV)
  • SPL (1 W/1 m): 96 dB
  • Max. rated SPL: 116 dB
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 230 V /50 Hz/300 VA
  • Dimensions (WxHxD): 360x500x260 mm
  • Weight: 12.9 kg
  • Connections: XLR and RCA L/R (line) XLR (mic) 6.3 mm jack (mic)
  • Other features: par. line out (XLR and 6.3 mm jack) 2-band EQ ±12 dB integr. limiter

Price per unit   (Order No. mo-252270) EUR 250,00 excl. VAT: € 210.08 / $ 250.00
