Mixers: DJ mixers

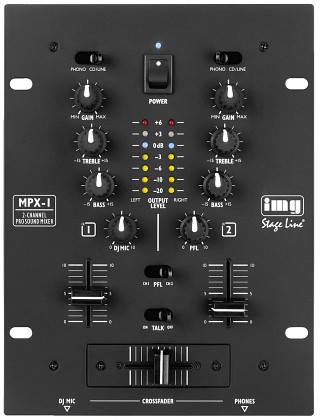

Stereo DJ mixer MPX-1/BK

Stereo DJ mixer

2 stereo input channels, each with gain control and 2-way equalizer, switchable phono/line
DJ microphone channel with talkover, manually selectable
Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
Replaceable crossfader for crossfading between the two input channels
Especially easy-sliding high-quality faders with additional guides
Stereo LED level display

Specifications:

Inputs:
Mic, mono: 1.5 mV
Phono, stereo: 3 mV
Line, stereo: 150 mV
Outputs:
Master, stereo: 1 V/600 Ω
Record, stereo: 0.5 V/600 Ω
Headphones, stereo: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio:
Line: 61 dB
Phono: 56 dB
Mic: 49 dB
Equalizer:
Bass: ±12 dB/50 Hz
Treble: ±12 dB/10 kHz
Talkover: -16 dB
Power supply: via suppl. plug-in PSU
Admiss. ambient temp.: 0-40 °C
Dimensions: 164x218x77 mm
Weight: 1.2 kg

Price per unit (Order No. mo-202170) EUR 130,00 excl. VAT: € 109.24 / $ 132.18

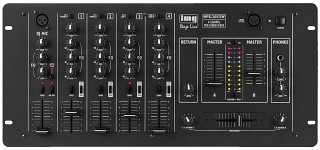

Stereo DJ mixer MPX-205/SW

Stereo DJ mixer

1 DJ mic, 4 stereo channels, switchable line/phono (1+2) and line/line (3+4)
Stereo effect send/return
2 master outputs
Automatic talkover and on-air switch for DJ mic
LED level display, can be switched between the two master outputs and PFL
3-way equalizer with cut function for stereo channels
2-way tone control for DJ mic
Gain control for each input
Pre-fader listening (PFL) to the stereo inputs and outputs via adjustable headphone output
Crossfader with assignment switches
Connection for gooseneck light GNL-404 or GNL-405

Specifications:

Sensitivities:
Mic input: 1.5 mV
Phono input: 3 mV
CD input: 150 mV
Line input: 150 mV
Effect return: 135 mV
Master output: 1 V/600 Ω
Record output: 330 mV/600 Ω
Monitor output: 300 mV/600 Ω
Effect send: 1.2 V/600 Ω
Headphone output: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.05 %
S/N ratio:>50 dB
Equalizer:
Bass: +15 dB, -30 dB/50 Hz
Midrange, L: -
Midrange, H: +15 dB, -30 dB/1 kHz
Treble: +15 dB, -30 dB/10 kHz
Talkover: -12 dB
Gooseneck light: 12 V/5 W, 4-pole XLR
Power supply: 230 V /50 Hz/14 VA
Dimensions: 482x222x110 mm, 5 RS
Weight: 4.3 kg

Price per unit (Order No. mo-202190) EUR 285,00 excl. VAT: € 239.50 / $ 289.79

6-channel stereo mixer MPX-206/SW

6-channel stereo mixer

4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function
1 DJ microphone channel with switchable automatic talkover and 1 guest microphone channel, both channels with gain control as well as 2-way tone control
1 stereo effect way (send/return)
2 master outputs, each with beat LED and 1 booth output
1 record output
LED level display, switchable between both master outputs
Crossfader with assignment switches for channels 1-4 and cut switch function to suppress high frequencies, midrange and bass frequencies
Adjustable headphone output
Fader start for the stereo inputs (channels 1-4)
Connection for gooseneck light GNL-404 or GNL-405

Specifications:

Sensitivities:
Mic input: 1.5 mV
Phono input: 3 mV
CD input: 150 mV
Line input: 150 mV
Effect return: 135 mV
Master output: 1 V/600 Ω
Record output: 300 mV/600 Ω
Monitor output: 1 V/600 Ω
Effect send: 300 mV/600 Ω
Headphone output: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.05 %
S/N ratio:>50 dB
Equalizer:
Bass: +15 dB, -30 dB/50 Hz
Midrange, L: -
Midrange, H: +15 dB, -30 dB/1 kHz
Treble: +15 dB, -30 dB/10 kHz
Talkover: -12 dB
Gooseneck light: 12 V/5 W, 4-pole XLR
Power supply: 230 V /50 Hz/14 VA
Dimensions: 482x266x110 mm, 6 RS
Weight: 6.5 kg

Price per unit (Order No. mo-202480) EUR 427,00 excl. VAT: € 358.82 / $ 434.18

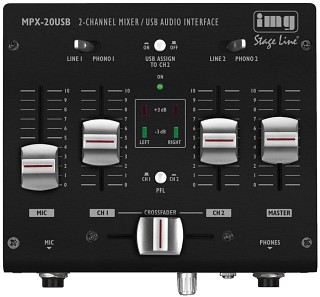

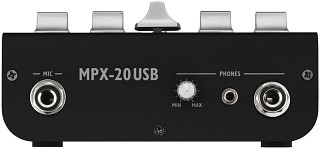

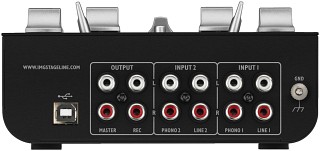

3-channel stereo DJ mixer MPX-20USB

3-channel stereo DJ mixer, with USB interface. Plug and mix!

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full duplex USB port (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC as well as for recording mixings onto a PC
1 microphone input channel
2 stereo input channels, switchable line/phono and USB/line/phono
1 stereo output channel (master)
1 stereo record output
Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
Crossfader
LED level display
Robust metal housing of compact size
Power supply via USB interface or optional PSU with USB port

delamar.de 11/2014

"The MPX-20USB from IMG Stage Line is a respectable mixer for two channels plus microphone which combines all the important features at a compact size. Great for DJs who concentrate on the essentials. Also suitable for anyone requiring a reliable second unit ... As a little bonus, there are in fact two headphone jacks. This space-saving mixer is able to crossfade two audio signals and well suited for home applications."

Specifications:

Mic input: 1 mV
Phono input: 9 mV
CD input: -
Line input: 450 mV
Master output: 1 V
Record output: 1 V
Headphones: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio: 63 dB, unweighted
Equalizer, bass: -
Equalizer, midrange: -
Equalizer, treble: -
Talkover: -
Gooseneck light: -
Power supply: 5 V DC current /500 mA via USB interface
Admiss. ambient temp.: 0-40 °C
Dimensions: 150x70x140 mm
Weight: 700 g

Price per unit (Order No. mo-202860) EUR 85,20 excl. VAT: € 71.60 / $ 86.63

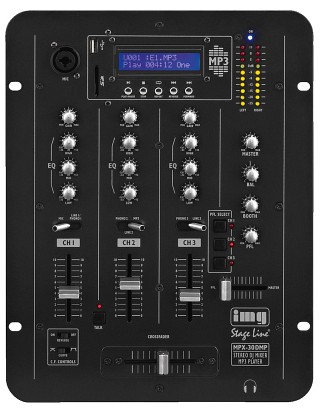

Stereo DJ mixer with integrated MP3 player MPX-30DMP

Stereo DJ mixer with integrated MP3 player

Mixer:

3 input channels (5 stereo ways, 1 DJ microphone way)
Input channels, each with gain control, 3-way equalizer and cue button, with LED level display of the stereo master
Talkover function
Adjustable headphone output with pre-fader listening to the stereo input channels and the master output
Crossfader with switchable characteristic and reverse switch
Master output with stereo LED level display
Additional outputs booth and record

MP3 player with USB interface and SD/MMC card slot:

USB storage media can be connected directly (e.g. USB flash drive)
For SD/MMC cards up to 32 GB (FAT 6/FAT 32), available at option
Alphanumeric display
Repeat function
Blue backlit display

Specifications:

Mic input: 1 mV
Phono input: 2 mV (phono 1) 1 mV (phono 2-3)
CD input: -
Line input: 70 mV (line 1) 50 mV (line 2-3)
Master output: 1 V (XLR, bal.) 580 mV (RCA, unbal.)
Record output: 200 mV (tape) 500 mV (booth)
Headphones: 8 Ω, stereo
Frequency range: 20-20,000 Hz
THD:<0.15 %
S/N ratio:>60 dB, unweighted
Equalizer, bass: +12 dB, -32 dB/50 Hz
Equalizer, midrange: +12 dB, -32 dB/1.2 kHz
Equalizer, treble: +12 dB, -32 dB/10 kHz
Talkover: -16 dB
Gooseneck light: -
Power supply: 230 V /50 Hz/20 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 245x315x120 mm
Weight: 3 kg

Price per unit (Order No. mo-202760) EUR 210,00 excl. VAT: € 176.47 / $ 213.53

Stereo DJ mixer with integrated MP3 player MPX-40DMP

Stereo DJ mixer with integrated MP3 player

Mixer:

4 stereo input channels, switchable 2 x line/phono, 1 x line/CD and 1 x line/USB (SD)
Input channels, each with gain control, 3-way equalizer and PFL push-button, with LED level display of the stereo master
1 DJ microphone channel, adjustable, with 2-way tone control and manual talkover
Adjustable headphone output with pre-fader listening to the stereo input channels and the master output
Crossfader with assignment switches and switchable characteristic
Master output with stereo LED level display
Additional outputs booth and record

MP3 player with USB interface and SD/MMC card slot:

USB storage media can be connected directly (e.g. USB flash drive)
For SD/MMC cards up to 32 GB (FAT16/FAT 32), available at option
Supports ID3 tags
Pitch control: ±16 %
Loop/reloop function
Brake function and reverse function
Safe operation also in darkness due to high-quality rubber buttons with colour illumination
Blue backlit display

Specifications:

Mic input: 4 mV
Line input: 300 mV
Phono input: 6 mV
CD input: 300 mV
Master output: 870 mV
Record output: 800 mV
Booth output: 950 mV
Headphone output: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.04 %
S/N ratio:>60 dB
Channels 1-4, bass: +12 dB, -24 dB/30 Hz
Channels 1-4, midrange: +12 dB, -24 dB/1.2 kHz
Channels 1-4, treble: +12 dB, -24 dB/15 kHz
DJ mic, bass: ±12 dB/70 Hz
DJ mic, treble: ±12 dB/7 kHz
Talkover: -15 dB
Power supply: 230 V /50 Hz/20 VA
Dimensions: 482x190x115 mm
Weight: 3.4 kg

Price per unit (Order No. mo-202710) EUR 330,00 excl. VAT: € 277.31 / $ 335.55

Stereo DJ mixer with integrated MP3 player and Bluetooth receiver MPX-410DMP

Stereo DJ mixer with integrated MP3 player and Bluetooth receiver

Mixer:

4 stereo input channels, switchable MP3/phono/line (channel 1), aux/phono/line (channel 2) and aux/mic/line (channels 3-4)
Input channels, each with gain control and 2-way tone control
1 DJ microphone channel, adjustable, with 2-way tone control
Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and the master output
Crossfader with assignment switches
Master output with stereo LED level display
Additional outputs booth and record

MP3 player with Bluetooth receiver, USB interface and SD/MMC card slot:

Bluetooth receiver for the wireless connection of laptops, smartphones or tablet PCs
USB storage media can be connected directly (e.g. USB flash drive)
For SD/MMC cards up to 32 GB (FAT 6/FAT 32), available at option
Alphanumeric display
Repeat function
Blue backlit display

Specifications:

Mic input: 1.5 mV
Phono input: 2 mV (phono 1-2)
CD input: -
Line input: 200 mV (line 1-4) 200 mV (aux 1-3)
Master output: 1 V (XLR, bal.)
Record output: 400 mV (tape) 1 V (booth)
Headphones: 8 Ω, stereo
Frequency range: 20-20,000 Hz
THD:<0.15 %
S/N ratio:>60 dB, unweighted
Equalizer, bass: ±15 dB/50 Hz (ch. 1-4) ±12 dB/100 Hz (DJ mic)
Equalizer, midrange: -
Equalizer, treble: ±15 dB/10 kHz (ch. 1-4) ±12 dB/7 kHz (DJ mic)
Talkover: -
Gooseneck light: -
Power supply: 230 V /50 Hz/15 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x88x105 mm, 2 RS
Weight: 2.2 kg

Price per unit (Order No. mo-202850) EUR 320,00 excl. VAT: € 268.91 / $ 325.38

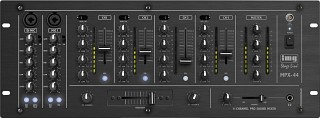

6-channel stereo DJ mixer MPX-44/SW

6-channel stereo DJ mixer, with black brushed aluminium front panel.

6 input channels (4 stereo ways, 2 microphone ways)
Stereo input channels, switchable 2 x phono/line and 2 x line/line, with LED level display of the stereo master
Input channels, each with gain control and 3-way equalizer, stereo input channels with cut function
DJ mic with automatic talkover, PAD switch and on-air switch
Mic with PAD switch and on-air switch
Switches illuminate blue when activated
Adjustable, crossfader-controlled headphone output with pre-fader listening (PFL) to the stereo input channels and mic
Replaceable crossfader with assignment switches
Especially easy-sliding high-quality faders
Master output with stereo LED level display
Additional outputs booth and zone
Connection for gooseneck light GNL-200, GNL-204 or GNL-205

Specifications:

Mic input: 1.5 mV
Phono input: 3 mV
CD input: 150 mV
Line input: 150 mV
Master output: 1 V/600 Ω (master, booth, zone)
Record output: 0.5 V/600 Ω
Headphones: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio: 61 dB, unweighted
Equalizer, bass: +12 dB, -12 dB/50 Hz (mic) +15 dB, -30 dB/50 Hz (ch. 1-4)
Equalizer, midrange: +12 dB, -12 dB/1 kHz (mic) +15 dB, -30 dB/1 kHz (ch. 1-4)
Equalizer, treble: +12 dB, -12 dB/10 kHz (mic) +15 dB, -30 dB/10 kHz (ch. 1-4)
Talkover: -16 dB
Gooseneck light: 12 V/5 W, BNC
Power supply: 230 V /50 Hz/20 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x177x105 mm, 4 RS
Weight: 4 kg

Price per unit (Order No. mo-202420) EUR 270,00 excl. VAT: € 226.89 / $ 274.54

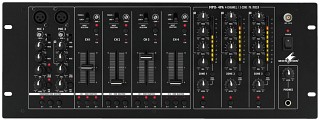

3-zone mixer MPX-4PA

3-zone mixer

3 zones with routing facility of all input channels as desired
XLR and RCA zone outputs
6 input channels (4 stereo ways, 2 microphone ways)
Both microphone ways can only be routed together
Recessed gain control for each input channel
Microphone ways, each with 2-way tone control, talkover and PAD switch
Stereo channels, switchable 2 x phono/line and 2 x line/line
Zone outputs, each with 3-way equalizer, LED level display of the stereo master, balance control, pre-fader listening (PFL) and mono/stereo selector switch
Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and the zone outputs
Connection for gooseneck light GNL-204 or GNL-205

Specifications:

Mic input: 1.5 mV
Phono input: 3 mV
CD input: 150 mV
Line input: 150 mV
Master output: 1 V/600 Ω
Record output: -
Headphones: 8 Ω
Frequency range: 20-20,000 Hz
THD: 0.1 %
S/N ratio: 61 dB, unweighted
Equalizer, bass: +12 dB, -12 dB/50 Hz
Equalizer, midrange: +12 dB, -12 dB/1 kHz
Equalizer, treble: +12 dB, -12 dB/10 kHz
Talkover: -16 dB
Gooseneck light: 12 V/5 W, BNC
Power supply: 230 V /50 Hz/20 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x177x105 mm, 4 RS
Weight: 3.75 kg

Price per unit (Order No. mo-202070) EUR 350,00 excl. VAT: € 294.12 / $ 355.88

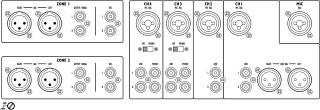

2-zone mixer MPX-52PA

2-zone mixer, for multiroom PA applications.

2 independent zones with routing facility of all input channels as desired
1 microphone way as announcing channel, balanced, with 3-way equalizer and adjustable automatic talkover
4 stereo input channels with stereo line inputs and balanced microphone ways
Channel 1 additionally with a balanced line input, channels 3 and 4 switchable line/phono
Signal/peak indication for each channel
Recessed gain control for each input channel
Zone outputs, balanced, with 3-way equalizer, LED level indication of the stereo master, balance controls, pre-fader listening (PFL) and mono/stereo selection
Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and the zone outputs
2 zone outputs for each stereo RCA and XLR L/R, bal.
1 record output for each zone (independent of talkover and announcements)
Connection for gooseneck light GNL-200, GNL-204 or GNL-205

Specifications:

Mic input: 1.5 mV
Phono input: 3 mV
CD input: -
Line input: 120 mV
Master output: 1 V
Record output: 550 mV
Headphones: 32 Ω, stereo
Frequency range: 20-20,000 Hz
THD:<0.1 %
S/N ratio: 71 dB, unweighted
Equalizer, bass: ±15 dB/50 Hz
Equalizer, midrange: ±12 dB/1 kHz
Equalizer, treble: ±15 dB/10 kHz
Talkover: level attenuation 20 dB max.
Gooseneck light: 12 V/5 W, BNC
Power supply: 230 V /50 Hz/15 VA
Admiss. ambient temp.: 0-40 °C
Dimensions: 482x138x190 mm, 3 RS
Weight: 4.3 kg

Price per unit (Order No. mo-202300) EUR 367,00 excl. VAT: € 308.40 / $ 373.17

4-zone mixer PA-4040MPX

4-zone mixer, for general multi-room PA applications.

4 zones with routing facility of all input channels as desired
3 inputs microphone/line via comb. jacks
2 inputs line stereo via RCA jacks
Each input channel with gain control, 2-way tone control and zone routing switch
Microphone inputs with +15 V phantom power, to be switched on as required
Priority function for channels 1-3, switchable
Independent paging input, can be routed to each zone
4 zone outputs, can be adjusted individually
Connection for monitor speaker
Level control via zone VU meter and monitor VU meter
Adjustable headphone output
Mains operation or 24 V emergency power operation

Specifications:

Mic/line: 5 mV/4 kΩ, 100 mV/10 kΩ
Line: 100 mV/30 kΩ
Telephone paging: 40 mV/5 kΩ
Line (zone): 1.7 V, bal.
Line (mix out): 3.95 V
Monitor speakers: 8 Ω/1 W
Frequency range: 50-17,000 Hz
Bass: ±10 dB/100 Hz
Treble: ±10 dB/10 kHz
Mic:>65 dB
Line:>75 dB
THD:<1 %
Admiss. ambient temp.: 0-40 °C
Power supply: 230 V /50 Hz/20 VA, 24 V DC current /600 mA
Dimensions: 482x133x220 mm, 3 RS
Weight: 4.5 kg

Price per unit (Order No. mo-173450) EUR 340,00 excl. VAT: € 285.71 / $ 345.71
