Weatherproof speakers: 100 V

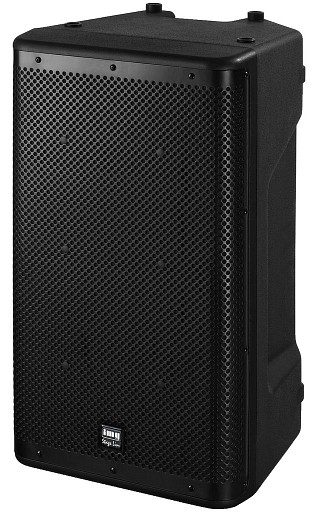

Weatherproof high-performance PA speaker system, 120 WRMS, PAB-120WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 120 WRMS

  • High-performance 2-way bass-reflex system with cabinet made of ABS plastic
  • 100 V line technique
  • 30 cm (12") PA bass speaker with impregnated paper cone
  • 25 mm (1") horn tweeter system
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Speaker in and parallel out
  • Metal parts made of stainless steel
  • 4 x M10 threaded insert each at the top and bottom for suspended installation
  • Stand sleeve


Production Partner 04/2012

"With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions." Test author Anselm Goertz
Specifications:
  • Frequency range: 42-20,000 Hz
  • Resonant frequency (fs): -

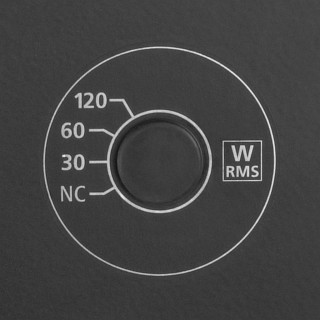

  • Power capability, 100 V: 120/60/30 WRMS
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 98 dB
  • Max. rated SPL: 119 dB
  • Type of speaker: 300
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 370x655x410 mm
  • Weight: 21 kg
  • Other features: 2 x SPEAKER par. in/out bass-reflex

Price per unit   (Order No. mo-253750) EUR 996,80 excl. VAT: € 837.65 / $ 988.42


Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation, PAB-52WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 50 WRMS in 100 V operation or up to 100 WMAX/50 WRMS in 4 Ω operation

  • Compact wideband bass-reflex system with cabinet made of ABS plastic
  • 100 V or 4 Ω operation, selectable
  • 13 cm (5") high-quality full range speaker with aluminium cone
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Metal parts and wall bracket made of stainless steel


PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."
Specifications:
  • Frequency range: 60-18,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: 50/25/12.5 WRMS
  • Power capability, 8 Ω: -
  • Power capability, 4 Ω: 100 WMAX, 50 WRMS
  • SPL (1 W/m): 87 dB
  • Max. rated SPL: 104 dB
  • Type of speaker: 130
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 200x200x190 mm
  • Weight: 5.1 kg
  • Other features: screw terminal mounting bracket, bass-reflex

Price per unit   (Order No. mo-253580) EUR 307,60 excl. VAT: € 258.49 / $ 305.02


Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation, PAB-6WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 100WRMS in 100 V operation or up to 180 WMAX/100 WRMS in 8 Ω operation

  • Compact 2-way bass-reflex system with cabinet made of ABS plastic
  • 100 V or 8 Ω operation, selectable
  • 16 cm bass speaker with coated carbon fibre cone
  • 30 mm dome tweeter with horn front attachment
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Metal parts and wall bracket made of stainless steel


PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."
Specifications:
  • Frequency range: 42-19,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: 100/50/25 WRMS
  • Power capability, 8 Ω: 180 WMAX, 100 WRMS
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 90 dB
  • Max. rated SPL: 110 dB
  • Type of speaker: 165
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 200x370x240 mm
  • Weight: 7.1 kg
  • Other features: screw terminal mounting bracket, bass-reflex

Price per unit   (Order No. mo-253560) EUR 468,50 excl. VAT: € 393.70 / $ 464.56


Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation, PAB-8WP/WS

Available by popular demand: weatherproof PA speakers with IP classification. Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.

Weatherproof high-performance PA speaker system, 120 WRMS in 100 V operation or up to 240 WMAX/120 WRMS in 8 Ω operation

  • High-performance 2-way bass-reflex system with cabinet made of ABS plastic
  • 100 V or 8 Ω operation, selectable
  • 20 cm (8") PA bass speaker with impregnated paper cone
  • 25 mm (1") horn tweeter system
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Speaker in and parallel out, screw terminal
  • Metal parts and wall bracket made of stainless steel


PROSOUND 05/2011

"The cabinets give a solid impression ... and meet IP45 requirements. All four speaker systems are suitable for pleasant background music ... the large PAB-8WP/WS is capable of quite high volume levels ... however, the small ones should not be underestimated ... these speaker systems are impressive and the price is quite reasonable for weatherproof speaker systems."
Specifications:
  • Frequency range: 48-20,000 Hz
  • Resonant frequency (fs): -
  • Power capability, 100 V: 120/60/30 WRMS
  • Power capability, 8 Ω: 240 WMAX, 120 WRMS
  • Power capability, 4 Ω: -
  • SPL (1 W/m): 96 dB
  • Max. rated SPL: 117 dB
  • Type of speaker: 200
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: 240x430x250 mm
  • Weight: 13.1 kg
  • Other features: 2 x SPEAKER par in/out screw terminal mounting bracket, bass-reflex

Price per unit   (Order No. mo-253570) EUR 680,10 excl. VAT: € 571.51 / $ 674.38

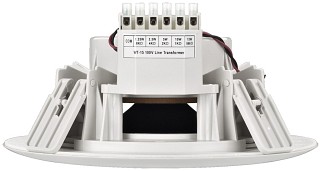

Weatherproof PA ceiling speaker EDL-155

Weatherproof PA ceiling speaker, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

  • 100 V line technique
  • 2-way system with dome tweeter
  • Excellent sound
  • White plastic housing
  • Weatherproof speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
  • For a ceiling thickness from 2 to 25 mm
Specifications:
  • Frequency range: 70-18,000 Hz
  • Power capability, 100 V: 15/10/5/2.5/1.25 WRMS
  • Power capability, 8 Ω: -
  • SPL (1 W/m): 87 dB
  • Max. rated SPL: 99 dB
  • Type of speaker: 130
  • Mounting cutout: Ø 165 mm
  • Mounting depth: 95 mm
  • Admiss. ambient temp.: -20 °C to +100 °C
  • Dimensions: Ø 202 mm x 100 mm
  • Weight: 1.05 kg
  • Other features: -

Price per unit   (Order No. mo-162920) EUR 95,90 excl. VAT: € 80.59 / $ 95.09

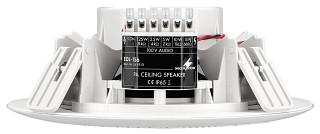

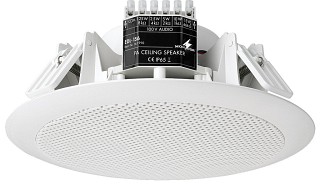

Weatherproof PA ceiling speaker EDL-156

Weatherproof PA ceiling speaker, heat-resistant up to 100 °C. For applications in saunas and swimming pool areas.

  • 100 V line technique
  • 2-way system with dome tweeter
  • Excellent sound
  • White plastic housing
  • Weatherproof speaker cone
  • Tested according to ASTM B117 (400 h salt spray test)
  • For a ceiling thickness from 2 to 25 mm
Specifications:
  • Frequency range: 60-20,000 Hz
  • Power capability, 100 V: 15/10/5/2.5/1.25 WRMS
  • Power capability, 8 Ω: -
  • SPL (1 W/m): 88 dB
  • Max. rated SPL: 100 dB
  • Type of speaker: 180
  • Mounting cutout: Ø 190 mm
  • Mounting depth: 75 mm
  • Admiss. ambient temp.: -20 °C to +100 °C
  • Dimensions: Ø 226 mm x 100 mm
  • Weight: 1.1 kg
  • Other features: -

Price per unit   (Order No. mo-161910) EUR 97,48 excl. VAT: € 81.92 / $ 96.66

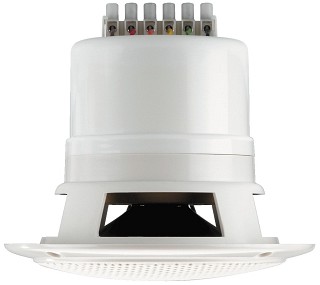

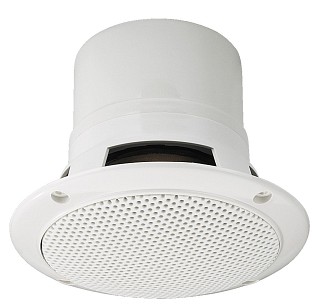

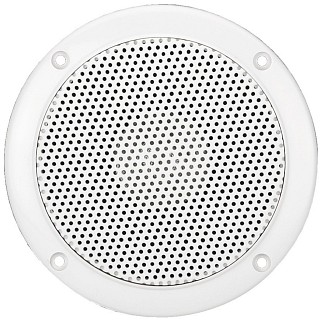

Weatherproof flush-mount PA speaker EDL-204

Weatherproof flush-mount PA speaker

  • 100 V line technique
  • Full range speaker with dual cone, perfect sound characteristics
  • Splashproof due to white one-piece plastic design, high-quality polypropylene cone with rubber surround
  • For indoor and outdoor applications
  • Supplied with stainless steel mounting screws
Specifications:
  • Frequency range: 100-18,000 Hz
  • Power capability, 100 V: 20/15/10/5/2.5 WRMS
  • Power capability, 8 Ω: -
  • SPL (1 W/m): -
  • Max. rated SPL: -
  • Type of speaker: 100
  • Mounting cutout: Ø 104 mm
  • Mounting depth: 102 mm
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: Ø 132 mm x 118 mm
  • Weight: 820 g
  • Other features: -

Price per unit   (Order No. mo-161630) EUR 52,79 excl. VAT: € 44.36 / $ 52.35

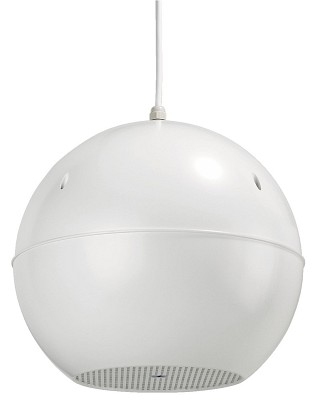

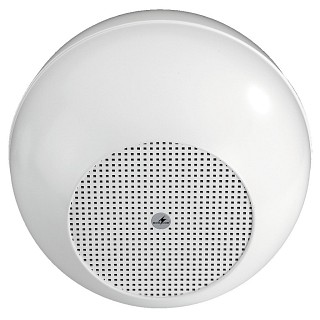

Weatherproof PA ball speaker EDL-420/WS

Weatherproof PA ball speaker

  • 100 V line technique or 8 Ω operation
  • White ABS cabinet (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with 480 cm connection cable and canopy
Specifications:
  • Frequency range: 120-20,000 Hz
  • Power capability, 100 V: 20/10/5 WRMS
  • Power capability, 8 Ω: 20 W/8 Ω
  • SPL (1 W/m): 94 dB
  • Max. rated SPL: -
  • Type of speaker: -
  • Mounting cutout: -
  • Mounting depth: -
  • Admiss. ambient temp.: -10 °C to +40 °C
  • Dimensions: Ø 265 mm
  • Weight: 2.2 kg
  • Other features: -

Price per unit   (Order No. mo-161880) EUR 124,30 excl. VAT: € 104.45 / $ 123.26


PA column speakers, in extruded aluminium cabinets ETS-210TW/WS

Slim Design, Weatherproof Version

PA column speakers, in extruded aluminium cabinets.

  • Weatherproof and hose-proof
  • 100 V line technique
  • 2-way version (with additional integrated tweeters for a clearly improved sound)
  • Connection cable with 5-step power taps
  • 2 x M6 threaded bushing
  • Aluminium front grille
  • Supplied with mounting brackets
Specifications:
  • Frequency range: 170-20,000 Hz
  • Number of speakers: 2+1
  • Power rating: 10/5/2.5/1.25/0.63 WRMS
  • SPL (1 W/1 m): 86 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 80x280x70 mm
  • Weight: 1 kg

Price per unit   (Order No. mo-162940) EUR 149,50 excl. VAT: € 125.63 / $ 148.24


PA column speakers, in extruded aluminium cabinets ETS-220TW/WS

Slim Design, Weatherproof Version

PA column speakers, in extruded aluminium cabinets.

  • Weatherproof and hose-proof
  • 100 V line technique
  • 2-way version (with additional integrated tweeters for a clearly improved sound)
  • Connection cable with 5-step power taps
  • 2 x M6 threaded bushing
  • Aluminium front grille
  • Supplied with mounting brackets
Specifications:
  • Frequency range: 150-20,000 Hz
  • Number of speakers: 4+2
  • Power rating: 20/15/10/5/2.5 WRMS
  • SPL (1 W/1 m): 89 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 80x469x70 mm
  • Weight: 1.7 kg

Price per unit   (Order No. mo-162950) EUR 227,90 excl. VAT: € 191.51 / $ 225.98


PA column speakers, in extruded aluminium cabinets ETS-240TW/WS

Slim Design, Weatherproof Version

PA column speakers, in extruded aluminium cabinets.

  • Weatherproof and hose-proof
  • 100 V line technique
  • 2-way version (with additional integrated tweeters for a clearly improved sound)
  • Connection cable with 5-step power taps
  • 2 x M6 threaded bushing
  • Aluminium front grille
  • Supplied with mounting brackets
Specifications:
  • Frequency range: 150-20,000 Hz
  • Number of speakers: 8+4
  • Power rating: 40/30/20/10/5 WRMS
  • SPL (1 W/1 m): 90 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 80x846x70 mm
  • Weight: 2.8 kg

Price per unit   (Order No. mo-162960) EUR 335,20 excl. VAT: € 281.68 / $ 332.38


Weatherproof PA column speakers ETS-422TW/WS

Weatherproof PA column speakers, with a top-quality sound.

  • Weatherproof and hose-proof, extruded aluminium cabinet
  • 100 V line technique
  • 2-way version (with additional integrated tweeter for a clearly improved sound)
  • Integrated crossover network
  • Aluminium front grille
  • Supplied with a robust tiltable and movable aluminium wall bracket
  • Connection via cable with 4 power taps
Specifications:
  • Frequency range: 130-20,000 Hz
  • Number of speakers: 4+1
  • Power rating: 20/10/5/2.5 WRMS
  • SPL (1 W/1 m): 92 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 124x610x108 mm
  • Weight: 4 kg

Price per unit   (Order No. mo-163120) EUR 325,50 excl. VAT: € 273.53 / $ 322.76


Weatherproof PA column speakers ETS-442TW/WS

Weatherproof PA column speakers, with a top-quality sound.

  • Weatherproof and hose-proof, extruded aluminium cabinet
  • 100 V line technique
  • 2-way version (with additional integrated tweeter for a clearly improved sound)
  • Integrated crossover network
  • Aluminium front grille
  • Supplied with a robust tiltable and movable aluminium wall bracket
  • Connection via cable with 4 power taps
Specifications:
  • Frequency range: 110-20,000 Hz
  • Number of speakers: 8+1
  • Power rating: 40/20/10/5 WRMS
  • SPL (1 W/1 m): 93 dB
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 124x1,016x108 mm
  • Weight: 7.7 kg

Price per unit   (Order No. mo-163140) EUR 509,20 excl. VAT: € 427.90 / $ 504.92


Weatherproof horn speaker (music horn), 2-way technology IT-100TW

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

  • 100 V line technique
  • Weatherproof and IP66 certified
  • Wideband sound with clear bass frequencies
  • 13 cm bass-midrange speaker and 25 mm (1") horn
  • Suitable for indoor and outdoor applications
  • Robust plastic housing of very low resonance
  • Supplied with stainless steeel mounting bracket
  • 4 power taps, connection via screw terminals
Specifications:
  • Power rating: 30/15/7.5/3.75 WRMS
  • Frequency range: 110-16,000 Hz
  • SPL (1 W/1 m): 99 dB
  • Radiation angle (hor./vert.): 110°/60°
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 310x215x330 mm
  • Weight: 4.7 kg
  • Special feature: IP66, ABS, 2-way
  • Replacement voice coil: -

Price per unit   (Order No. mo-162570) EUR 216,20 excl. VAT: € 181.68 / $ 214.38


Weatherproof horn speaker (music horn), 2-way technology IT-300TW

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

  • 100 V line technique with high power taps
  • Weatherproof and IP66 certified
  • Very wideband sound with a distinct bass volume
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
  • Robust light grey ABS plastic housing
  • Supplied with mounting bracket and stainless steel screws
  • Connection via screw terminal strip with 4 power taps
Specifications:
  • Power rating: 30/15/7.5/3.75 WRMS
  • Frequency range: 100-15,000 Hz
  • SPL (1 W/1 m): 101 dB
  • Radiation angle (hor./vert.): 100°/60°
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 370x250x300 mm
  • Weight: 4.7 kg
  • Special feature: IP66, ABS, 2-way
  • Replacement voice coil: -

Price per unit   (Order No. mo-162230) EUR 325,50 excl. VAT: € 273.53 / $ 322.76


Weatherproof horn speaker (music horn), 2-way technology IT-400TW

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

Weatherproof horn speaker (music horn), 2-way technology

  • 100 V line technique with very high tapping power
  • Weatherproof and IP66 certified
  • Very wideband sound with a distinct bass volume, even at very high volume levels
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
  • Robust plastic housing with extra low resonance and very high rear dampening
  • Supplied with mounting bracket and screws made of stainless steel
  • Connection via screw terminals with 4 power taps
Specifications:
  • Power rating: 60/30/15/7.5 WRMS
  • Frequency range: 100-15,000 Hz
  • SPL (1 W/1 m): 101 dB
  • Radiation angle (hor./vert.): 100°/60°
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 420x335x400 mm
  • Weight: 7.1 kg
  • Special feature: IP66, ABS, 2-way
  • Replacement voice coil: -

Price per unit   (Order No. mo-162580) EUR 343,30 excl. VAT: € 288.49 / $ 340.42
